The LP XDT series provides superior power needed to excavate a variety of wet and dry materials efficiently.

Find A Dealer Request More Info

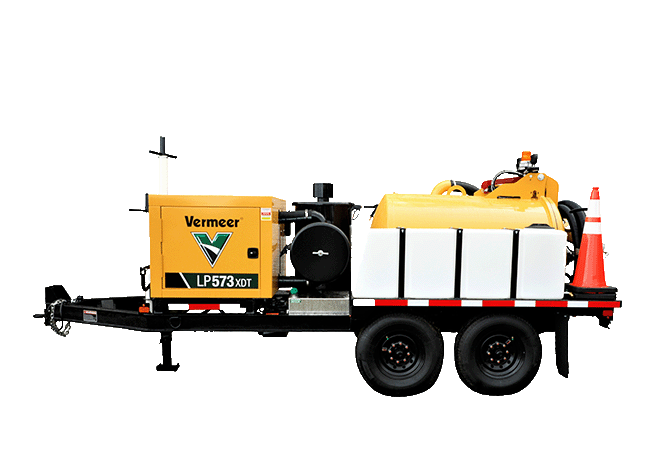

The LP XDT trailer vac series configuration package includes a Kohler diesel engine for economical operation and quiet performance.

The LP XDT series provides superior power needed to excavate a variety of wet and dry materials efficiently.

The LP XDT trailer vac series configuration package includes a Kohler diesel engine for economical operation and quiet performance. Find A Dealer Request More Info

Features & Benefits

Cyclone four-way valve silencer (CVS) filtration system

The CVS filter housing has a .5 micron filtration that contains the four-way valve for reverse pressure and an oversized silencer for quiet operation. The silencer is located inside the 28-in (71-cm) diameter cyclone.

Rear hydraulic claw door

Rear hydraulic claw door has an over-center locking mechanism for a no-fuss positive lock and unlock.

I beam trailer

Units are built from start to finish at our factory, including the trailer which consists of a sturdy I beam construction.

Strong arm (option)

With 270-degree rotation, the strong arm supports the weight of the vacuum hose, and the roller head allows for ease of handling by allowing smooth, fluid movements and adjustments.

Side hose and tooling storage (option)

The new side hose and tooling (SHT) package allows for 60 ft (18 m) of suction hose storage on a trailer-mounted unit. This option doubles the traditional 30-ft (9-m) hose storage.

FlowMaster (option)

The FlowMaster option can be used to hydraulically exercise water valves and hydrants, making sure they will work properly in times of need.

Specifications

Compare Models
Show Metric
  • Trailer

    • Compatibility 500-gal (1892.7-L) spoil tank option
    • Length 231 in (586.7 cm)
    • Width 92 in (234 cm)
    • Height 95 in (241 cm)
    • Empty weight 6300 lbs (2807.7 kg)
    • Gross Vehicle Weight Rating (GVWR) 9995 lbs (4534 kg)/12000 lbs (5443.1 kg)
    • Trailer axles (2) 7000 lbs (3175 kg)
    • Hitch Type Pintle
  • Trailer - Option two

    • Compatibility 800-gal (3028.3-L) spoil tank option
    • Length 268.8 in (682.8 cm)
    • Width 92 in (234 cm)
    • Height 95 in (241 cm)
    • Empty weight 7400 lbs (3357 kg)
    • Gross Vehicle Weight Rating (GVWR) 14000 lbs (6350 kg)
    • Trailer axles (2) 7000 lbs (3175 kg)
    • Hitch Type Pintle
  • Trailer - Option three

    • Compatibility 1200-gal (4542.5-L) spoil tank option
    • Length 265 in (673 cm)
    • Width 102 in (259 cm)
    • Height 122 in (310 cm)
    • Empty weight 9400 lbs (4264 kg)
    • Gross Vehicle Weight Rating (GVWR) 24000 lbs (10886.2 kg)
    • Trailer axles (2) 12000 lbs (5443.1 kg)
    • Hitch Type Pintle
  • Trailer - Option four

    • Compatibility 500-gal (1892.7-L) heavy spoil tank option
    • Length 231 in (586.7 cm)
    • Width 97 in (246.4 cm)
    • Height 95 in (241 cm)
    • Empty weight 6300 lbs (2858 kg)
    • Gross Vehicle Weight Rating (GVWR) 14000 lbs (6350 kg)
    • Trailer axles (2) 7000 lbs (3175 kg)
    • Hitch Type Pintle
  • Trailer - Option five

    • Compatibility 800-gal (3028.3-L) heavy spoil tank option
    • Length 268.8 in (682.8 cm)
    • Width 102 in (259 cm)
    • Height 95 in (241 cm)
    • Empty weight 7500 lbs (3402 kg)
    • Gross Vehicle Weight Rating (GVWR) 20000 lbs (9071.9 kg)
    • Trailer axles (2) 10000 lbs (4535.9 kg)
    • Hitch Type Pintle
  • Engine

    • Make and Model Kohler Diesel Tier 4 Final
    • Horsepower 24 hp (17.9 kW)
    • Fuel tank capacity or type 30 gal (114 L)
    • Enclosure Yes
  • Water tank

    • Compatibility 500-gal (1892.7-L) spoil tank option
    • Water capacity 200 gal (757 L)
    • Number of Tanks 2
    • High pressure pump flow rate 4 gpm (15.1 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 50 ft (15 m)
    • Low Water Shutoff Yes
  • Water tank - Option two

    • Compatibility 800-gal (3028.3-L) spoil tank option
    • Water capacity 200 gal (757 L)
    • Number of Tanks 2
    • High pressure pump flow rate 4 gpm (15.1 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 50 ft (15 m)
    • Low Water Shutoff Yes
  • Water tank - Option three

    • Compatibility 1200-gal (4542.5-L) spoil tank option
    • Water capacity 400 gal (1514 L)
    • Number of Tanks 2
    • High pressure pump flow rate 4 gpm (15.1 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 50 ft (15 m)
    • Low Water Shutoff Yes
  • Water tank - Option four

    • Compatibility 500-gal (1892.7-L) heavy spoil tank option
    • Water capacity 300 gal (1136 L)
    • Number of Tanks 2
    • High pressure pump flow rate 4 gpm (15.1 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 50 ft (15 m)
    • Low Water Shutoff Yes
  • Water tank - Option five

    • Compatibility 800-gal (3028.3-L) heavy spoil tank option
    • Water capacity 400 gal (1514 L)
    • Number of Tanks 2
    • High pressure pump flow rate 4 gpm (15.1 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 50 ft (15 m)
    • Low Water Shutoff Yes
  • Spoil Tank

    • Compatibility 500-gal (1892.7-L) spoil tank option
    • Spoil tank capacity 500 gal (1892.7 L)
    • Door type Hydraulic
    • Tank Lift Type Hydraulic
  • Spoil tank - Option two

    • Compatibility 800-gal (3028.3-L) spoil tank option
    • Spoil tank capacity 800 gal (3028.3 L)
    • Door type Hydraulic
    • Tank Lift Type Hydraulic
  • Spoil tank - Option three

    • Compatibility 1200-gal (4542.5-L) spoil tank option
    • Spoil tank capacity 1200 gal (4542.5 L)
    • Door type Hydraulic
    • Tank Lift Type Hydraulic
  • Spoil tank - Option four

    • Compatibility 500-gal (1892.7-L) heavy spoil tank option
    • Spoil tank capacity 500 gal (1892.7 L)
    • Door type Hydraulic
    • Tank Lift Type Hydraulic
  • Spoil tank - Option five

    • Compatibility 800-gal (3028.3-L) heavy spoil tank option
    • Spoil tank capacity 800 gal (3028.3 L)
    • Door type Hydraulic
    • Tank Lift Type Hydraulic
  • Vacuum

    • Type of Filters Cartridge filter 0.5 microns
    • Hose length 30 ft (9 m)
    • Hose width/diameter 3 in 7.6 cm
    • Air flow 580 cfm (16 cubic m/min)
    • Vacuum blower type PD blower
    • Vacuum Mercury 14 inHg (0.4 bar)
  • Control panel

    • Controls Curbside
    • Gauges Analog
  • Options

    • Hot box Optional
    • Strong arm Optional
    • Side hose and tooling storage (SHT package) Optional
    • Recirculation kit Optional
    • Flowmaster Optional
    • Hydraulic jack Optional
    • Reverse Pressure Standard
