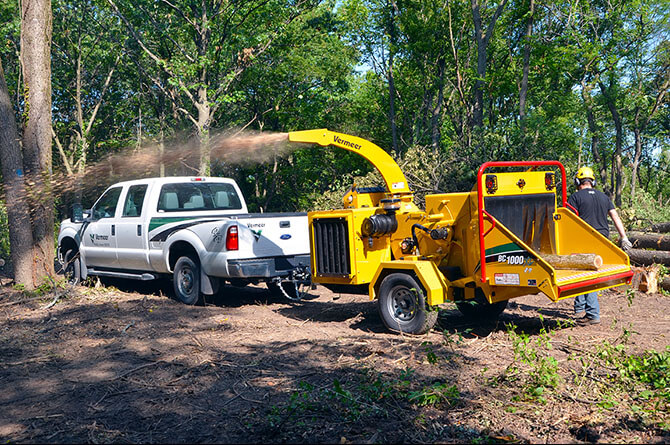

The heavy-duty Vermeer BC1000XL brush chipper with its all-steel engine enclosure is designed to hold up for the long haul.

Find A Dealer Request More Info

Enhanced with the modern day operator in mind, the BC1000XL is available with either a Tier 4 Final 49-hp or 74-hp (36.4-kW or 55-kW) engine that meets all the latest emission regulations. When transporting the machine, expect smooth towing thanks to the rubber-torsion suspension.

The heavy-duty Vermeer BC1000XL brush chipper with its all-steel engine enclosure is designed to hold up for the long haul.

Enhanced with the modern day operator in mind, the BC1000XL is available with either a Tier 4 Final 49-hp or 74-hp (36.4-kW or 55-kW) engine that meets all the latest emission regulations. When transporting the machine, expect smooth towing thanks to the rubber-torsion suspension.

Find A Dealer Request More Info

Features & Benefits

25-gal (94.6 L) fuel tank

Keep up the pace because the BC1000XL comes with a 25-gal (94.6 L) fuel tank that lets you put in more hours before refueling.

Minimized maintenance

Minimize maintenance because once the shield is opened, belts can be changed without tools, and the clutchless PTO system eliminates the need to slide the engine.

Patented bottom feed stop bar

Provides operator safety with the patented bottom feed stop bar. The four-position upper feed control bar with dual stop positions and forward/reverse feed positions mounts over the feed table and enables the operator to stop the feed rollers and select forward or reverse operations.

Specifications

Compare Models
Show Metric
  • General Dimensions and Weights

    • Length - Feed Table Up, Tongue In 160 in 406.4 cm
    • Length - Table Down, Tongue Extended 208 in 528.3 cm
    • Width 66.5 in 168.9 cm
    • Height 101 in 256.5 cm
    • Weight - Engine Option One 4995 lbs 2265.7 kg
    • Weight - Engine Option Two 4995 lbs 2265.7 kg
    • Tongue Weight - Engine Option One 600 lbs 272.2 kg
    • Tongue Weight - Engine Option Two 600 lbs 272.2 kg
  • Engine - Option one

    • Make and Model Deutz D2.9L Tier 4 Final
    • Number of Cylinders 4
    • Gross Horsepower (Maximum) 74 hp 55.2 kw
    • Torque (Max) 181 ft-lb 245.4 Nm
    • Fuel Tank Capacity 25 gal 94.6 L
    • Max Fuel Consumption 4.6 gph 17.4 lph
    • Fuel Type Diesel
    • Air Cleaner 2-stage dry with safety element
    • Oil Filter Spin-on
    • Recommended Oil 10W30
    • Oil Volume with Filter 8.4 qt 7.9 L
    • Maximum Angle of Continuous Operation 30 deg
    • Cooling Medium Liquid
    • Coolant Capacity (Engine and Radiator) 13.3 gal 50.3 L
    • Alternator 95 Amp
    • Fan 18.625" (47.3 cm) suction
    • Clutch Type Clutchless PTO
    • Clutch Drive Engagement Belt tensioner
  • Engine - Option two

    • Make and Model Deutz TD2.9L Tier 4 Final
    • Number of Cylinders 4
    • Gross Horsepower (Maximum) 49 hp 36.5 kw
    • Torque (Max) 108 ft-lb 146.4 Nm
    • Fuel Tank Capacity 25 gal 94.6 L
    • Max Fuel Consumption 3 gph 11.4 lph
    • Fuel Type Diesel
    • Air Cleaner 2-stage dry with safety element
    • Oil Filter Spin-on
    • Recommended Oil 10W30
    • Oil Volume with Filter 8.4 qt 7.9 L
    • Maximum Angle of Continuous Operation 30 deg
    • Coolant Capacity (Engine and Radiator) 2.9 gal 11 L
    • Cooling Medium Liquid
    • Alternator 95 Amp
    • Fan 15" (38.1 cm) suction
    • Clutch Type Clutchless PTO
    • Clutch Drive Engagement Belt tensioner
  • Feed System

    • Feed Roller Orientation Horizontal
    • Number of Feed Rollers 1
    • Feed Roller Clamp Load 350 lbs 158.8 kg
    • Feed Roller Minimum Distance to Drum 1 in 2.5 cm
    • Feed Roller Dimension 20" x 17" (50.8 cm x 43.2 cm)
    • Number of Knives 2
    • Weight of Feed Roller 400 lbs 181.4 kg
    • Number of Feed Roller Motors 1
    • Motor Displacement 28.3
    • Motor Manufacturer White
    • Feed Speed 105 ft/min
    • Infeed Table Width 52 in 132.1 cm
    • Infeed Table Length 32 in 81.3 cm
    • Infeed Hopper Height 12 in 30.5 cm
    • Infeed Throat Capacity 12" H x17" W (30.5 cm H x 43.2 cm W)
    • Pinch Point - Distance to End of Feed Table 66.5 in 168.9 cm
    • Distance from Feed Table to Ground 26 in 66 cm
    • Infeed Table Material Thickness .2 in .5 cm
  • Safety System

    • Bottom Feed Stop Bar Standard
    • Bottom Feed Stop Bar Diameter 2 in 5.1 cm
    • Bottom Feed Stop Bar Material Thickness 11 GA
    • Actuation Force (BFSB) 34 lbs 15.4 kg
    • Normal Sensitivity 22 deg
    • Reduced Sensitivity 12 deg
    • Reset Method Green hold-to-run button
    • Four Position Feed Control Bar Standard
    • Positions 4: E-stop, forward, neutral and reverse
    • Actuation Force 34 lbs 15.4 kg
    • Green Hold to Run Button Standard
  • Drum/Disc Cutting System

    • Material Capacity 12 in 30.5 cm
    • Width 20 in 50.8 cm
    • Thickness .4 in 1 cm
    • Diameter 20 in 50.8 cm
    • Speed 2050 rpm
    • Weight With Shaft 460 lbs 208.7 kg
    • Safety Lock - Number of Positions 2
    • Number of Knives 2
    • Knife Thickness .6 in 1.6 cm
    • Material A8 chipper steel
    • Useable Edges 2
    • Knife Size 0.63" x 4.5" x 9" (1.6 cm x 11.4 cm x 22.9 cm)
    • Number of Bolts/Knife 4
    • Replaceable Threaded Knife Block Yes
    • Number of Paddles 5
    • Fixture Method Weld-on
    • Bedknife Size 3.5" x 17.3" (8.9 cm x 43.8 cm)
    • Bedknife Thickness 1 in 2.5 cm
    • Bedknife Material 1018
    • Bedknife - Number of Useable Edges 4
  • Cutter Drive Components - Engine Option One

    • Number of Bearings 2
    • Bore 2.4 in 6.1 cm
    • Type Spherical rollers
    • Manufacturer Linkbelt
    • Dynamic Capacity 31400 lbs 14242.8 kg
    • Static Capacity 53500 lbs 24267.2 kg
    • Belt Idler/Tensioner Yes
    • Belt Type 5V
  • Discharge System

    • Chute Height 101 in 256.5 cm
    • Chute Rotation Angle 270 deg
    • Rotation Type Rotation handle with pin lock
    • Rotational Lock Yes
  • Hydraulic System

    • Tank capacity 7 gal 26.5 L
    • Recommended Oil Type Vermeer VMF
    • System Type Tandem center
    • Filtration Method 10 micron return; 100 micron suction
    • Pump Flow at Maximum RPM 2.7 gpm 10.2 L/min
    • System relief pressure 2500 psi 172.4 bar
    • Flow Control No
    • Directional Control Yes
    • Oil Cooler No
  • Electrical System

    • System Voltage 12 Volt
    • Battery Group 31; 950 CCA
    • Standard Gauges MFD, hour
    • Switches Feed Stop Bar Sensitivity, Droop, Ecoldle
    • Controller Vermeer ACS
    • Display Multifunctional display (MFD)
    • Shutdown System Yes
    • Radio Remote Control No
  • Chassis

    • Frame Description 7" (17.78 cm) Z channel; 0.25" (0.64 cm) thickness
    • Tongue Description 2.5" x 4.5" x .25" (6.4 cm x 11.4 cm x .6 cm)
    • Tongue Extension Extendable 24" (61 cm) @ 12" (30.5 cm) increments
    • Hitch Type Pintle
    • Fender Description Bolt-on-steel
    • Axle/Suspension Torsion
    • Type - Option One Rubber torsional
    • Manufacturer - Option One Dexter
    • Capacity - Option One 5200 lb (2358.7 kg)
    • Tires - Option One ST235/80/R16 Load Range E
    • Wheels - Option One 16" (40.6 cm)
    • Axle/Suspension - Option Two Torsion
    • Type - Option Two Rubber torsional
    • Manufacturer - Option Two Dexter
    • Capacity - Option Two 7000 lb (3175.2 kg)
    • Tires - Option Two ST235/80R16 Load Range E
    • Wheels - Option Two 16" x 6" (40.6 cm x 15.2 cm)
    • Brake Type Standard electric or optional hydraulic
    • Trailer Light Type LED
  • Other Options

    • Special Paint Optional
    • Extended Warranty Optional
    • Preventive Maintenance Optional
