A machine equipped with high torque alongside stability and reliability for tough jobs.

Trouver un concessionnaire Demander plus d'infos
Vermeer ATX models are currently available in North America and the Caribbean

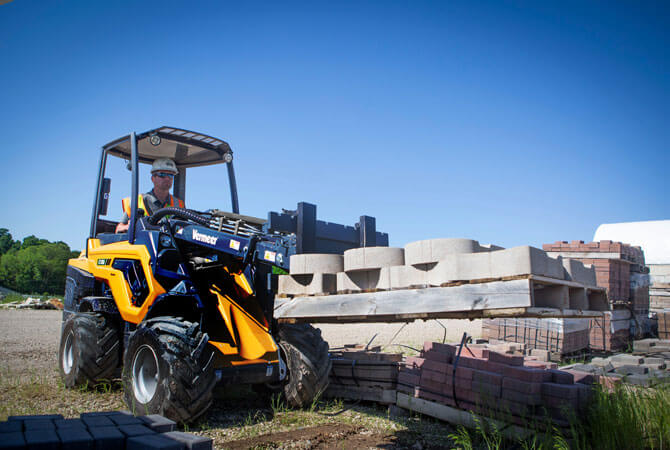

The ATX850 compact articulated loader is built to suit a variety of tough jobs like property maintenance, landscaping or tree work. It is designed with direct drive motors to help grant traction. The main frame design coupled with low center of weight stability and integrated back weights gives the operator control and comfort while doing tough work.

A machine equipped with high torque alongside stability and reliability for tough jobs.

Vermeer ATX models are currently available in North America and the Caribbean

The ATX850 compact articulated loader is built to suit a variety of tough jobs like property maintenance, landscaping or tree work. It is designed with direct drive motors to help grant traction. The main frame design coupled with low center of weight stability and integrated back weights gives the operator control and comfort while doing tough work. Trouver un concessionnaire Demander plus d'infos

Caractéristiques et avantages

Telescopic boom

The telescopic boom on the ATX850 extends 29.1 in (73.9 cm) for loading materials to a dump height of 117.3 in (297.9 cm) in hinge pin height. The telescopic boom can also aid in dumping material over the back side of a retaining wall or grabbing material over an obstruction.

Compact size

With narrow tires, the ATX850 is 42.1-in (106.9-cm) wide, while the wider tires make the machine 50.4-in (128-cm) wide. Both configurations allow the ATX850 to fit through a standard four-foot gate for backyard access on landscape jobs. The overall length of the ATX850 is 120.3 in (305.6 cm).

Lift-to-weight ratio

The ATX850 has a rated operating capacity (straight) of 1,590 lb (721 kg)* while having a standard weight of 4,254 lb (1,930kg) with rear weights and without attachments. This lift-capacity-to-weight ratio allows contractors to utilize a lighter machine while still being able to carry heavy materials on the jobsite.

*Operating capacities show the rear counterweights installed and rated for a bucket application at 50% of the tipping load per 1SO 14397.


Multifunction joystick

The multifunction joystick utilizes electric-over-hydraulic toggles for ease of access to machine functions like the telescopic boom, auxiliary hydraulic controls and the Dynamic Blocking System (DBS). The operator does not have to remove their hand from the loader arm controls in order to function any of these features.

Four-wheel drive hydrostatic direct drive motors

As each wheel has a hydrostatic direct drive motor, hydraulic oil can flow freely to each wheel as needed during transport to help reduce ground disturbance on turf when making turns. The four-wheel drive hydrostatic direct drive motors also allow for the use of the DBS and torque divider to increase tractive effort in difficult conditions.

Multi-tool attachment plate

The ATX850 can be fitted with various authorized attachments to meet the jobsite need, may that be for snow removal, landscaping and tree care work or various other applications.

Caractéristiques techniques

Comparaison des modèles
  • Général

    • Longueur 120.3 in 305.6 cm
    • Largeur 50.4 in 128 cm
    • Hauteur 80.3 in 204 cm
    • Poids 4254 lbs 1929.6 kg
    • Pression au sol 92,5 kg/m²
    • Garde au sol 9.5 in 24.1 cm
    • Angle d'attaque arrière avec poids arrière 19 deg
  • Moteur

    • Marque et modèle Kohler KDI1903
    • Type de carburant Diesel
    • Capacité du réservoir de carburant 9 gal 34.1 L
    • Puissance brute 42,5 kW (57 cv)
    • Circuit de refroidissement Liquide
    • Transmission Hydrostatique
  • Performances

    • Capacité de fonctionnement nominale (droit) 1590 lbs 721.2 kg
    • Capacité de fonctionnement nominale (articulé) 1351 lbs 612.8 kg
    • Capacité de basculement (droit) 3177 lbs 1441.1 kg
    • Capacité de basculement (articulé) 2701 lbs 1225.2 kg
    • Rayon de braquage : intérieur/extérieur 82,5 cm / 209 cm
    • Pneus standard 26x12.00-12.ET-50
    • Hauteur du point d'articulation (flèche déployée) 117.3 in 297.9 cm
    • Portée avec flèche horizontale (flèche déployée) 46.6 in 118.4 cm
    • Vitesse de déplacement 14 km/h - 28 km/h
  • Circuit hydraulique

    • Débit d’huile du système hydraulique auxiliaire 20 gpm 75.7 L/min
    • Capacité du réservoir d’huile hydraulique 11.1 gal 42 L
