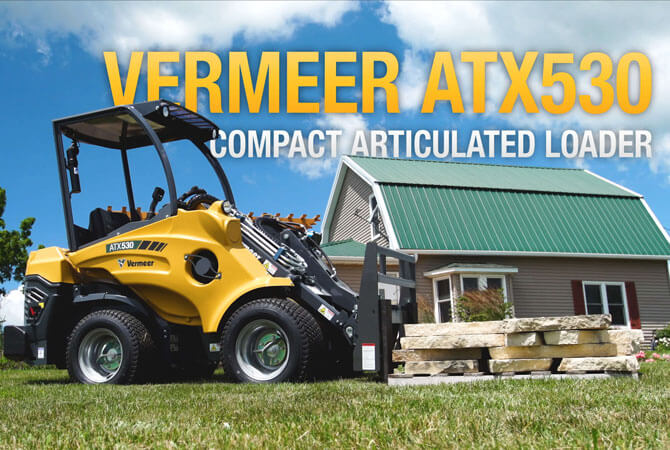

ATX530 Compact Articulated Loaders
The telescopic boom combined with compact size of Vermeer articulated loaders give you the ultimate choice for demanding work.Find A Dealer Request More Info
The ATX530 mini articulated loader is made for tough work in tight spaces. Designed with high torque from the Kubota D1305 engine at low revs gives the hydraulic controls and circuits a smooth and reactive output. With impressive telescopic boom outreach and maximum control with the multifunctional joystick, this unit is ready to take on the job.
The telescopic boom combined with compact size of Vermeer articulated loaders give you the ultimate choice for demanding work.
The ATX530 mini articulated loader is made for tough work in tight spaces. Designed with high torque from the Kubota D1305 engine at low revs gives the hydraulic controls and circuits a smooth and reactive output. With impressive telescopic boom outreach and maximum control with the multifunctional joystick, this unit is ready to take on the job. Find A Dealer Request More Info
Features & Benefits

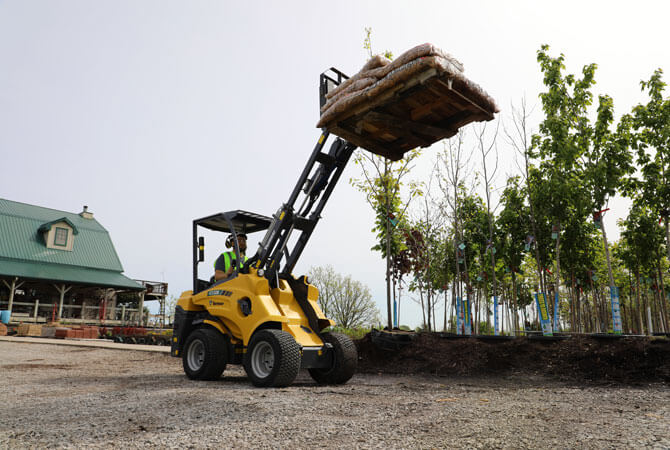

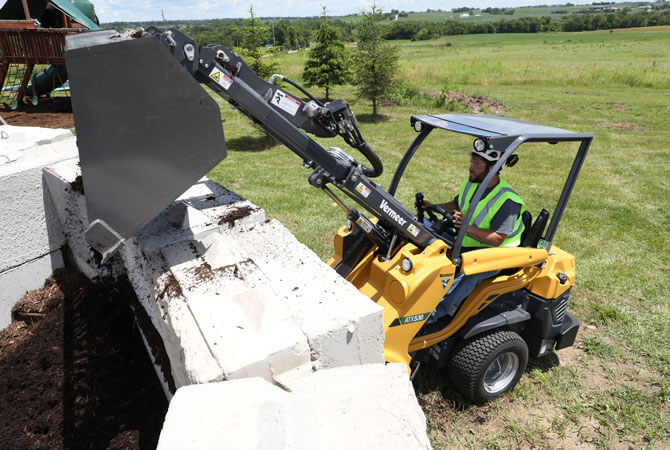

The telescopic boom on the ATX530 extends 21.6 in (54.9 cm) for loading materials to a dump height of 108.3 in (275.1 cm) in hinge pin height. The telescopic boom can also aid in dumping material over the backside of a retaining wall or grabbing material over an obstruction.

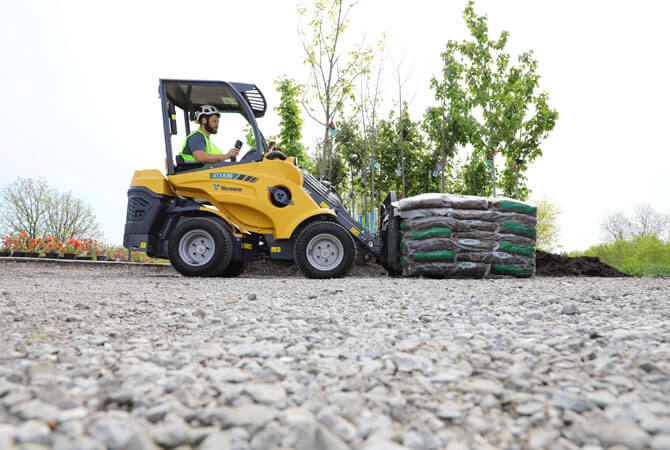

With narrow tires, the ATX530 is 40.9-in (103.9-cm) wide, while the wider tires make the machine 47.2-in (119.9 cm) wide. Both configurations allow the ATX530 to fit through a standard four-foot gate for backyard access on landscape jobs. The overall length of the ATX530 is 98.4 in (249.9 cm).

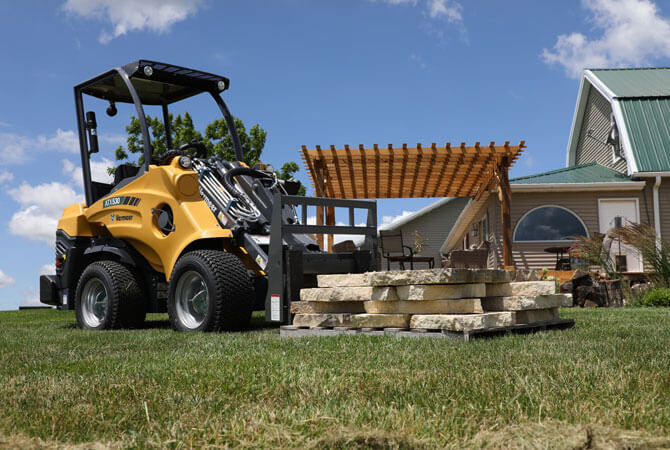

The ATX530 has a rated operating capacity (straight) of 1,492 lb (767.8 kg)* while having a standard weight of 2711 lb (1229.7 kg) with rear weights and without attachments. This lift-capacity-to-weight ratio allows contractors to utilize a lighter machine while still being able to carry heavy materials on the jobsite.
*Operating capacities show the rear counterweights installed and rated for a bucket application at 50% of the tipping load per 1SO 14397
The multifunction joystick utilizes electric-over-hydraulic toggles for ease of access to machine functions like the telescopic boom, auxiliary hydraulic controls and the DBS. The operator does not have to remove their hand from the loader arm controls in order to function any of these features.
Four-wheel drive hydrostatic direct drive motors
As each wheel has a hydrostatic direct drive motor, hydraulic oil can flow freely to each wheel as needed during transport which helps reduce ground disturbance on turf when making turns. The four-wheel drive hydrostatic direct drive motors also allow for the use of the DBS and torque divider to increase tractive effort in difficult conditions.
Multi-tool attachment plate

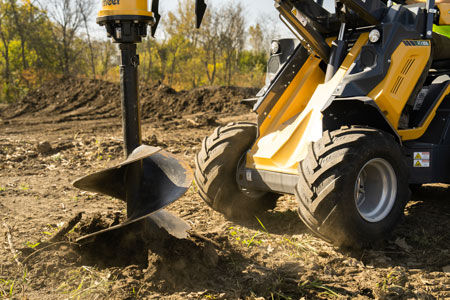

The ATX530 can be fitted with various authorized attachments to meet the jobsite need, may that be for snow removal, landscaping and tree care work, or various other applications
- Length 98.4 in 249.9 cm
- Width 42.9 in 109 cm
- Height 77.2 in 196.1 cm
- Weight 2756 lbs 1250.1 kg
- Ground pressure 156 lb/sq ft (70.8 kg/m²)
- Ground Clearance 7.9 in 20.1 cm
- Angle of departure with rear weights 19 deg
- Make and Model Kubota D1305
- Fuel Type Diesel
- Fuel Tank Capacity 6.3 gal 23.8 L
- Gross horsepower 25 hp (18.6 kW) (85 Nm @ 1700 rpm)
- Cooling System Liquid
- Transmission Hydrostatic
- Rated operating capacity (straight) 1492 lbs 676.8 kg
- Rated operating capacity (articulated) 1268 lbs 575.2 kg
- Tipping capacity (straight) 1865 lbs 845.9 kg
- Tipping capacity (articulated) 1585 lbs 718.9 kg
- Turning radius: inside/outside 31.5 in/78.7 in (80 cm/199.9 cm)
- Standard tires 23X10.50-12 ET-25
- Pivot point height (extended boom) 108.3 in 275.1 cm
- Outreach with horizontal boom (extended boom) 35.4 in 89.9 cm
- Travel Speed 5.8 mph 9.3 km/h
- Auxiliary hydraulics oil flow 13.2 gpm 50 L/min
- Hydraulic oil tank capacity 7.9 gal 29.9 L
Current Special Offers
0% financing on Vermeer compact articulated loaders
More from your machine
Paving the way for tree care business growth with a compact articulated loader
With the help of the Vermeer ATX530 compact articulated loader, Randy Looney of Bluegill’s Tree Service LLC is seeing business growth in the next year from day-to-day operations to long-term business management.Learn how

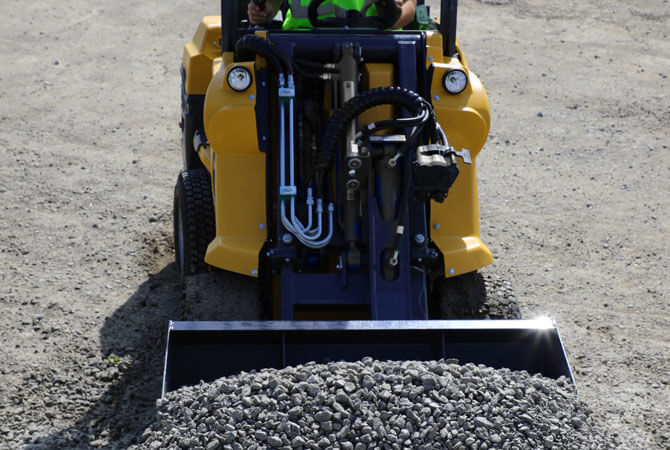

Consider the boom design when shopping for a compact articulated loader
