Designed with toughness, compactness and ease of maintenance in mind.

Find A Dealer Request More Info

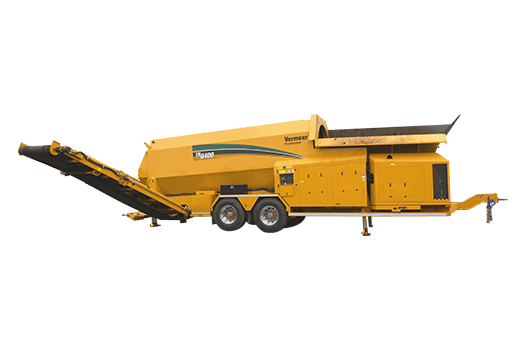

The TR6400 trommel screen was designed with toughness, compactness and ease of maintenance in mind. The 100 hp (75 kW) Deutz Tier 4 Final engine, combined with a 6 ft (1.8 m) by 20 ft (6.1 m) drum is ideal for topsoil, compost and woody biomass applications.

Designed with toughness, compactness and ease of maintenance in mind.

The TR6400 trommel screen was designed with toughness, compactness and ease of maintenance in mind. The 100 hp (75 kW) Deutz Tier 4 Final engine, combined with a 6 ft (1.8 m) by 20 ft (6.1 m) drum is ideal for topsoil, compost and woody biomass applications.

Find A Dealer Request More Info

Features & Benefits

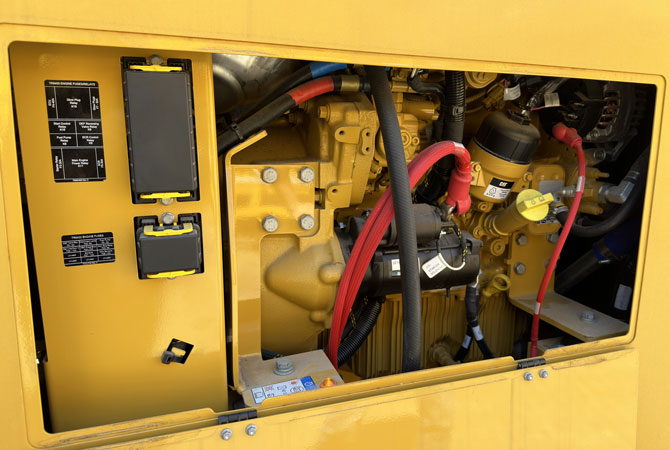

Foldout motor compartment

The foldout motor compartment allows access to the backside of the engine for maintenance and cleanout.

Easy access to trommel drum

The drum access is convenient, allowing access from the ground.

Auger drum option

An auger drum option allows for consistency of finished screened material.

Tension screen capabilities

With the ability to tension the screen around the drum, operators can add rigidity to the screens. This design allows the use of smaller gauge wire, ultimately increasing the open area of the screen to help improve productivity.

Chain sprocket drive

The chain sprocket drive maintains a positive drive connection while eliminating the need for a chain to wrap around the drum.

Ease of maintenance

Built for ease of maintenance with various access points to critical areas allowing the operator to efficiently maintain the machine.

Specifications

Compare Models
  • General Dimensions and Weights

    • Weight 41900 lbs 19005.5 kg
    • Hitch Weight 2200 lbs 997.9 kg
    • Transport Length 40 ft 12.2 m
    • Transport Width 99 in 251.5 cm
    • Transport Height 13.2 ft 4 m
    • Operation Length 54.2 ft 16.5 m
    • Operation Width 295 in 749.3 cm
    • Operation Height 16.7 ft 5.1 m
    • Capacity approximately 175 cu yd per hour (134 cu m per hour) with 0.5" (1.3 cm) screens installed and material with moisture less than 40%
  • Engine - Option one

    • Make and Model Deutz 3.6L Tier 4F (Stage IV)
    • Number of Cylinders 4
    • Engine Rating 100 hp
    • Fuel Tank Capacity 50 gal 189.3 L
    • Fuel Consumption 3 gph (11.4 Lph)
    • Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles) 30 deg
    • Battery 950 CCA
    • Oil Filter Spin-on
    • Recommended Oil Mobil 15W40
    • Oil Volume with Filter 10 qt 9.5 L
    • System Voltage 12 V, 120 amp alternator
    • Air Cleaner Dual element
    • Radiator Fan Suction
  • Hydraulic System

    • Operation 77.8 gpm @ 3000 psi (294.5 L/min @ 207 bar)
    • Tank capacity 80 gal 302.8 L
  • Chassis

    • Frame Description Four independent hydraulic jacklegs
    • Axle/Suspension Leaf spring
    • Tires - Option One 385/65 R22.5 (J)
  • Hopper and Apron Conveyor

    • Hopper Capacity 6.5 cu yd 5 cu m
    • Hopper Bottom Width 37.5 in 95.3 cm
    • Apron Conveyor Speed 0-15 ft/min
    • Apron Opening Height 45 in 114.3 cm
    • Apron Opening Width 37.5 in 95.3 cm
    • Hopper Height 9.5' from ground level at operating incline
    • Hopper Opening 11.7' x 5.3'
    • Apron Conveyor Length 12.4 ft 3.8 m
    • Apron Conveyor Belt Width 42 in 106.7 cm
    • Apron Conveyor Rollers 5" CEMA "D" x 17
  • Screen Drum

    • Drum Operation 0-33.1 gpm (0-125.3 L/min)
    • Drum Motor 35.5 cu in (630 cu cm) displacement
    • Drum Diameter 6.5 ft 2 m
    • Drum Support Description 8 polyurethane trunnion wheels on pivoting bogeys 8" od x 4" wide
    • Drum Length 19.7 ft 6 m
    • Thrust Bearing Diameter 4 in 10.2 cm
    • Thrust Bearing Face 2 in 5.1 cm
    • Drum Speed 0-25 rpm
    • Drum Drive Chain 140 extended pin/extended width
    • Drum Angle Adjustability 0-5 degrees
    • Maximum Screen Panels 8
  • Screen Brushes

    • Brush Diameter 14 in 35.6 cm
    • Bristle Material Polyethylene
    • Brush Assembly Support Two 1.25" sealed ball bearings/brush
  • Collecting Conveyor

    • Conveyor Motor Displacement 16.7 cu-in 273.7 cu-cm
    • Fines Conveyor Length 16 ft 4.9 m
    • Fines Belt Speed 360 ft/min 109.7 m/min
    • Conveyor Belt Width 36 in 91.4 cm
    • Conveyor Belt Type 220 lb (99.8 kg), 2 ply, 2/16" x 1/16" (4.8 mm x 1.6 mm)
    • Head/Tail Pulley Type 8" crowned
    • Head Pulley Bearing 1 3/4" double roller
    • Rubber Flashing Adjustable corded rubber
    • Idler Type 4" CEMA "B" straight
    • Tail Pulley Takeup 6 in 15.2 cm
    • Self-Cleaning Return Idlers 4" rubber disk x 3
    • Fines Conveyor Frame Part of trailer frame
  • Fines Conveyor

    • Conveyor Motor Displacement 14.2 cu-in 232.7 cu-cm
    • Fines Conveyor Length 23.5 ft 7.2 m
    • Fines Belt Speed 400 ft/min 121.9 m/min
    • Conveyor Belt Width 36 in 91.4 cm
    • Conveyor Belt Type 220 lb (99.8 kg), 2 ply, 2/16" x 1/16" (4.8 mm x 1.6 mm) smooth
    • Conveyor Belt Stacking Height 10.5 ft (3.2m) (conveyor @ 25 degrees)
    • Head Pulley Type 8" crowned
    • Head Pulley Bearing 1.5" pillow block
    • Troughing Idler Type 20 degrees CEMA "B" with permanently sealed bearings spaced at 40" centers
    • Self-Cleaning Tail Pulley Dimensions 8" diameter, 38" wide, crowned wing pulley, 1.75" shaft
    • Head Pulley Takeup 8 in 20.3 cm
    • Self-Cleaning Return Idlers 2, 4" diameter, 1, 5" diameter, "rattle roller"
    • Fines Conveyor Frame Engineered structural frame
  • Overs Conveyor - Option 1

    • Overs Conveyor Length 19.2 ft 5.9 m
    • Maximum Variable Overs Belt Speed 360 ft/min 109.7 m/min
    • Conveyor Belt Size 42 in (106.7 cm)
    • Conveyor Belt Type 220 lb (99.8 kg), 2 ply, 2/16" x 1/16" (4.8 mm x 1.6 mm) cleated
    • Conveyor Belt Stacking Height 9' (2.74 m) (conveyor @ 25 degrees)
    • Head Pulley Type 8" crowned
    • Head Pulley Bearing 1.5" pillowed block
    • Self-Cleaning Tail Pulley Dimensions 8" diameter, 44" wide, crowned wing pulley, 1.75" shaft
    • Head Pulley Takeup 8 in 20.3 cm
    • Self-Cleaning Return Idlers 2, 4" diameter; 1, 5" diameter, "rattle roller"
    • Overs Conveyor Frame Engineered structural frame
    • Troughing Idler Type 20 degrees CEMA "B" with permanently sealed bearings spaced at 32" centers

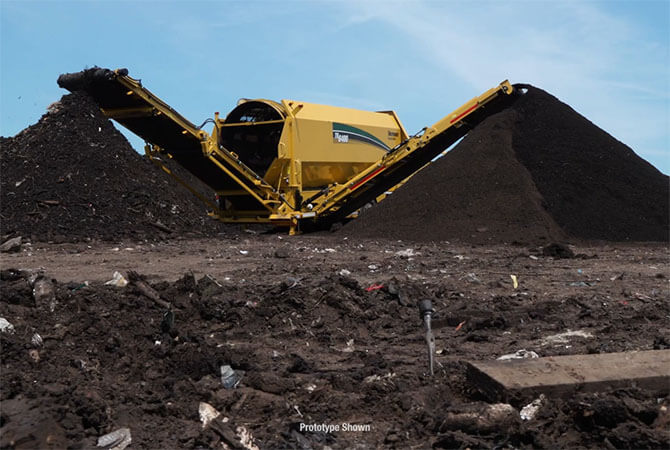

See it in action
