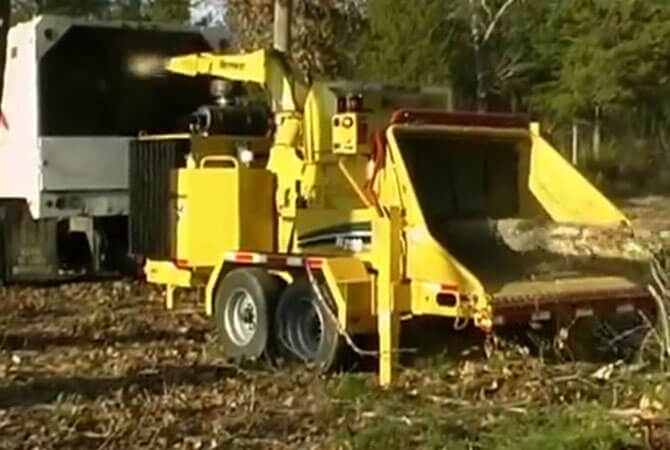

Engineered for high-volume processing, the BC2100XL bullies through wood waste.

Find A Dealer Request More Info

Engineered for high-volume processing, the BC2100XL bullies through wood waste up to 21 ft (53.3 cm) in diameter. The combination of the exclusive Vermeer SmartCrush feature and two patent-pending horizontal feed rollers produce a theoretical 10,000 lb (4,535.9 kg) of combined pulling force. Choose from one of three Cummins diesel engine options. Add on the optional winch to lift up to 4000-lb (1814.4-kg) logs directly onto the feed table.

Engineered for high-volume processing, the BC2100XL bullies through wood waste.

Engineered for high-volume processing, the BC2100XL bullies through wood waste up to 21 ft (53.3 cm) in diameter. The combination of the exclusive Vermeer SmartCrush feature and two patent-pending horizontal feed rollers produce a theoretical 10,000 lb (4,535.9 kg) of combined pulling force. Choose from one of three Cummins diesel engine options. Add on the optional winch to lift up to 4000-lb (1814.4-kg) logs directly onto the feed table.

Find A Dealer Request More Info

Features & Benefits

SmartFeed system

Improve productivity with the SmartFeed system, which monitors engine rpm and senses jams, automatically stopping or reversing the rollers as needed.

Improved operator safety

Provides operator safety with a 60.5-in (153.7-cm) feed table for extra distance and exclusive bottom feed stop bar system.

3-year/3000-hour extended limited warranty

Protect your investment with a 3-year/3000-hour extended limited warranty on drum housings, cutter drums, shaft and ring-feeder hubs in addition to the 1-year/1000-hour Vermeer equipment limited warranty.

Specifications

Compare Models
  • Discharge System

    • Chute Height 116 in 294.6 cm
    • Bottom Thickness .1 in 0.3 cm
    • Top Thickness .2 in .5 cm
    • Side Wall Thickness .1 in 0.3 cm
    • Deflector Thickness .1 in 0.2 cm
    • Chute Rotation Angle 270 deg
    • Rotation Type Hydraulic
  • Feed System

    • Feed Roller Orientation Horizontal
    • Number of Feed Rollers 2
    • Feed Roller Clamp Load 3500 lbs 1587.6 kg
    • Feed Roller Clamp Type Hydraulic
    • Feed Roller Minimum Distance to Drum 10 in 25.4 cm
    • Feed Roller Dimension 19" (48.3 cm)
    • Weight of Feed Roller 972 lbs 440.9 kg
    • Feed Roller Dimension (Two) 11" (27.9 cm)
    • Number of Knives (2) 2
    • Motor Displacement 4.9 CID
    • Motor Manufacturer Eaton
    • Feed Speed 100 ft/min
    • Infeed Table Width 72 in 182.9 cm
    • Infeed Table Length 60.5 in 153.7 cm
    • Infeed Hopper Height 38.5 in 97.8 cm
    • Infeed Throat Capacity 40" x 24" (102 cm x 61 cm)
    • Pinch Point - Distance to End of Feed Table 60.5 in 153.7 cm
    • Distance from Feed Table to Ground 30.8 in 78.2 cm
    • Infeed Table Material Thickness .4 in 1 cm
  • Hydraulic System

    • Tank capacity 24 gal 90.9 L
    • Recommended Oil Type Vermeer Hy-Power 68
    • System Type Open center
    • Filtration Method 10 micron return, 100 mesh suction
    • Pump Flow at Maximum RPM 13 gpm 49.2 L/min
    • System relief pressure 2750 psi 189.6 bar
    • Auto Reverse PSI 2550 psi 175.8 bar
    • Directional Control Yes
    • Oil Cooler Yes
  • Chassis

    • Frame Description 2.5" x 8.75" (6.4 cm x 22.2 cm) C-channel
    • Toolbox Description Lockable
    • Tongue Description 2.5" x 4.5" x .38" (6.4 cm x 11.4 cm x 1 cm)
    • Tongue Extension 1" - 12" extension (2.5 cm - 30.5 cm)
    • Hitch Type 3 " (7.6 cm) pintle
    • Fender Description Bolt-on
    • Axle/Suspension Tandem torsion 8000 lb (3628.7 kg) capacity
    • Type - Option One Tandem torsion
    • Manufacturer - Option One Dexter
    • Capacity - Option One 8,000
    • Tires - Option One 235/75R17.5 load range J
    • Wheels - Option One 17.5" x 6.75" (44.5 cm x 17.1 cm) BC of 8 on 6.5" (16.5 cm)
    • Brake Type Electric
    • Trailer Light Type LED
  • Electrical System

    • System Voltage 12 volts
    • Battery 2 - 950 CCA
    • Standard Gauges Tachometer, hour meter, trip meter, coolant temperature, engine oil pressure, battery voltage, engine fault code, engine shutdown light and engine fault warning light
    • Switches Engine speed, SmartFeed droop (non-remote only)
    • Controller C148
    • Shutdown System Coolant temperature, intake manifold temperature, oil pressure
    • Radio Remote Control Engine speed, discharge chute, forward, stop, reverse feed, SmartCrush down pressure level, SmartFeed droop setting and engine stop
  • Winch Option

    • Winch Relief System 1900 psi 131 bar
    • Winch Boom Structure Welded structure
    • Winch Controls Rope in and out; winch boom up and down
    • Winch Rope 9/16" (1.4 cm) double-braided DNEEMA Core
    • Rope Length 150 ft 45.7 m
    • Rope Line Pull 4000 lbs 1814.4 kg
    • Rope Choker Standard Vermeer choker design
  • Drum/Disc Cutting System

    • Material Capacity 21 in 53.3 cm
    • Width 28 in 71.1 cm
    • Thickness .5 in 1.3 cm
    • Diameter 36 in 91.4 cm
    • Speed 1084 rpm
    • Weight With Shaft 1500 lbs 680.4 kg
    • Safety Lock - Number of Positions 4
    • Number of Knives 4
    • Knife Thickness .6 in 1.6 cm
    • Material A8 chipper steel
    • Useable Edges 2
    • Knife Size 5" x 14" (12.7 cm x 35.6 cm)
    • Number of Bolts/Knife 6
    • Replaceable Threaded Knife Block Yes
    • Number of Paddles 4
    • Fixture Method Weld-on
    • Air Flow 3600 cfm
    • Bedknife Size 3" x 27.5" (7.6 cm x 69.9 cm)
    • Bedknife - Number of Useable Edges 4
  • Safety System

    • Bottom Feed Stop Bar Standard
    • Reset Method Green hold to run button
    • Four Position Feed Control Bar Standard
    • Positions Four positions: emergency stop, forward, neutral, and reverse
    • Green Hold to Run Button Standard
  • Other Options

    • Special Paint Optional
    • Extended Warranty Optional
    • Preventive Maintenance Optional
    • Adjustable Height Discharge Chute Optional
    • Remote Control Optional
    • Hydraulic Outriggers Optional
  • General Dimensions and Weights

    • Length - Feed Table Up, Tongue In 235 in 596.9 cm
    • Length - Table Down, Tongue Extended 259 in 657.9 cm
    • Width 95.8 in 243.2 cm
    • Height 116.5 in 295.9 cm
    • Weight - Engine Option One 14700 lbs 6667.8 kg
    • Tongue Weight - Engine Option One 2410 lbs 1093.2 kg
    • Sound Power 86 dB(A)
  • Engine Option One

    • Make and Model Tier 3 Cummins QSB 6.7 L
    • Number of Cylinders 6
    • Gross Horsepower (Maximum) 275 hp 205.1 kw
    • Torque (Max) 730 ft-lb 989.8 Nm
    • Fuel Tank Capacity 65 gal 246.1 L
    • Max Fuel Consumption 15.6 gph 59.1 lph
    • Fuel Type Low sulfur diesel
    • Air Cleaner Two stage dry-fleet guard opti air 1300 series
    • Oil Filter Spin-on
    • Recommended Oil API CH-4/SJ
    • Oil Volume with Filter 16 qt 15.1 L
    • Maximum Angle of Continuous Operation 30 deg
    • Cooling Medium Liquid
    • Coolant Capacity (Engine and Radiator) 7.3 gal 27.6 L
    • Alternator 95 amp Delco-Remy
    • Fan 26" (66 cm) suction
    • Clutch Drive Engagement Clutchless PTO
