The successor to the popular R9x12T reclaimer, the new R600T reclaimer is designed for large-scale pipeline projects with high-volume needs. Equipped with a 600-gpm (2,271.2-L/min) cleaning system that can process over 1,100 gpm (4,163.9 L/min) and a three-tank unit with a total capacity of 7,729 gallons (29,257.4 L), it’s the solution to helping reduce the amount of drilling fluid additives and fresh water required to complete installations.

Drill it. Pump it. Clean it.

The successor to the popular R9x12T reclaimer, the new R600T reclaimer is designed for large-scale pipeline projects with high-volume needs. Equipped with a 600-gpm (2,271.2-L/min) cleaning system that can process over 1,100 gpm (4,163.9 L/min) and a three-tank unit with a total capacity of 7,729 gallons (29,257.4 L), it’s the solution to helping reduce the amount of drilling fluid additives and fresh water required to complete installations. 寻找经销商 索取更多信息

功能和优势

Maximum tank capacity

A three-tank unit offers a total capacity of 7,729 gal (29,257.4 L). A scalped tank, a middle tank and a clean tank combined with a three stage cleaning process help provide a solution that processes over 1,100 gpm (4,163.9 L/min), with true cleaning capacity suited for horizontal directional drilling (HDD) projects in the 600-gpm (2,271.2-L/min) range.

Power flexibility

Contractors can configure the reclaimer with or without the generator set mounted onboard. The option without the generator set onboard includes electrical cables for efficient connections. Contractors have flexibility in both the configurations and the option to lease or own the generator set.

Enhanced shaker deck

Redesigns of the linear motion shaker deck weldment and wedge retention component help reduce weight, increase the available G-force and extend the expected screen life.

Standardized pumps

The commonality of the pumps and motors can help reduce parts inventory, adding to the efficiency of the operation.

Optimal recycling performance

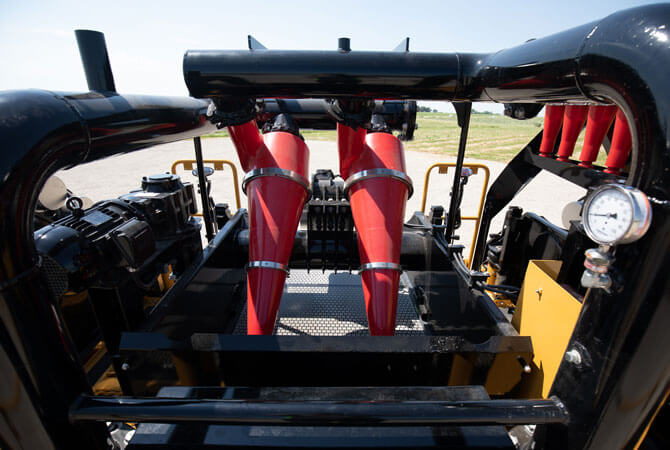

Two 10-in (25.4-cm) desanders and 16 5-in (12.7-cm) desilters remove sand and coarse silts prior to the next stage in the cleaning process, resulting in dry solids.

Desilter manifold

The engineered manifold provides an efficient flow of processed drilling fluid exiting the hydrocyclone, which helps reduce turbulence or excessive vacuum for efficient separation of sands and course silts.

技术规格

比较型号
  • 一般尺寸和重量

    • 重量 53940 lbs 24466.8 kg
    • 车辆总重额定值 (GVWR) 65500 lbs 29710.3 kg
    • 长度 54.2 ft 16.5 m
    • 宽度 8.4 ft 2.6 m
    • 高度 13.5 ft 4.1 m
  • 机架

    • 类型 三轴拖车
    • 悬架 空气悬架
    • 10 个螺栓,导毂,ABS 就绪
    • 证书 DOT 照明和制动
  • 液体箱容量

    • 最大处理量 7729 gal 29257.4 L
    • 泥浆罐数量 3
    • 分选箱容量 3016 gal 11416.8 L
    • 除砂器罐 1934 gal 7321 L
    • 清洁/混合箱容量 2779 gal 10519.7 L
  • 清洁系统

    • 振动筛类型 线性
    • 振动筛数量 4(每个振动筛有 2 台电机)
    • 分离筛面积 - 每个 2.4 平方米
    • 每个振动筛的筛网数量 3
    • 筛网尺寸 63.5 厘米 x 125.2 厘米
    • 清洁能力(首次切割) 600 gpm 2271.2 L/min
    • 除砂器数量/尺寸 (2) 个 25.4 厘米锥筒
    • 除泥器数量/尺寸 (16) 个 12.7 厘米锥筒
  • 手册特点

    • 发电机组 250 千瓦;3 相 480 伏
  • 功能

    • 搅拌器系统 2.2 千瓦,3 相 60 赫兹,460 伏
    • 辅助电气系统 附件设备(加热器、工具等)120 伏电路
    • 工作灯 3 个 LED - 每个 2,750 流明
