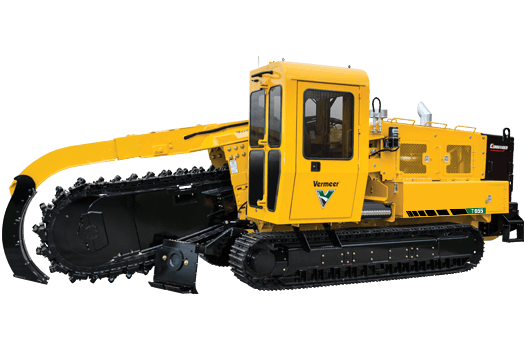

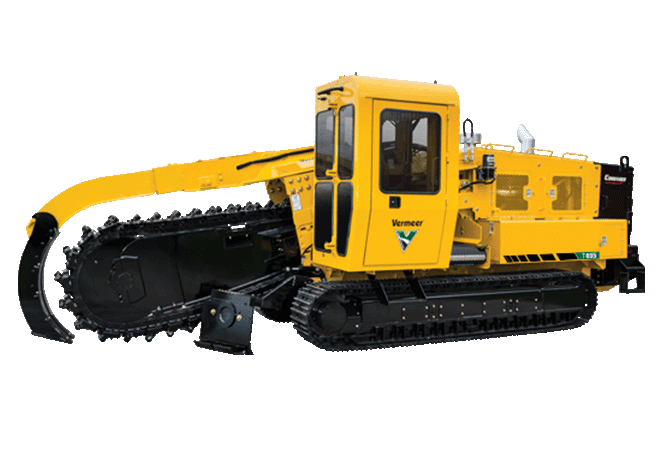

Cut through tough ground conditions with the T655 Commander® 3 tractor with optional trencher, rockwheel or bucket wheel attachment. The optional bucket wheel attachment is designed for the installation of small-diameter cross-country pipelines and helps increase productivity in soft soils, while the optional rockwheel attachment is designed for highway lighting, fiber installation and rock applications. The Tier 3 or Tier 4 Final John Deere 6090 HF diesel engine provides the power to dig up to 8-ft (2.4-m) deep. Low-speed, high-torque splined headshaft motor improves cutting performance and minimizes chain wear, while the exclusive Vermeer SmartTEC electronic control system monitors real-time machine performance.

Cut through tough ground conditions with optional trencher, rockwheel or bucket wheel attachment.

Cut through tough ground conditions with the T655 Commander® 3 tractor with optional trencher, rockwheel or bucket wheel attachment. The optional bucket wheel attachment is designed for the installation of small-diameter cross-country pipelines and helps increase productivity in soft soils, while the optional rockwheel attachment is designed for highway lighting, fiber installation and rock applications. The Tier 3 or Tier 4 Final John Deere 6090 HF diesel engine provides the power to dig up to 8-ft (2.4-m) deep. Low-speed, high-torque splined headshaft motor improves cutting performance and minimizes chain wear, while the exclusive Vermeer SmartTEC electronic control system monitors real-time machine performance.

Find A Dealer Request More Info

Features & Benefits

Optional auto tilt rack

An oscillating track frame allows the track to follow the ground’s contour, providing a vertical trench on slopes up to 10.5 degrees.

SmartTEC electronic control system

Improve job monitoring with the exclusive Vermeer SmartTEC electronic control system.

Optional bucket wheel or rockwheel attachment

Dig trenches for cross-country pipeline using the optional bucket wheel or rockwheel attachment.

Rollover protective structure (ROPS)

Help increase operator safety with the rollover protective structure (ROPS).

Optional warranty

Vermeer Vantage Track Extended Care Service Program offers an optional 3-year/3000-hour warranty on the components of the closed-loop hydrostatic systems.

Specifications

Compare Models
Show Metric
  • Transport Dimensions

    • Approach Angle 16 deg
    • Height Range 119" (302.3 cm)
    • Length with 20" (50.8 cm) End Idler and 4 ft (1.22 m) Boom 25.6 ft 7.8 m
    • Length with 20" (50.8 cm) End Idler and 6 ft (1.83 m) Boom 27.8 ft 8.5 m
    • Length with 20" (50.8 cm) End Idler and 8 ft (2.44 m) Boom 30.1 ft 9.2 m
    • Length with 40" (101.6 cm) End Idler and 4 ft (1.22 m) Boom 23.6 ft 7.2 m
    • Length with 40" (101.6 cm) End Idler and 5 ft (1.52 m) Boom 25.3 ft 7.7 m
    • Length with 40" (101.6 cm) End Idler and 6 ft (1.83 m) Boom 26.3 ft 8 m
    • Length with 40" (101.6 cm) End Idler and 8 ft (2.44 m) Boom 28.5 ft 8.7 m
    • Weight Range 40,000 lb - 59,500 lb (18,143.7 kg - 26988.7 kg)
    • Width Ranges 97" (246.4 cm)
  • Engine - Option one

    • Make and Model John Deere 6090HFC09 Tier 4 Final
    • Gross Horsepower 250 hp 186.4 kw
    • Rated Engine RPM 2200
    • Number of Cylinders 6
    • Fuel Tank Capacity 135 gal 511 L
    • Operating Range 11 hours
    • Fuel Consumption at Full Load 12.1 gph 45.8 lph
    • Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles) 30 deg
    • Air Cleaner Dry-type with pre-cleaner
    • Aspiration Turbocharged and air-to-air aftercooled
    • Cooling Medium Liquid
    • Electrical System 24 Volt DC
    • Oil Filter Full flow
  • Engine - Option two

    • Make and Model John Deere 6090HF Tier 3
    • Gross Horsepower 250 hp 186.4 kw
    • Rated Engine RPM 2200
    • Number of Cylinders 6
    • Fuel Tank Capacity 135 gal 511 L
    • Operating Range 11 hrs
    • Fuel Consumption at Full Load 12.3 gph 46.6 lph
    • Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles) 30 deg
    • Air Cleaner Dry-type with pre-cleaner
    • Aspiration Turbocharged and air-to-air aftercooled
    • Cooling Medium Liquid
    • Electrical System 24 Volt DC
    • Oil Filter Full flow
  • Tracks

    • Auto Self Level Yes
    • Ground Pressure Minimum 7.8 psi 53.8 kPa
    • Ground Pressure Maximum 9.7 psi 66.9 kPa
    • Tilt Track Available Yes
    • Tilt Track Max Angle 10.5 degrees
    • Track Drive Type Dual path hydrostatic with planetary transmission
    • Track Length 136.5 in 346.7 cm
    • Track Pad Type Single, double or triple grouser
    • Track Pad Width Ranges 20" (50.8 cm)
    • Track Size D4
    • Maximum Ground Speed - Low 114 ft/min 34.7 m/min
    • Maximum Ground Speed - High 227 ft/min 69.2 m/min
    • Parking and Emergency Brake spring-applied, hydraulic release, wet disc brake
    • Service Brakes Hydrostatic
  • Conveyor

    • Belt Width 24 in 61 cm
    • Conveyor Belt Speed Range 0-758 fpm (231 m/min)
    • Conveyor Belt Style Cleated
    • Conveyor Length 96" and 144" (243.8 cm and 365.8 cm)
    • Conveyor Shift Available Yes
    • Conveyor Shift Distance Range 12" and 48" (30.5 cm and 121.9 cm)
    • Conveyor Style Flat or curved
    • Discharge Direction Right or left
    • Discharge Height Range 48" and 56" (121.9 and 142.2 cm)
  • Attachments

    • Trencher Yes
    • Terrain Leveler No
    • Rockwheel Yes
    • Bucket Wheel Yes
  • Cab

    • Cab Yes
    • Control System TEC Plus with SmartTEC
    • Air Conditioner/Heater Yes
    • Air Suspension Seat No
    • AM/FM Stereo with Weather Band Yes
    • Elevating No
    • Pressurized/Filtered Air Yes
    • Rollover Protective Structure (ROPM) No
  • Hydraulic System

    • Oil Tank Capacity 85 gal 321.8 L
    • Oil Type Vermeer HyPower 68 or Vermeer HyPower 100
    • Pressure Setting 2500 psi 172.4 bar
    • Pump Flow at Maximum RPM 25 gpm 94.6 L/min
    • Pump Type pressure-and-flow-compensated (load-sensing)

Attachments

Trencher

Trencher

See Specs

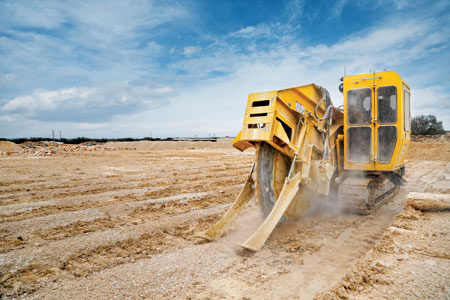

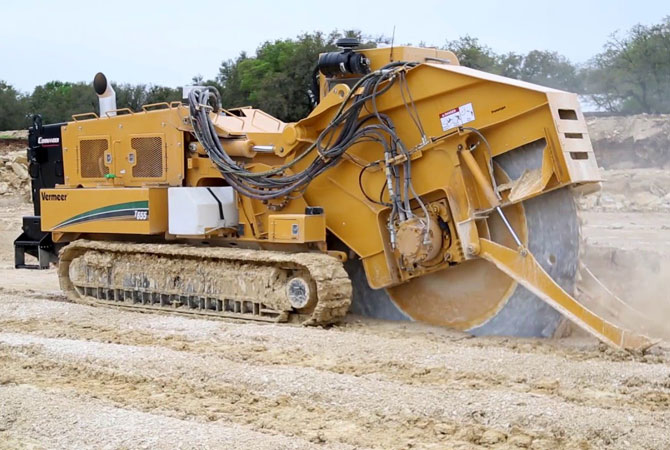

Center mount rockwheel

Center mount rockwheel

See Specs

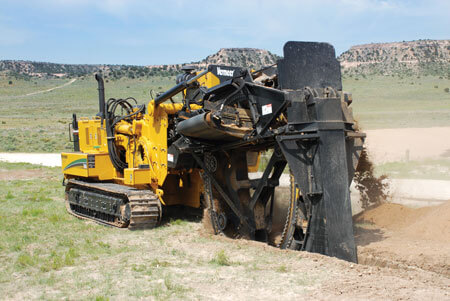

Bucket wheel

Bucket wheel

See Specs

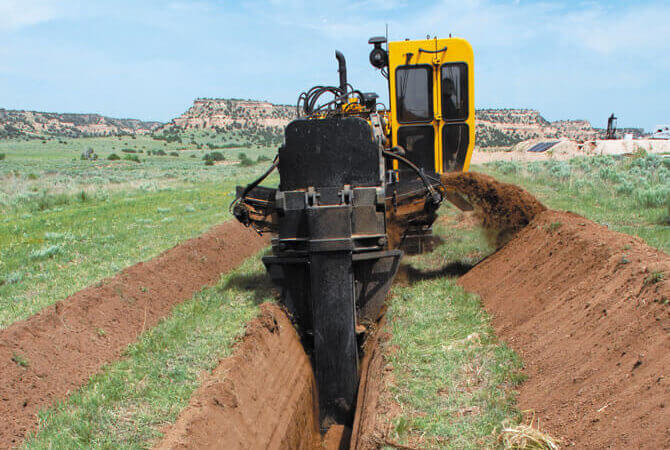

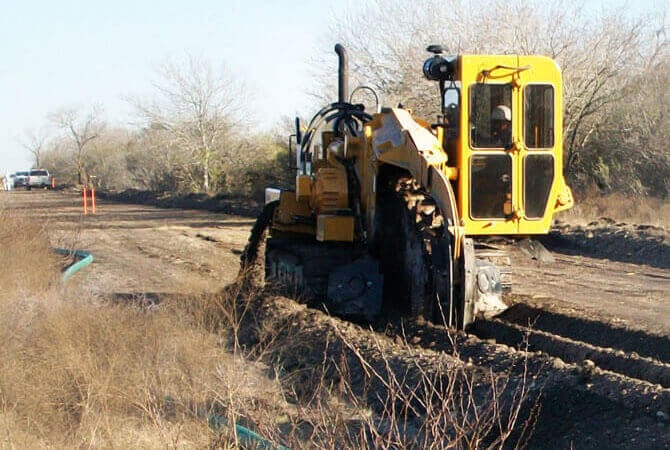

See it in action
