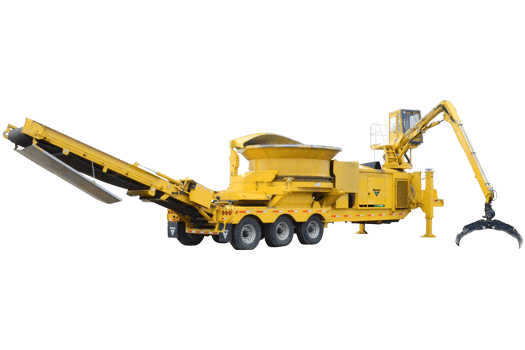

The TG7000 packs innovation and power for large land clearing projects and organic/wood waste processing applications. It processes through wood waste quickly with the exclusive Vermeer duplex drum to minimize maintenance, a PT tech wet clutch with microprocessor to automatically limit torque when necessary, and a patented cutting system outfitted with 10 hammers and 20 double-bolt cutter blocks. Optional climate-controlled cab and grapple loader makes the TG7000 a one-man operation to help reduce labor costs and increase jobsite efficiency.

Packed with innovation and power for large land clearing projects and organic/wood waste processing.

The TG7000 packs innovation and power for large land clearing projects and organic/wood waste processing applications. It processes through wood waste quickly with the exclusive Vermeer duplex drum to minimize maintenance, a PT tech wet clutch with microprocessor to automatically limit torque when necessary, and a patented cutting system outfitted with 10 hammers and 20 double-bolt cutter blocks. Optional climate-controlled cab and grapple loader makes the TG7000 a one-man operation to help reduce labor costs and increase jobsite efficiency.

Find A Dealer Request More Info

Features & Benefits

Standard radio remote controls

Standard radio remote controls allow most machine functions to be operated from the convenience and comfort of a mobile loader.

Continuous undermill discharge conveyor system

Handle more material with the continuous undermill conveyor system that resists clogging.

Low profile cover and deflector

Reduce quantity and distance of thrown objects with a low profile tub cover and rotor deflector.

Optimal cutting performance

The patented Series III duplex drum offers proven cutting performance, and reversible hammers and tips nearly double the wear life of single-sided designs and simplify daily maintenance.

Jobsite safety

The patented thrown object restraint system (TORS) reduces the amount and distance of thrown material debris, and has a smooth underside for better material flow.

Overband magnet

An optiional, overband helps remove ferrous material from the end product.

Specifications

Compare Models
Show Metric
  • General Dimensions and Weights - Non Loader

    • Maximum Length - Transport 45.6 ft 13.9 m
    • Maximum Length - Conveyor Unfolded 62.6 ft 19.1 m
    • Maximum Width (Transport) 11.9 ft 3.6 m
    • Maximum Height (Transport) 162 in 411.5 cm
    • Weight - Engine Option One 78000 lbs 35380.2 kg
    • Weight - Engine Option Two 78000 lbs 35380.2 kg
    • Tongue Weight - Engine Option One 28800 lbs 13063.5 kg
    • Tongue Weight - Engine Option Two 28000 lbs 12700.6 kg
    • Axle Weight 50000 lbs 22679.6 kg
  • General Dimensions and Weights - Loader

    • Maximum Length - Transport 45.9 ft 14 m
    • Maximum Length - Conveyor Unfolded 62.6 ft 19.1 m
    • Maximum Reach of Loader 29.5 ft 9 m
    • Maximum Width (Transport) 11.9 ft 3.6 m
    • Maximum Height (Transport) 162 in 411.5 cm
    • Maximum Height - Cab in Operating Position 18.8 ft 5.7 m
    • Weight - Engine Option One 90000 lbs 40823.3 kg
    • Weight - Engine Option Two 90000 lbs 40823.3 kg
    • Tongue Weight - Engine Option One 34500 lbs 15648.9 kg
    • Tongue Weight - Engine Option Two 34500 lbs 15648.9 kg
    • Axle Weight 54500 lbs 24720.8 kg
    • Axle Weight - Option Two 54500 lbs 24720.8 kg
    • Sound Power Sound power (LwA) = 118.4 dB(A) Equivalent continuous A-weighted sound pressure at operator's ear (Laeq) = 97.2 dB(A) - main control station Equivalent continuous A-weighted sound pressure at operator's ear (Laeq) = 74.4 dB(A) - loader cab
    • Sound Power - Engine Option Two Sound Power (LwA) = 120.0 dB(A) Equivalent Continuous A-Weighted Sound Pressure at Operator's Ear (Laeq) = 100.0 dB(A) - Main Control Station Equivalent Continuous A-Weighted Sound Pressure at Operator's Ear (Laeq) = 77.0 dB(A) - Loader Cab
  • Engine - Option one

    • Make and Model C27 Tier 4 Final
    • Number of Cylinders 12
    • Gross Horsepower (Maximum) 950 hp 708.4 kw
    • Torque (Max) 3212 ft-lb 4354.9 Nm
    • Fuel Tank Capacity 500 gal 1892.7 L
    • Max Fuel Consumption 47.5 gph 179.8 lph
    • Fuel Type Ultra Low Sulfur Diesel
    • Air Cleaner Pleated Primary (4) and Secondary (4) with precleaners (2) and electric restriction indicator (2)
    • Oil Filter Spin-on (2)
    • Recommended Oil CAT DEO-ULS, API CJ-4, API CK-4, or ECF-3 10W-30 / 15W-40
    • Oil Volume with Filter 72 qt 68.1 L
    • Cooling Medium Liquid
    • Coolant Capacity (Engine and Radiator) 42 gal 159 L
    • Air to Boil Temperature 142 deg
    • Alternator 24 Volt, 100 Amp
    • Fan 60" (152.4 cm) Dia, Fixed Pitch, Hyd Reverse Option
    • Clutch Type Hydraulic Operated Wet Clutch
    • Clutch Engagement Push button
    • Sound Power Sound power (LwA) = 118.4 dB(A) Equivalent continuous A-weighted sound pressure at operator's ear (Laeq) = 97.2 dB(A) - main control station Equivalent continuous A-weighted sound pressure at operator's ear (Laeq) = 74.4 dB(A) - loader cab
  • Engine - Option two

    • Make and Model Caterpillar C27 Tier 2/Stage II
    • Number of Cylinders 12
    • Gross Horsepower (Maximum) 950 hp 708.4 kw
    • Torque (Max) 3202 ft-lb 4341.3 Nm
    • Fuel Tank Capacity 500 gal 1892.7 L
    • Max Fuel Consumption 45.7 gph 173 lph
    • Fuel Type Ultra low sulfur diesel or low sulfur diesel
    • Air Cleaner Pleated Primary (4) and Secondary (4) with precleaners (2) and electric restriction indicator (2)
    • Oil Filter Spin-on (2)
    • Recommended Oil 15W40
    • Oil Volume with Filter 76 qt 71.9 L
    • Cooling Medium Liquid
    • Coolant Capacity (Engine and Radiator) 34 gal 128.7 L
    • Air to Boil Temperature 122 deg
    • Alternator 24 Volt, 75 Amp
    • Fan 60" (152.4 cm) diameter, fixed pitch, hydraulic reverse
    • Clutch Type Hydraulic Operated Wet Clutch
    • Clutch Engagement Push Button
    • Sound Power Sound Power (LwA) = 120.0 dB(A) Equivalent Continuous A-Weighted Sound Pressure at Operator's Ear (Laeq) = 100.0 dB(A) - Main Control Station Equivalent Continuous A-Weighted Sound Pressure at Operator's Ear (Laeq) = 77.0 dB(A) - Loader Cab
  • Feed System

    • Tub Table Thickness .5 in 1.3 cm
    • Tub Table Type T1 Steel
    • Table Tilt Degrees 92 deg
    • Millbox Opening 27" x 69" (68.9 cm x 175.3 cm)
    • Inside Diameter of Tub 10 ft 3 m
    • Inside Flare Diameter - At Base of Tub 10.3 ft 3.1 m
    • Inside Flare Diameter - At Tub Opening 13 ft 4 m
    • Depth of Tub 4.7 ft 1.4 m
    • Tub Capacity 15 cu yd 11.5 cu m
    • Wall Thickness .3 in .6 cm
    • Wall Type T1 Steel
    • Loading Height 11.3 ft 3.4 m
    • Drive Type Closed loop hydraulic, continuous sprocket
    • Drive Chain ANSI #160 roller chain
    • Drive Tensioner Hydraulic
    • Drive Motor Hydraulic, low speed/high torque (qty 2)
    • Tub Roller Quantity 8 carrier, 8 Guide (16 total)
    • Tub Speed 8 rpm
    • Tub Agitators 4
  • Safety System

    • Thrown Object Restraint System Standard
    • Tub Cover Description Conical Cover with Hydraulic Swing Away
    • Tub Cover Positions Transport and operate with hydraulic lock
    • Rotor Deflector Standard
    • Wear Liner Thickness .6 in 1.6 cm
    • Wear Liner Type Abrasion-resistant plate (Astralloy 4800)
    • Falling Object Protection at Control Station Overhead and side protection
  • Duplex Drum

    • Drum Diameter 22.5 in 57.2 cm
    • Tip Diameter 31 in 78.7 cm
    • Drum Cutting Width 65.3 in 165.9 cm
    • Drum Skin Thickness 1.5 in 3.8 cm
    • Drum Speed 1340 rpm
    • Tip Speed 10319 rpm
    • Bearing Type Double row, spherical roller
    • Bearing - Inner Race Diameter 5.5 in 14 cm
    • Bearing - Dynamic Capacity 228000 lbs 103419.1 kg
    • Number of Hammers 10
    • Number of Cutters 20
    • Cutter Block Types Multiple styles, 2 bolt retension with 7/8" (22.2 mm) UNC fasteners
    • Center Retention Pin Dimensions 2" (5.1 cm)
    • Number of Wipers 4
  • Screens

    • Screen Weight 350-500 lb each
    • Screen Dimensions 72.4" x 35.8" x 10.3" (183.9 cm x 91 cm 21.2 cm)
    • Screen Type AR400, reversible (qty 2)
    • Breaker Bar Type T1 steel, replaceable
    • Breaker Bar Dimensions 2.5" x 4" x 77" (6.4 cm x 10.2 cm x 195.6 cm)
    • Number of Sides 4 useable edges
    • Screen Area 4069 sq in 26251.6 sq cm
    • Distance - Screen to Millbox Wall 21.4 in 54.4 cm
  • Driveline - Engine Option One

    • Drive Shaft Custom Spicer
    • U - Joints Permanently Lubricated 10C (qty 2)
  • Discharge System - Single Belt Design

    • Length 24 ft 7.3 m
    • Width 48 in 121.9 cm
    • Belt Design 330# with V-cleat
    • Splice Flexco R2 stainless steel
    • Return Roller Quantity 5 standard and 1 vibrating roller
    • Idler Roller Diameter 12 in 30.5 cm
    • Idler Roller Bearing 1 15/16" (4.9 cm) f-bolt flange
    • Standard Drive Roller Diameter 13.8 in 35.1 cm
    • Magnetic Drive Roller Diameter 13.8 in 35.1 cm
    • Drive Motor Geroler
    • Belt Speed 860 ft/min 262.1 m/min
    • Load Height Minimum = 11.9 ft, Maximum = 17 ft at 35 deg
  • Hydraulic System

    • Tank capacity 100 gal 378.5 L
    • Recommended Oil Hy-Power 68
    • Filtration Method In-tank return filters (qty 2)
    • Number of Coolers 1
  • Implement Hydraulics

    • Components Conveyor with auxiliary valve
    • System Type Load sense, pressure compensated
    • Pump Type Axial piston, variable displacement
    • Pump Flow at Maximum RPM 30.2 gpm 114.3 L/min
    • System relief pressure 3000 psi 206.8 bar
  • Tub Drive Hydraulics

    • System Type Closed loop
    • Pump Type Axial piston, variable displacment
    • Pump Flow at Maximum RPM 33.8 gpm 127.9 L/min
    • System relief pressure 3000 psi 206.8 bar
    • Motor Series Geroler, Heavy-Duty High-Torque (Qty 2)
  • Fan Drive Hydraulics

    • System Type Closed Loop
    • Pump Type Axial Piston, Varible Displacement
    • Pump Flow at Maximum RPM 37.5 gpm 142 L/min
    • System relief pressure 5000 psi 344.7 bar
    • Motor Series Axial Piston, Fixed Displacement
    • Fan Series - FWD/REV 1150/500
  • Clutch Hydraulics

    • Tank capacity 25 gal 94.6 L
    • Recommended Oil VMF Gold
    • Filtration Method Spin on High Pressure
    • Number of Coolers 1
    • System Type Open loop
    • Pump Type Gear
    • Pump Flow at Maximum RPM 10.7 gpm 40.5 L/min
    • System relief pressure 250 psi 17.2 bar
  • Loader Hydraulics

    • System Type Load Sense, Pressure Compensated
    • Pump Type Axial Piston, Varible Displacement
    • Pump Flow at Maximum RPM 53.1 gpm 201 L/min
    • System relief pressure 3615 psi 249.2 bar
  • Electrical System

    • System Voltage 24 Volt
    • Battery Group 8-D, 1400 CCA (2)
    • System Protection Fused
  • Control Station

    • Display Type LCD Multi-Function
    • Engine Information Operational, Diagnostic and System Parameters
    • Machine Information Operational, Diagnostic and System Parameters
    • Operational Faults SAE J1939 Diagnostic Codes
    • Switches CAN network, sealed membrane
  • Radio Remote Control

    • Display Type LCD multifunction
    • Engine Information Operational, diagnostic and system parameters
    • Machine Information Operational, diagnostic and system parameters
    • Operational Faults SAE J1939 diagnostic codes
    • Switches Sealed membrane
    • Operating Range 300' (91.4 m)
    • Battery Type AA (qty 6)
    • Channel Setting 50 channels
  • Loader Cab

    • Display Type LCD multifunction
    • Engine Information Operational, diagnostic and system parameters
    • Machine Information Operational, diagnostic and system parameters
    • Operational Faults SAE J1939 diagnostic codes
    • Gauges 0-5000 psi (0-344.7 bar) loader system pressure (1)
    • Switches CAN Network, sealed membrane
  • Chassis

    • Frame Description Continuous I-beam
    • Hitch Type Weld-In king pin - 2" (5.1 cm)
    • Fender Description Bolt On, 3/16" Formed Steel
    • Brake Type Air actuated with spring applied park brake
    • Trailer Light Type 12 Volt Incandescent
  • Axle/Suspension

    • Axle Type Tri-Axle Spring
    • Tires - Option One 425/65R22.5 Super Singles
    • Wheels - Option One 22.5" x 8.25" Hub Piloted Aluminum
    • Ground Clearance - Option One 13.5 in 34.3 cm
    • Tires - Option Two 255/70R22.5 duals
    • Wheels - Option Two 22.5" x 8.25" Hub Piloted Steel
    • Ground Clearance - Option Two 10 in 25.4 cm
  • Axle/Suspension - Option Two

    • Axle Type Tri-Axle Air Ride
    • Capacity 20000 lbs 9071.8 kg
    • Tires - Option One 425/65R22.5 Super Singles
    • Wheels - Option One 22.5" x 12.25" Hub Piloted Aluminum
    • Ground Clearance - Option One 13.5 in 34.3 cm
    • Tires - Option Two 255/70R22.5 duals
    • Wheels - Option Two 22.5" x 8.25" Hub Piloted Steel
    • Ground Clearance - Option Two 10 in 25.4 cm

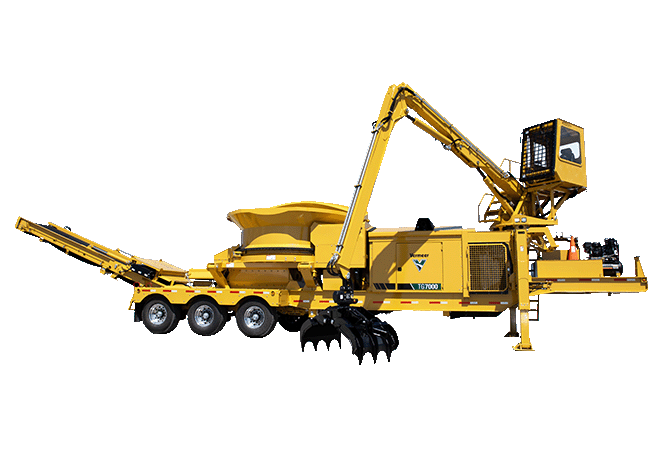

  • Loader

    • Loader Reach 29.5 ft 9 m
    • Pedestal/Cab Rotation 370 deg
    • Loader Lift Capacity at Full Reach 4000 lbs 1814.4 kg
    • Loader Lift Capacity at 10 ' (3.05 m) 12000 lbs 5443.1 kg
    • Grapple Type Multiple tine
    • Grapple Rotation 360 deg
    • Grapple Weight 1450 lbs 657.7 kg
    • Loader Controls Electric-over-hydraulic CAN-based system
    • Climate Controls A/C and heat
    • Radio AM/FM/WB/AUX Sirius satellite radio ready with two 4-in (10.2-cm) speakers
    • Window Type 3/8" (.95 cm) polycarbonate
    • Front Intrusion Guard 5/8" (1.6 cm) diaemter reinforced wire mesh
  • Optional Air Compressor

    • Air Compressor Brand Mi-T-M
    • Engine 11.7 hp (8.7 kW) Honda
    • Maximum Pressure 175 psi 12.1 bar
    • Maximum Air Flow 29 cfm .8 cmm
    • Tank capacity 30 gal 113.6 L
  • Other Options - Tub Grinder

    • Screens Optional
    • Special Tools Group Optional
    • Special Paint Optional
    • Extended Warranty Optional
    • Preventative Maintenance Optional

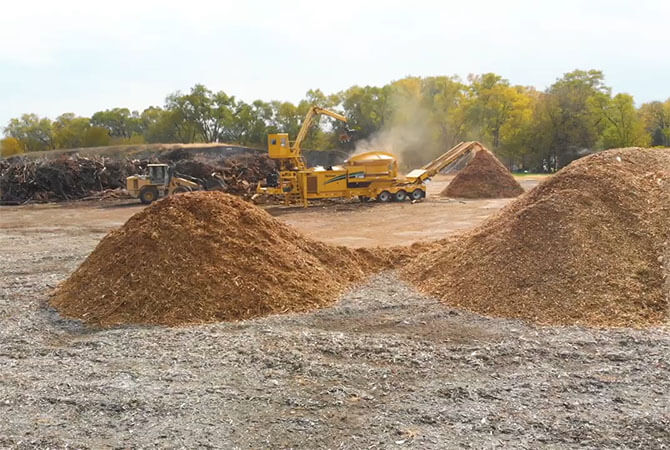

See it in action

Video 2
Video 4
Video 7
Image 5
Video 8
Image 6
Image 7
Image 8
Video 6
Image 1
Video 1
Image 3
Video 4
Video 5

Talk to a Vermeer Dealer Today

From helping you select the right equipment, to training operators, to providing the parts and service you need on a jobsite or in the field, Vermeer dealers will give you the localized support you're looking for.

* Required field
*
*
*
*
*
*
*
*
*
I have read and agree to this notice of personal information processing. *
I am 18 years or older. *
I confirm I have read and agree to the Vermeer Privacy Policy and conditions of use. *
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

More from your machine

Government solutions

Government solutions

Use Sourcewell to satisfy and simplify your bidding process.

Learn how
Purchase with confidence

Purchase with confidence

Vermeer Confidence Plus® asset protection program provides the ongoing service you need to assist in protecting the productivity and value of your equipment.

Learn more

Vermeer Corporation reserves the right to make changes in engineering, design and specifications; add improvements; or discontinue manufacturing at any time without notice or obligation. Equipment shown is for illustrative purposes only and may display optional accessories or components specific to their global region. Please contact your local Vermeer dealer for more information on machine specifications. Vermeer, the Vermeer logo and Equipped to Do More are trademarks of Vermeer Manufacturing Company in the U.S. and/or other countries. Copyright © 2020 Vermeer Corporation. All Rights Reserved.
