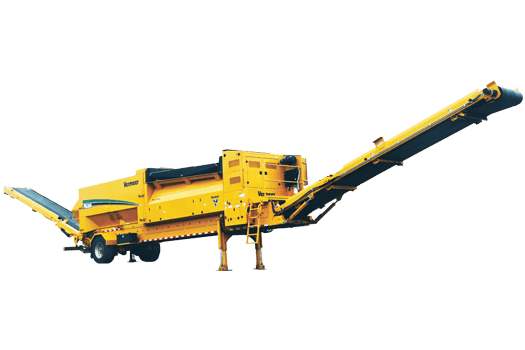

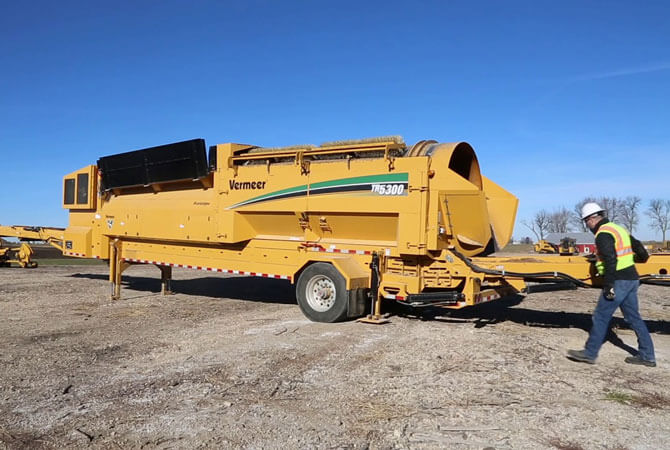

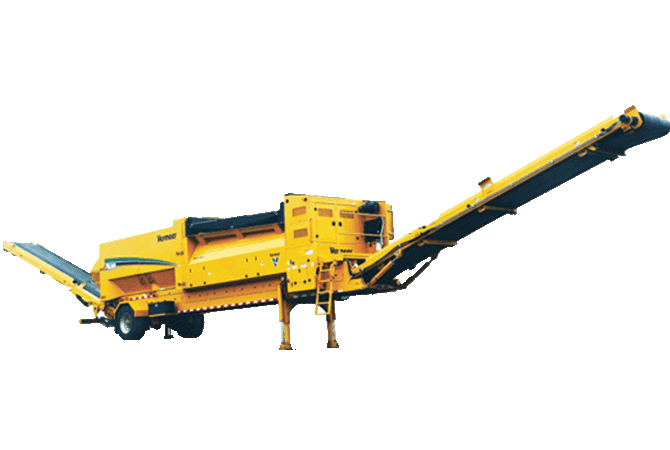

The TR5300 trommel screen is ideal for operations where high productivity in a compact size is demanded. The tensioned screen and drum are designed for optimum productivity, offering simple adjustments and maintenance. The ability for the conveyors to go parallel to the ground gives the operator more control over dust and wind, while also allowing for easier maintenance. The TR5300 features a maintenance access platform for the Deutz TD 2.9L Tier 4 Final (Stage IV), 74 hp (55 kW) engine.

Ideal for operations where high productivity in a compact size is demanded.

The TR5300 trommel screen is ideal for operations where high productivity in a compact size is demanded. The tensioned screen and drum are designed for optimum productivity, offering simple adjustments and maintenance. The ability for the conveyors to go parallel to the ground gives the operator more control over dust and wind, while also allowing for easier maintenance. The TR5300 features a maintenance access platform for the Deutz TD 2.9L Tier 4 Final (Stage IV), 74 hp (55 kW) engine.

Find A Dealer Request More Info

Features & Benefits

Added rigidity to screens

With the ability to tension the screen around the drum, operators can add rigidity to the screens. This design allows the use of smaller gauge wire, ultimately increasing the open area of the screen to help improve productivity.

On-machine or remote control options

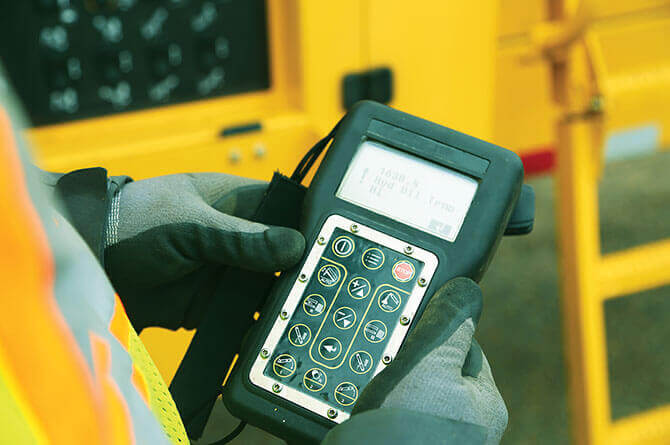

Operators can control the machine through either the Vermeer DP10 display mounted on the control panel, or through a handheld transceiver remote. From either control, the operator can choose from four programmable presets or adjust machine settings based on incoming material.

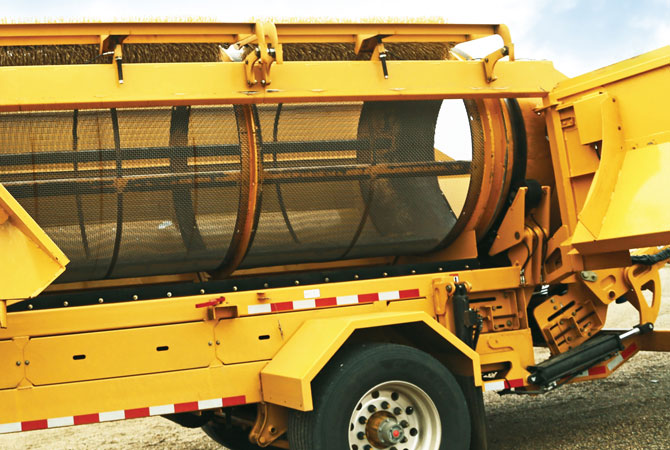

Easy access to trommel drum

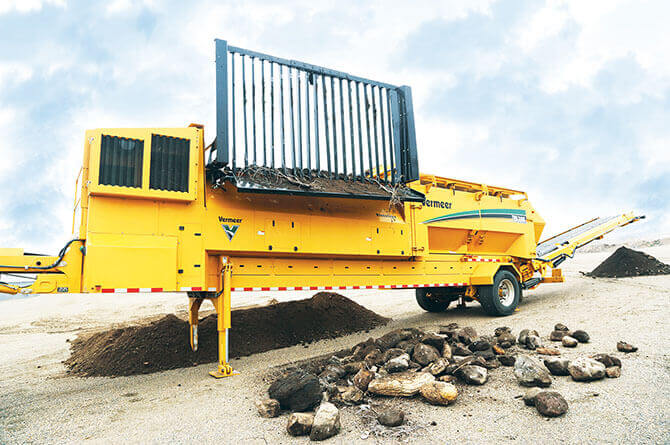

A set of dual-hinged doors on both sides of the machine expose the full length of the trommel drum for ground level service and removal.

Hydraulic-driven chain drive system

A hydraulic-driven chain drive system allows the drum to be lifted off the cog for service, and bolt-on sprockets can be changed quickly to help lower repair time.

Large, low-feed hopper

The TR5300 features a large, low-feed hopper that makes it easier to load with a loading ramp, making the trommel screen more mobile around the jobsite

Advanced controls

Operators can control the machine through either the Vermeer DP10 display mounted on the control panel, or through a handdeld transceiver remote.

Specifications

Compare Models
  • General Dimensions and Weights

    • Weight 32000 lbs 14515 kg
    • Hitch Weight 11600 lbs 5261.7 kg
    • Transport Length 39 ft 11.9 m
    • Transport Width 98.4 in 249.9 cm
    • Transport Height 13.4 ft 4.1 m
    • Operation Length 89.9 ft 27.4 m
    • Operation Width 112.8 in 286.5 cm
    • Operation Height 15 ft 4.6 m
    • Capacity 100 cu yd (76.5 m3) per hr with .5" (12.7 mm) screens installed and material with moisture less than 40%
  • Engine - Option one

    • Make and Model Deutz TD2.9L Tier 4 Final/ Stage IV
    • Number of Cylinders 4
    • Engine Rating 74 hp (55 kW) @ 2600 rpm and 181 ft-lb (245.4 Nm) of torque @ 1600 rpm
    • Fuel Tank Capacity 44 gal 166.6 L
    • Fuel Consumption 4.6
    • Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles) 30 deg
    • Battery 950 Cold Cranking Amp Group 31
    • Oil Filter Spin-on
    • Recommended Oil Mobil 15W40
    • Oil Volume with Filter 8.4 qt 7.9 L
    • System Voltage 12
    • Air Cleaner Dual element
    • Radiator Fan Suction
  • Hydraulic System

    • Tank capacity 55 gal 208.2 L
  • Chassis

    • Frame Description Heavy Duty Structural Tubing
    • Axle/Suspension Single Leaf Sprung
    • Capacity 20000 lbs 9071.8 kg
    • Tires - Option One 445/50R22.5
  • Hopper and Apron Conveyor

    • Hopper Capacity 5.5 cu yd 4.2 cu m
    • Hopper Bottom Width 34 in 86.4 cm
    • Hopper Height 9.5
    • Hopper Opening 34x37
  • Screen Drum

    • Drum Operation 0-30.9 gpm (0-117.0 L/min)
    • Drum Diameter 5 ft 1.5 m
    • Drum Support Description Eight poly trunnion rollers 8" (20.3 cm) diameter 4" (10.2 cm) width
    • Drum Length 15 ft 4.6 m
    • Thrust Bearing Diameter 4 in 10.2 cm
    • Thrust Bearing Face 2.9 in 7.4 cm
    • Drum Speed 0-24 RPM
    • Drum Drive Chain 140 custom extended pin
    • Drum Angle Adjustability 0-7 degrees
    • Maximum Screen Panels 4

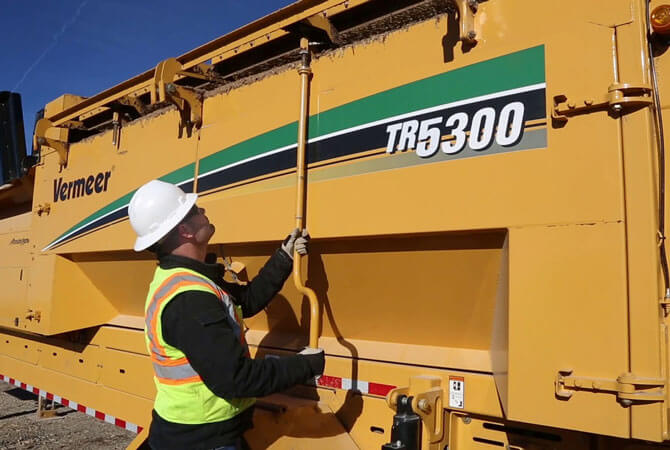

  • Screen Brushes

    • Brush Diameter 14 in 35.6 cm
    • Bristle Material Polyethylene
    • Brush Assembly Support Two 1.25" (3.2 cm) sealed ball bearings

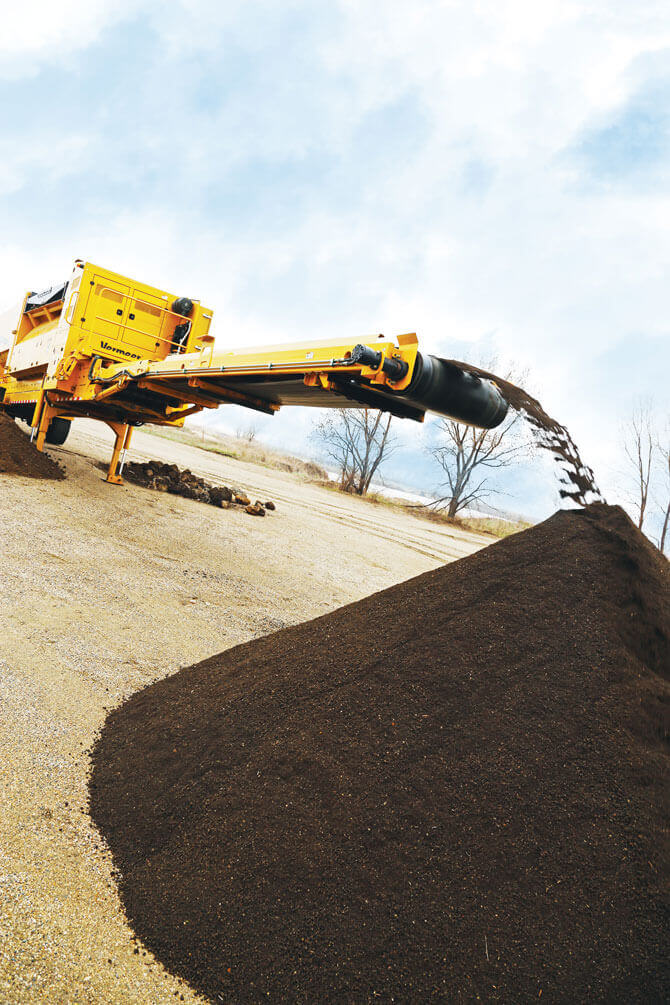

  • Fines Conveyor

    • Conveyor Operation 17 gpm 64.4 L/min
    • Conveyor Motor Displacement 33 cu-in 540.8 cu-cm
    • Fines Conveyor Length 55 ft 16.8 m
    • Fines Belt Speed 500 ft/min 152.4 m/min
    • Conveyor Belt Width 36 in 91.4 cm
    • Conveyor Belt Type 220 lb, 2 ply, 3/16" x 1/16", R2 splice, Continuous option
    • Conveyor Belt Stacking Height 15'
    • Head Pulley Type Rubber lagged, 12" (30.5 cm) diameter, 38" (96.5 cm) wide
    • Head Pulley Bearing 2 7/16" (6.2 cm) pillow block
    • Troughing Idler Type 20° CEMA "B" with permanently sealed bearings
    • Self-Cleaning Tail Pulley Dimensions 10" (25.4 cm) diameter, 38" (96.5 cm) wide with 2.4" (6.1 cm) shaft
    • Head Pulley Takeup 10 in 25.4 cm
    • Self-Cleaning Return Idlers 4" (10.2 cm) rubber disc, qty 8
    • Fines Conveyor Frame 2" (5.1 cm) x 8" (20.3 cm) structural steel tubing
  • Overs Conveyor - Option 1

    • Overs Conveyor Length 10.5 ft 3.2 m
    • Maximum Variable Overs Belt Speed 350 ft/min 106.7 m/min
    • Conveyor Belt Size 36
    • Conveyor Belt Type 220 lb, 2 ply, 3/16" x 1/16", R2 splice, Continuous option
    • Conveyor Belt Stacking Height 6'
    • Head Pulley Type Rubber lagged, 12" (30.5 cm) diameter, 38" (996.5 cm) wide
    • Head Pulley Bearing 2 7/16" (6.2 cm) pillow block
    • Self-Cleaning Tail Pulley Dimensions 10" (25.4 cm) diameter, 38" (96.5 cm) wide with 2.4" (6.1 cm) shaft

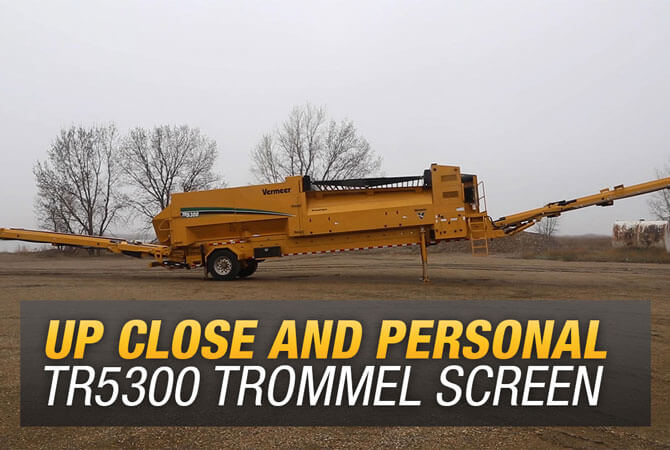

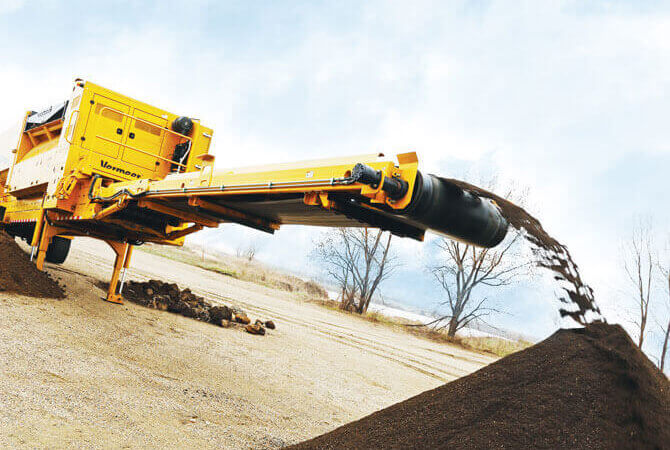

See it in action
