Designed to separate a wide variety of materials such as compost, soil, sands, gravel, light aggregate and sludge.

Find A Dealer Request More Info

The TR521 Tier 4F Stage IV trommel screen is specifically designed to separate by size a wide variety of materials such as compost, soil, sands, gravel, light aggregate and sludge. Screen enhancements to the drum enable quicker and simpler changeout and tensioned screens allow for increased overall open screen area. The revamped TR521 with wireless remote control offers intelligence to the machine for operational setting control and allows the operator to monitor from a loader cab or distant location.

Designed to separate a wide variety of materials such as compost, soil, sands, gravel, light aggregate and sludge.

The TR521 Tier 4F Stage IV trommel screen is specifically designed to separate by size a wide variety of materials such as compost, soil, sands, gravel, light aggregate and sludge. Screen enhancements to the drum enable quicker and simpler changeout and tensioned screens allow for increased overall open screen area. The revamped TR521 with wireless remote control offers intelligence to the machine for operational setting control and allows the operator to monitor from a loader cab or distant location.

Find A Dealer Request More Info

Features & Benefits

Tall, wide throat opening

Move material smoothly without bridging, thanks to a tall, wide throat opening.

Heavy-duty rollers

Extend belt life even under tough loading conditions with closely set, heavy-duty rollers supporting the apron conveyor.

Increasing screening area

Keep screen weights low when processing wet materials by clamping on a smaller diameter tension screen wire and increasing screening area.

Reduced spillage

Speed up your clean up because the flashing and sheeting fit tightly against the drum and conveyors to reduce spillage.

Advanced controls

Operators can control the machine through either the Vermeer DP10 display mounted on the control panel, or through a handheld transceiver remote.

Stainless steel screen options

Stainless steel screens offer increased durability and reduce the amount of screen binding when working with wet or corrosive materials.

Specifications

Compare Models
Show Metric
  • General Dimensions and Weights

    • Weight 39700 lbs 18007.6 kg
    • Hitch Weight 13400 lbs 6078.1 kg
    • Transport Length 46.5 ft 14.2 m
    • Transport Width 102 in 259.1 cm
    • Transport Height 13.1 ft 4 m
    • Operation Length 86 ft 26.2 m
    • Operation Width 102 in 259.1 cm
    • Operation Height 15.9 ft 4.9 m
    • Capacity Approximately 150 cu yd (114.7 m³) per hr with .5" (1.3 cm) screens installed and material with moisture less than 40%
  • Engine - Option one

    • Make and Model Cummins QSB 3.8l Tier 4 Final
    • Number of Cylinders 4
    • Engine Rating 120 hp
    • Fuel Tank Capacity 73 gal 276.3 L
    • Fuel Consumption 3.1 gph (11.7 L/hr)
    • Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles) 30 deg
    • Battery 950 CCA
    • Oil Filter Spin-on
    • Recommended Oil Mobil 15W40
    • System Voltage 12 V, 134 amp alternator
    • Air Cleaner Dual element
    • Radiator Fan Suction
  • Hydraulic System

    • Operation 62.9 gpm @2500 psi (238.1 L/min @ 172.4 bar)
    • Tank capacity 157 gal 594.3 L
  • Chassis

    • Frame Description Four independent hydraulic jacklegs
    • Axle/Suspension Leaf spring
    • Capacity 22500 lbs 10205.8 kg
    • Tires - Option One 235-75R 17.5 H qty 8
  • Hopper and Apron Conveyor

    • Hopper Capacity 5 cu yd 3.8 cu m
    • Hopper Bottom Width 34 in 86.4 cm
    • Apron Conveyor Speed 0-35 fpm (0-10.7 m/min)
    • Apron Opening Height 34 in 86.4 cm
    • Apron Opening Width 37 in 94 cm
    • Hopper Height 9.5' (2.9 m) from ground level at operating incline
    • Hopper Opening 13.2' x 5' (4 m x 1.5 m)
    • Apron Conveyor Length 15 ft 4.6 m
    • Apron Conveyor Belt Width 42 in 106.7 cm
    • Apron Conveyor Rollers 6" (10.2 cm) diameter qty. 13
  • Screen Drum

    • Drum Operation 0-33.1 gpm (0-125.3 L/min)
    • Drum Motor 48.8 cu in (800 cu cm) displacement
    • Drum Diameter 5 ft 1.5 m
    • Drum Support Description Four steel trunnion rollers 8 in (20.3 cm) diameter 4 in (10.2 cm) width
    • Drum Length 21 ft 6.4 m
    • Thrust Bearing Diameter 5 in 12.7 cm
    • Thrust Bearing Face 2.9 in 7.4 cm
    • Drum Speed 0-24 rpm
    • Drum Drive Chain 120 WT
    • Drum Angle Adjustability 3-5 degrees
    • Maximum Screen Panels 6
  • Screen Brushes

    • Brush Diameter 14 in 35.6 cm
    • Bristle Material Polyethylene
    • Brush Assembly Support Two 1.25" (3.2 cm) sealed ball bearings
  • Collecting Conveyor

    • Conveyor Belt Width 36 in 91.4 cm
    • Conveyor Belt Type 220 lb (99.8 kg), 2-ply, 3/16" x 1/16" (4.8 mm x 1.6 mm)
    • Head/Tail Pulley Type Rubber-lagged, 12" (30.5 cm) diameter, 38" (996.5 cm) wide
    • Head Pulley Bearing 2.5" (6.4 cm) pillow block
    • Rubber Flashing Adjustable, .25" (6.4 mm) thick, 4" (10.2 cm)
    • Idler Type 20 degrees CEMA "B" with permanently sealed bearings spaced at 24" (61 cm) centers
    • Tail Pulley Takeup 12 in 30.5 cm
    • Self-Cleaning Return Idlers 7, each 4" (10.2 cm) diameter
    • Fines Conveyor Frame Part of trailer frame
  • Fines Conveyor

    • Conveyor Motor Displacement 28.3 cu-in 463.8 cu-cm
    • Fines Conveyor Length 65 ft 19.8 m
    • Fines Belt Speed 515 ft/min 157 m/min
    • Conveyor Belt Width 36 in 91.4 cm
    • Conveyor Belt Type 220 lb (99.8 kg), 2 ply, 2/16" x 1/16" (4.8 mm x 1.6 mm)
    • Conveyor Belt Stacking Height 14.5' with drum at 4 degree
    • Head Pulley Type Rubber lagged, 12" (30.5 cm) diameter, 38" (996.5 cm) wide
    • Head Pulley Bearing 2.5" (6.4 cm) pillow block
    • Rubber Flashing Adjustable, .25" (.64 cm) thick, 4" (10.16 cm)
    • Troughing Idler Type 20 degrees CEMA "B" with permanently sealed bearings spaced at 24" (60.96 cm) centers
    • Self-Cleaning Tail Pulley Dimensions 10" (25.4 cm) diameter, 38" (96.5 cm) wide with 2.4" (6.1 cm) shaft
    • Tail Pulley Takeup 12 in 30.5 cm
    • Self-Cleaning Return Idlers 7, each 4" (10.2 cm) diameter
    • Fines Conveyor Frame 4" x 8" (10.2 cm x 20.3 cm) structural steel tubing
  • Fines Conveyor Option-Radial

    • Conveyor Motor Displacement 15.9 cu-in 260.6 cu-cm
    • Fines Conveyor Length 30.5 ft 9.3 m
    • Fines Belt Speed 705 ft/min 214.9 m/min
    • Conveyor Belt Type 150 lb (99.8 kg), 2-ply, 1/32" x 1/32" (.8 mm x .8 mm), vulcanized
    • Head/Tail Pulley Type Rubber-lagged, crowned, 9.75" (24.8 cm) diameter, 32" (81.3 cm) wide
    • Head Pulley Bearing 2.5" (6.4 cm) pillow block
    • Rubber Flashing Adjustable, .25" (6.4 mm) thick, 4" (10.2 cm)
    • Idler Type 30 degrees CEMA "B" with permanently sealed bearings spaced at 41" (104.1 cm) centers
    • Self-Cleaning Return Idlers 4, each 4" (10.2 cm) diameter
    • Fines Conveyor Frame 2" x 8" (5.1 cm x 20.3 cm) structural steel building
  • Overs Conveyor - Option 1

    • Overs Conveyor Length 20 ft 6.1 m
    • Maximum Variable Overs Belt Speed 290 ft/min 88.4 m/min
    • Conveyor Belt Size 36" (91.4 cm) wide with raised crescent
    • Conveyor Belt Type 220 lb (99.8 kg), 2 ply, 2/16" x 1/16" (4.8 mm x 1.6 mm)
    • Conveyor Belt Stacking Height 3' (.9 m) x 10' (3.1 m)
    • Head Pulley Type Rubber lagged, 12" (30.5 cm) diameter, 38" (996.5 cm) wide
    • Head Pulley Bearing 2.5" (6.4 cm) pillow block
    • Self-Cleaning Tail Pulley Dimensions 10" (25.4 cm) diameter, 38" (96.5 cm) wide with 2.4" (6.1 cm) shaft
    • Tail Pulley Takeup 12 in 30.5 cm
    • Solid Return Idler Size 4" (10.2 cm) diameter
    • Overs Conveyor Frame 2.3" x 8" (5.7 cm x 20.3 cm) structural steel channel tubing

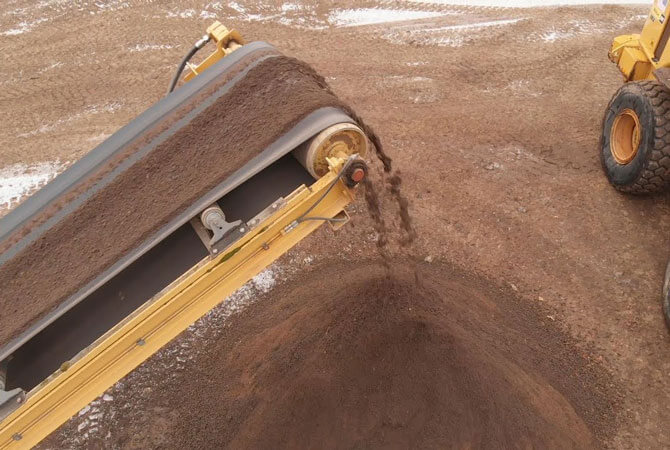

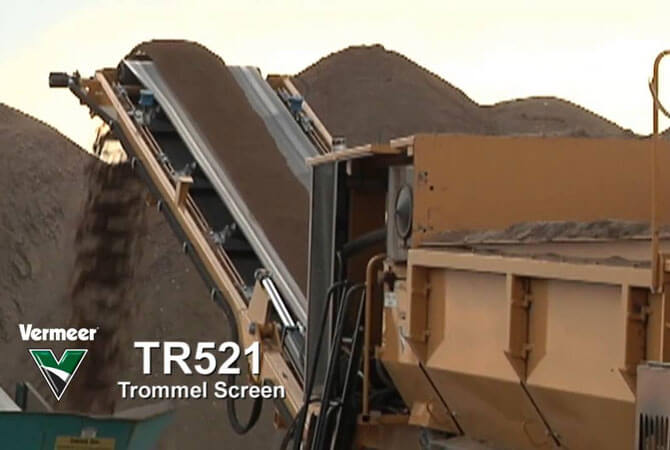

See it in action
