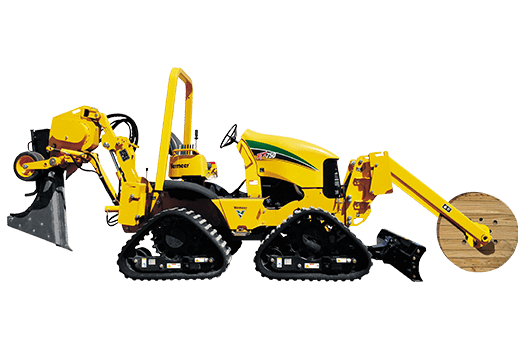

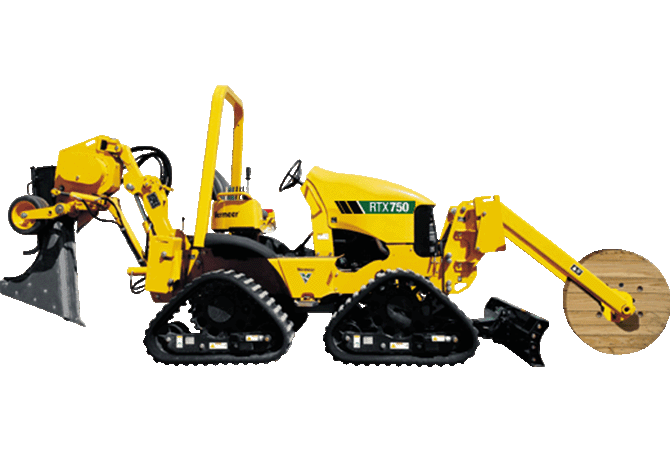

Exceed jobsite expectations with the RTX750 ride-on tractor from Vermeer.

Find A Dealer Request More Info

The RTX750 is a compact, productive machine well-suited to work on a wide variety of jobs in the tightest spaces. Rubber tires can be interchanged with the quad track system, allowing contractors to choose the optimal configuration for the jobsite, while four-wheel and crab steering deliver exceptional maneuverability. An arsenal of attachments, including rockwheels, plows, combos and trenchers are the tools needed to help get the job done.

Exceed jobsite expectations with the RTX750 ride-on tractor from Vermeer.

The RTX750 is a compact, productive machine well-suited to work on a wide variety of jobs in the tightest spaces. Rubber tires can be interchanged with the quad track system, allowing contractors to choose the optimal configuration for the jobsite, while four-wheel and crab steering deliver exceptional maneuverability. An arsenal of attachments, including rockwheels, plows, combos and trenchers are the tools needed to help get the job done.

Find A Dealer Request More Info

Features & Benefits

Compact footprint

With a 10.5 ft (3.2 m) length and a 72 in (182.9 cm) width (rubber tire), the maneuverable RTX750 has a compact footprint, making it well-suited to working in tight jobsite confines and congested residential areas.

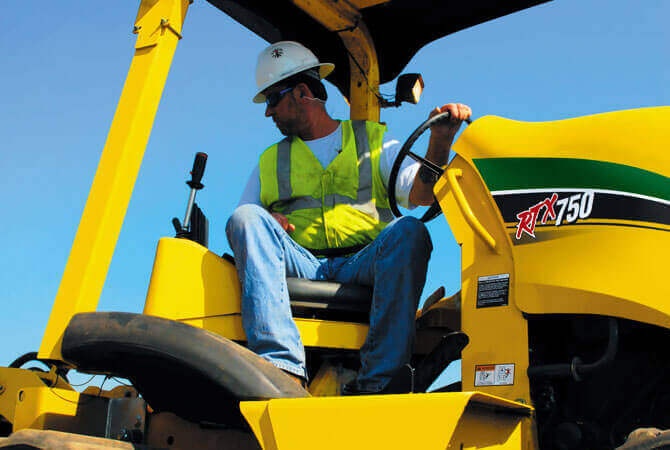

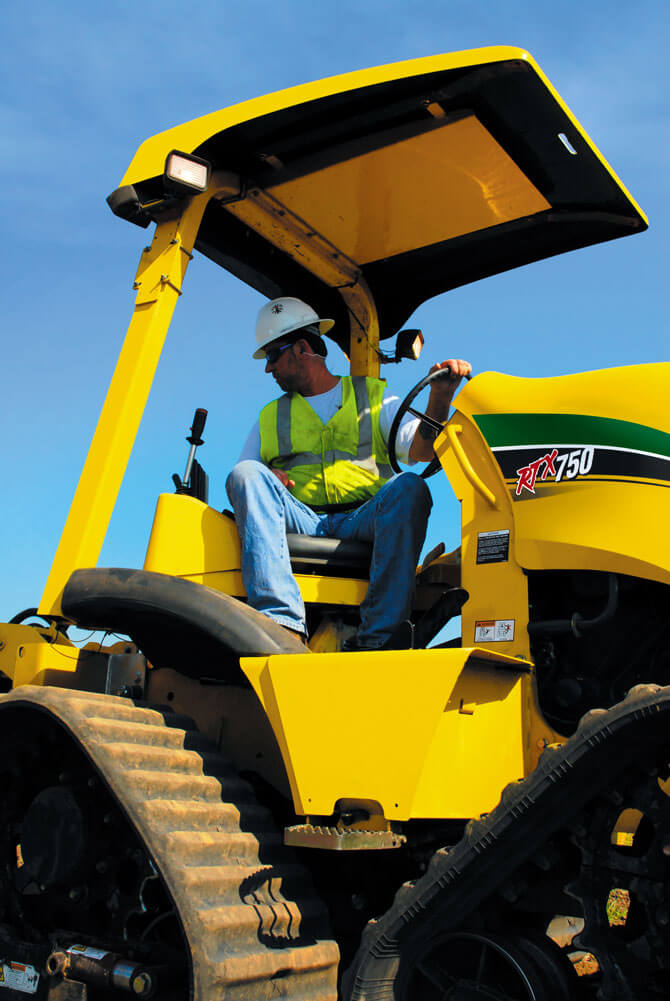

Knowledge on display

An integrated system display allows the operator to easily monitor important machine functions, while the capability to monitor percentage of hydrostatic capacity use is especially useful when training new operators.

Make sense of your trench

The TrenchSense™ electronic control system can react faster than the operator to prevent engine stall/stop when difficult digging conditions are encountered. By eliminating the need to return controls to neutral and restart, productivity can be increased, and the whole sequence occurs within seconds.

Specifications

Compare Models
Show Metric
  • General Dimensions and Weights

    • Weight (basic tractor, rubber tires) 5900 lbs 2676.2 kg
    • Weight (basic tractor, tracks) 9330 lbs 4232 kg
    • Length (basic tractor, rubber tires) 126 in 320 cm
    • Length (basic tractor, tracks) 133.2 in 338.3 cm
    • Width (basic tractor, rubber tires) 72 in 182.9 cm
    • Width (basic tractor, tracks) 78.5 in 199.4 cm
    • Height (basic tractor, rubber tires) 100.3 in 254.8 cm
  • Engine - Option one

    • Make and Model Deutz TD2.9L4
    • Gross Horsepower (Maximum) 74 hp 55.2 kw
    • Maximum Torque 192 ft-lb 260.3 Nm
    • Cooling Medium Liquid
    • Fuel Type Diesel
    • Emissions rating Tier 4 final
    • Noise Level at Operator's Ear 91 d(B)a
  • Engine - Option two

    • Make and Model Cummins B3.3T
    • Maximum Torque 181 ft-lb 245.4 Nm
    • Cooling Medium Water
    • Fuel Type Diesel
    • Emissions rating Tier 4i (EU Stage IIIB)
    • Noise Level at Operator's Ear 95 d(B)a
  • Ground Drive - Rubber Tire

    • Maximum forward transport speed (high) 5 mph 8 km/h
    • Maximum reverse transport speed (high) 5 mph 8 km/h
    • Tire size 38" x 14" (96.5 cm x 35.6 cm)
  • Ground Drive - Tracks

    • Maximum forward transport speed (high) 4 mph 6.4 km/h
    • Maximum reverse transport speed (high) 4 mph 6.4 km/h
  • Axle Options

    • Front Axle Type Steerable planetary with hydraulic differential lock
    • Rear Axle Type Steerable planetary with hydraulic differential lock
    • Axle load rating (static, per axle) 11250 lbs 5102.9 kg
    • Outside Turning Diameter (Rubber Tires, Front Steer Only) 33 ft 10.1 m
    • Outside turning diameter (tracks, front steer only) 39.5 ft
    • Outside Turning Diameter (Rubber Tires, Front and Rear Steer) 16.8 ft 5.1 m
    • Outside turning diameter (tracks, front and rear steer) 23 ft
    • Service Brake Type Hydrostatic
    • Parking Brake Type Spring-applied, hydraulic release
  • Hydraulic System

    • Auxiliary pump capacity 19.4 gpm 73.4 L/min
    • Auxiliary pump relief 2500 psi 172.4 bar
    • Attachment pump capacity 35 gpm 132.5 L/min
    • Attachment pump relief 5500 psi 379.2 bar
    • Ground drive pump capacity 35 gpm 132.5 L/min
    • Ground drive pump relief 4350 psi 299.9 bar
  • Capacities

    • Fuel Tank 26 gal 98.4 L
    • Hydraulic Tank 23 gal 87.1 L
    • Hydraulic System 25 gal 94.6 L
    • Coolant 3 gal 11.4 L

Attachments

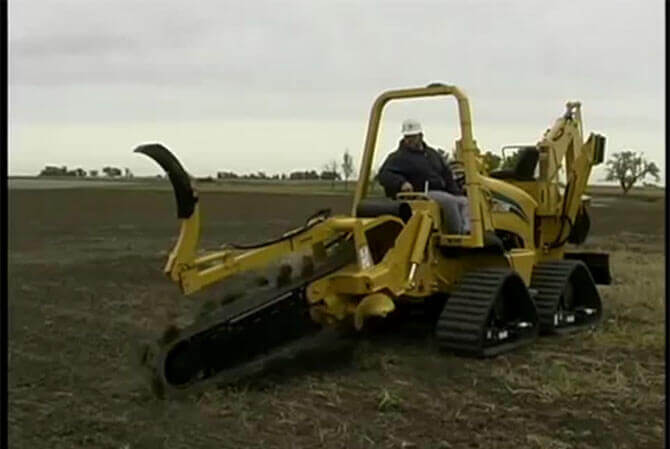

Sliding offset trencher

Sliding offset trencher

See Specs

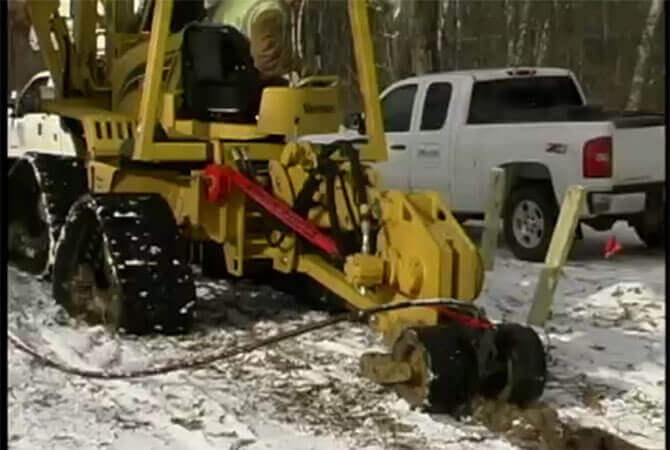

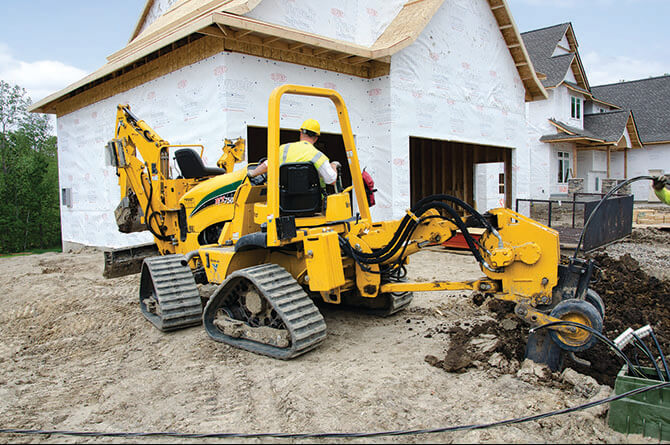

Vibratory plow

Vibratory plow

See Specs

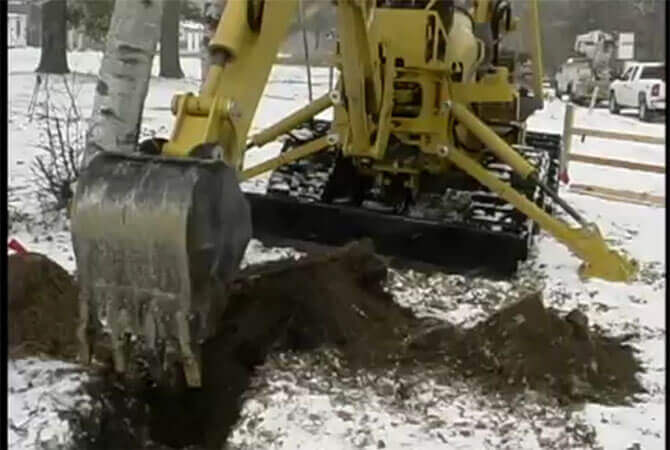

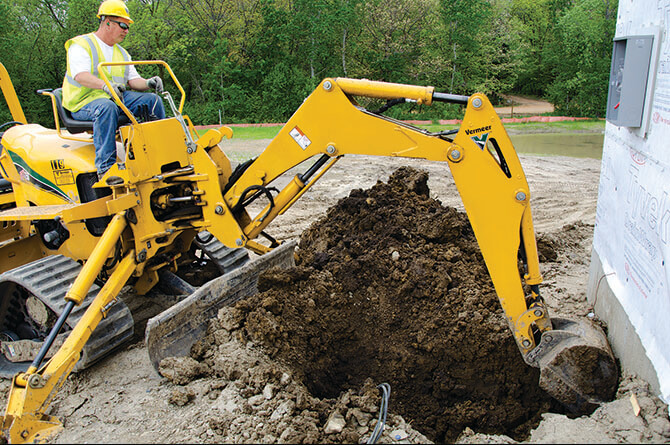

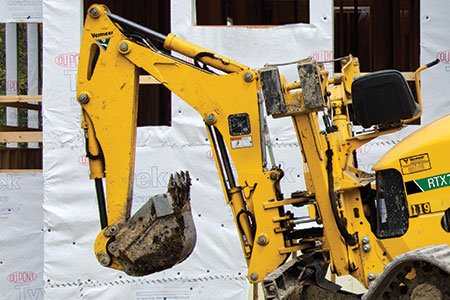

Backhoe - B550

Backhoe - B550

See Specs

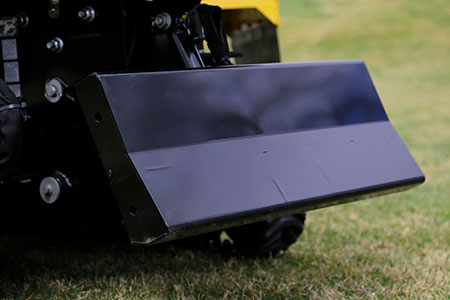

Backfill blade

Backfill blade

See Specs

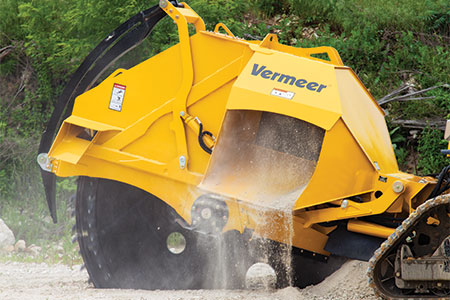

Rockwheel - RW526

Rockwheel - RW526

See Specs
Rockwheel - RW732

Rockwheel - RW732

See Specs
Trencher/plow combo

Trencher/plow combo

See Specs
Porta Bore

Porta Bore

See Specs
Reel carrier

Reel carrier

See Specs

See it in action

Video 4
Image 1
Video 1
Image 2
Video 2
Image 3
Video 3
Image 4
Image 5
Image 6
Image 7
Image 8
