When you’re digging in heavy rock conditions, stand firm with up to 60,000 lb (27,215.5 kg) of tractive force on the ground.

Find A Dealer Request More Info

When you’re digging in heavy rock conditions, the T755 Commander® 3 trencher will stand firm with up to 60,000 lb (27,215.5 kg) of tractive force on the ground. Match the optional sectionalized boom to the job for better results, less tooth wear and reduced vibrations.

When you’re digging in heavy rock conditions, stand firm with up to 60,000 lb (27,215.5 kg) of tractive force on the ground.

When you’re digging in heavy rock conditions, the T755 Commander® 3 trencher will stand firm with up to 60,000 lb (27,215.5 kg) of tractive force on the ground. Match the optional sectionalized boom to the job for better results, less tooth wear and reduced vibrations.

Find A Dealer Request More Info

Features & Benefits

Full function remote control

Available with a wireless remote control that can provide full operator function remotely.

Optional auto tilt rack

An oscillating track frame allows the track to follow the ground’s contour, providing a vertical trench on slopes up to 10.5 degrees.

Elevating cab

Enhance productivity with a split cab that elevates 3 ft (.9 m) for better visibility and climate-controlled comfort.

SmartTEC computer-aided control system

Improve job monitoring with the exclusive Vermeer SmartTEC computer-aided control system.

Rollover protective structure (ROPS)

Increase operator safety thanks to the industry’s first rollover protective structure (ROPS).

Optional warranty

Vermeer Vantage Track Extended Care Service Program offers an optional 3-year/3000-hour or 5-year/5000-hour warranty on the components of the closed-loop hydrostatic systems.

Specifications

Compare Models
Show Metric
  • Transport Dimensions

    • Approach Angle 22 deg
    • Height Range 120" (304.8 cm)
    • Length with 40" (101.6 cm) End Idler and 5 ft (1.52 m) Boom 28 ft 8.5 m
    • Length with 40" (101.6 cm) End Idler and 6 ft (1.83 m) Boom 29.1 ft 8.9 m
    • Length with 40" (101.6 cm) End Idler and 8 ft (2.44 m) Boom 31.3 ft 9.5 m
    • Length with 40" (101.6 cm) End Idler and 10 ft (3.05 m) Boom 33.6 ft 10.2 m
    • Weight Range 49,000 lb - 75,000 lb (22,226 kg - 34,019.4 kg)
    • Width Ranges 98" - 102" (249.4 cm - 259.1 cm)
  • Engine - Option one

    • Make and Model Caterpillar C9 ACERT Tier 3
    • Gross Horsepower 275 hp 205.1 kw
    • Rated Engine RPM 2200
    • Number of Cylinders 6
    • Fuel Tank Capacity 145 gal 548.9 L
    • Operating Range 9.9
    • Fuel Consumption at Full Load 14.7 gph 55.6 lph
    • Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles) 40 deg
    • Air Cleaner Dry-type exhaust aspirated
    • Aspiration Turbocharged and air-to-air aftercooled
    • Cooling Medium Liquid
    • Electrical System 24 Volt DC
    • Oil Filter Full flow
  • Engine - Option two

    • Make and Model John Deere 6090HFC09 Tier 4 Final
    • Gross Horsepower 275 hp 205.1 kw
    • Rated Engine RPM 2200
    • Number of Cylinders 6
    • Fuel Tank Capacity 145 gal 548.9 L
    • Operating Range 11.0
    • Fuel Consumption at Full Load 13.2 gph 50 lph
    • Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles) 30 deg
    • Air Cleaner Dry-type with precleaner
    • Aspiration Turbocharged and air-to-air aftercooled
    • Cooling Medium Liquid
    • Electrical System 24 Volt DC
    • Oil Filter Full flow
  • Tracks

    • Auto Self Level Yes
    • Ground Pressure Minimum 8.9 psi 61.4 kPa
    • Ground Pressure Maximum 12.5 psi 86.2 kPa
    • Tilt Track Available Yes
    • Tilt Track Max Angle 12 degrees
    • Track Drive Type Dual path hydrostatic with planetary transmission
    • Track Length 142 in 360.7 cm
    • Track Pad Type Single, double, triple and polyurethane grouser
    • Track Pad Width Ranges 20" or 24" (50.8 cm or 61 cm)
    • Track Size D5
    • Maximum Ground Speed - Low 85.2 ft/min 26 m/min
    • Maximum Ground Speed - High 170 ft/min 51.8 m/min
    • Parking and Emergency Brake spring-applied, hydraulic release, wet disc brake
    • Service Brakes Hydrostatic
  • Conveyor

    • Belt Width 24 in 61 cm
    • Conveyor Belt Speed Range 0-1118 fpm (0-340.76 m/min)
    • Conveyor Belt Style Cleated or finger type
    • Conveyor Length 96" or 144" (243.8 cm or 365.8 cm)
    • Conveyor Shift Available Yes
    • Conveyor Shift Distance Range 14" and 66" (35.6 cm and 167.6 cm)
    • Conveyor Style Curved
    • Discharge Direction Right or left
    • Discharge Height Range 55" and 68" (139.7 cm and 172.7 cm)
  • Attachments

    • Trencher Yes
    • Terrain Leveler No
    • Rockwheel No
    • Bucket Wheel No
  • Cab

    • Cab Yes
    • Control System TEC Plus with SmartTEC
    • Air Conditioner/Heater Yes
    • Air Suspension Seat No
    • AM/FM Stereo with Weather Band Yes
    • Elevating Yes
    • Pressurized/Filtered Air Yes
    • Rollover Protective Structure (ROPM) Yes
  • Hydraulic System

    • Oil Tank Capacity 114 gal 431.5 L
    • Oil Type Vermeer HyPower 68 or Vermeer HyPower 100
    • Pressure Setting 2500 psi 172.4 bar
    • Pump Flow at Maximum RPM 25.1 gpm 95 L/min
    • Pump Type pressure-and-flow-compensated (load-sensing)

Attachments

Trencher

Trencher

See Specs

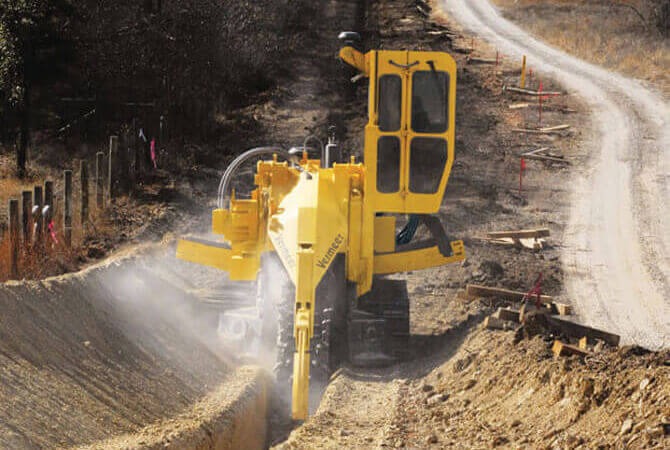

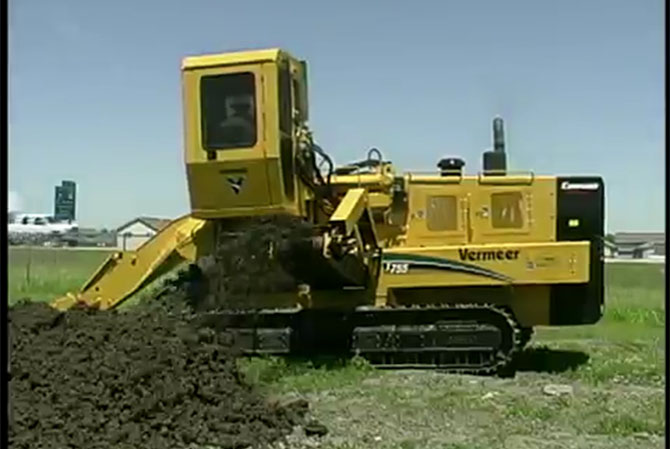

See it in action

Video 1
Image 1
Image 2
Video 3
Image 3
Video 4
