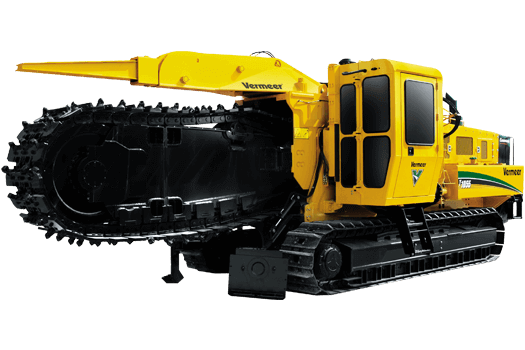

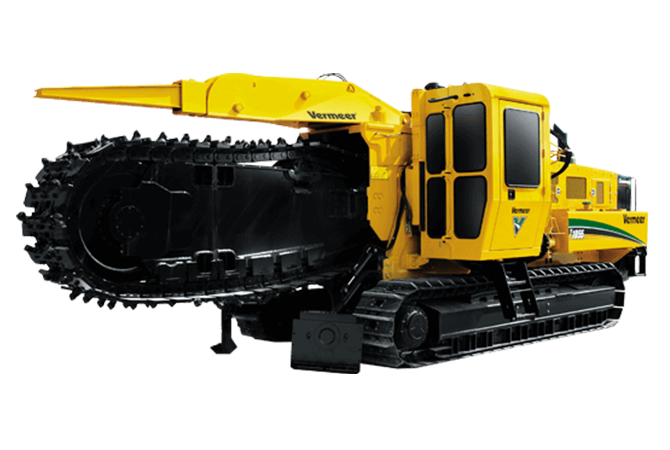

For pipeline projects requiring high horsepower and deep digging depths, Vermeer offers the T1055 Commander® 3 trencher. This trencher houses a powerful Caterpillar C13 ACERT Tier 3 electronic engine with 415 hp (301 kW) and equipped with the TEC® Plus computer-aided control system.

High power. Deep depths.

For pipeline projects requiring high horsepower and deep digging depths, Vermeer offers the T1055 Commander® 3 trencher. This trencher houses a powerful Caterpillar C13 ACERT Tier 3 electronic engine with 415 hp (301 kW) and equipped with the TEC® Plus computer-aided control system.

Find A Dealer Request More Info

Features & Benefits

Low-speed, high-torque motor

Perform rock excavation effectively with minimal chain wear due to its low-speed, high-torque, splined headshaft motor.

Optional sectionalized trencher boom

Adjust to trench depths using an optional sectionalized trencher boom.

Optional warranty

Vermeer Vantage Track Extended Care Service Program offers an optional 3-year/3000-hour or 5-year/5000-hour heavy equipment warranty on the components of the closed-loop hydrostatic system.

Specifications

Compare Models
  • Engine Option Two

    • Make and Model Caterpillar C13 ACERT Tier 4 Final
    • Gross Horsepower 415 hp 309.5 kw
    • Rated Engine RPM 2100
    • Number of Cylinders 6
    • Fuel Tank Capacity 184 gal 696.5 L
    • Operating Range 8.6 hours
    • Fuel Consumption at Full Load 21.3 gph 80.6 lph
    • Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles) 35 deg
    • Air Cleaner Dry-type with precleaner
    • Aspiration Turbocharged and air-to-air aftercooled
    • Cooling Medium Liquid
    • Electrical System 24 Volt DC
    • Oil Filter Full flow
  • Engine Option One

    • Make and Model Caterpillar C13 ACERT Tier 3
    • Gross Horsepower 415 hp 309.5 kw
    • Rated Engine RPM 2100
    • Number of Cylinders 6
    • Fuel Tank Capacity 184 gal 696.5 L
    • Operating Range 8.8 hours
    • Fuel Consumption at Full Load 20.9 gph 79.1 lph
    • Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles) 35 deg
    • Air Cleaner Dry-type exhaust aspirated
    • Aspiration Turbocharged and air-to-air aftercooled
    • Cooling Medium Liquid
    • Electrical System 24 Volt DC
    • Oil Filter Full flow
  • Transport Dimensions

    • Approach Angle 16 deg
    • Height Range 135" (342.9 cm)
    • Length with 40" (101.6 cm) End Idler and 6 ft (1.83 m) Boom 32.2 ft 9.8 m
    • Length with 40" (101.6 cm) End Idler and 8 ft (2.44 m) Boom 34.7 ft 10.6 m
    • Length with 40" (101.6 cm) End Idler and 10 ft (3.05 m) Boom 37.2 ft 11.3 m
    • Length with 40" (101.6 cm) End Idler and 12 ft (3.66 m) Boom 39.7 ft 12.1 m
    • Length with 40" (101.6 cm) End Idler and 14 ft (4.27 m) Boom (with Restraint Bar) 41 ft 12.5 m
    • Length with 50" (127 cm) End Idler and 8 ft (2.44 m) Boom 35.8 ft 10.9 m
    • Length with 50" (127 cm) End Idler and 10 ft (3.05 m) Boom 38.3 ft 11.7 m
    • Length with 50" (127 cm) End Idler and 12 ft (3.66 m) Boom 40.8 ft 12.4 m
    • Weight Range 87,000 lb - 124,000 lb (39,463.5 kg - 56,245.5 kg)
    • Width Ranges 116"-122" (294.6 cm - 309.9 cm)
  • Conveyor

    • Belt Width 30 in 76.2 cm
    • Conveyor Belt Speed Range 0-1070 fpm (0-326 m/min)
    • Conveyor Belt Style Cleat or finger type
    • Conveyor Length 108" or 168" (274.3 cm or 426.7 cm)
    • Conveyor Shift Available Yes
    • Conveyor Shift Distance Range 5" and 65" (12.7 and 165.1 cm)
    • Conveyor Style Curved
    • Discharge Direction Right or left
    • Discharge Height Range 64"-78" (162.6 cm - 198.1 cm)
  • Tracks

    • Auto Self Level No
    • Ground Pressure Minimum 9.4 psi 64.8 kPa
    • Ground Pressure Maximum 13.9 psi 95.8 kPa
    • Tilt Track Available No
    • Tilt Track Max Angle 0
    • Track Drive Type Dual path hydrostatic with planetary transmission
    • Track Length 176 in 447 cm
    • Track Pad Type Single or double grouser
    • Track Pad Width Ranges 24" (61 cm) or 30" (76.2 cm)
    • Track Size D7G
    • Maximum Ground Speed - Low 57.1 ft/min 17.4 m/min
    • Maximum Ground Speed - High 114 ft/min 34.7 m/min
    • Parking and Emergency Brake spring-applied, hydraulic release, wet disc brake
    • Service Brakes Hydrostatic
  • Attachments

    • Trencher Yes
    • Terrain Leveler Yes
    • Rockwheel No
    • Bucket Wheel No
  • Cab

    • Cab Yes
    • Control System TEC Plus with SmartTEC
    • Air Conditioner/Heater Yes
    • Air Suspension Seat No
    • AM/FM Stereo with Weather Band Yes
    • Elevating Yes
    • Pressurized/Filtered Air Yes
    • Rollover Protective Structure (ROPM) Yes
  • Hydraulic System

    • Oil Tank Capacity 152 gal 575.4 L
    • Oil Type Vermeer HyPower 68 or Vermeer HyPower 100
    • Pressure Setting 2500 psi 172.4 bar
    • Pump Flow at Maximum RPM 27.9 gpm 105.6 L/min
    • Pump Type pressure-and-flow-compensated (load-sensing)

Attachments

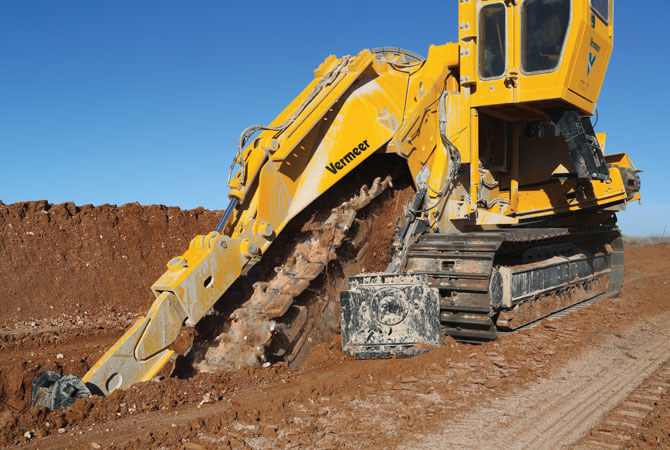

Trencher

Trencher

See Specs

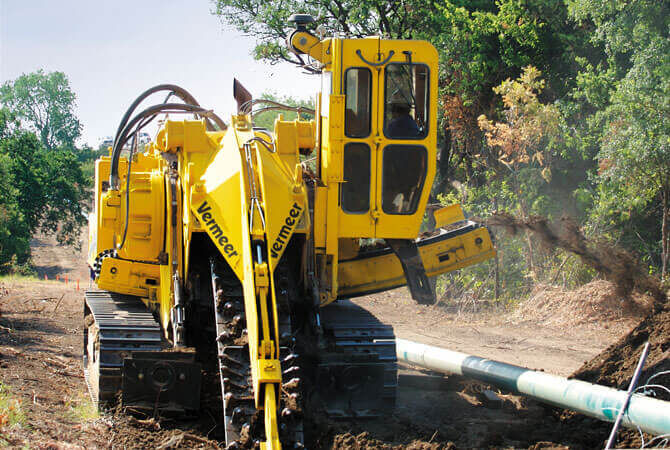

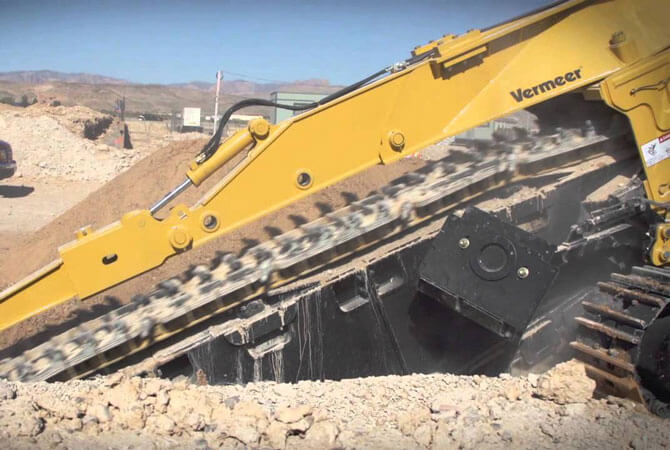

See it in action
