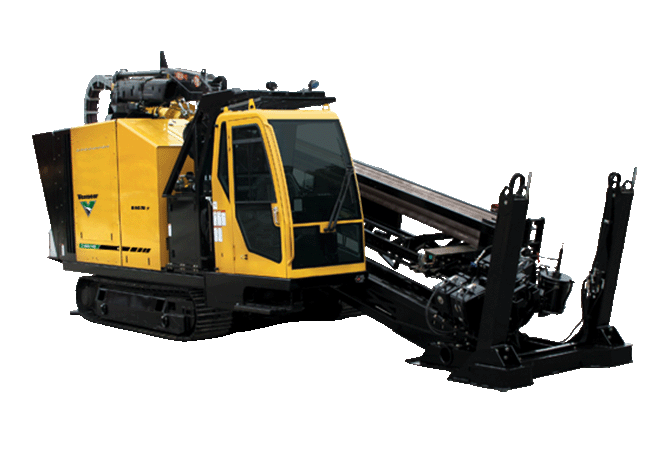

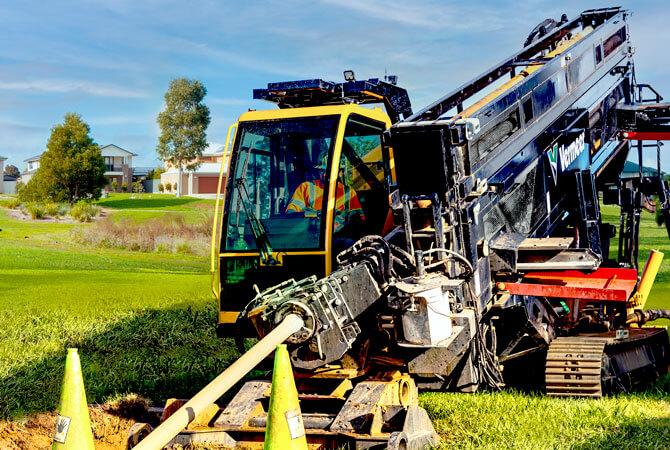

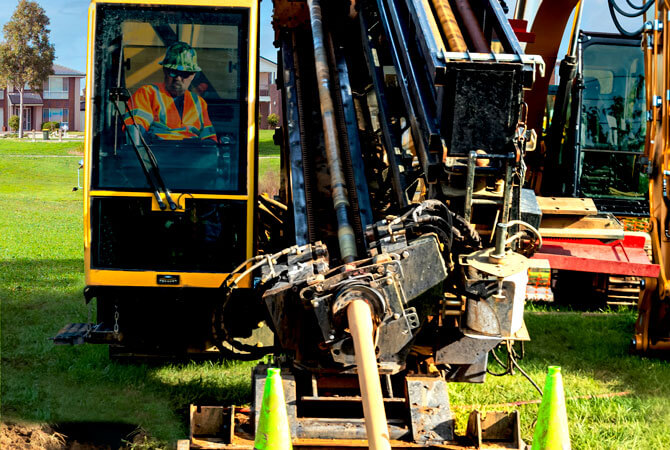

There is no substitute for downhole power. With a maximum rotary torque output of 14,000 ft-lb (18,981.5 Nm) and rotational speeds up to 203 rpm, the D100x140 S3 Navigator® horizontal directional drill offers an exceptional one-two punch in response to your most challenging projects. To get you there and back, select between 15-ft or 20-ft (4.6-m or 6.1-m) lengths of 3.5-in (8.9-cm) Firestick® drill rod. Consider the 15 ft (4.6 m) to minimize your footprint, while selecting 20 ft (6.1 m) will offer increased onboard rod carrying capacity.

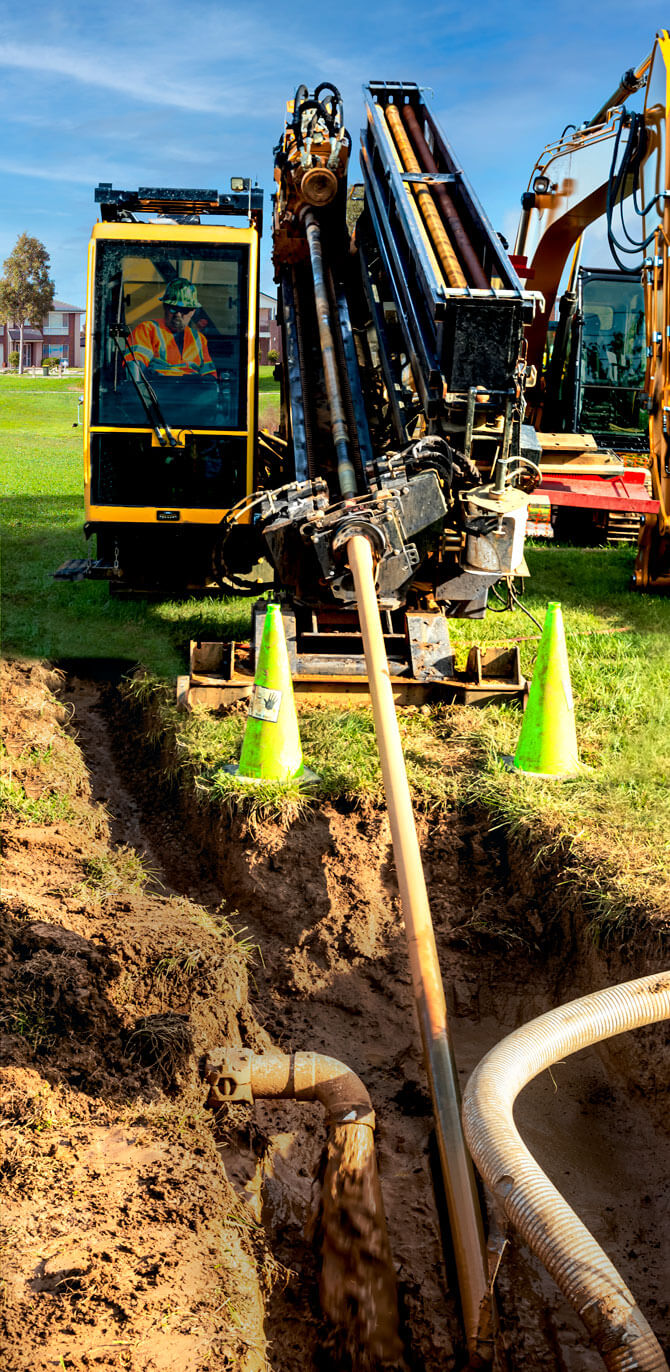

There is no substitute for downhole power.

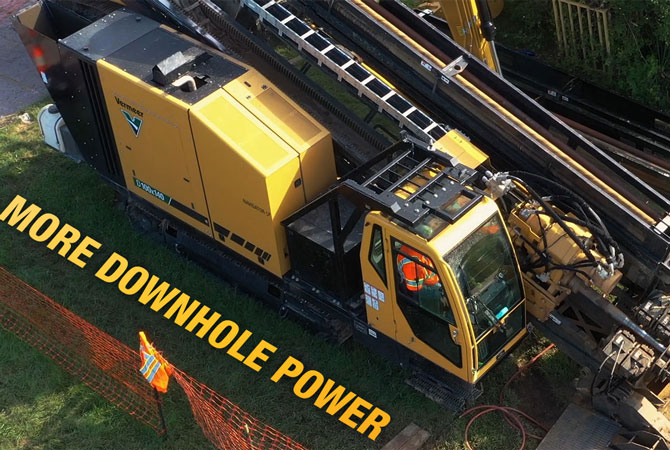

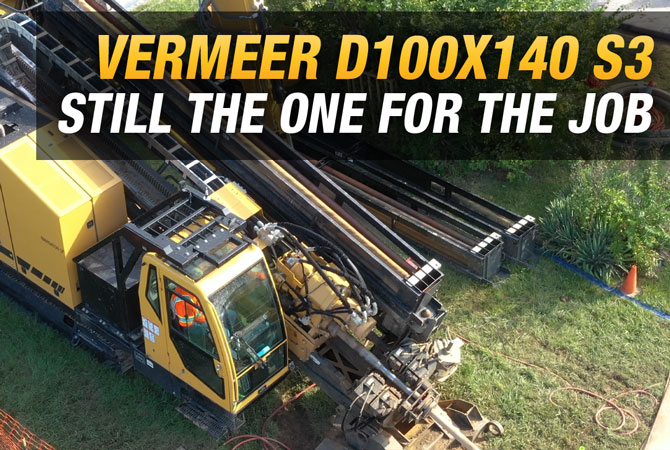

There is no substitute for downhole power. With a maximum rotary torque output of 14,000 ft-lb (18,981.5 Nm) and rotational speeds up to 203 rpm, the D100x140 S3 Navigator® horizontal directional drill offers an exceptional one-two punch in response to your most challenging projects. To get you there and back, select between 15-ft or 20-ft (4.6-m or 6.1-m) lengths of 3.5-in (8.9-cm) Firestick® drill rod. Consider the 15 ft (4.6 m) to minimize your footprint, while selecting 20 ft (6.1 m) will offer increased onboard rod carrying capacity.

Find A Dealer Request More Info

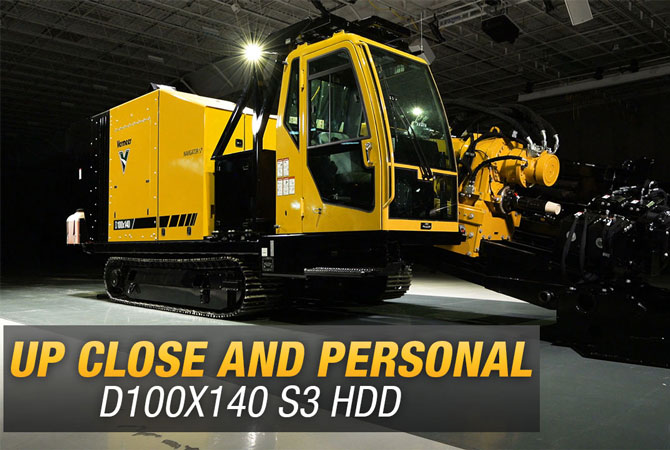

Features & Benefits

Firestick drill rod

Experience the difference that has made one-piece, forged Firestick® drill rod the industry benchmark.

Stackable rod box

With consideration to ease of use and safety, the D100x140 S3 stackable rod box design allows additional rod to be loaded via the upper rod box. When matched with the optional onboard crane, no additional support equipment is required to load additional rod.

Wireless remote-controlled knuckle boom crane

The D100x140 S3 is available with a wireless remote-controlled knuckle boom crane. At maximum reach of 19.5’ (6 m), the crane has a rated capacity of 3970 lb (1800.8 kg).

Dual displays

State-of-the-art dual displays offer easy visibility to a wide range of machine performance, diagnostic and drilling information.

Angled, true open-top vises

Equipped with angled, true open-top vises with an 8” (20.3 cm) opening, the D100x140 S3 offers good operator visibility during rod makeup/breakout. The true open-top design accommodates mud motors and other large tooling. Responsive and powerful clamping and breakout actions can boost cycle time efficiency.

Increase your range

Unique four-bar linkage and additional pads allow operators to set up entry angles of 11 to 24 degrees – increasing range attainable with tracks fully on ground.

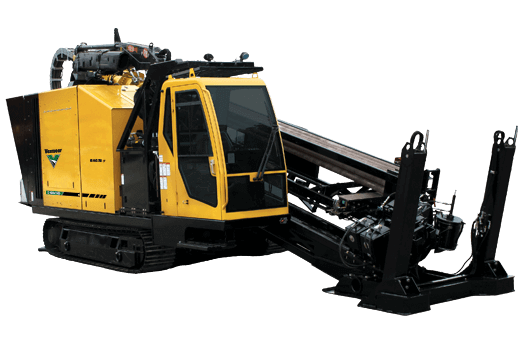

Specifications

Compare Models
  • Drilling Fluid System Option Three - 20 ft (6.1 m)

    • Maximum Flow 200 gpm 757.1 L/min
    • Maximum Pressure 1000 psi 68.9 bar
    • Brand Kerr
  • Drilling Fluid System Option Two - 20 ft (6.1 m)

    • Maximum Flow 230 gpm 870.6 L/min
    • Maximum Pressure 1000 psi 68.9 bar
    • Brand Aplex
  • Drilling Fluid System Option Two - 15 ft (4.6 m)

    • Maximum Flow 150 gpm 567.8 L/min
    • Maximum Pressure 1100 psi 75.8 bar
    • Brand Aplex
  • Operational

    • Thrust 100000 lbs 444.8 kN
    • Pullback 100000 lbs 444.8 kN
    • Maximum Carriage Speed at Maximum Engine RPM 175 ft/min 53.3 m/min
    • Maximum Spindle Torque (Low at Maximum Engine RPM) 14000 ft-lb 18981.5 Nm
    • Maximum Spindle Torque (Medium at Maximum Engine RPM) 10500 ft-lb 14236.1 Nm
    • Maximum Spindle Torque (High at Maximum Engine RPM) 7000 ft-lb 9490.7 Nm
    • Maximum Spindle Speed at Max Engine RPM 215 rpm
    • Minimum Bore Diameter 6 in 15.2 cm
    • Maximum Ground Drive Speed at Maximum Engine RPM 2.8 mph 4.5 km/h
    • Automated Rod Loader Semi-automated
    • Noise Level at Operator's Ear - 15 ft (4.6 m) 82 dB(a)
    • Noise Level at Operator's Ear - 20 ft (6.1 m) 84 dB(a)
    • Drill Rack Angle 24 deg
  • General Dimensions and Weights

    • Length (Minimum Transport) - 15 ft (4.6 m) 358 in 909.3 cm
    • Length (Minimum Transport) - 20 ft (6.1 m) 410 in 1041.4 cm
    • Width (Minimum Transport) 100 in 254 cm
    • Width (With Cab, Minimum Transport) 100 in 254 cm
    • Height (Minimum Transport) 136 in 345.4 cm
    • Height (With Cab) 136 in 345.4 cm
    • Weight - 15 ft (6.1 m) 49800 lbs 22588.9 kg
    • Weight - 20 ft (6.1 m) 57220 lbs 25954.6 kg
    • Weight (Cab Option) - 15 ft (4.6 m) 49800 lbs 22588.9 kg
    • Weight (Cab Option) - 20 ft (6.1 m) 57220 lbs 25954.6 kg
    • Angle of Approach 18 deg
  • Fluid Capacities

    • Fuel Tank 120 gal 454.2 L
    • Hydraulic Tank 90 gal 340.7 L
    • Hydraulic System 120 gal 454.2 L
  • Crane

    • Maximum Lifting Capacity 5700 lbs 2585.5 kg
    • Maximum Lifting Capacity - Boom Extended/Max Reach 4200 lbs 1905.1 kg
    • Rotation 400 deg
    • Maximum Reach 19.5 in 49.5 cm
    • Optional Crane Yes
    • Wireless Remote Yes
  • Features

    • Breakout System Open top vise
    • Drilling Lights Standard
    • Flow Indicator Standard
    • Stakedown System Optional
    • Cab Standard
    • Strike Alert Standard
    • Remote Lockout Standard
    • Operator Presence Standard
  • Engine

    • Make and Model CAT
    • Fuel Type Ultra low sulfur diesel
    • Maximum Engine RPM 2200 rpm
    • Gross Horsepower 275 hp 205.1 kw
    • Aspiration Twin turbocharged
    • Max Fuel Consumption 15 gph 56.8 lph
    • Maximum Operating Angle (Fore/Aft)* 25
    • Maximum Operating Angle (Left/Right)* 25
  • Drilling Fluid System Option One

    • Maximum Flow 230 gpm 870.6 L/min
    • Maximum Pressure 1100 psi 75.8 bar
    • Brand Aplex
