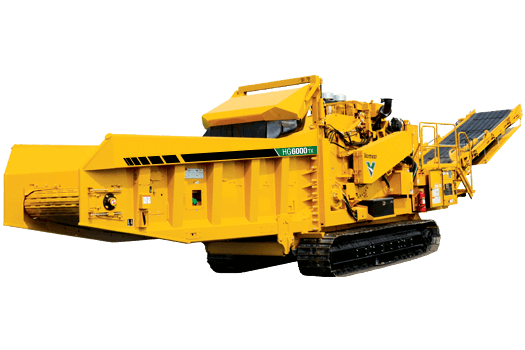

Process wood waste more efficiently with the HG6000TX horizontal grinder.

Find A Dealer Request More Info

Self-propels into the most remote jobsites on 20-in (50.8-cm) or 24-in (61-cm) double grouser track pads. High ground clearance and sealed rollers help keep material from building up in the track system. State-of-the-art wireless remote lets you operate the machine from up to 300 ft (91.4 m) away. An optional discharge blower system distributes processed wood over a large area or can fill a covered trailer from the rear end.

Process wood waste more efficiently with the HG6000TX horizontal grinder.

Self-propels into the most remote jobsites on 20-in (50.8-cm) or 24-in (61-cm) double grouser track pads. High ground clearance and sealed rollers help keep material from building up in the track system. State-of-the-art wireless remote lets you operate the machine from up to 300 ft (91.4 m) away. An optional discharge blower system distributes processed wood over a large area or can fill a covered trailer from the rear end.

Find A Dealer Request More Info

Features & Benefits

SmartGrind system

Increase productivity thanks to the exclusive Vermeer SmartGrind system, which automatically controls grinding speed based on engine rpm levels.

Series II duplex drum system

Improve cutting performance using the patented series II duplex drum system with reversible hammers and cutter blocks that simplify maintenance and nearly double wear life.

Top-loading screens

Top-loading screens are designed to give operators easy access.

Thrown object deflector (TOD)

Enhance jobsite safety with a TOD that reduces the quantity and distance of thrown debris.

Drum feature

Diversify your end product by incorporating the fuel chip attachment (FCA), allowing your grinder to be converted to a chipper.

Mobility

The track-driven grinder offers onsite mobility with a remote control for easy maneuverability. The DT6 optional integrated dolly transport system eliminates the need for a dedicated trailer to move between sites.

Specifications

Compare Models
Show Metric
  • General Dimensions and Lengths - Long Infeed

    • Maximum Length - Transport 37.3 ft 11.4 m
    • Maximum Length - Transport with Dolly 45.8 ft 14 m
    • Maximum Length (Operation) 54.5 ft 16.6 m
    • Maximum Width Transport - with Dolly 9.8 ft 3 m
    • Maximum Height Transport with Dolly 154.8 in 393.2 cm
    • Weight 75000 lbs 34019.4 kg
    • Tongue Weight - Engine Option 1 with Dolly 37590 lbs 17050.5 kg
    • Axle Weight - Engine Option 1 with Dolly 48910 lbs 22185.2 kg
    • Dolly Weight 9500 lbs 4309.1 kg
  • Engine - Option one

    • Make and Model Caterpillar C18 Tier 4F (Stage IVB)
    • Number of Cylinders 6
    • Gross Horsepower (Maximum) 755 hp 563 kw
    • Torque (Max) 2582 ft-lb 3500.7 Nm
    • Fuel Tank Capacity 350 gal 1324.9 L
    • Max Fuel Consumption 38.3 gph 145 lph
    • Fuel Type Ultra-low sulfur diesel (<15 ppm)
    • Air Cleaner Dry-type with primary and secondary elements and restriction indicator
    • Oil Filter Full-flow, spin-on
    • Recommended Oil API CJ-4, 15W-40
    • Oil Volume with Filter 36 qt 34.1 L
    • Cooling Medium Liquid
    • Coolant Capacity (Engine and Radiator) 22.6 gal 85.6 L
    • Alternator 24 Volt
    • Fan (Qty 2) Hydraulically driven, reversible
    • Fan - CAC Hydraulic (variable speed)
    • Clutch Type Hydraulic-operated wet clutch with PTO
    • Clutch Engagement Push-button
    • Drive Belt Type Synchronous, carbon fiber
  • Engine - Option two

    • Make and Model Caterpillar C18 Tier 4i (Stage IIIB)
    • Number of Cylinders 6
    • Gross Horsepower (Maximum) 755 hp 563 kw
    • Torque (Max) 2582 ft-lb 3500.7 Nm
    • Fuel Tank Capacity 350 gal 1324.9 L
    • Max Fuel Consumption 39.5 gph 149.5 lph
    • Fuel Type Ultra-low sulfur diesel (<15 ppm)
    • Air Cleaner Dry-type with primary and secondary elements and restriction indicator
    • Oil Filter Full-flow, spin-on
    • Recommended Oil API CJ-4, 15W-40
    • Oil Volume with Filter 36 qt 34.1 L
    • Cooling Medium Liquid
    • Coolant Capacity (Engine and Radiator) 22.6 gal 85.6 L
    • Air to Boil Temperature 118 deg
    • Alternator 24 Volt
    • Fan (Qty 2) Hydraulically driven, reversible
    • Clutch Type Hydraulic operated wet clutch with PTO
    • Clutch Engagement Push-button
    • Drive Belt Type Synchronous, carbon fiber
    • Sound Power 119.8 dB(A) - deluxe exhaust system (Exhaust option 2 move to engine option one
  • Engine - Option three

    • Make and Model Caterpillar C18 Tier 3
    • Number of Cylinders 6
    • Gross Horsepower (Maximum) 630 hp 469.8 kw
    • Torque (Max) 2041 ft-lb 2767.2 Nm
    • Fuel Tank Capacity 350 gal 1324.9 L
    • Max Fuel Consumption 34.6 gph 131 lph
    • Fuel Type Diesel
    • Air Cleaner Dry-type with primary and secondary elements and restriction indicator
    • Oil Filter Full-flow, spin-on
    • Recommended Oil API CJ-4, Viscosity dependent on startup temperature
    • Oil Volume with Filter 36 qt 34.1 L
    • Cooling Medium Liquid
    • Coolant Capacity (Engine and Radiator) 21.3 gal 80.6 L
    • Alternator 24 Volt
    • Fan (Qty 2) Hydraulically driven, reversible
    • Clutch Type Hydraulic operated wet clutch with PTO
    • Clutch Engagement Push button
    • Drive Belt Type Synchronous, carbon fiber
    • Sound Power 119.8 dB(A) - Deluxe exhaust system
  • Standard Infeed System

    • Feed opening 32-in (81.3-cm) high x 56.4-in (143.3-cm) wide
    • Infeed roller weight with arm 3350 lbs 1519.5 kg
  • Heavy-duty Infeed System

    • Feed opening 32-in (81.3-cm) high x 56.4-in (143.3-cm) wide
    • Infeed roller weight with arm 3483 lbs 1579.9 kg
  • Safety System

    • Thrown Object Deflector Standard
    • Deflector Position Variable
  • Duplex Drum

    • Millbox Opening 60" W x 32" H (152.4 cm W x 81.3 cm H)
    • Drum Weight 4741 lbs 2150.5 kg
    • Drum Diameter 28 in 71.1 cm
    • Tip Diameter 36.4 in 92.5 cm
    • Drum Cutting Width 62.4 in 158.5 cm
    • Drum Skin Thickness 1.5 in 3.8 cm
    • Drum Speed 1086 rpm
    • Bearing Type Double row, spherical roller
    • Bearing - Inner Race Diameter 5.5 in 14 cm
    • Number of Hammers 10
    • Number of Tips 20
    • Tip types Premium wide
    • Center Retention Pin Dimensions 2" diameter x 75.3" L (5.1 cm diameter x 191.3 cm L)
  • Chipper Drum

    • Millbox Opening 60
    • Drum Weight 5946 lbs 2697.1 kg
    • Drum Diameter 34.3 in 87.1 cm
    • Drum Cutting Width 63 in 160 cm
    • Drum Skin Thickness 1.5 in 3.8 cm
    • Depth of Cut Adjustable: .125 in (.31 cm) to 1 in (2.5 cm)
    • Number of Knives 28
    • Knife Thickness .625 in (1.6 cm)
    • Useable Edges 1
    • Material A8 mod chipper steel
    • Number of Bolts/Knife 2
    • Replaceable Threaded Knife Block Yes
    • Number of Pockets 14
    • Drum Speed 683 rpm
    • Bearing Type Spherical
    • Bearing - Inner Race Diameter 5.5 in 14 cm
    • Shaft diameter 6.5 in 16.5 cm
    • Shaft Retention Type Keyless bushing
  • Screens

    • Screen Weight 470 lbs 213.2 kg
    • Screen Dimensions 3/4" (1.9 cm) thick
    • Screen Type Fabricated out of abrasion resistant steel
    • Number of Screens 2
    • Screen Area 3317 sq in 21400 sq cm
    • Millbox lid liner Abrasion-resistant steel
    • Number of Sides 1
    • Millbox Lid Liner Dimensions Abrasion resistant steel
    • Liner Dimensions 1" thick x 5.6" W x 65.4" L (2.5 cm thick x 14.2 cm W x 166.1 cm L)
    • Anvil Type Fabricated steel with replaceable wear surfaces
    • Anvil Dimensions 22.8"x 4.1"x 80.8" (57.9 cm x 10.4 cm x 205.2 cm)
  • Discharge System - Single Belt Design

    • Length 81.3 ft 24.8 m
    • Width 48 in 121.9 cm
    • Belt Design 3 ply - 330# or straight warp single ply 330# both with V cleat
    • Splice R2-stainless steel or Super splice
    • Return Roller Quantity 4
    • Idler Roller Diameter 12 in 30.5 cm
    • Idler Roller Bearing 1-15/16, 4-bolt flange
    • Standard Drive Roller Diameter 12.8 in 32.5 cm
    • Magnetic Drive Roller Diameter 12.8 in 32.5 cm
    • Drive Motor Fixed displacement, geroler
    • Drive Motor Bearings 1-15/16, 4-bolt flange
    • Belt Speed 780 ft/min 237.7 m/min
    • Load Height 14 ft 4.3 m
  • Hydraulic System

    • Tank capacity 100 gal 378.5 L
    • Recommended Oil Vermeer HyPower 68
    • Filtration Method Dual in-tank return filters with suction strainer
    • Number of Coolers 2 (Implement/Track)
  • Implement Hydraulics

    • System Type Open-loop, pressure- and flow-compensated
    • Pump Type Variable displacement, axial piston
    • Pump Flow at Maximum RPM 32.4
    • System Relief Pressure 4500 psi
  • Discharge Conveyor Hydraulics

    • System Type Open-loop
    • Pump Type Fixed displacement, gear pump
    • Pump Flow at Maximum RPM 25.7 gpm 97.3 L/min
    • System Relief Pressure 3000
    • Motor Series Char-Lyn 6000 Series, geroler
  • Fan Drive Hydraulics

    • System Type Open-loop, pressure- and flow-compensated
    • Pump Type Variable displacement, axial piston
    • Pump Flow at Maximum RPM 36.2 gpm 137 L/min
    • Motor Series Radiator-Permco M197 Series; CAC-Turolla OCG SNM2 Series
    • Fan Series - FWD/REV Reversible
  • Clutch

    • Tank capacity 18 gal 68.1 L
    • Recommended Oil VMF Gold
    • Filtration Method Spin-on, pressure filter, B6 = 1000
    • Number of Coolers 1
    • System Type Open-loop
    • Pump Type Fixed displacement, gear pump
    • Pump Flow at Maximum RPM 12.4 gpm 46.9 L/min
    • System relief pressure 260 psi 17.9 bar
  • Electrical System

    • System Voltage 24 Volt
    • Battery Group 8-D, 1155 CCA (Qty 2)
    • System Protection Fused
  • Control Station

    • Display Type LCD
    • Engine Information Yes
    • Machine Information Yes
    • Operational Faults Yes
    • Gauges Two, fuel level and hydraulic pressure
    • Switches Moisture-proof, toggle style
  • Radio Remote Control

    • Radio remote type R524
    • Display Type LCD
    • Engine Information Yes
    • Machine Information Yes
    • Operational Faults Yes
    • Switches Sealed membrane
    • Operating Range Up to 300' (91.4 m)
    • Battery Type AA (qty 6)
    • Channel Setting 50 channels
  • Chassis

    • Frame Description Unit body construction
    • Tongue Description Bolt-on to infeed structure
    • Hitch Type Fifth wheel
    • Fender Description Optional bolt-on formed steel
    • Brake Type Air-actuated with spring-applied parking brake
    • Trailer Light Type 12-24 V LED
  • Axle/Suspension

    • Suspension Type Air-ride
    • Manufacturer - Option One Hendrickson
    • Capacity per Axle 20000 lbs 9071.8 kg
    • Number of Axles 3
    • Tires - Option One 255/70R22.5 Duals
    • Wheels - Option One 22.5"x 8.3" (57.2 cm x 21 cm) Hub piloted steel
    • Ground Clearance - Option One 5.3 in 13.5 cm
  • Tracks

    • Track Frame Description Rigid frame with reinforced box section.
    • Track Type D5 double grouser
    • Track Drive Pump Type SauerDanfoss Series H1
    • Track Brake Type Multidisk parking brake (spring activated)
    • Track Length on Ground 142" (360.7 cm)
    • Track Width - Option One 26" (66 cm)
    • Track Width Option One - Ground Bearing Pressure - Hard Ground 55.6 psi 383.3 kPa
    • Track Width Option One - Ground Bearing Pressure - Soft Ground 10.2 psi 70.3 kPa
    • Track Width Option Two - Ground Bearing Pressure - Option 13.2 psi 91 kPa
    • Track Width Option Two - Ground Bearing Pressure - Option Two 72.2 psi 497.8 kPa
    • Type of Idler D5 excavator rollers
    • Number of Idlers 20
    • Pump Flow at Maximum RPM 43 gpm 162.8 L/min
    • System relief pressure 5000 psi 344.7 bar
    • Maximum Speed 2.6 mph 4.2 km/h
    • Low Speed Travel in Creep Mode 1 mph 1.6 km/h
  • Optional Air Compressor

    • Air Compressor Brand Mi-T-M
    • Engine Honda, 11.7 hp (8.7 kW)
    • Maximum Pressure 175 psi 12.1 bar
    • Maximum Air Flow 29 cfm .8 cmm
    • Tank capacity (5th wheel) 30 gal 113.6 L
  • Other Options

    • Screens Yes
    • Tips Yes
    • Special Tools Group Yes
    • Magnetic discharge conveyor pulley Yes
    • Extended Warranty Yes
    • Preventative Maintenance Optional
    • Special Paint Yes
    • Air Compressor Optional
    • Vermeer Confidence Plus Asset Protection Program Optional

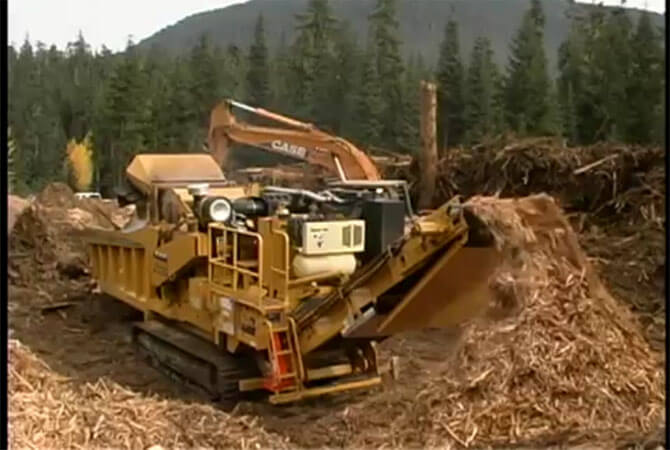

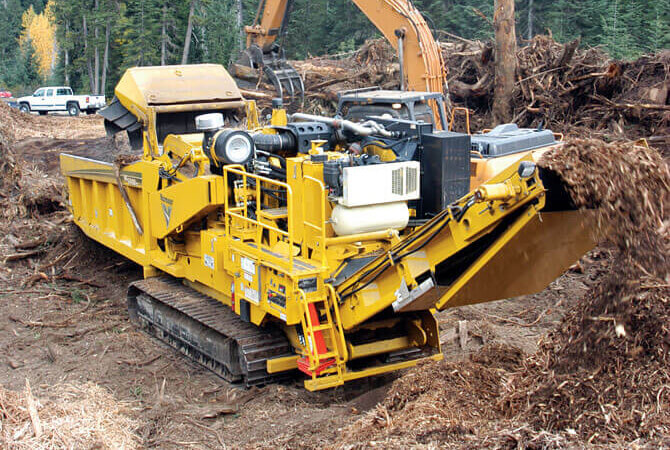

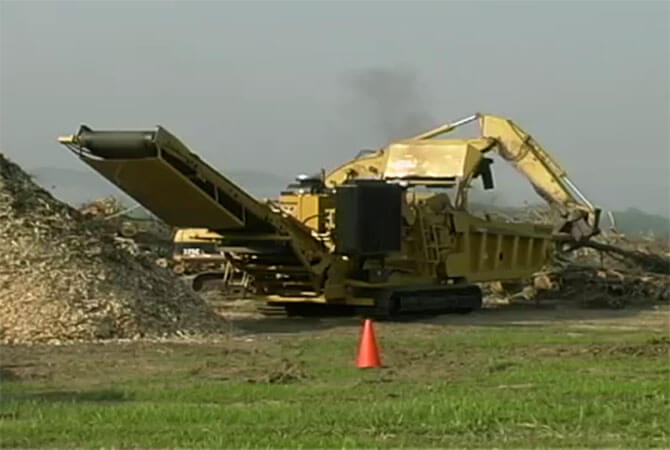

See it in action

Video 2
Video 4
Video 4
Video 1
Image 1
Video 2
Image 2
Video 2
Image 3
Video 3
Video 1

Talk to a Vermeer Dealer Today

From helping you select the right equipment, to training operators, to providing the parts and service you need on a jobsite or in the field, Vermeer dealers will give you the localized support you're looking for.

* Required field
*
*
*
*
*
*
*
*
*
I have read and agree to this notice of personal information processing. *
I am 18 years or older. *
I confirm I have read and agree to the Vermeer Privacy Policy and conditions of use. *
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

More from your machine

Government solutions

Government solutions

Use Sourcewell to satisfy and simplify your bidding process.

Learn how
Choose the right grinder for your operation

Choose the right grinder for your operation

Ask yourself these key questions before buying your next Vermeer grinder.

Learn more
Horizontal and tub grinder tooling

Horizontal and tub grinder tooling

Vermeer offers several different replacement options for popular horizontal grinders and tub grinders.

Learn more

Vermeer Corporation reserves the right to make changes in engineering, design and specifications; add improvements; or discontinue manufacturing at any time without notice or obligation. Equipment shown is for illustrative purposes only and may display optional accessories or components specific to their global region. Please contact your local Vermeer dealer for more information on machine specifications. Vermeer, the Vermeer logo and Equipped to Do More are trademarks of Vermeer Manufacturing Company in the U.S. and/or other countries. Copyright © 2021 Vermeer Corporation. All Rights Reserved.
