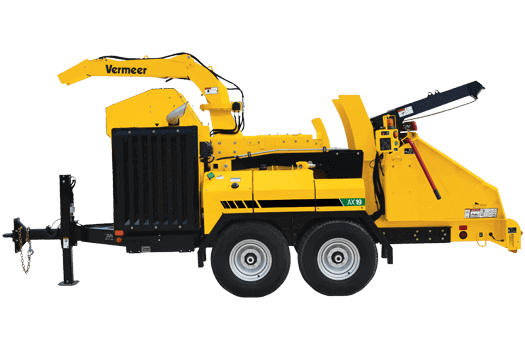

When it comes to power and productivity, the AX19 Vermeer brush chipper is designed with robust features to expand your job possibilities.

Find A Dealer Request More Info

Equipped with mechanical feeding capabilities and a 173-hp (123-kW) John Deere diesel engine, this unit will efficiently work in large land-clearing operations or on a rural jobsite. The AX19 features up to 12,000 lb (5443.1kg) of pull-in force with the support of the patented SmartCrush control system, allowing you to feed large-diameter logs or branchy limbs with minimal effort. With no two jobs alike, the AX19 is built to finish the challenge.

When it comes to power and productivity, the AX19 Vermeer brush chipper is designed with robust features to expand your job possibilities.

Equipped with mechanical feeding capabilities and a 173-hp (123-kW) John Deere diesel engine, this unit will efficiently work in large land-clearing operations or on a rural jobsite. The AX19 features up to 12,000 lb (5443.1kg) of pull-in force with the support of the patented SmartCrush control system, allowing you to feed large-diameter logs or branchy limbs with minimal effort. With no two jobs alike, the AX19 is built to finish the challenge.

Find A Dealer Request More Info

Features & Benefits

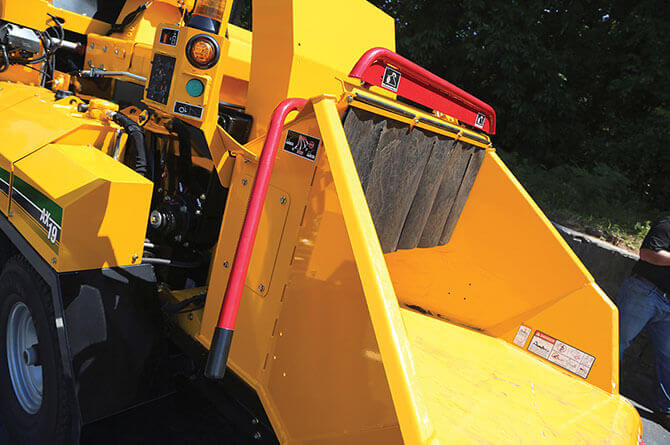

Fixed infeed table

The fixed infeed table design and oversized infeed opening gives the operator improved performance and durability when mechanically feeding.

Dual offset horizontal feed rollers

Dual offset horizontal feed rollers lessens the need for the operator to manually control the machine when feeding large-diameter logs.

Winch option

When equipped with the winch option, the winch can be operated with or without the boom in place, which is easily removed with just six bolts. When removed it allows the operator to mechanically feed the chipper, without the winch structure interfering with the loading process.

Specifications

Compare Models
Show Metric
  • General Dimensions and Weights

    • Length - Feed Table Up, Tongue In 224 in 569 cm
    • Length - Table Down, Tongue Extended 236 in 599.4 cm
    • Width 79 in 200.7 cm
    • Height 108 in 274.3 cm
    • Weight (without winch and hydraulic jack) 11000 lbs 4989.5 kg
    • Weight (with winch, hydraulic jack and hydraulic chute) 11400 lbs 5171 kg
    • Weight with outriggers (additional) 170 lbs 77.1 kg
  • Engine - Option one

    • Make and Model John Deere 4045HFC09
    • Number of Cylinders 4
    • Gross Horsepower (Maximum) 173 hp 129 kw
    • Torque (Max) 492 ft-lb 667.1 Nm
    • Fuel Tank Capacity 40 gal 151.4 L
    • Max Fuel Consumption 6.8 gph 25.7 lph
    • Fuel Type Diesel
    • Air Cleaner 2 Stage Dry
    • Oil Filter Spin-on
    • Recommended Oil ACEA E-7 & E-6 or API CI-4
    • Oil Volume with Filter 15.5 qt 14.7 L
    • Maximum Angle of Continuous Operation 30 deg
    • Cooling Medium Liquid
    • Coolant Capacity (Engine and Radiator) 32 gal 121.1 L
    • Alternator 90
    • Fan 26" Suction
    • Clutch Type 12" Spring Loaded
    • Clutch Drive Engagement Manual Lever
  • Feed System

    • Feed Roller Orientation Horizontal
    • Number of Feed Rollers 2
    • Feed Roller Clamp Load 4000 lbs 1814.4 kg
    • Feed Roller Clamp Type Hydraulic
    • Feed Roller Minimum Distance to Drum 5 in 12.7 cm
    • Feed Roller Dimension 19" dia x 28.25 length
    • Number of Knives 12
    • Weight of Feed Roller 350 lbs 158.8 kg
    • Feed Roller Dimension (Two) 11" dia x 28.25 length
    • Number of Knives (2) 10
    • Weight of Feed Roller (Option Two) 186 lbs 84.4 kg
    • Number of Feed Roller Motors 4
    • Motor Displacement 28.4
    • Motor Manufacturer White RE470
    • Feed Speed 119 ft/min
    • Infeed Table Width 71 in 180.3 cm
    • Infeed Table Length 60.5 in 153.7 cm
    • Infeed Hopper Height 35 in 88.9 cm
    • Infeed Throat Capacity 28.875" wide x 24" tall
    • Distance from Feed Table to Ground 30.3 in 77 cm
    • Infeed Table Material Thickness .3 in .6 cm
  • Safety System

    • Bottom Feed Stop Bar Standard
    • Bottom Feed Stop Bar Diameter 2 in 5.1 cm
    • Bottom Feed Stop Bar Material Thickness 11 GA
    • Actuation Force (BFSB) 34 lbs 15.4 kg
    • Normal Sensitivity 22 deg
    • Reduced Sensitivity 12 deg
    • Reset Method Green Hold to Run Button
    • Four Position Feed Control Bar Standard
    • Diameter 1.5 in 3.8 cm
    • Material Thickness 11 in 27.9 cm
    • Positions 4: E-Stop, Forward, Neutral, Reverse
    • Actuation Force 34 lbs 15.4 kg
    • Green Hold to Run Button Standard
  • Drum/Disc Cutting System

    • Material Capacity 19 in 48.3 cm
    • Width .5 in 1.3 cm
    • Thickness 26.1 in 66.3 cm
    • Diameter 36 in 91.4 cm
    • Speed 1100
    • Weight With Shaft 1160 lbs 526.2 kg
    • Safety Lock - Number of Positions 4
    • Number of Knives 4
    • Knife Thickness .6 in 1.6 cm
    • Material A8 Modified Chipper Steel
    • Useable Edges 2
    • Knife Size 0.625 x 5 x 10
    • Number of Bolts/Knife 5
    • Replaceable Threaded Knife Block Yes
    • Number of Paddles 12
    • Fixture Method Weld-on
    • Bedknife Size 3" x 20.25"
    • Bedknife Thickness 1.3 in 3.2 cm
    • Bedknife Material 1018 CD
    • Bedknife - Number of Useable Edges 4
  • Cutter Drive Components - Engine Option One

    • Number of Bearings 2
    • Bore 2.5 in 6.4 cm
    • Type Spherical Roller
    • Manufacturer Linkbelt
    • Dynamic Capacity 31400 lbs 14242.8 kg
    • Static Capacity 53500 lbs 24267.2 kg
    • Belt Idler/Tensioner Spring loaded
    • Belt Type 5V
  • Discharge System

    • Chute Height 108 in 274.3 cm
    • Bottom Thickness .1 in .2 cm
    • Top Thickness .2 in .5 cm
    • Side Wall Thickness .1 in .3 cm
    • Deflector Thickness .1 in .2 cm
    • Chute Rotation Angle 270 deg
    • Rotation Type Worm gear with rotational lock
    • Rotational Lock Self lock
  • Hydraulic System

    • Tank capacity 20 gal 75.7 L
    • Recommended Oil Type HY POWER 68
    • System Type Open Center
    • Filtration Method 6 micron return, 100 micron suction
    • Pump Flow at Maximum RPM 14.8 gpm 56 L/min
    • System relief pressure 3000 psi 206.8 bar
    • Auto Reverse PSI 2800 psi 193.1 bar
    • Flow Control No
    • Directional Control Yes
    • Oil Cooler No
  • Electrical System

    • System Voltage 12
    • Battery 950 CCA
    • Standard Gauges Digital Display with tachometer, hourmeter, oil pressure, water temp, battery voltage and engine error codes. Fuel and DEF gauges
    • Switches Control Panel: Ignition, throttle, Smartfeed, exhaust regeneration, and ECOIdle. Rear: Lower feed bar sensitivity, Chute controls, Manual Crush
    • Controller Vermeer ACS: C248
    • Display MFD
    • Shutdown System High temp, low pressure, Tier 4 emissions related
    • Radio Remote Control Optional
  • Chassis

    • Frame Description 7.5" Z-Channel x 0.25" Thick
    • Toolbox Description Standard
    • Tongue Description 5" x 3" x 0.375"
    • Tongue Extension Extendable 12"
    • Hitch Type Pintle
    • Fender Description Bolt-on
    • Axle/Suspension Tandem Torsion 7000 lb capacity
    • Type - Option One TandemTorsion
    • Manufacturer - Option One Dexter
    • Capacity - Option One 14,000 (Tandem 7,000 lbs)
    • Tires - Option One LT285/75R16 Load Range E
    • Wheels - Option One 16"
    • Brake Type Electric
    • Trailer Light Type LED
  • Winch Option

    • Winch Relief System 2300 psi 158.6 bar
    • Winch Boom Structure 0.25 GR50 detachable
    • Winch Input Speed 87 rpm
    • Winch Controls Forward, Reverse, Free Spool
    • Winch Rope 9/16"
    • Rope Length 150 ft 45.7 m
    • Rope Line Pull 3250 lbs 1474.2 kg
  • Other Options

    • Special Paint Optional
    • Extended Warranty Optional
    • Preventive Maintenance Optional
    • Adjustable Height Discharge Chute Optional
    • Remote Control (Basic or optional Deluxe)
    • Hydraulic Outriggers Optional (Manual only)
    • Hydraulic Chute Controls Standard

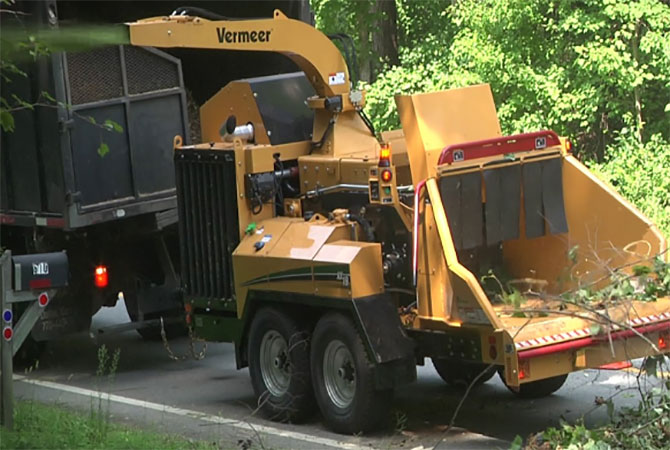

See it in action
