PTX44 Plow/Trencher CE Certified

Features & Benefits

Maximum productivity

Features a dedicated plow [24 in (60.9 cm) maximum installation depth] with the option to utilize a forward-mounted trencher [42 in (106.7 cm) maximum trenching depth and 6 in (15.2 cm) maximum trenching width] and/or bore attachment.

In control

Electronic controls allow the operator to preset the creep speed to optimize performance on longer distance installations, enhancing productivity while helping to reduce operator fatigue.

Jobsite visibility

The operator’s station is located at the center of the service plow directly above the machine’s articulation point, providing excellent visibility of the work area.

Serviceability

Access to hydraulic and engine oil filters does not require removal of any shielding, making service and preventive maintenance more efficient.

Specifications

Compare Models
Show Metric
  • General Dimensions and Weights

    • Weight (basic tractor, rubber tires) 2940 lbs 1333.6 kg
    • Weight (basic tractor, rubber tires, option two) 3188 lbs 1446.1 kg
    • Weight (basic tractor, tracks) 3840 lbs 1741.8 kg
    • Length (basic tractor, rubber tires) 84.8 in 215.4 cm
    • Length (basic tractor, rubber tires, option two) 84.8 in 215.4 cm
    • Length (basic tractor, tracks) 92.8 in 235.7 cm
    • Width (basic tractor, rubber tires) 48 in 121.9 cm
    • Width (basic tractor, rubber tires, option two) 60 in 152.4 cm
    • Width (basic tractor, tracks) 44.5 in 113 cm
    • Height (basic tractor, rubber tires) 89.5 in 227.3 cm
    • Height (basic tractor, rubber tires, option two) 88 in 223.5 cm
    • Height (basic tractor, tracks) 88.5 in 224.8 cm
    • Wheel Base (Centerline of Axles) 48 in 121.9 cm
    • Tread Width with Rubber Tires (Centerline to Centerline) 36 in 91.4 cm
    • Tread Width with Rubber Tires Option Two (Centerline to Centerline) 39 in 99.1 cm
    • Tread Width with Rubber Tracks (Centerline to Centerline) 32.3 in 82 cm
    • Ground Clearance (rubber tires) 7.4 in 18.8 cm
    • Ground Clearance (rubber tires, option two) 6.4 in 16.3 cm
    • Ground Clearance (tracks) 6.9 in 17.5 cm
  • Engine - Option one

  • Ground Drive - Rubber Tire

  • Ground Drive - Rubber Tire Option Two

  • Ground Drive - Tracks

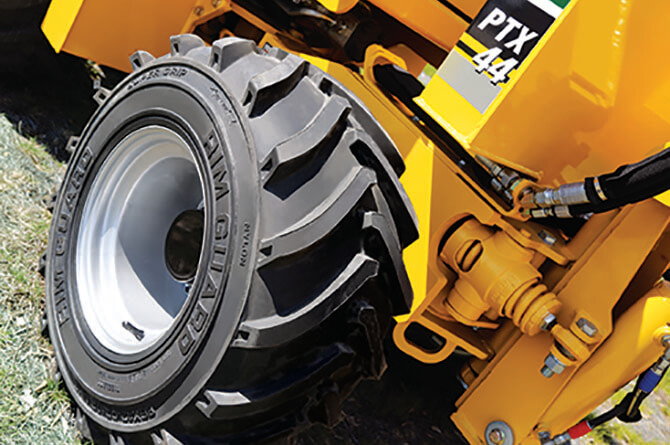

  • Axle Options

  • Hydraulic System

  • Capacities

Attachments

Center mount trencher

Center mount trencher

    • Model Name TR44
    • Drive Type Hydrostatic
    • Weight (48 " (121.92 cm) boom, no chain) 560 lbs 254 kg
    • Length (Minimum Transport) 24 in 61 cm
    • Show More down arrow
