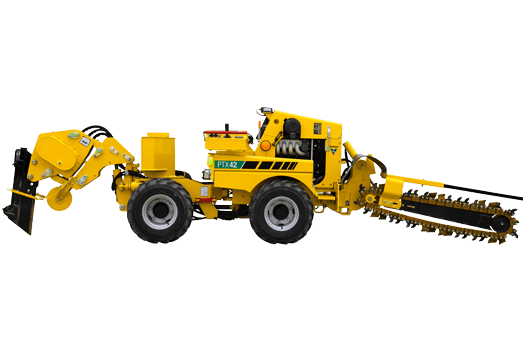

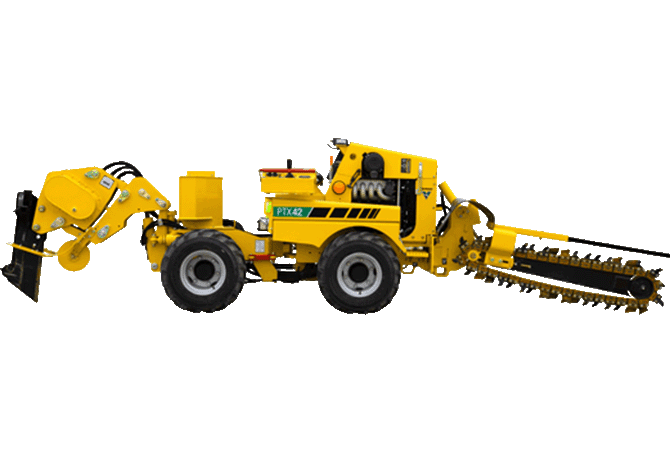

PTX42 Plow/Trencher

Features & Benefits

Fuel up

The PTX42 has a 12 gal (45.4 L) fuel tank that offers longer operation time between refills to keep your operation moving forward efficiently.

Hands-on control

The PTX42 plow/trencher offers walk-beside hand controls that pivot from side to side of the machine for convenient operation and to maneuver around potential obstacles or congested spaces on a jobsite. The control placement can help minimize operator reach and maintain operator comfort.

Attachments for the job

The PTX42 has a variety of versatile attachment options, including a backhoe, trencher, plow, porta bore and two reel carriers.  Select the right attachment that best fits the needs of your operation and jobsite.

Set your speed

The electronic control allows for convenient setting of the creep speed to help optimize performance on longer distance installations, allowing productivity while helping to reduce operator fatigue, whether trenching or plowing.

Stay on track

For varying ground conditions, choose from tires or tracks - the PTX42 offers a 23 in (58.4 cm) foam-filled tire option, while the slightly larger 26 in (66 cm) air-filled tires can help with traction. A 23 in (58.4 cm) dual air-filled tire option offers stability and lower ground pressure, and a track option is well-suited for uneven terrain.

Convenient service

Perform routine maintenance, and service the machine with convenient access to service point without the removal of hood shielding.

Specifications

Compare Models
Show Metric
  • General Dimensions and Weights

    • Weight (basic tractor, rubber tires) 3240 lbs 1469.6 kg
    • Weight (basic tractor, rubber tires, option two) 3188 lbs 1446.1 kg
    • Weight (basic tractor, rubber tires, option three) 2940 lbs 1333.6 kg
    • Weight (basic tractor, tracks) 3840 lbs 1741.8 kg
    • Length (basic tractor, rubber tires) 84.8 in 215.4 cm
    • Length (basic tractor, rubber tires, option two) 84.8 in 215.4 cm
    • Length (basic tractor, rubber tires, option three) 84.8 in 215.4 cm
    • Length (basic tractor, tracks) 92.9 in 236 cm
    • Width (basic tractor, rubber tires) 44.5 in 113 cm
    • Width (basic tractor, rubber tires, option two) 62.4 in 158.5 cm
    • Width (basic tractor, rubber tires, option three) 48.4 in 122.9 cm
    • Width (basic tractor, tracks) 46.1 in 117.1 cm
    • Height (basic tractor, rubber tires) 53.4 in 135.6 cm
    • Height (basic tractor, rubber tires, option two) 53.4 in 135.6 cm
    • Height (basic tractor, rubber tires, option three) 54.9 in 139.4 cm
    • Height (basic tractor, tracks) 53.9 in 136.9 cm
    • Wheel Base (Centerline of Axles) 48 in 121.9 cm
    • Tread Width with Rubber Tires (Centerline to Centerline) 30.3 in 77 cm
    • Tread Width with Rubber Tires Option Two (Centerline to Centerline) 36 in 91.4 cm
    • Tread width with rubber tires option three (centerline to centerline) 39 in 99.1 cm
    • Tread Width with Rubber Tracks (Centerline to Centerline) 32.3 in 82 cm
    • Ground Clearance (rubber tires) 6.4 in 16.3 cm
    • Ground Clearance (rubber tires, option two) 6.4 in 16.3 cm
    • Ground clearance (rubber tires, option three) 7.9 in 20.1 cm
    • Ground Clearance (tracks) 6.9 in 17.5 cm
    • Angle of approach (basic tractor, rubber tires) 32 deg
    • Angle of approach (basic tractor, rubber tires, option two) 32 deg
    • Angle of approach (basic tractor, rubber tires, option three) 37 deg
    • Angle of approach (basic tractor, tracks) 81 deg
  • Engine - Option one

  • Ground Drive - Rubber Tire

  • Ground Drive - Rubber Tire Option Two

  • Ground Drive - Rubber Tire Option Three

  • Ground Drive - Tracks

  • Axle Options

  • Hydraulic System

  • Electrical System

  • Capacities

  • Features

Attachments

Center mount trencher

Center mount trencher

    • Model Name TR44
    • Drive Type Hydrostatic
    • Weight (48 " (121.92 cm) boom, no chain) 560 lbs 254 kg
    • Length (Minimum Transport) 24 in 61 cm
    • Show More down arrow
