Handle material efficiently to help produce a valuable end-product.

Find A Dealer Request More Info

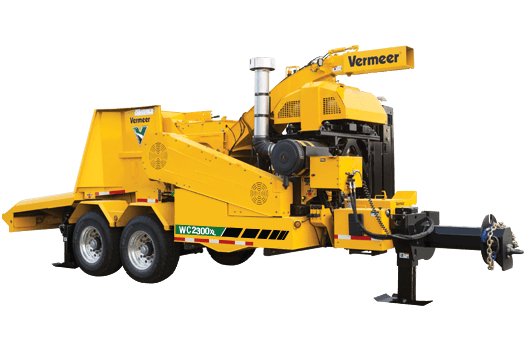

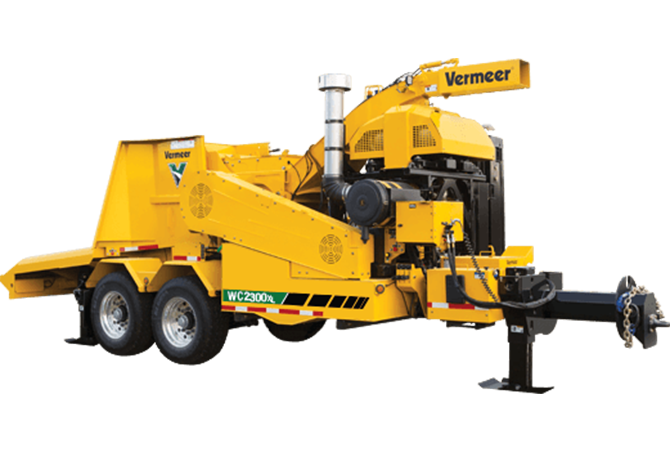

As the push toward alternative fuels accelerates, governments and industries are recognizing the advantages of using wood chips as a source for power generation. Now with a CAT C-13 Tier 4 Final engine with 440 hp (328 kW) of power, the WC2300XL whole tree chipper offers a powerful solution for producing wood chips.  Material can be handled efficiently with variable-speed dual-infeed conveyor chains and SmartCrush technology, and maintenance is simple with replaceable high-wear parts. Expand your revenue stream with the ability to produce valuable end-product from log or slash with the WC2300XL whole tree chipper.

Handle material efficiently to help produce a valuable end-product.

As the push toward alternative fuels accelerates, governments and industries are recognizing the advantages of using wood chips as a source for power generation. Now with a CAT C-13 Tier 4 Final engine with 440 hp (328 kW) of power, the WC2300XL whole tree chipper offers a powerful solution for producing wood chips.  Material can be handled efficiently with variable-speed dual-infeed conveyor chains and SmartCrush technology, and maintenance is simple with replaceable high-wear parts. Expand your revenue stream with the ability to produce valuable end-product from log or slash with the WC2300XL whole tree chipper.

Find A Dealer Request More Info

Features & Benefits

Multiple engine options

A CAT C13 Tier 4 Final engine provides 440 hp (328 kW) of power to meet your jobsite demands. A Tier 3 engine option is available for less-regulated countries.

SmartCrush and variable-speed, dual-infeed conveyor chains

With technology such as SmartCrush to automatically increase down pressure when difficult material enters the cutting drum, and the variable-speed dual-infeed conveyor chains, operators can concentrate on loading the machine, not pushing the material through.

Remote controls

A remote control allows operators to view engine parameters and change a variety of settings.

Two knife options

Two knife options, with depths of cut of 3/8 in (.9 cm) or 5/8 in (1.6 cm), allow the operator to select the knife that meets their end product sizing needs.

Built-in skidder grab

The WC2300XL has a compact design and built-in skidder grab on the tongue, allowing it to be moved around on-site by a skidder or excavator.

Specifications

Compare Models
Show Metric
  • General Dimensions and Weights

    • Maximum Length (Operation) 29.8 ft 9.1 m
    • Maximum Length - Transport 29.8 ft 9.1 m
    • Maximum Width (Transport) 98 in 248.9 cm
    • Maximum Height (Transport) 10.9 ft 3.3 m
    • Weight 32700 lbs 14832.5 kg
    • Weight - Engine Option Two 35000 lbs 15875.7 kg
    • Tongue Weight 6750 lbs 3061.7 kg
    • Tongue Weight - Engine Option Two 7300 lbs 3311.2 kg
    • Sound Power 119 db(A)
    • Sound Power - Engine Option Two 118.1 db(A)
  • Engine - Option one

    • Make and Model CAT C-13 Tier 3 (Stage IIIA)
    • Number of Cylinders 6
    • Gross Horsepower (Maximum) 440 hp 328.1 kw
    • Torque (Max) 1483 ft-lb 2010.7 Nm
    • Fuel Tank Capacity 150 gal 567.8 L
    • Max Fuel Consumption 22.6 gph 85.6 lph
    • Fuel Type Low sulfur diesel
    • Air Cleaner Two-stage
    • Oil Filter Spin-on remote
    • Recommended Oil API CJ-4 or ECF-3
    • Oil Volume with Filter 36 qt 34.1 L
    • Cooling Medium Liquid
    • Coolant Capacity (Engine and Radiator) 18.5 gal 70 L
    • Alternator 75 amps
    • Fan Reversible
    • Clutch Type PT Tech electronically controlled dry
    • Clutch Drive Engagement Engaged dry clutch
  • Engine - Option two

    • Make and Model CAT C-13 Tier 4 Final (Stage IV)
    • Number of Cylinders 6
    • Gross Horsepower (Maximum) 440 hp 328.1 kw
    • Torque (Maximum) 1485 ft-lb 2013.4 Nm
    • Fuel Tank Capacity 150 gal 567.8 L
    • Max Fuel Consumption 22.6 gph 85.6 lph
    • Fuel Type Ultra-low sulfur diesel
    • Air Cleaner Two-stage
    • Oil Filter Spin-on remote
    • Recommended Oil API CJ-4 or ECF-3
    • Oil Volume with Filter 36 qt 34.1 L
    • Cooling Medium Liquid
    • Coolant Capacity (Engine and Radiator) 18.5 gal 70 L
    • Alternator 105 amps
    • Fan Variable and reversible
    • Clutch Type PT Tech electronically controlled dry
    • Clutch Drive Engagement Engaged dry clutch
  • Drum/Disc Cutting System

    • Material Capacity 23 in 58.4 cm
    • Thickness .4 in 1 cm
    • Width 34 in 86.4 cm
    • Diameter 36 in 91.4 cm
    • Speed 1169
    • Weight With Shaft 2200 lbs 997.9 kg
    • Safety Lock - Number of Positions 8
    • Number of Knives 8
    • Type Babbitted
    • Knife Thickness .6 in 1.6 cm
    • Material A8 chipper steel
    • Useable Edges One
    • Knife Size 8.5
    • Number of Bolts/Knife 4
    • Replaceable Threaded Knife Block Hex nut (4) per knife
    • Fixture Method Bolt
    • Bedknife Size 34" wide
    • Bedknife Thickness 1.5 in 3.8 cm
    • Bedknife Material Cold-formed low-carbon bar
    • Bedknife - Number of Useable Edges 2
    • Number of Pockets 8
    • Dimension of Pockets 8.5 in 21.6 cm
    • Replaceable Wear Plates Yes
    • Number of Replaceable Wear Plates 8 counter knives
  • Cutter Drive Components - Engine Option One

    • Number of Bearings 2
    • Bore 4.4 in 11.3 cm
    • Type Pillow block
    • Manufacturer Dodge
    • Dynamic Capacity 170000 lbs 77110.7 kg
    • Static Capacity 200000 lbs 90718.5 kg
    • Belt Idler/Tensioner None
    • Belt Type 9 rib 5 V
  • Standard Infeed System

    • Infeed Roller Width 34 in 86.4 cm
    • Maximum Feed Height 27 in 68.6 cm
    • Infeed Roller Weight 575 lbs 260.8 kg
    • Infeed Roller Diameter 28 in 71.1 cm
    • Tooth Design Straight knives
    • Drive Motor WS-Series
    • Drive Planetary Auburn Model 9
    • Drive Displacement 6.9 cu-in 113.1 cu-cm
    • Drive Manufacturer White
    • Feed Roller Down Pressure 1530
    • Feed Roller Orientation Horizontal
    • Number of Feed Rollers One upper, one conveyor
    • Number of Knives 12
    • Feed Roller Distance to Drum 1 in 2.5 cm
    • Feed Roller Speed 98 ft/min 29.9 m/min
  • Discharge System

    • Chute Height 132 in 335.3 cm
    • Bottom Thickness .1 in .3 cm
    • Bottom Replaceable Wear Plate AR 400
    • Wear Plate Thickness .2 in .5 cm
    • Top Thickness .2 in .5 cm
    • Side Wall Thickness .2 in .5 cm
    • Deflector Thickness .2 in .5 cm
    • Rotation Type 14
    • Rotational Lock 22
    • Side Deflector Angle 14 deg
  • Hydraulic System

    • Tank capacity 42 gal 159 L
    • Recommended Oil Type Hy-Power 68
    • System Type Open-center
    • Filtration Method Intake suction screens and return filter
    • Pump Flow at Maximum RPM 16 gpm 60.6 L/min
    • System relief pressure 4000 psi 275.8 bar
    • Auto Reverse PSI 3800 psi 262 bar
    • Flow Control Two-feed roller and infeed conveyor
    • Oil Cooler 1
  • Electrical System

    • System Voltage 24V
    • Battery Group 8D 1155 CCA (Dual)
    • Standard Gauges Yes
    • Deluxe Gauges No
    • Switches Toggle On/Off
    • Controller ASM - C248 WC2300
    • Display DP04
    • Shutdown System Yes
    • Radio Remote Control Yes
  • Chassis

    • Frame Description 10" x 4" x .375" wall rectangular tubing
    • Toolbox Description Lockable
    • Tongue Description Fixed with skidder grab
    • Tongue Extension None
    • Hitch Type Pintle
    • Grapple Handle 30" wide
    • Fender Description Jeep style (steel)
    • Axle/Suspension Dual axle
    • Type Leaf spring
    • Manufacturer Dexter
    • Capacity 18740
    • Tires 385/65R22.5 Super Single
    • Wheels 22.5 x 14 aluminum
    • Brake Type Air
    • Trailer Light Type Standard
  • Other Options

    • Special Paint Yes
    • Extended Warranty Yes
    • Preventative Maintenance Yes
    • Adjustable Height Discharge Chute No
  • Infeed Conveyor

    • Feed Table Width 98 in 248.9 cm
    • Feed Table Length - Option One 10 ft 3 m
    • Feed Conveyor Type Dual independent chain
    • Material Construction .38" thick
    • Infeed Slope 6 deg
    • Number of Infeed Chains 1

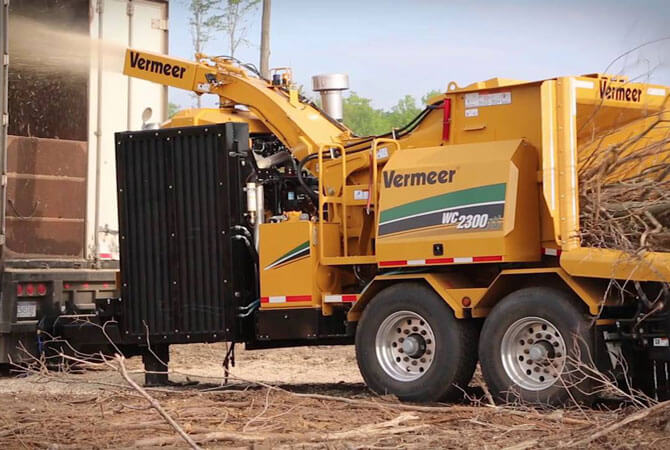

See it in action
