This powerful and productive third-generation vac is ideal for production pothole applications and drill fluid management.

Find A Dealer Request More Info

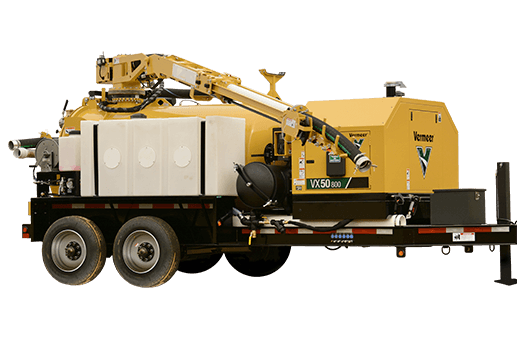

The VX50 series is a powerful and productive vacuum excavator, equipped with a 4-in (10.2-cm) suction hose and 1,025-cfm (29-m³/min) blower. It is extremely useful for production pothole applications and drill fluid management. This third-generation vacuum excavator features a 49-hp (36.5-kW) Tier 4 Final Kubota diesel engine and is available with a 500-gal (1,893-L), 800-gal (3,028-L) or 1,200-gal (4,543-L) debris tank.

This powerful and productive third-generation vac is ideal for production pothole applications and drill fluid management.

The VX50 series is a powerful and productive vacuum excavator, equipped with a 4-in (10.2-cm) suction hose and 1,025-cfm (29-m³/min) blower. It is extremely useful for production pothole applications and drill fluid management. This third-generation vacuum excavator features a 49-hp (36.5-kW) Tier 4 Final Kubota diesel engine and is available with a 500-gal (1,893-L), 800-gal (3,028-L) or 1,200-gal (4,543-L) debris tank. Find A Dealer Request More Info

Features & Benefits

In-tank washdown

Delivers a high-pressure water spray to the tank interior, helping to simultaneously dump material and clean the inside of the tank. Minimizes cleanup time and helps remove difficult debris.

Three-stage cyclonic filtration

Engineered to help prolong filter and blower life, the system is suitable for wet and dry applications. The cyclones use a tuned vortex system in which the outer vortex spiral forces small particles to fall into a separate canister. The filtered stream then passes up through the inner cyclone tube and is carried to the final poly filter.

Cam-over rear door

Provides a 360-degree positive seal, even under reverse pressure without additional clamping requirements. The highly reliable cam-over door has no in-tank moving parts, so all maintenance is external.

Remote drains

Remote fluid drains and grease points are centrally-located near operator controls for ease of service.

Auto-belt tensioners

Keeps proper belt tensions at all times and helps extend belt life.

No hassle hose

Hang the suction hose on the side of the machine when moving between jobsites instead of coiling or disconnecting it, optimizing productivity.

Specifications

Compare Models
Show Metric
  • Trailer

    • Compatibility 500-gal (1892.7-L) spoil tank option
    • Length 203.5 in (516.9 cm)
    • Width 98.1 in (249.2 cm)
    • Height 85.9 in (218.2 cm)
    • Empty weight 6370 lbs (3025.5 kg)
    • Gross Vehicle Weight Rating (GVWR) 12000 lbs (5443.1 kg)
    • Trailer axles (2) 6000 lbs (2721 kg)
  • Trailer - Option two

    • Compatibility 800-gal (3028.3-L) spoil tank option
    • Length 237.3 in (602.7 cm)
    • Width 98.1 in (249.2 cm)
    • Height 91.9 in (233.4 cm)
    • Empty weight 7270 lbs (3297.6 kg)
    • Gross Vehicle Weight Rating (GVWR) 18000 lbs (8164.7 kg)
    • Trailer axles (2) 9000 lbs (4082 kg)
  • Trailer - Option three

    • Compatibility 1200-gal (4542.5-L) spoil tank option
    • Length 268.5 in (682 cm)
    • Width 101.5 in (257.8 cm)
    • Height 112.8 in (286.5 cm)
    • Empty weight 9275 lbs (4207.1 kg)
    • Gross Vehicle Weight Rating (GVWR) 26000 lbs (11793.4 kg)
    • Trailer axles (2) 15000 lbs (6804 kg)
  • Trailer - Option four

    • Compatibility 500-gal (1892.7-L) light spoil tank option
    • Length 203.5 in (516.9 cm)
    • Width 98.1 in (249.2 cm)
    • Height 85.9 in (218.2 cm)
    • Empty weight 6250 lbs (2834.9 kg)
    • Gross Vehicle Weight Rating (GVWR) 9999 lbs (4535.5 kg)
    • Trailer axles (2) 6000 lbs (2721 kg)
  • Trailer - Option five

    • Compatibility 800-gal (3028.3-L) light spoil tank option
    • Length 237.3 in (602.7 cm)
    • Width 98.1 in (249.2 cm)
    • Height 91.9 in (233.4 cm)
    • Empty weight 7170 lbs (3252.3 kg)
    • Gross Vehicle Weight Rating (GVWR) 16000 lbs (7252.5 kg)
    • Trailer axles (2) 9000 lbs (4082 kg)
  • Engine

    • Make and Model Kubota Tier 4 Final
    • Horsepower 49 hp (37 kW)
    • Fuel tank capacity or type 22 gal (83.3 L)
    • Enclosure Yes
  • Water tank

    • Compatibility 500-gal (1892.7-L) spoil tank option
    • Water capacity 250 gal (942 L)
    • Number of Tanks 2
    • High pressure pump flow rate 5.6 gpm (21.2 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 50 ft (15 m)
    • Low Water Shutoff Electric
  • Water tank - Option two

    • Compatibility 800-gal (3028.3-L) spoil tank option
    • Water capacity 410 gal (1552 L)
    • Number of Tanks 2
    • High pressure pump flow rate 5.6 gpm (21.2 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 50 ft (15 m)
    • Low Water Shutoff Electric
  • Water tank - Option three

    • Compatibility 1200-gal (4542.5-L) spoil tank option
    • Water capacity 410 gal (1552 L)
    • Number of Tanks 2
    • High pressure pump flow rate 5.6 gpm (21.2 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 50 ft (15 m)
    • Low Water Shutoff Electric
  • Water tank - Option four

    • Compatibility 500-gal (1892.7-L) light spoil tank option
    • Water capacity 100 gal (379 L)
    • Number of Tanks 2
    • High pressure pump flow rate 5.6 gpm (21.2 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 50 ft (15 m)
    • Low Water Shutoff Electric
  • Water tank - Option five

    • Compatibility 800-gal (3028.3-L) light spoil tank option
    • Water capacity 250 gal (946 L)
    • Number of Tanks 2
    • High pressure pump flow rate 5.6 gpm (21.2 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 50 ft (15 m)
    • Low Water Shutoff Electric
  • Spoil Tank

    • Compatibility 500-gal (1892.7-L) spoil tank option
    • Spoil tank capacity 500 gal (1892.7 L)
    • Door type Cam-over hydraulic
    • Tank Lift Type Dual cylinder
  • Spoil tank - Option two

    • Compatibility 800-gal (3028.3-L) spoil tank option
    • Spoil tank capacity 800 gal (3028.3 L)
    • Door type Cam-over hydraulic
    • Tank Lift Type Dual cylinder
  • Spoil tank - Option three

    • Compatibility 1200-gal (4542.5-L) spoil tank option
    • Spoil tank capacity 1200 gal (4542.5 L)
    • Door type Cam-over hydraulic
    • Tank Lift Type Dual cylinder
  • Spoil tank - Option four

    • Compatibility 500-gal (1892.7-L) light spoil tank option
    • Spoil tank capacity 500 gal (1892.7 L)
    • Door type Cam-over hydraulic
    • Tank Lift Type Dual cylinder
  • Spoil tank - Option five

    • Compatibility 800-gal (3028.3-L) light spoil tank option
    • Spoil tank capacity 800 gal (3028.3 L)
    • Door type Cam-over hydraulic
    • Tank Lift Type Dual cylinder
  • Vacuum

    • Type of Filters 2 micron washable
    • Hose length (2) 15 ft (4.6 m)
    • Hose width/diameter 4 in 10.2 cm
    • Air flow 1025 cfm (29 cubic m/min)
    • Vacuum blower type PD blower
    • Vacuum Mercury 15 inHg (0.5 bar)
  • Control panel

    • Controls Curbside
    • Gauges Analog
  • Boom

    • Availability Optional
    • Weight 1200 lbs (544.3 kg)
    • Reach 14 ft (4.3 m)
    • Movement 270 deg on 14-in turret bearings
    • Remote Control Wireless
  • Options

    • Hot box Optional
    • Strong arm Optional on 500-gal (1,892.7-L) and 800-gal (3,028.3-L) spoil tank options
    • Recirculation kit Optional
    • Hydraulic jack Optional
    • Reverse Pressure Standard on 500-gal (1,892.7-L) and 800-gal (3,028.3-L) spoil tank options; optional on 1200-gal (4542.5-L) spoil tank option
