The LP SGT series is hand built from the ground up in the U.S. and offers a gas-powered, high cubic foot per minute performance at a great value.

Find A Dealer Request More Info

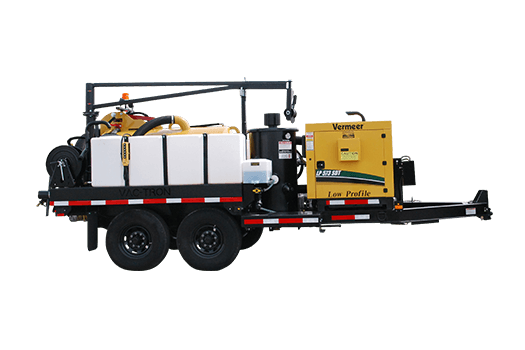

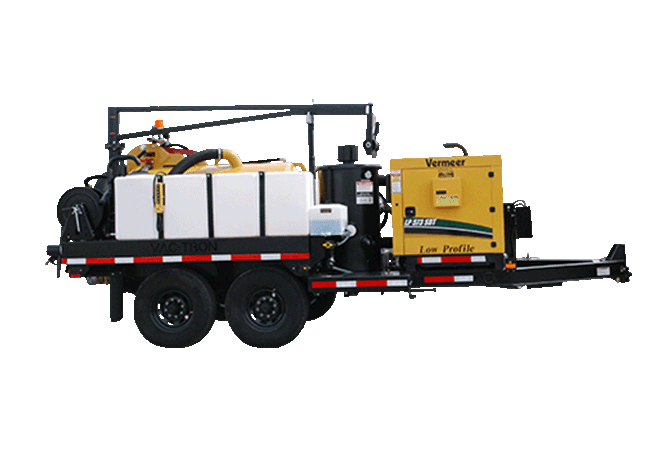

The LP SGT trailer vac is manufactured on a durable, low-profile assembly. This unit provides the power of a 1,000-cfm (1,699-m3/hr) vacuum blower with the cost of a 38-hp (28.3 kW) EFI gas engine. This high-performance unit stands alone on price and comparison in the trailer vacuum market.

The LP SGT series is hand built from the ground up in the U.S. and offers a gas-powered, high cubic foot per minute performance at a great value.

The LP SGT trailer vac is manufactured on a durable, low-profile assembly. This unit provides the power of a 1,000-cfm (1,699-m3/hr) vacuum blower with the cost of a 38-hp (28.3 kW) EFI gas engine. This high-performance unit stands alone on price and comparison in the trailer vacuum market. Find A Dealer Request More Info

Features & Benefits

Cyclone four-way valve silencer (CVS) filtration system

The CVS filter housing has a .5 micron filtration that contains the four-way valve for reverse pressure and an oversized silencer for quiet operation. The silencer is located inside the 28-in (71-cm) diameter cyclone.

I beam trailer

Units are built from start to finish at our factory, including the trailer which consists of a sturdy I beam construction.

Side hose and tooling storage (option)

The new side hose and tooling (SHT) package allows for 60 ft (18 m) of suction hose storage on a trailer-mounted unit. This option doubles the traditional 30-ft (9-m) hose storage.

Strong arm (option)

With 270-degree rotation, the strong arm supports the weight of the vacuum hose, and the roller head allows for ease of handling by allowing smooth, fluid movements and adjustments.

Hydraulic boom (option)

The hydraulic boom offers a full six-way function, wireless remote with vacuum valve operation, 330-degree rotation, remote water jet for ease of cleanout and a 5-in (12.7-cm) hose with quick connect to 4-in (10.2-cm) tooling.

FlowMaster (option)

The FlowMaster option can be used to hydraulically exercise water valves and hydrants, making sure they will work properly in times of need.

Specifications

Compare Models
Show Metric
  • Trailer

    • Compatibility 500-gal (1892.7-L) spoil tank option
    • Length 231 in (586.7 cm)
    • Width 92 in (234 cm)
    • Height 95 in (241 cm)
    • Empty weight 6300 lbs (2858 kg)
    • Gross Vehicle Weight Rating (GVWR) 9995 lbs (4533 kg)
    • Trailer axles (2) 7000 lbs (3175 kg)
    • Hitch Type Pintle
  • Trailer - Option two

    • Compatibility 800-gal (3028.3-L) spoil tank option
    • Length 268.8 in (682.8 cm)
    • Width 92 in (234 cm)
    • Height 95 in (241 cm)
    • Empty weight 7400 lbs (3357 kg)
    • Gross Vehicle Weight Rating (GVWR) 14000 lbs (6350 kg)
    • Trailer axles (2) 7000 lbs (3175 kg)
    • Hitch Type Pintle
  • Trailer - Option three

    • Compatibility 1200-gal (4542.5-L) spoil tank option
    • Length 265 in (673 cm)
    • Width 102 in (259 cm)
    • Height 122 (309.8 cm)
    • Empty weight 9400 lbs (4264 kg)
    • Gross Vehicle Weight Rating (GVWR) 24000 lbs (10886.2 kg)
    • Trailer axles (2) 12000 lbs (5443.1 kg)
    • Hitch Type Pintle
  • Trailer - Option four

    • Compatibility 500-gal (1892.7-L) heavy spoil tank option
    • Length 231 in (586.7 cm)
    • Width 92 in (234 cm)
    • Height 95 in (241 cm)
    • Empty weight 6300 lbs (2858 kg)
    • Gross Vehicle Weight Rating (GVWR) 14000 lbs (6350 kg)
    • Trailer axles (2) 7000 lbs (3175 kg)
    • Hitch Type Pintle
  • Trailer - Option five

    • Compatibility 800-gal (3028.3-L) heavy spoil tank option
    • Length 268.8 in (682.8 cm)
    • Width 102 in (259 cm)
    • Height 95 in (241 cm)
    • Empty weight 7600 lbs (3447 kg)
    • Gross Vehicle Weight Rating (GVWR) 20000 lbs (9071.9 kg)
    • Trailer axles (2) 10000 (4536 kg)
    • Hitch Type Pintle
  • Engine

    • Make and Model Kohler EFI Gas
    • Horsepower 38 hp (28.3 kW)
    • Fuel tank capacity or type 30 gal (114 L)
    • Enclosure Yes
  • Water tank

    • Compatibility 500-gal (1892.7-L) spoil tank option
    • Water capacity 200 gal (757 L)
    • Number of Tanks 2
    • High pressure pump flow rate 4 gpm (15.1 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 50 ft (15 m)
    • Low Water Shutoff Electric
  • Water tank - Option two

    • Compatibility 800-gal (3028.3-L) spoil tank option
    • Water capacity 200 gal (757 L)
    • Number of Tanks 2
    • High pressure pump flow rate 4 gpm (15.1 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 50 ft (15 m)
    • Low Water Shutoff Electric
  • Water tank - Option three

    • Compatibility 1200-gal (4542.5-L) spoil tank option
    • Water capacity 400 gal (1514 L)
    • Number of Tanks 2
    • High pressure pump flow rate 4 gpm (15.1 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 50 ft (15 m)
    • Low Water Shutoff Electric
  • Water tank - Option four

    • Compatibility 500-gal (1892.7-L) heavy spoil tank option
    • Water capacity 300 gal (1136 L)
    • Number of Tanks 2
    • High pressure pump flow rate 4 gpm (15.1 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 50 ft (15 m)
    • Low Water Shutoff Electric
  • Water tank - Option five

    • Compatibility 800-gal (3028.3-L) heavy spoil tank option
    • Water capacity 400 gal (1514 L)
    • Number of Tanks 2
    • High pressure pump flow rate 4 gpm (15.1 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 50 ft (15 m)
    • Low Water Shutoff Electric
  • Spoil Tank

    • Compatibility 500-gal (1892.7-L) spoil tank option
    • Spoil tank capacity 500 gal (1892.7 L)
    • Door type Hydraulic
    • Tank Lift Type Hydraulic
  • Spoil tank - Option two

    • Compatibility 800-gal (3028.3-L) spoil tank option
    • Spoil tank capacity 800 gal (3028.3 L)
    • Door type Hydraulic
    • Tank Lift Type Hydraulic
  • Spoil tank - Option three

    • Compatibility 1200-gal (4542.5-L) spoil tank option
    • Spoil tank capacity 1200 gal (4542.5 L)
    • Door type Hydraulic
    • Tank Lift Type Hydraulic
  • Spoil tank - Option four

    • Compatibility 500-gal (1892.7-L) heavy spoil tank option
    • Spoil tank capacity 500 gal (1892.7 L)
    • Door type Hydraulic
    • Tank Lift Type Hydraulic
  • Spoil tank - Option five

    • Compatibility 800-gal (3028.3-L) heavy spoil tank option
    • Spoil tank capacity 800 gal (3028.3 L)
    • Door type Hydraulic
    • Tank Lift Type Hydraulic
  • Vacuum

    • Type of Filters Cartridge filter 0.5 microns
    • Hose length 30 ft (9 m)
    • Hose width/diameter 4 in 10.2 cm
    • Vacuum 1000 cfm (28 cubic m/min)
    • Vacuum blower type PD blower
    • Vacuum Mercury 14 inHg (0.4 bar)
  • Control panel

    • Controls Curbside
    • Gauges Analog and digital
  • Boom

    • Availability Optional
    • Weight 400 lbs (181 kg)
    • Reach 15 ft (4.6 m)
    • Movement 330 deg
    • Remote Control Wireless
  • Options

    • Strong arm Optional
    • Side hose and tooling storage (SHT package) Optional - not available on 1200-gal (4542.5-L) spoil tank option
    • Recirculation kit Optional
    • Flowmaster Optional - not available on 800-gal (3028.3-L) heavy and 1200-gal (4542.5-L) spoil tank options
    • Hydraulic jack Optional
    • Reverse Pressure Standard

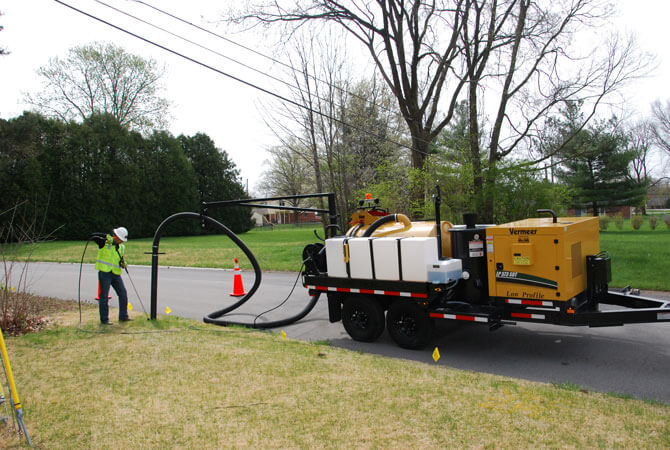

See it in action
