The HTV PTO series is a premier line of compact vacuum excavation trucks that provide the performance you need for the tough jobs.

Find A Dealer Request More Info

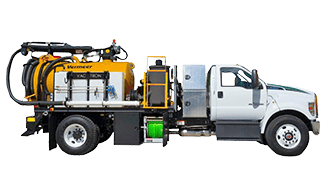

The hydro truck vac (HTV) series is a PTO-driven system available on Ford chassis. The full line of HTV is available with an 800-gal (3,028.3-L) debris tank and 400 gal (1,514 L) of water. The PTO of the truck drives positive displacement vacuum blowers that produce 1,000 cfm (1699 m3/hr).

The HTV PTO series is a premier line of compact vacuum excavation trucks that provide the performance you need for the tough jobs.

The hydro truck vac (HTV) series is a PTO-driven system available on Ford chassis. The full line of HTV is available with an 800-gal (3,028.3-L) debris tank and 400 gal (1,514 L) of water. The PTO of the truck drives positive displacement vacuum blowers that produce 1,000 cfm (1699 m3/hr). Find A Dealer Request More Info

Features & Benefits

Cyclone four-way valve silencer (CVS) filtration system

The CVS filter housing has a .5 micron filtration that contains the four-way valve for reverse pressure and an oversized silencer for quiet operation. The silencer is located inside the 28-in (71-cm) diameter cyclone.

Rear hydraulic claw door

Rear hydraulic claw door has an over-center locking mechanism for a no-fuss positive lock and unlock.

Tool box

Two shelf storage boxes located on the driver's side to store jobsite tools.

Strong arm (option)

With 270-degree rotation, the strong arm supports the weight of the vacuum hose, and the roller head allows for ease of handling by allowing smooth, fluid movements and adjustments.

Hydraulic boom (option)

The hydraulic boom offers a full six-way function, wireless remote with vacuum valve operation, 330-degree rotation, remote water jet for ease of cleanout and a 5-in (12.7-cm) hose with quick connect to 4-in (10.2-cm) tooling.

PTO driven

All components are controlled from the truck, eliminating the extra weight, space and cost of the pony motor.

Specifications

Compare Models
  • Truck

    • Length 345 in (876.3 cm)
    • Width 102 in (259.1 cm)
    • Empty weight 16850 lb (7643 kg)
    • Height 120 in (305 cm) without boom
    • Gross Vehicle Weight Rating (GVWR) 26000 lb (11793 kg)
    • Truck model Ford F-650
    • Engine PTO driven
  • Truck - Option two

    • Length 345 in (876.3 cm)
    • Width 102 in (259 cm)
    • Empty weight 18000 lb (8165 kg)
    • Height 120 in (305 cm) without boom
    • Gross Vehicle Weight Rating (GVWR) 33000 lb (14969 kg)
    • Truck model Ford F-750
    • Engine PTO driven
  • Water tank

    • Water capacity 400 gal (1514 L)
    • Number of Tanks 2
    • High pressure pump flow rate 4 gpm (15.1 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 50 ft (15 m)
    • Low Water Shutoff Electric
  • Spoil Tank

    • Spoil tank capacity 800 gal (3028.3 L)
    • Door type Hydraulic
    • Tank Lift Type Scissor lift
  • Vacuum

    • Type of Filters Cartridge filter 0.5 microns
    • Hose length 30 ft (9.1 m)
    • Hose width/diameter 4 in (10.2 cm)
    • Vacuum 1000 cfm (28 cubic m/min)
    • Vacuum blower type PD blower
    • Vacuum Mercury 16 inHg (0.6 bar)
  • Control panel

    • Controls Curbside
  • Boom

    • Availability Optional
    • Weight 400 lb (181 kg)
    • Reach 15 ft (4.6 m)
    • Movement 330 deg
    • Remote Control Wireless
  • Options

    • Hot box Optional
    • Strong arm Optional
    • Recirculation kit Optional
    • Reverse Pressure Standard
