This series offers high performance at a great value.

Find A Dealer Request More Info

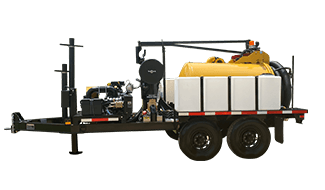

The competitive vac (CV) series is a low-profile trailer vac that keeps the components of the unit accessible. It is hand built from the ground up in the U.S. Manufactured on a durable, low-profile trailer assembly, this series offers high performance at a great value.

This series offers high performance at a great value.

The competitive vac (CV) series is a low-profile trailer vac that keeps the components of the unit accessible. It is hand built from the ground up in the U.S. Manufactured on a durable, low-profile trailer assembly, this series offers high performance at a great value. Find A Dealer Request More Info

Features & Benefits

.5 micron filtration

Cyclonic filtration separator as well as a secondary filter to clean the air down to .5 micron.

Rear hydraulic claw door

Rear hydraulic claw door has an over-center locking mechanism for a no-fuss positive lock and unlock.

Polymer liner

The polymer liner lines the bottom half of the debris tank for ease of dumping and clean out.

Strong arm (option)

With 270-degree rotation, the strong arm supports the weight of the vacuum hose, and the roller head allows for ease of handling by allowing smooth, fluid movements and adjustments.

Reverse pressure

Reverse pressure to offload liquids and dislodge debris in the hose.

I beam trailer

Units are built from start to finish at our factory, including the trailer which consists of a sturdy I beam construction.

Specifications

Compare Models
Show Metric
  • Trailer

    • Compatibility 500-gal (1892.7-L) spoil tank option
    • Length 228 in (579 cm)
    • Width 92 in (234 cm)
    • Height 89 in (226 cm)
    • Empty weight 4800 lbs (2177 kg)
    • Gross Vehicle Weight Rating (GVWR) 9995 lbs (4534 kg)
    • Trailer axles (2) 7000 lbs (3175 kg)
  • Trailer - Option two

    • Compatibility 800-gal (3028.3-L) spoil tank option
    • Length 266 in (676 cm)
    • Width 92 in (234 cm)
    • Height 89 in (226 cm)
    • Empty weight 5300 lbs (2404 kg)
    • Gross Vehicle Weight Rating (GVWR) 14000 lbs (6350 kg)
    • Trailer axles (2) 7000 lbs (3175 kg)
  • Trailer - Option three

    • Compatibility 1200-gal (4542.5-L) spoil tank option
    • Length 256 in (650 cm)
    • Width 102 in (259 cm)
    • Height 111 in (282 cm)
    • Empty weight 7300 lbs (3311 kg)
    • Gross Vehicle Weight Rating (GVWR) 24000 lbs (10886 kg)
    • Trailer axles (2) 12000 lbs (5443.1 kg)
  • Engine

    • Make and Model Kohler EFI Gas
    • Horsepower 27 hp (20.1 kW)
    • Fuel tank capacity or type 14 gal (53 L)
  • Water tank

    • Compatibility 500-gal (1892.7-L) spoil tank option
    • Water capacity 200 gal (757 L)
    • Number of Tanks 2
    • High pressure pump flow rate 4 gpm (15.1 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 50 ft (15 m)
    • Low Water Shutoff Electric
  • Water tank - Option two

    • Compatibility 800-gal (3028.3-L) spoil tank option
    • Water capacity 300 gal (1136 L)
    • Number of Tanks 2
    • High pressure pump flow rate 4 gpm (15.1 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 50 ft (15 m)
    • Low Water Shutoff Electric
  • Water tank - Option three

    • Compatibility 1200-gal (4542.5-L) spoil tank option
    • Water capacity 400 gal (1514 L)
    • Number of Tanks 2
    • High pressure pump flow rate 4 gpm (15.1 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 50 ft (15 m)
    • Low Water Shutoff Electric
  • Spoil Tank

    • Compatibility 500-gal (1892.7-L) spoil tank option
    • Spoil tank capacity 500 gal (1892.7 L)
    • Door type Hydraulic
    • Tank Lift Type Hydraulic
  • Spoil tank - Option two

    • Compatibility 800-gal (3028.3-L) spoil tank option
    • Spoil tank capacity 800 gal (3028.3 L)
    • Door type Hydraulic
    • Tank Lift Type Hydraulic
  • Spoil tank - Option three

    • Compatibility 1200-gal (4542.5-L) spoil tank option
    • Spoil tank capacity 1200 gal (4542.5 L)
    • Door type Hydraulic
    • Tank Lift Type Hydraulic
  • Vacuum

    • Type of Filters Cartridge filter 0.5 microns
    • Hose length 30 ft (9 m)
    • Hose width/diameter 3 in 7.6 cm
    • Air flow 580 cfm (16 cubic m/min)
    • Vacuum blower type PD blower
    • Vacuum Mercury 14 inHg (0.4 bar)
  • Control panel

    • Controls Curbside
    • Gauges Analog
  • Options

    • Strong arm Optional
    • Recirculation kit Optional
    • Hydraulic jack Optional
    • Reverse Pressure Standard
