This liquid-only series is designed for industrial vacuum applications.

Find A Dealer Request More Info

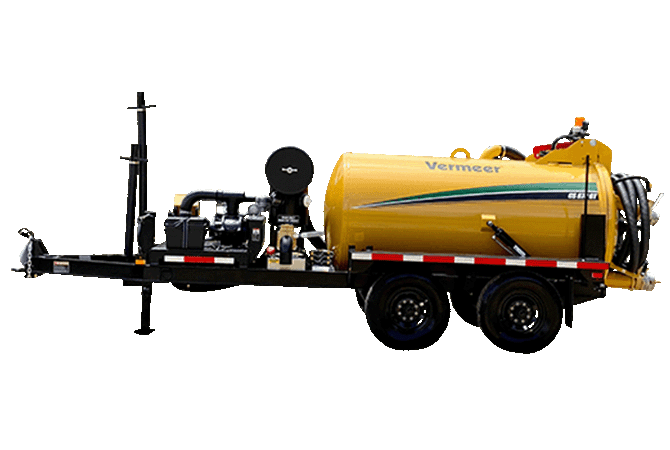

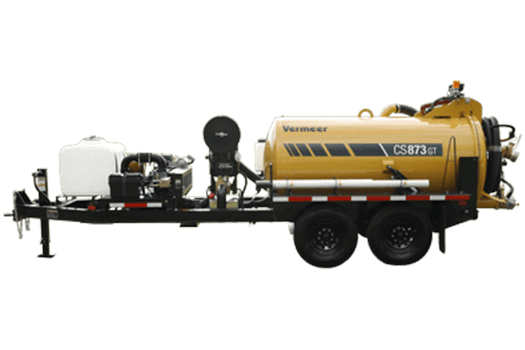

This CS-series trailer vac is specifically designed for industrial vacuum applications like drill slurry removal. The optional reverse-pressure system lets you collect the slurry, transport it and offload it into another container or quickly dump the material.

This liquid-only series is designed for industrial vacuum applications.

This CS-series trailer vac is specifically designed for industrial vacuum applications like drill slurry removal. The optional reverse-pressure system lets you collect the slurry, transport it and offload it into another container or quickly dump the material. Find A Dealer Request More Info

Features & Benefits

Water tank (optional)

100 gal water tank with 3.5 gpm (13.2 l/min) @ 2,500 psi.

Rear hydraulic claw door

The rear hydraulic claw door has an over-center locking mechanism for a no-fuss positive lock and unlock.

Reverse pressure (option)

Reverse pressure to offload liquids and dislodge debris in the hose.

I beam trailer

Units are built from start to finish at our factory, including the trailer which consists of a sturdy I beam construction.

Specifications

Compare Models
Show Metric
  • Trailer

    • Compatibility 800-gal (3028.3-L) spoil tank option
    • Length 265.5 in (674.4 cm)
    • Width 92 in (233.6 cm)
    • Height 90 in (228.6 cm)
    • Empty weight 5400 lbs (2449.4 kg)
    • Gross Vehicle Weight Rating (GVWR) 14000 lbs (6350 kg)
    • Trailer axles (2) 7000 lbs (3175 kg)
  • Trailer - Option two

    • Compatibility 1200-gal (4542.5-L) spoil tank option
    • Length 255 in (648 cm)
    • Width 102 in (259 cm)
    • Height 110 in (279.4 cm)
    • Empty weight 7100 lbs (3221 kg)
    • Gross Vehicle Weight Rating (GVWR) 24000 lbs (10886 kg)
    • Trailer axles (2) 12000 lbs (5443 kg)
  • Skid

    • Compatibility 800-gal (3028.3-L) spoil tank option
    • Length 222 in (564 cm)
    • Width 67 in (170 cm)
    • Height 81 in (206 cm)
    • Empty weight 4100 lbs (1860 kg)
  • Engine

    • Make and Model Kohler gas
    • Horsepower 27 hp (20.1 kW)
    • Fuel tank capacity or type 14 gal (53 L)
  • Water tank

    • Compatibility Optional with 800-gal (3028.3-L) and 1200-gal (4542.5-L) spoil tank options
    • Water capacity 100 gal (378.5 L)
    • Number of Tanks 1
    • High pressure pump flow rate 3.5 gpm (13.2 L/min)
    • High Pressure Pump 2500 psi
    • High pressure hose length 50 ft (15.2 m)
    • Low Water Shutoff Electric
  • Spoil Tank

    • Compatibility 800-gal (3028.3-L) spoil tank option
    • Spoil tank capacity 800 gal (3028.3 L)
    • Door type Hydraulic
    • Tank Lift Type Hydraulic
  • Spoil tank - Option two

    • Compatibility 1200-gal (4542.5-L) spoil tank option
    • Spoil tank capacity 1200 gal (4542.5 L)
    • Door type Hydraulic
    • Tank Lift Type Hydraulic
  • Vacuum

    • Type of Filters Cartridge filter 0.5 microns
    • Hose length 30 ft (9 m)
    • Hose width/diameter 3 in 7.6 cm
    • Air flow 580 cfm (16 cubic m/min)
    • Vacuum blower type PD blower
    • Vacuum Mercury 14 inHg (0.4 bar)
  • Control panel

    • Controls Curbside
    • Gauges Analog
  • Options

    • Hydraulic jack Optional
    • Reverse Pressure Optional

See it in action

Video 1
