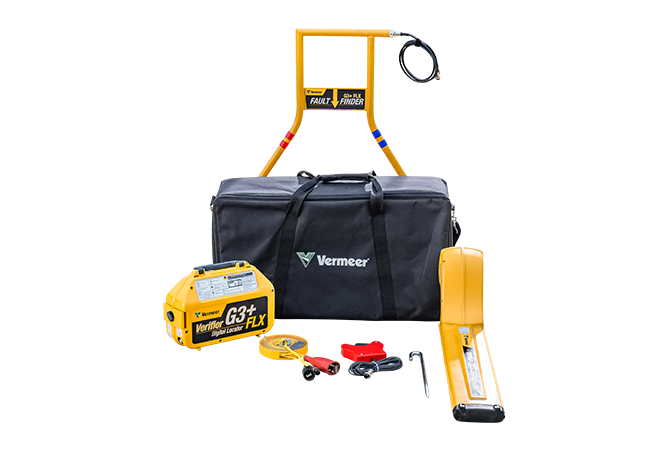

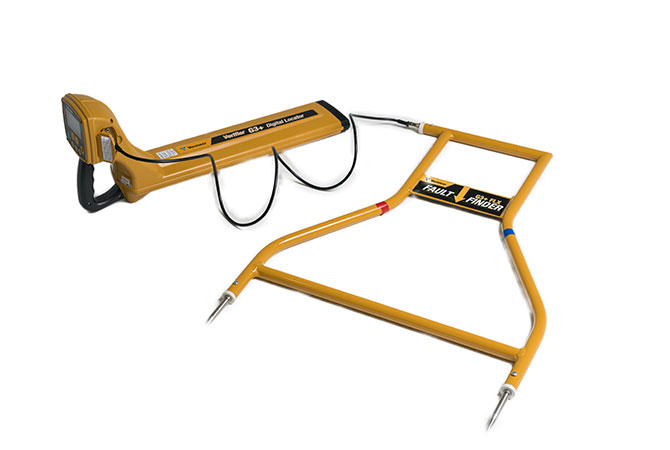

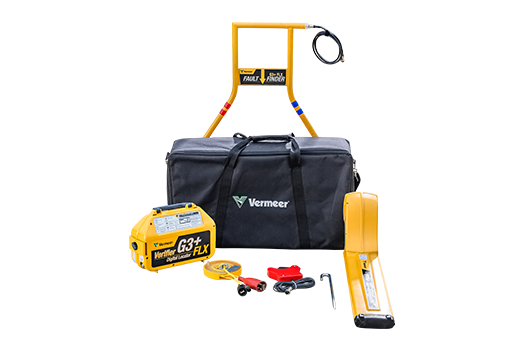

Verifier G3+ FLX Fault Finder Utility Locator

Features and Benefits

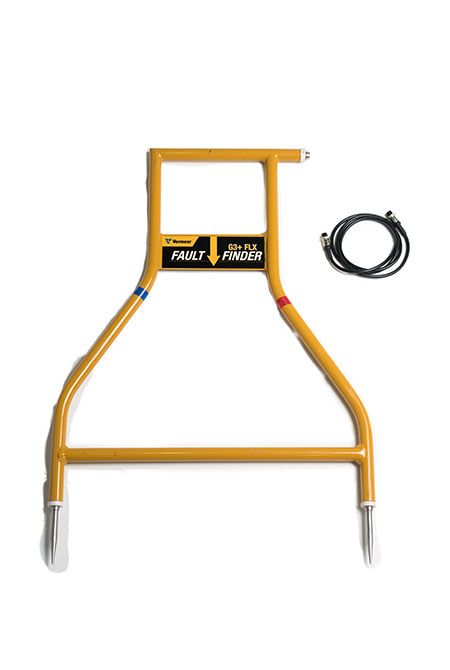

Verifier G3+ FLX fault finder
Depth information: plot and view the depth of utilities
Current index: track the current index for accurate readings
GPS data: access real-time GPS location data
Utility type: categorize and identify various utility types
Exclusive 3-year warranty and weatherproof guarantee

Specifications

Compare Models
Show Metric
  • Receiver (RX)

    • Active frequencies 38 kHz ±2%, 9.5 kHz ±2%, 80 kHz ±2%, 850 Hz ±2%, 512 Hz ±2%, Fault finding (FF): 512 Hz and 9.5 kHz
    • Passive radio 9 kHz to 33 kHz (80 bands)
    • Passive power 50 Hz - 60 Hz, 100 Hz - 120 Hz
    • Battery Type Six alkaline LR6 AA
    • Battery life 18 hours, 68°F (20°C)
    • Battery status Continuous indication
    • Power save function Automatic power off after 6 minutes of inactivity
    • Visual indication LCD: bar graph, digital number and character
    • Depth display High-precision depth measurement
    • Range Line: 0 m to 5 m / 0 ft to 16 ft, 0 m to 10 m / 30 ft; Probe: 0 to 10 m / 30 ft; Real-time depth measurement: 0 m to 9.9 m / 0 ft to 33 ft
    • Depth readout unit Feet, meter and inch
    • Depth accuracy 6.5 ft (2 m): ±2.5%, 10 ft (3 m): ±5%, 16.5 ft (5 m): ±10%
    • Current value Current value showing on the conductor is displayed for line identity in milliamps (mA)
    • Audio output Internal speaker with volume adjustor
    • Data Transfer Via wireless 5.0 on Verifier® G3+ Locator Map app (available for iOS and Android)
    • Data logging Memorize 400 points of depth, current measurement, date and time
    • Interface 6-pin output connector
    • Operating temperature -4°F to 122°F (-20°C to 50°C)
    • Dimensions 26 in x 5.1 in x 10.6 in ( 66 cm x 13 cm x 27 cm)
    • Weight 4.7 lb (2.1 kg) including six alkaline batteries
  • Transmitter (TX)
