Today’s underground network of conduits, pipelines and wires — with more unmarked utilities and increasingly strict regulations — is more congested than ever. Contractors demand accurate, timely locating and verification. That’s why we offer a full line of locators for all markets, with the goal to provide accurate, durable locating tools to the industry.

Find A Dealer Request More Info
Our locator combines trusted precision with a user-friendly interface for contractors faced with congested underground conditions, unmarked utilities and increasingly-strict regulations. Durable design with antennae mounted in rubber isolators. The most accurate push-button peak depths on the market. Exclusive three-year warranty and weatherproof guarantee. Available probe option for unlocated or abandoned lines.

Today’s underground network of conduits, pipelines and wires — with more unmarked utilities and increasingly strict regulations — is more congested than ever. Contractors demand accurate, timely locating and verification. That’s why we offer a full line of locators for all markets, with the goal to provide accurate, durable locating tools to the industry.

Our locator combines trusted precision with a user-friendly interface for contractors faced with congested underground conditions, unmarked utilities and increasingly-strict regulations. Durable design with antennae mounted in rubber isolators. The most accurate push-button peak depths on the market. Exclusive three-year warranty and weatherproof guarantee. Available probe option for unlocated or abandoned lines. Find A Dealer Request More Info

Features & Benefits

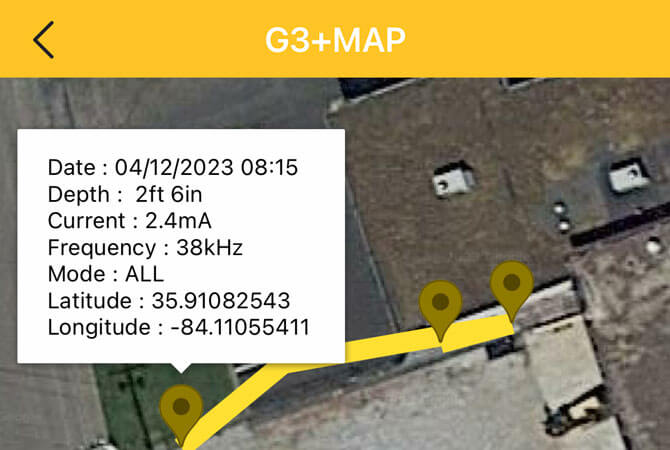

Verifier G3+ map mobile app

Pair your smartphone with the locator to plot location information such as depth, current index, GPS data, operator name, device name and utility type.

Coil clamp

Exclusive one-size-fits-all coil clamp does not need to encircle utility to induce signal. Clamp is 100 percent waterproof.

Durability

Three-year warranty including water damage.

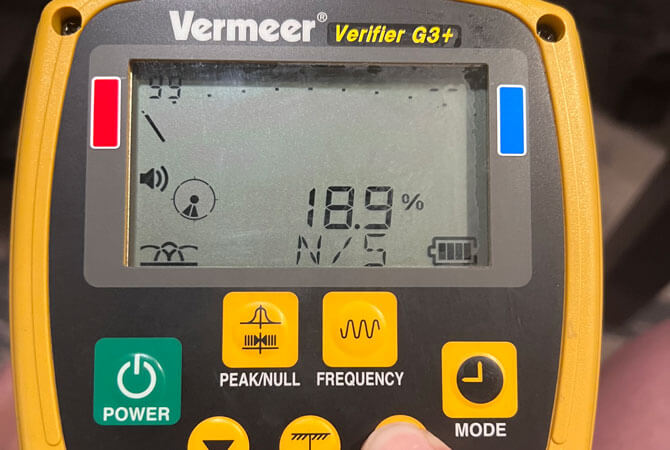

Ambient Noise Detection (AND)

Helps improve accuracy of locates by determining the frequency with the least amount of interference on your jobsite.

Three locating modes – peak, peak/null and null

The operator-friendly screen, at a glance, shows the accuracy of peak mode combined with the speed of null mode.

Current direction

Identify target line in congested areas by determining the direction of current flow against “adjacent signals” caused by returning current.

Specifications

Compare Models
Show Metric
  • Receiver (RX)

    • Active frequencies 38 kHz ±2%, 9.5 kHz ±2%, 80 kHz ±2%, 850 Hz ±2%, 512 Hz ±2%, Current direction (CD): 512 Hz and 9.5 kHz
    • Passive radio 9 kHz to 33 kHz (80 bands)
    • Passive power 50 Hz - 60 Hz, 100 Hz - 120 Hz
    • Battery Type Six alkaline LR6 AA
    • Battery life 18 hours, 68°F (20°C)
    • Battery status Continuous indication
    • Power save function Automatic power off after 5 minutes of inactivity
    • Visual indication LCD: bar graph, digital number and character
    • Depth display High-precision depth measurement
    • Range Line: 0 to 5 m / 16 ft ( 0-5 m / 0-16 ft mode), 0 to 10 m / 30 ft (0-10 m / 0-30 ft mode); Probe: 0 to 10 m / 30 ft; Real-time depth measurement 0 to 9.9 m / 0 to 33 ft
    • Depth readout unit Feet, meter and inch
    • Depth accuracy 6.5 ft (2 m): ±2.5%, 10 ft (3 m): ±5%, 16.5 ft (5 m): ±10%
    • Current value Current value showing on the conductor is displayed for line identity in milliamps (mA)
    • Audio output Via wireless 5.0 on Verifier G3+ Locator Map App (available for iOS and Android)
    • Data logging Memorize 400 points of depth, current measurement, date and time
    • Interface 6-pin output connector
    • Operating temperature -4°F to 122°F (-20°C to 50°C)
    • Dimensions 26 in x 5.1 in x 10.6 in ( 66 cm x 13 cm x 27 cm)
    • Weight 4.7 lb (2.1 kg) including six batteries
  • Transmitter (TX)

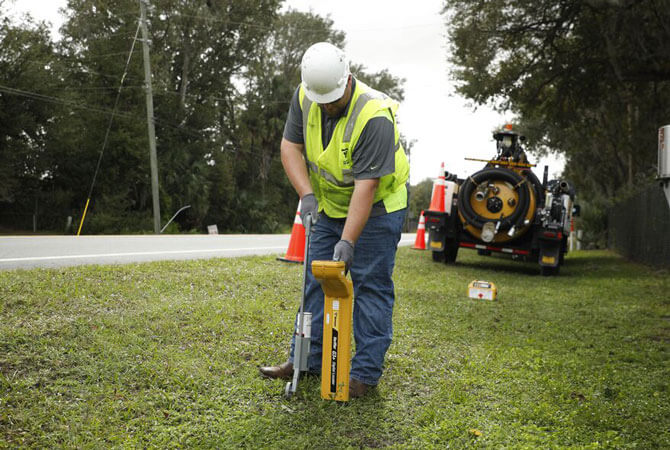

See it in action

Image 1
Image 2
Image 3
Image 4
