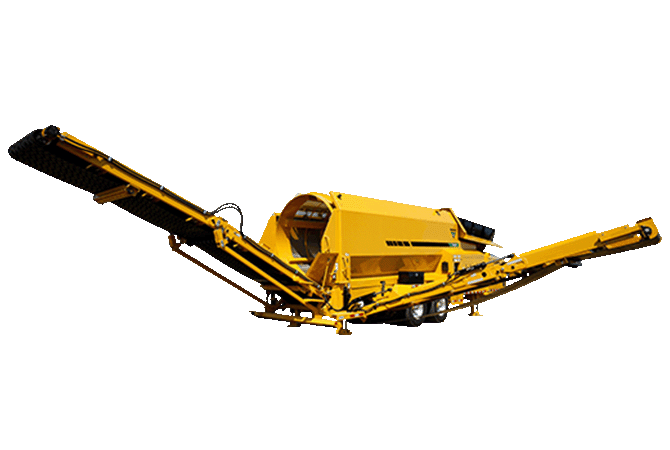

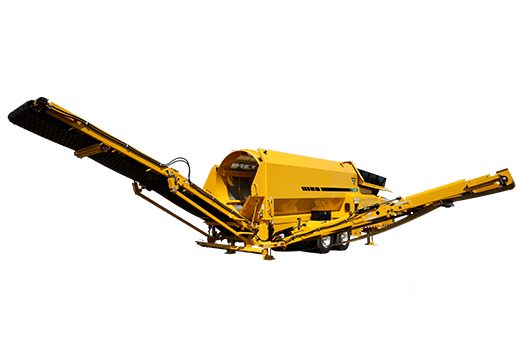

The TR6400 trommel screen was designed with toughness, compactness and ease of maintenance in mind. The 100 hp (75 kW) Deutz Tier 4 Final engine, combined with a 6 ft (1.8 m) by 20 ft (6.1 m) drum is ideal for topsoil, compost and woody biomass applications.

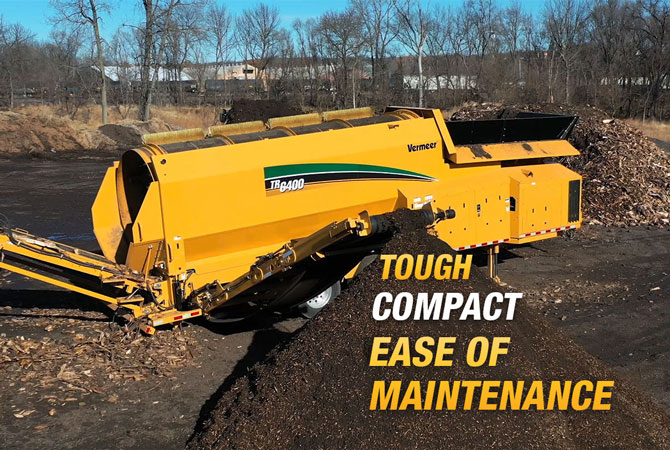

Designed with toughness, compactness and ease of maintenance in mind.

The TR6400 trommel screen was designed with toughness, compactness and ease of maintenance in mind. The 100 hp (75 kW) Deutz Tier 4 Final engine, combined with a 6 ft (1.8 m) by 20 ft (6.1 m) drum is ideal for topsoil, compost and woody biomass applications. Find A Dealer Request More Info

Features & Benefits

Deutz 3.6L Tier 4F (Stage IV) engine

The Deutz 3.6L Tier 4F (Stage IV) engine meets all U.S., Canada and European Union tier/stage regulations.

Drum service access

A single large drum door along the side and entry from the end provide superior drum service access.

Low hopper height

A low hopper infeed height helps to decrease loading cycle times and eliminates the need for loading ramps with most loaders.

Quick change drum

Efficiently change product size by exchanging drums

Quick change screens

Screen changes can help improve jobsite efficiency, a particularly important feature when processing a range of materials that requires frequent screen changes. The design also creates a smooth exterior on the drum, reducing the amount of brush wear.

Square lift bars

Square lift bars inside the drum enable more material to be carried at a slower drum speed helping decrease fuel consumption and premature wear.

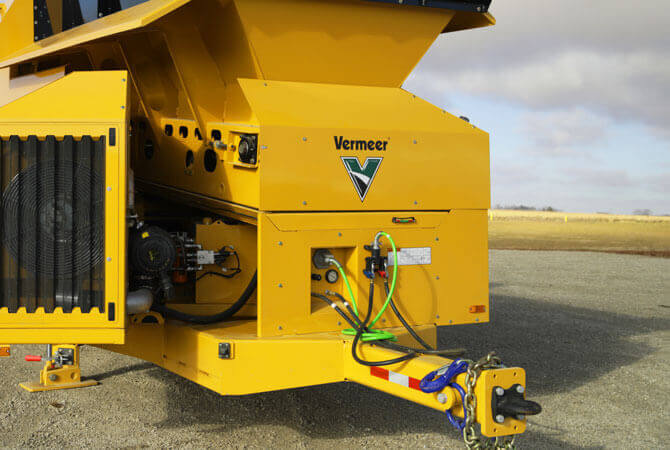

Swing-out engine bay

A single large access door provides engine service access.

Tensioned screens

Compatibility with smaller gauge wire increases the open screen area thus overall production of the machine, particularly in applications when processing wetter materials.

Vermeer ACS control system

These control systems offer the operator flexibility when operating from the machine or cab of the loader. Operators can also adjust conveyor height from the remote, providing the ability to keep them low to the ground to reduce blowing of material.

Specifications

Compare Models
  • Collecting Conveyor

    • Collecting Conveyor Length 16 ft 4.9 m
    • Collecting Belt Speed 360 ft/min 109.7 m/min
    • Conveyor Belt Width 36 in 91.4 cm
    • Conveyor Belt Type 220 lb (99.8 kg), 2 ply, 2/6" x 1/16" (4.8 mm x 1.6 mm)
    • Head/Tail Pulley Type 8 in (20.3 cm) crowned
    • Head Pulley Bearing 1.75 in (4.4 cm) double roller
    • Rubber Flashing Adjustable corded rubber
    • Idler Type 4 in (10.2 cm) CEMA "B" straight
    • Tail Pulley Takeup 6 in 15.2 cm
    • Self-Cleaning Return Idlers 4 in (10.2 cm) rubber disk x 3
    • Fines Conveyor Frame Part of trailer frame
  • Overs Conveyor - Option 1

    • Overs Conveyor Length 19.2 ft 5.9 m
    • Maximum Variable Overs Belt Speed 360 ft/min 109.7 m/min
    • Conveyor Belt Size 42 in (106.7 cm)
    • Conveyor Belt Type 220 lb (99.8 kg), 2 ply, 2/16 x 1/16 in (4.8 x 1.6 mm) cleated
    • Conveyor Belt Stacking Height 9 ft (2.7 m) (conveyor @ 25 deg)
    • Head Pulley Type 8 in (20.3 cm) crowned
    • Head Pulley Bearing 1.5 in (3.8 cm) pillow block
    • Self-Cleaning Tail Pulley Dimensions 8 in (20.3 cm) diameter, 44 in (111.8 cm) wide, crowned wing pulley, 1.75 in (4.4 cm) shaft
    • Head Pulley Takeup 8 in 20.3 cm
    • Self-Cleaning Return Idlers 2, 4 in (10.2 cm) diameter; 1, 5 in (12.7 cm) diameter, "rattle roller"
    • Overs Conveyor Frame Engineered structural frame
    • Troughing Idler Type 20 degrees CEMA "B" with permanently sealed bearings spaced at 32-in centers
  • Engine Option One

    • Make and Model Deutz 3.6L Tier 4F (Stage IV)
    • Number of Cylinders 4
    • Engine Rating 100 hp (74.5 kW)
    • Fuel Tank Capacity 50 gal 189.3 L
    • Fuel Consumption 3 gph (11.4 L/h)
    • Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles) 30 deg
    • Battery 950 CCA
    • Oil Filter Spin-on
    • Recommended Oil Mobil 15W40
    • Oil Volume with Filter 10 qt 9.5 L
    • System Voltage 12 V, 120 amp alternator
    • Air Cleaner Dual element
    • Radiator Fan Suction

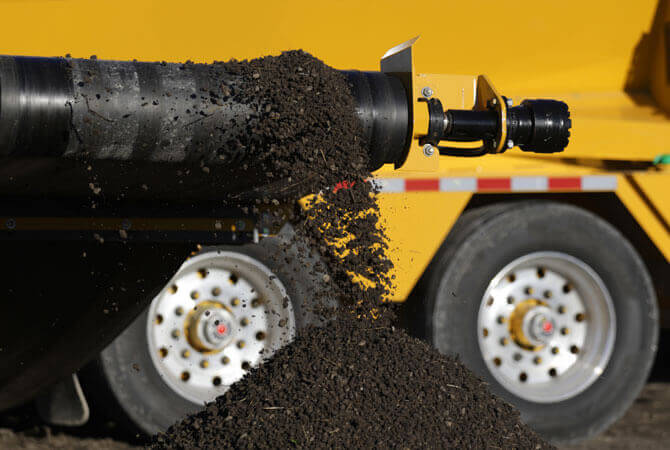

  • Fines Conveyor

    • Conveyor Motor Displacement 14.2 cu-in 232.7 cu-cm
    • Fines Conveyor Length 23.5 ft 7.2 m
    • Fines Belt Speed 400 ft/min 121.9 m/min
    • Conveyor Belt Width 36 in 91.4 cm
    • Conveyor Belt Type 220 lb (99.8 kg), 2 ply, 2/16 x 1/16 in (4.8 mm x 1.6 mm) smooth
    • Conveyor Belt Stacking Height 10.5 ft (3.2 m) (conveyor @ 30 deg)
    • Head Pulley Type 8 in (20.3 cm) crowned
    • Head Pulley Bearing 1.5 in (3.8 cm) pillow block
    • Troughing Idler Type 20 deg CEMA "B" with permanently sealed bearings spaced at 40-in centers
    • Self-Cleaning Tail Pulley Dimensions 8 in diameter, 38 in wide, crowned wing pully
    • Head Pulley Takeup 8 in 20.3 cm
    • Self-Cleaning Return Idlers 2, 4 in (10.2 cm) diameter; 1, 5 in (12.7 cm) diameter, "rattle roller"
    • Fines Conveyor Frame Engineered structural frame
  • Screen Brushes

    • Brush Diameter 14 in 35.6 cm
    • Bristle Material Polyethylene
    • Brush Assembly Support Two 1.25 in (3.2 cm) sealed ball bearings/brush
  • Hopper and Apron Conveyor

    • Hopper Capacity 6.5 cu yd 5 cu m
    • Hopper Bottom Width 37.5 in 95.3 cm
    • Apron Conveyor Speed 0-15 fpm
    • Apron Opening Height 45 in 114.3 cm
    • Apron Opening Width 37.5 in 95.3 cm
    • Hopper Height 9.5 in (42.1 cm) from ground level at operating incline
    • Hopper Opening 11.7 x 5.3 in (29.7 x 13.5 cm)
    • Apron Conveyor Length 12.4 ft 3.8 m
    • Apron Conveyor Belt Width 42 in 106.7 cm
    • Apron Conveyor Rollers 5 CEMA "D" x 17 in (12.7 x 43.2 cm)

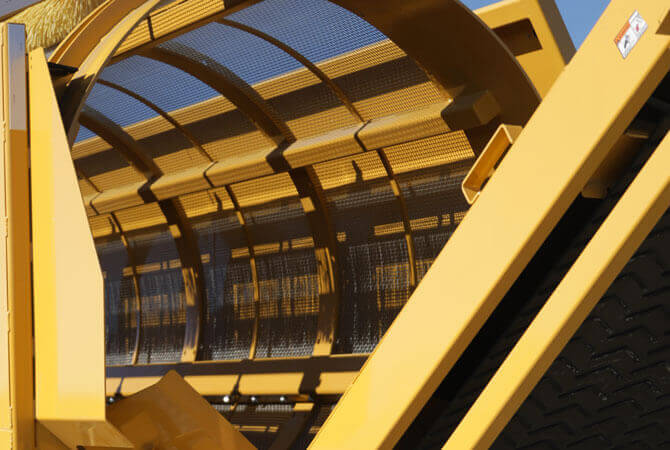

  • Screen Drum

    • Drum Operation 0-33.1 gpm (0-125.3 L/min)
    • Drum Motor 35.5 cu in (581.7 cu cm) displacement
    • Drum Diameter 6.5 ft 2 m
    • Drum Support Description 8 polyurethane trunnion wheels on pivoting bogeys 8 od x 4 in wide (20.3 x 10.2 cm)
    • Thrust Bearing Diameter 4 in 10.2 cm
    • Thrust Bearing Face 2 in 5.1 cm
    • Drum Speed 0-25 rpm
    • Drum Drive Chain 140 extended pin/extended width
    • Drum Angle Adjustability 0-5 deg
    • Maximum Screen Panels 8
  • Chassis

    • Frame Description Four independent hydraulic jacklegs
    • Axle/Suspension Leaf spring
    • Tires - Option One 445/50 R22.5
  • Hydraulic System

    • Operation 77.8 gpm @ 3000 psi (294.5 L/min @ 206.8 bar)
    • Tank capacity 80 gal 302.8 L
  • General Dimensions and Weights

    • Weight 37000 lbs 16782.9 kg
    • Hitch Weight 4200 lbs 1905.1 kg
    • Transport Length 40 ft 12.2 m
    • Transport Width 99 in 251.5 cm
    • Transport Height 13.1 ft 4 m
    • Operation Length 54 ft 16.5 m
    • Operation Width 295 in 749.3 cm
    • Operation Height 16.7 ft 5.1 m
    • Capacity Approximately 180 cu yd (137.6 cu m) per hour with 0.5 in (1.3 cm) screens installed and material with moisture less than 40%
