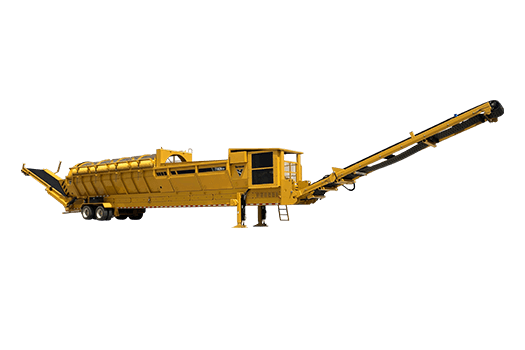

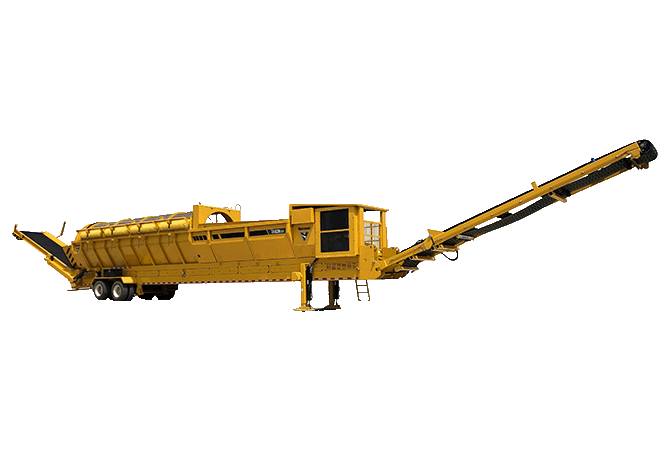

Like the TR626 trommel screen, the TR626EM trommel screen takes the Vermeer trommel screen lineup to the next level with similar design and the ability to tackle tough jobs. The Vermeer TR626EM is equipped with a 150-hp (112-kW) Siemens motor which can help reduce jobsite noise and overall machine maintenance.

Electrify your screening operation

Like the TR626 trommel screen, the TR626EM trommel screen takes the Vermeer trommel screen lineup to the next level with similar design and the ability to tackle tough jobs. The Vermeer TR626EM is equipped with a 150-hp (112-kW) Siemens motor which can help reduce jobsite noise and overall machine maintenance. Find A Dealer Request More Info

Features & Benefits

High production

The tensioned screens around the drum add rigidity, allowing use of small gauge wire, which helps increase production capacity and enable processing of wetter material.

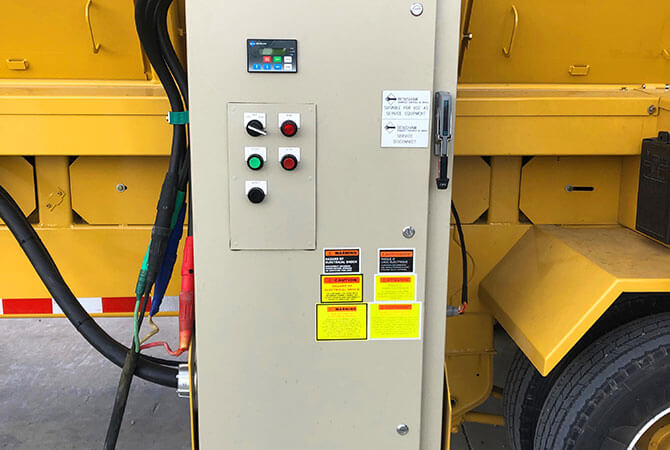

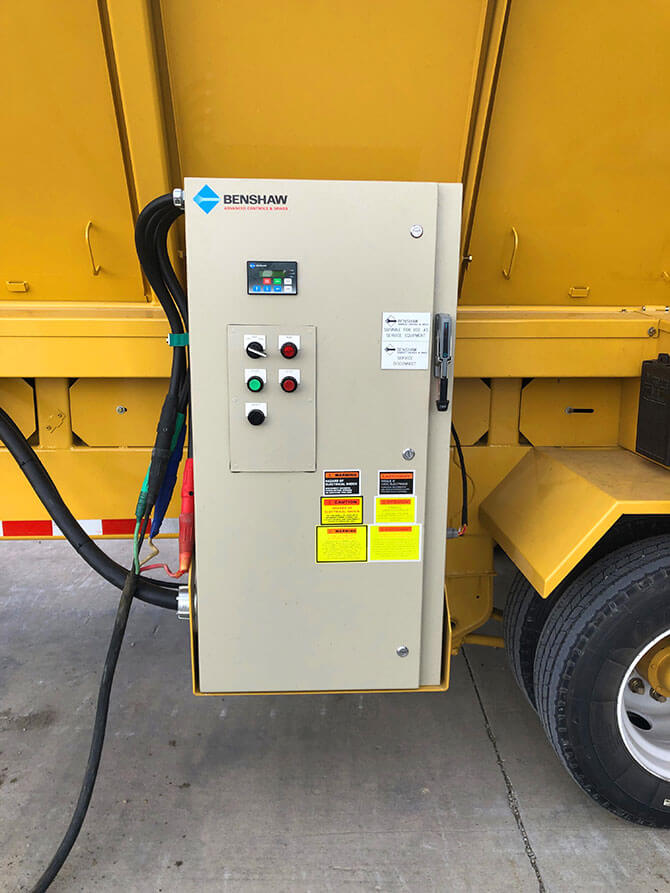

Motor starter panel

The motor starter panel provides a variable frequency drive (VFD) panel.

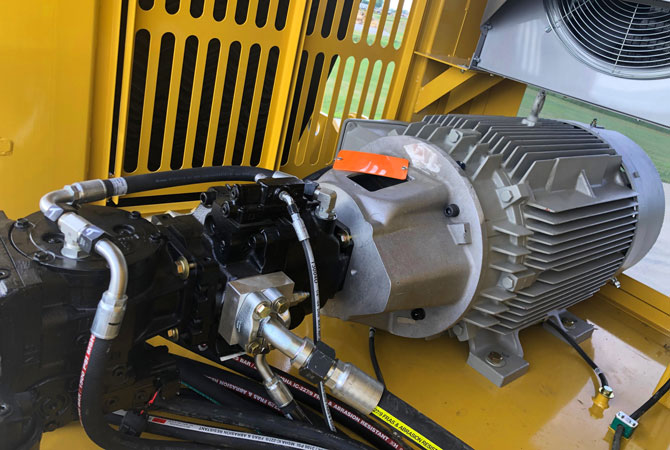

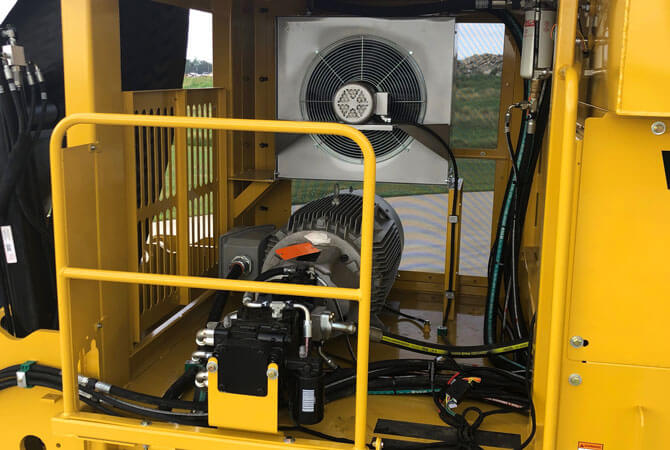

Electric motors

Powered by two industrial-duty, fully enclosed and fan-cooled electric motors. A single 150-hp (112-kW) motor powers the hydraulic pump stack while a .75-hp (.6-kW) motor powers the cooling fan for the hydraulic system.

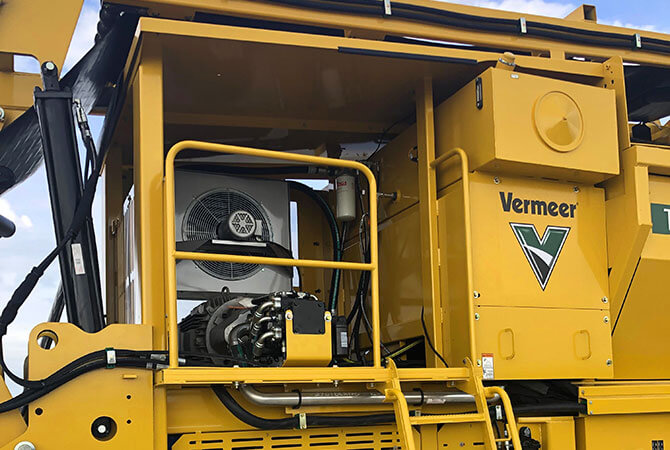

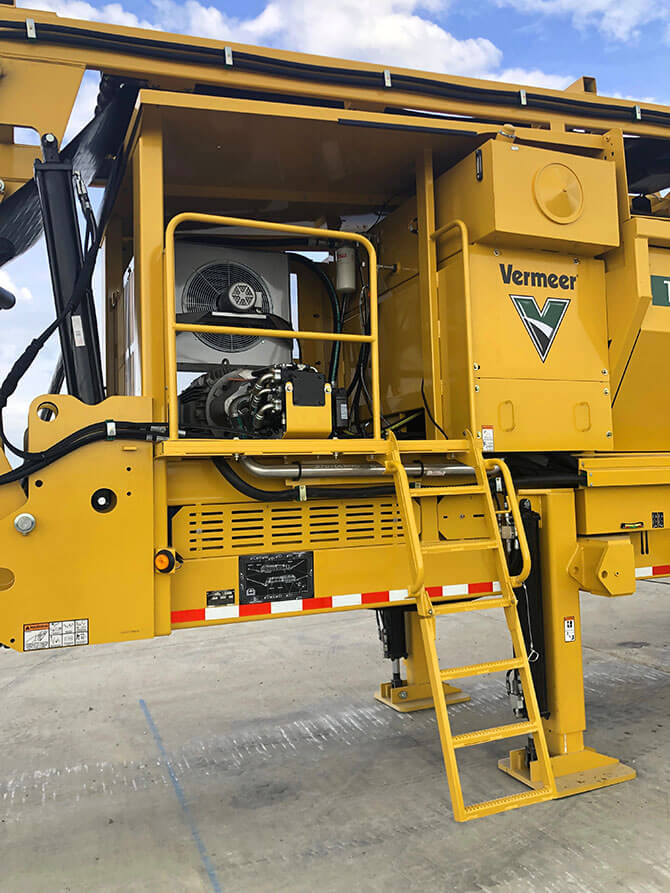

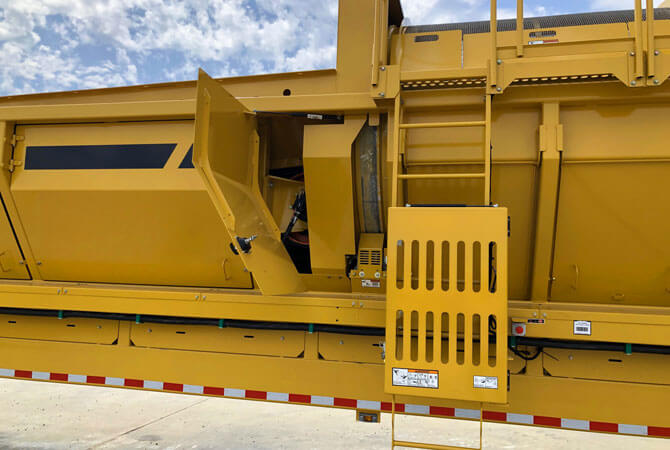

Ease of maintenance

The TR626EM was built with the operator in mind, designed with various access points to critical areas helping to make maintenance efficient.

Advance controls

Operators can control the machine through either the Vermeer DP10 display mounted on the control panel, or through a handheld transceiver remote.

Radial stacking conveyor

The stacking conveyor with a 180-degree arc increases the amount of material being stacked on the ground. Adjustable stacking height aids with dust control and helps avoid material being blown away.

Specifications

Compare Models
Show Metric
  • General Dimensions and Weights

    • Weight 65000 lbs 29483.5 kg
    • Hitch Weight 30000 lbs 13607.8 kg
    • Transport Length 54.5 ft 16.6 m
    • Transport Width 113 in 287 cm
    • Transport Height 13.5 ft 4.1 m
    • Operation Length 84.4 ft 25.7 m
    • Operation Width 113 in 287 cm
    • Operation Height 15.9 ft 4.8 m
    • Capacity Approximately 200 cu yd (152.9 cu m) per hour with 0.5 in (1.3 cm) screens installed and material with moisture less than 40%
  • Motor Option One

    • Make and Model Siemens
    • Motor rating 150 hp, 1800 rpm, 460 V, 3 phase
    • System Voltage 460 V
  • Hydraulic System

    • Operation 62.9 gpm @ 2800 psi (238.1 L/min @ 172.4 bar [17240 kPa])
    • Tank capacity 200 gal 757.1 L
  • Chassis

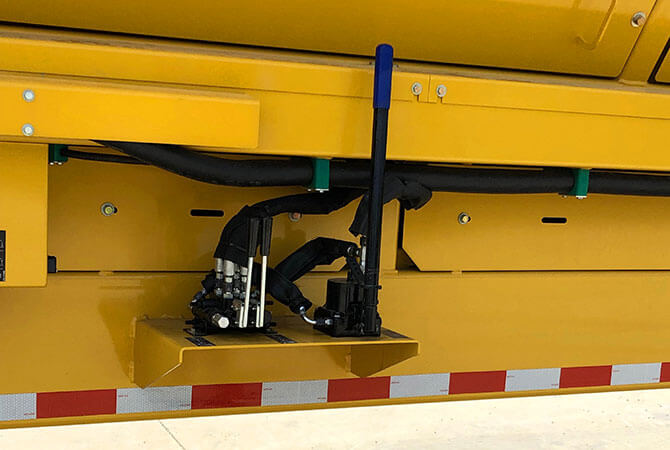

    • Frame Description 4 independent hydraulic jacklegs
    • Axle/Suspension Leaf spring
    • Capacity 22500 lbs 10205.8 kg
    • Tires - Option One 235-75R 17.5H qty. 4
  • Hopper and Apron Conveyor

    • Hopper Capacity 6 cu yd 4.6 cu m
    • Hopper Bottom Width 48 in 121.9 cm
    • Apron Conveyor Speed 0-35 fpm (0-10.7 m/min)
    • Apron Opening Height 34 in 86.4 cm
    • Apron Opening Width 43 in 109.2 cm
    • Hopper Height 9.5 ft (2.9 m) from ground level at operating incline
    • Hopper Opening 13.2 ft x 5.3 ft (4 m x 1.6 m)
    • Apron Conveyor Length 16 ft 4.9 m
    • Apron Conveyor Belt Width 48 in 121.9 cm
    • Apron Conveyor Rollers 4 in (10.2 cm) diameter qty. 14

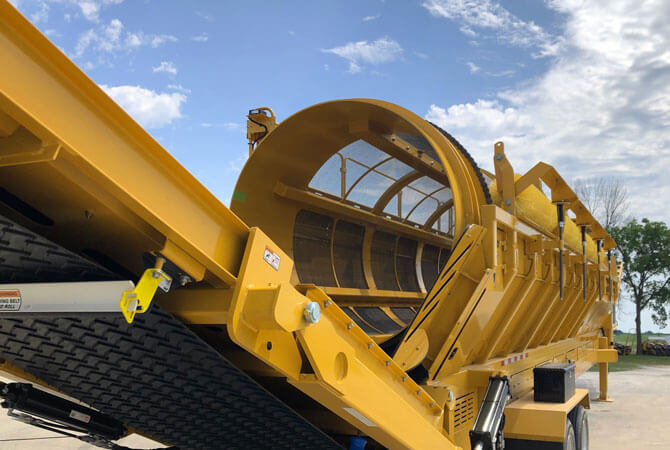

  • Screen Drum

    • Drum Operation 0-42.6 gpm (161.3 L/min)
    • Drum Motor 48.8 cu in (800 cu cm) displacement
    • Drum Diameter 6 ft 1.8 m
    • Drum Support Description Four steel trunnion rollers 8 in (20.3 cm) diameter, 4 in (10.2 cm) width
    • Drum Length 26 ft 7.9 m
    • Thrust Bearing Diameter 5 in 12.7 cm
    • Thrust Bearing Face 2.9 in 7.4 cm
    • Drum Speed 0-24 rpm
    • Drum Drive Chain 140 WT
    • Drum Angle Adjustability 0-7 degrees
    • Maximum Screen Panels 8
  • Screen Brushes

    • Brush Diameter 14 in 35.6 cm
    • Bristle Material Polyethylene
    • Brush Assembly Support Two 1.25-in (3.2-cm) sealed ball bearings
  • Collecting Conveyor

    • Conveyor Motor Displacement 38.4 cu-in 629.3 cu-cm
    • Fines Belt Speed 405 ft/min 123.4 m/min
    • Conveyor Belt Width 36 in 91.4 cm
    • Conveyor Belt Type 220 lb (99.8 kg), 2-ply, 2/16 in x 1/16 in (4.8 mm x 1.6 mm)
    • Head/Tail Pulley Type Rubber-lagged, 12 in (30.5 cm ) diameter, 38 in (99.65 cm) wide
    • Head Pulley Bearing 2.4 in (6.1 cm) pillow block
    • Rubber Flashing Adjustable, 0.25 in (6.44 cm) thick, 4 in (10.2 cm)
    • Idler Type 20 degrees CEMA "B" with permanently sealed bearings spaced at 24 in (20.96 cm) centers
    • Tail Pulley Takeup 12 in 30.5 cm
    • Self-Cleaning Return Idlers 6, each 4 in (10.2 cm) diameter
    • Fines Conveyor Frame Part of trailer frame
  • Fines Conveyor

    • Conveyor Motor Displacement 38.4 cu-in 629.3 cu-cm
    • Fines Conveyor Length 72.5 ft 22.1 m
    • Fines Belt Speed 405 ft/min 123.4 m/min
    • Conveyor Belt Width 36 in 91.4 cm
    • Conveyor Belt Type 220 lb (99.8 kg), 2-ply, 2/16 in x 1/16 in (4.8 mm x 1.6 mm)
    • Conveyor Belt Stacking Height 16.6 ft (5.1 m) with drum at 4 deg
    • Head Pulley Type Rubber lagged, 12 in (30.5 cm) diameter, 38 in (99.65 cm) wide
    • Head Pulley Bearing 2.4 in (6.1 cm) pillow block
    • Rubber Flashing Adjustable, 0.25 in (0.64 cm) thick, 4 in (10.16 cm)
    • Troughing Idler Type 20 degrees CEMA "B" with permanently sealed bearings spaced at 24 in (60.96 cm) centers
    • Self-Cleaning Tail Pulley Dimensions 10 in (25.4 cm) diameter, 38 in (96.5 cm) wide with 2.4 in (6.1 cm) shaft
    • Tail Pulley Takeup 12 in 30.5 cm
    • Self-Cleaning Return Idlers 11, each 4 in (10.2 cm) diameter
    • Fines Conveyor Frame 4 in x 8 in (10.2 cm x 20.3 cm) structural steel tubing
  • Fines Conveyor Option-Radial

    • Conveyor Motor Displacement 21.4 cu-in 350.7 cu-cm
    • Fines Conveyor Length 30.5 ft 9.3 m
    • Fines Belt Speed 705 ft/min 214.9 m/min
    • Conveyor Belt Type 150 lb (99.8 kg), 2-ply, 1/32 in x 1/32 in (0.8 mm x 0.8 mm), vulcanized
    • Head/Tail Pulley Type Rubber lagged, crowned, 9.75 in (24.8 cm) diameter, 32 in (81.3 cm) wide
    • Head Pulley Bearing 1.94 in (4.9 cm) pillow block
    • Idler Type 30 degrees CEMA "B" with permanently sealed bearings spaced at 41 in (104 cm) centers
    • Self-Cleaning Return Idlers 4, each 4 in (10.2 cm) diameter
    • Fines Conveyor Frame 2 in x 8 in (5.1 cm x 20.3 cm) structural steel building
  • Overs Conveyor - Option 1

    • Overs Conveyor Length 20 ft 6.1 m
    • Maximum Variable Overs Belt Speed 290 ft/min 88.4 m/min
    • Conveyor Belt Size 48 in (121.9 cm) wide with raised cleat
    • Conveyor Belt Type 220 lb (99.8 kg), 2-ply, 2/16 in x 1/16 in (4.8 mm x 1.6 mm)
    • Conveyor Belt Stacking Height 3 ft (0.9 m) x 10 ft (3.1 m)
    • Head Pulley Type Rubber lagged, 12 in (30.5 cm) diameter, 51 in (99.65 cm) wide
    • Head Pulley Bearing 2.4 in (6.1 cm) pillow block
    • Self-Cleaning Tail Pulley Dimensions 10 in (25.4 cm) diameter, 51 in (129.5 cm) wide with 2.4 in (6.1 cm) shaft
    • Tail Pulley Takeup 12 in 30.5 cm
    • Solid Return Idler Size 4-in diameter
    • Overs Conveyor Frame 4 in x 8 in (10.2 cm x 20.3 cm) structural steel tubing
  • Overs Conveyor - Option 2

    • Overs Conveyor Length 28 ft 8.5 m
    • Maximum Variable Overs Belt Speed 290 ft/min 88.4 m/min
    • Conveyor Belt Size 48 in (121.9 cm) wide with raised cleat
    • Conveyor Belt Type 220 lb (99.8 kg), 2-ply, 2/16 in x 1/16 in (4.8 mm x 1.6 mm)
    • Conveyor Belt Stacking Height 3 ft (0.9 m) x 12.5 ft (3.8 m)
    • Head Pulley Type Rubber lagged, 12 in (30.5 cm) diameter, 51 in (99.65 cm) wide
    • Head Pulley Bearing 2.4 in (6.1 cm) pillow block
    • Self-Cleaning Tail Pulley Dimensions 10 in (25.4 cm) diameter, 51 in (129.5 cm) wide with 2.4 in (6.1 cm) shaft
    • Head Pulley Takeup 10 in 25.4 cm
    • Rubber disc return idler size 4 in diameter
    • Rattler roller return idler size 5.4 in diameter
    • Overs Conveyor Frame 2 in x 8 in (5.1 cm x 20.3 cm) structural steel tubing
