Powerful workhorse making short work of processing material.

Find A Dealer Request More Info

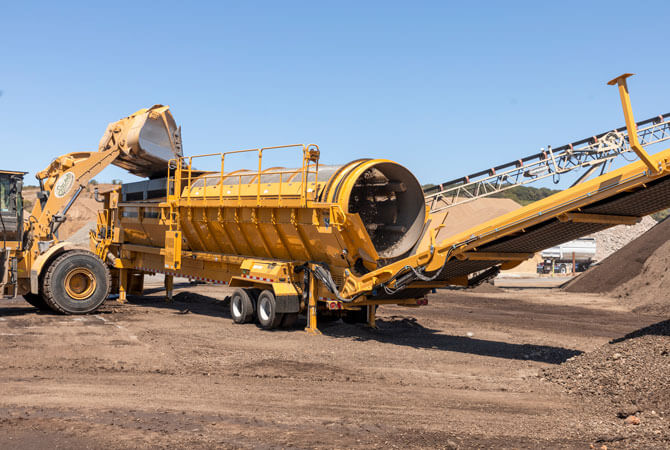

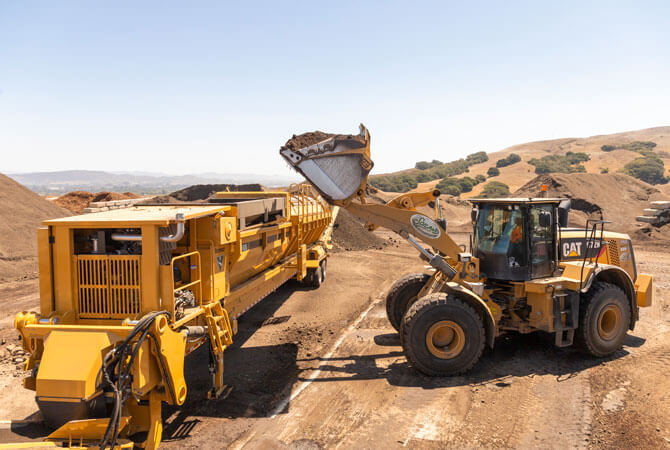

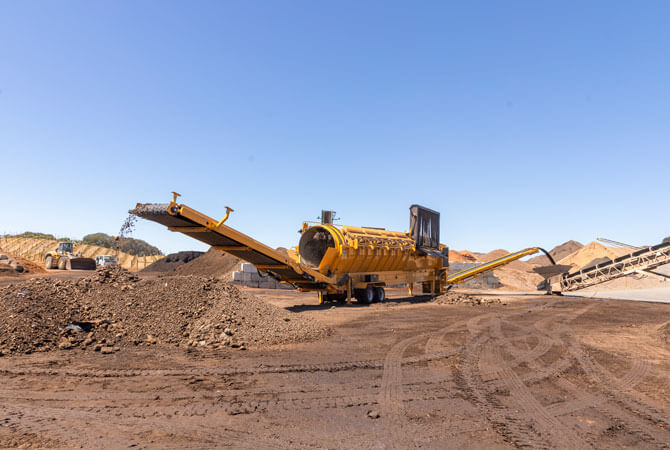

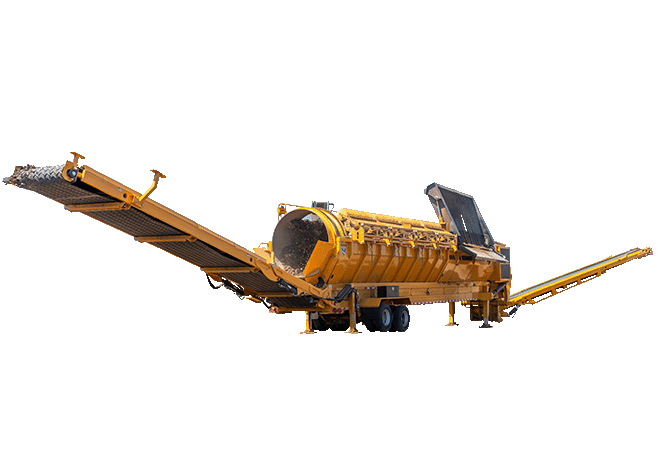

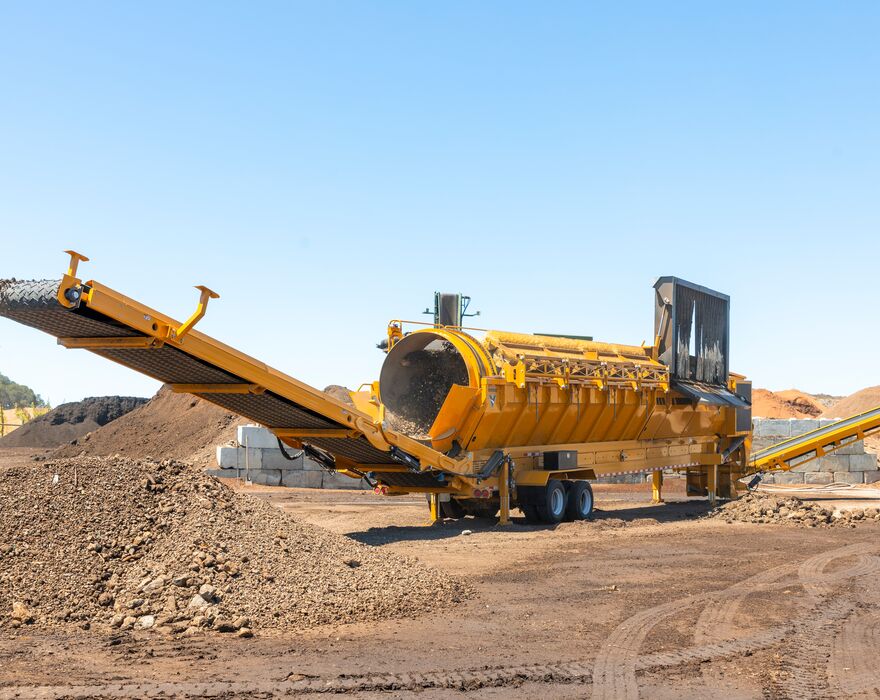

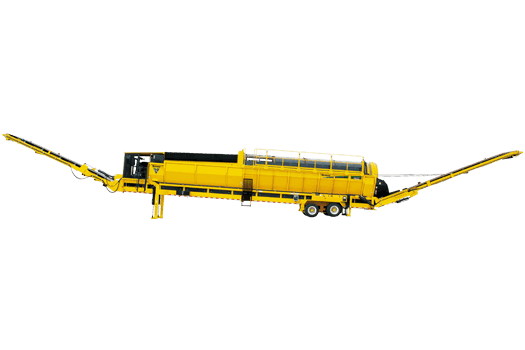

With a 6 ft/1.83 m drum and a hopper that holds 6 cubic yards/4.6 cubic meters, the TR626 makes short work of processing material. Access the drum through removable side panels, drum end or top of the drum. Its 125 hp/93.2 kw John Deere 4045 Tier 4 Final is a powerful workhorse. Impressive 72.5 ft/22.1 m conveyor features self-cleaning tail pulley and return idlers.

Powerful workhorse making short work of processing material.

With a 6 ft/1.83 m drum and a hopper that holds 6 cubic yards/4.6 cubic meters, the TR626 makes short work of processing material. Access the drum through removable side panels, drum end or top of the drum. Its 125 hp/93.2 kw John Deere 4045 Tier 4 Final is a powerful workhorse. Impressive 72.5 ft/22.1 m conveyor features self-cleaning tail pulley and return idlers.

Find A Dealer Request More Info

Features & Benefits

Startup delay and alarm systems

Enhance worker safety with startup delay and alarm systems that notify your whole crew when the machine is about to start.

Tall, wide throat opening

Move material smoothly without bridging, thanks to a tall, wide throat opening.

Heavy-duty rollers

Extend belt life even under tough loading conditions with closely set, heavy-duty rollers supporting the apron conveyor.

Keep screen weights low

Keep screen weights low when processing wet materials by clamping on a smaller diameter tension screen wire and increasing screening area.

Reduced spillage

Speed up your clean up because the flashing and sheeting fit tightly against the drum and conveyors to reduce spillage.

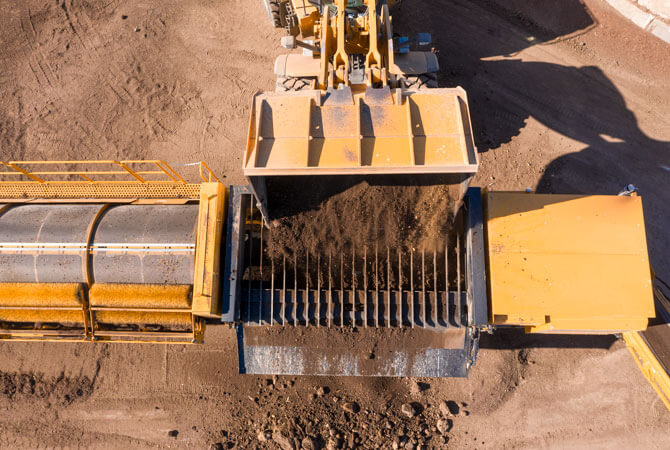

Low hopper infeed height

Forget the loading ramps, since the 626 has a low hopper infeed height.

Specifications

Compare Models
Show Metric
  • General Dimensions and Weights

    • Weight 65000 lbs 29483.5 kg
    • Hitch Weight 30000 lbs 13607.8 kg
    • Transport Length 54.5 ft 16.6 m
    • Transport Width 113 in 287 cm
    • Transport Height 13.5 ft 4.1 m
    • Operation Length 84.4 ft 25.7 m
    • Operation Width 113 in 287 cm
    • Operation Height 15.9 ft 4.8 m
    • Capacity Approximately 200 cu yd (152.9 cu m) per hour with .5" (1.3 cm) screens installed and material with moisture less than 40%
  • Engine - Option one

    • Make and Model John Deere PowerTech PVX 4.5L, 4045HFC93 Tier 4F
    • Number of Cylinders 4
    • Engine Rating 134 hp (93.2 kW) @ 2400 rpm, 398 ft-lb (531.6 Nm) of torque @ 1600 rpm
    • Fuel Tank Capacity 73 gal 276.3 L
    • Fuel Consumption 3.5 gph (13.3 L/hr) under most operating conditions
    • Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles) 30 deg
    • Battery 950 cold cranking amps
    • Oil Filter Spin-on
    • Recommended Oil Mobil 15/40
    • Oil Volume with Filter 15.5 qt 14.7 L
    • System Voltage 12 V, 120 amp alternator
    • Air Cleaner Dual element oversized
    • Radiator Fan Suction-type
  • Engine - Option two

    • Make and Model John Deere 4045H Tier 3
    • Number of Cylinders 4
    • Engine Rating 125 hp (93.2 kW) @ 2400 rpm, 355 ft-lb (481.3 Nm) of torque @ 1500 rpm
    • Fuel Tank Capacity 100 gal 378.5 L
    • Fuel Consumption 3.5 gph (13.3 L/hr) under most operating conditions
    • Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles) 30 deg
    • Battery 950 cold cranking amps
    • Oil Filter Spin-on
    • Oil Volume with Filter 15.5 qt 14.7 L
    • System Voltage 12 V, 120 amp alternator
    • Air Cleaner Dual element oversized
    • Radiator Fan Pusher type
  • Hydraulic System

    • Operation 62.9 gpm @ 2800 psi (238.1 L/min @ 172.4 bar [17240 kPa])
    • Tank capacity 200 gal 757.1 L
  • Chassis

    • Frame Description 4 independent hydraulic jacklegs
    • Axle/Suspension Leaf spring
    • Capacity 22500 lbs 10205.8 kg
    • Tires - Option One 235-75R 17.5H qty. 4
  • Hopper and Apron Conveyor

    • Hopper Capacity 6 cu yd 4.6 cu m
    • Hopper Bottom Width 48 in 121.9 cm
    • Apron Conveyor Speed 0-35 fpm (0-10.7 m/min)
    • Apron Opening Height 34 in 86.4 cm
    • Apron Opening Width 43 in 109.2 cm
    • Hopper Height 9.5' (2.9 m) from ground level at operating incline
    • Hopper Opening 13.2' x 5.3' (4 m x 1.6 m)
    • Apron Conveyor Length 16 ft 4.9 m
    • Apron Conveyor Belt Width 48 in 121.9 cm
    • Apron Conveyor Rollers 4" (10.2 cm) diameter qty. 14
  • Screen Drum

    • Drum Operation 0-42.6 gpm (161.3 L/min)
    • Drum Motor 48.8 cu in (800 cu cm) displacement
    • Drum Diameter 6 ft 1.8 m
    • Drum Support Description Four steel trunnion rollers 8 in (20.3 cm) diameter 4 in (10.2 cm) width
    • Drum Length 26 ft 7.9 m
    • Thrust Bearing Diameter 5 in 12.7 cm
    • Thrust Bearing Face 2.9 in 7.4 cm
    • Drum Speed 0-24 rpm
    • Drum Drive Chain 140 WT
    • Drum Angle Adjustability 0-7 degrees
    • Maximum Screen Panels 8
  • Screen Brushes

    • Brush Diameter 14 in 35.6 cm
    • Bristle Material Polyethylene
    • Brush Assembly Support Two 1.25" (3.2 cm) sealed ball bearings
  • Collecting Conveyor

    • Conveyor Motor Displacement 38.4 cu-in 629.3 cu-cm
    • Fines Belt Speed 405 ft/min 123.4 m/min
    • Conveyor Belt Width 36 in 91.4 cm
    • Conveyor Belt Type 220 lb (99.8 kg), 2-ply, 2/16" x 1/16" (4.8 mm x 1.6 mm)
    • Head/Tail Pulley Type Rubber-lagged, 12" (30.5 cm) diameter, 38" (996.5 cm) wide
    • Head Pulley Bearing 2.5" (6.4 cm) pillow block
    • Rubber Flashing Adjustable, .25" (6.44 cm) thick, 4" (10.2 cm)
    • Idler Type 20 degrees CEMA "B" with permanently sealed bearings spaced at 24" (60.96 cm) centers
    • Tail Pulley Takeup 12 in 30.5 cm
    • Self-Cleaning Return Idlers 6, each 4" (10.2 cm) diameter
    • Fines Conveyor Frame Part of trailer frame
  • Fines Conveyor

    • Conveyor Motor Displacement 38.4 cu-in 629.3 cu-cm
    • Fines Conveyor Length 72.5 ft 22.1 m
    • Fines Belt Speed 405 ft/min 123.4 m/min
    • Conveyor Belt Width 36 in 91.4 cm
    • Conveyor Belt Type 220 lb (99.8 kg), 2 ply, 2/16" x 1/16" (4.8 mm x 1.6 mm)
    • Conveyor Belt Stacking Height 16.6' (5.1 m) with drum at 4 degrees
    • Head Pulley Type Rubber lagged, 12" (30.5 cm) diameter, 38" (996.5 cm) wide
    • Head Pulley Bearing 2.5" (6.4 cm) pillow block
    • Rubber Flashing Adjustable, .25" (.64 cm) thick, 4" (10.16 cm)
    • Troughing Idler Type 20 degrees CEMA "B" with permanently sealed bearings spaced at 24" (60.96 cm) centers
    • Self-Cleaning Tail Pulley Dimensions 10" (25.4 cm) diameter, 38" (96.5 cm) wide with 2.4" (6.1 cm) shaft
    • Tail Pulley Takeup 12 in 30.5 cm
    • Self-Cleaning Return Idlers 11, each 4" (10.2 cm) diameter
    • Fines Conveyor Frame 4" x 8" (10.2 cm x 20.3 cm) structural steel tubing

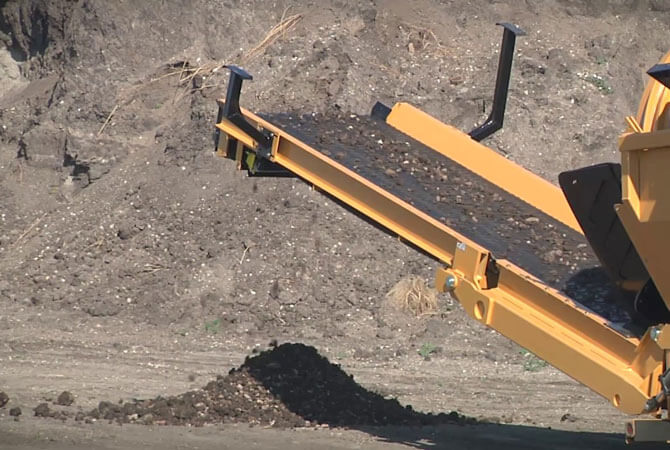

  • Fines Conveyor Option-Radial

    • Conveyor Motor Displacement 21.4 cu-in 350.7 cu-cm
    • Fines Conveyor Length 30.5 ft 9.3 m
    • Fines Belt Speed 705 ft/min 214.9 m/min
    • Conveyor Belt Type 150 lb (99.8 kg), 2 ply, 1/32" x 1/32" (.8 mm x 0.8 mm), vulcanized
    • Head/Tail Pulley Type Rubber lagged, crowned, 9.75" (24.8 cm) diameter, 32" (81.3 cm) wide
    • Head Pulley Bearing 2.5" (6.4 cm) pillow block
    • Idler Type 30 degrees CEMA "B" with permanently sealed bearings spaced at 41" (104 cm) centers
    • Self-Cleaning Return Idlers 4, each 4" (10.2 cm) diameter
    • Fines Conveyor Frame 2" x 8" (5.1 cm x 20.3 cm) structural steel building
  • Overs Conveyor - Option 1

    • Overs Conveyor Length 19 ft 5.8 m
    • Maximum Variable Overs Belt Speed 290 ft/min 88.4 m/min
    • Conveyor Belt Size 48" (121.9 cm) wide with raised crescent
    • Conveyor Belt Type 220 lb (99.8 kg), 2 ply, 2/16" x 1/16" (4.8 mm x 1.6 mm)
    • Conveyor Belt Stacking Height 3' (.9 m) x 10' (3.1 m)
    • Head Pulley Type Rubber lagged, 12" (30.5 cm) diameter, 38" (996.5 cm) wide
    • Head Pulley Bearing 2.5" (6.4 cm) pillow block
    • Self-Cleaning Tail Pulley Dimensions 10" (25.4 cm) diameter, 51" (129.5 cm) wide with 2.4" (6.1 cm) shaft
    • Tail Pulley Takeup 12 in 30.5 cm
    • Solid Return Idler Size 4" x 8" diameter
    • Overs Conveyor Frame 4" x 8" (10.2 cm x 20.3 cm) structural steel tubing

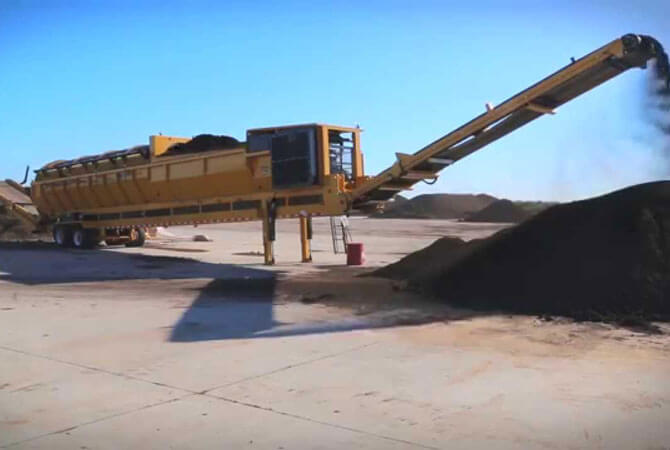

See it in action
