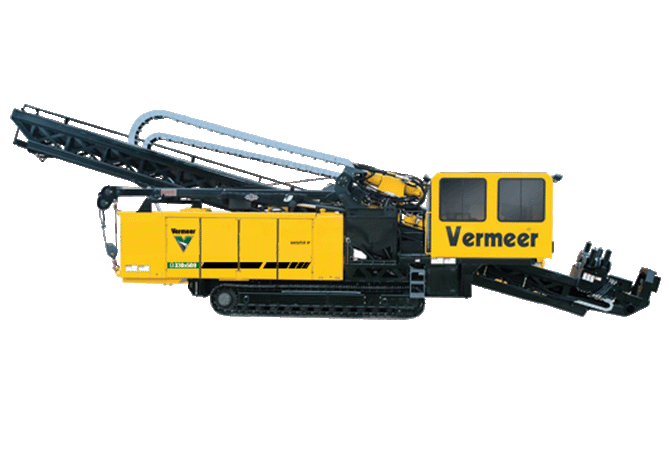

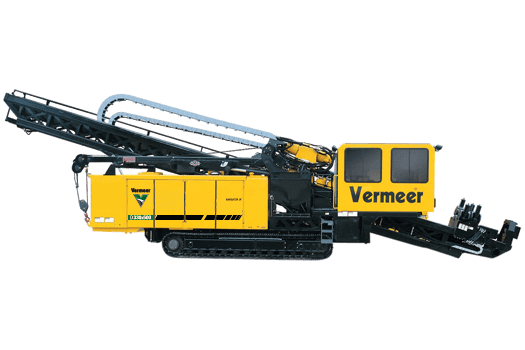

Sized within legal dimensions in transport mode, the D330x500 travels to job sites at any time of day. Once there, you’ll set up fast because of its self-contained design. The 486 hp/363 kW Caterpillar C-15 Tier 3 diesel engine gives you a ground-penetrating 50,000 ft-lb./67,800 Nm of rotational torque and 330,000 lbs/1,468 kN of thrust/pullback.

Ability to travel to job sites at any time of day.

Sized within legal dimensions in transport mode, the D330x500 travels to job sites at any time of day. Once there, you’ll set up fast because of its self-contained design. The 486 hp/363 kW Caterpillar C-15 Tier 3 diesel engine gives you a ground-penetrating 50,000 ft-lb./67,800 Nm of rotational torque and 330,000 lbs/1,468 kN of thrust/pullback.

Find A Dealer Request More Info

Features & Benefits

Climate-controlled, two-person cab

Improves productivity through a climate-controlled two-person cab that features 360° visibility, a state-of-the-art operator’s station and fingertip controls on the electronic joysticks.

Increased efficiency

Increases manpower efficiency, because drilling controls, fluid controls, transport and crane can all be controlled from a single person in the cab.

Higher torque

Muscles through difficult ground formations with higher torque than other models.

Specifications

Compare Models
Show Metric
  • General Dimensions and Weights

    • Length (Minimum Transport) 640 in 1625.6 cm
    • Width (With Cab, Minimum Transport) 100 in 254 cm
    • Height (With Cab) 134 in 340.4 cm
    • Weight 90000 lbs 40823.3 kg
  • Engine

    • Make and Model Caterpillar C-15
    • Fuel Type Diesel
    • Maximum Engine RPM 2100 rpm
    • Gross Horsepower 540 hp 402.7 kw
    • Aspiration Turbocharged
    • Max Fuel Consumption 28.9 gph 109.5 lph
  • Operational

    • Thrust 340000 lbs 1512.4 kN
    • Pullback 340000 lbs 1512.4 kN
    • Maximum Carriage Speed at Maximum Engine RPM 56 ft/min 17.1 m/min
    • Maximum Spindle Torque (Low at Maximum Engine RPM) 50000 ft-lb 67791 Nm
    • Maximum Spindle Torque (Medium at Maximum Engine RPM) 37500 ft-lb 50843.3 Nm
    • Maximum Spindle Torque (High at Maximum Engine RPM) 25000 ft-lb 33895.5 Nm
    • Maximum Spindle Speed at Max Engine RPM 88 rpm
    • Minimum Bore Diameter 6.5 in 16.5 cm
    • Maximum Ground Drive Speed at Maximum Engine RPM 3 mph 4.8 km/h
    • Automated Rod Loader No
    • Noise Level at Operator's Ear 89
    • Drill Rack Angle 13-18 deg
  • Fluid Capacities

    • Fuel Tank 210 gal 794.9 L
    • Hydraulic Tank 200 gal 757.1 L
    • Hydraulic System 270 gal 1022.1 L
  • Hydraulic System

    • Auxiliary Pump Flow at Maximum Engine RPM 32 gpm
    • Auxiliary Pump Relief Pressure 3000 psi 206.8 bar
    • Thrust/Pullback Pump Flow at Max Engine RPM 140 gpm 530 L/min
    • Thrust/Pullback Pump Relief Pressure 6000 psi 413.7 bar
    • Rotation Pump Flow at Maximum Engine RPM 140 gpm 530 L/min
    • Rotation Pump Relief Pressure 5800 psi 399.9 bar
    • Hydraulic Supply Filter Rating 200
    • Hydraulic Return Filter Rating 6
  • Crane

    • Maximum Lifting Capacity 14000 lbs 6350.3 kg
    • Maximum Lifting Capacity - Boom Extended/Max Reach 2600 lbs 1179.3 kg
    • Rotation 360 deg
    • Maximum Reach 300 in 762 cm
  • Features

    • Breakout System Vermeer open top accepts 10" (25.4 cm) diameter
    • Drilling Lights Standard
    • Flow Indicator Yes
    • Stakedown System Pad mount
    • Cab Standard

See it in action

Video 1
Video 4

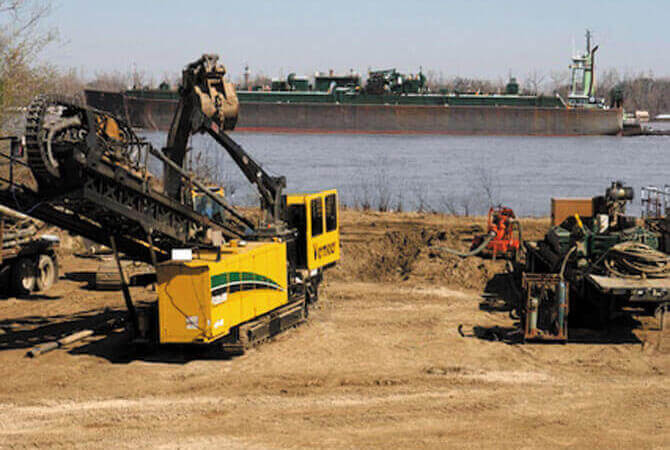

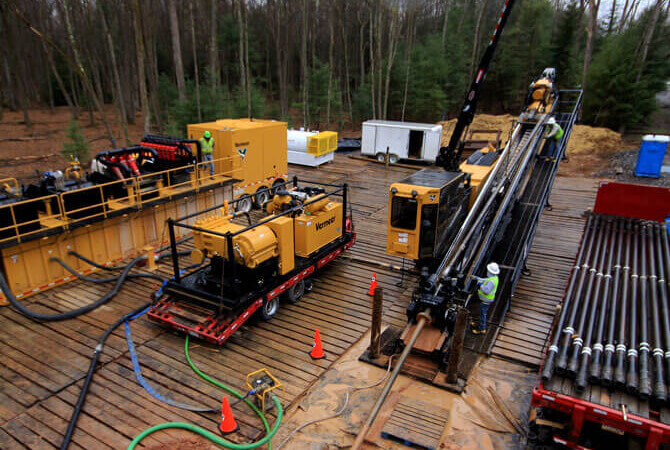

Image 1
