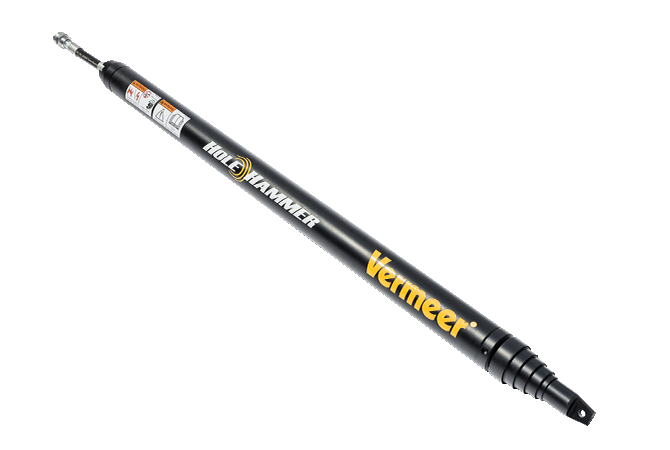

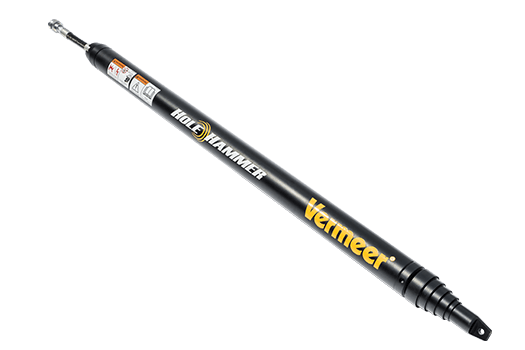

Hole Hammer Positive-Turn Reverse Piercing Tools

Hole Hammer Positive-Turn Reverse Piercing Tools

Vermeer hole hammers can handle a full range of projects, including gas, electric, fiber, telecom, water and irrigation installations.

Find A Dealer Request More Info
The Vermeer hole hammer handles a full range of projects. Contractors have counted on Vermeer for piercing tools from the very beginning of the trenchless age. These tools put the power of a proven and reliable design in your hands — with legendary support and service from the industry's largest distribution network.

Vermeer hole hammers can handle a full range of projects, including gas, electric, fiber, telecom, water and irrigation installations.

The Vermeer hole hammer handles a full range of projects. Contractors have counted on Vermeer for piercing tools from the very beginning of the trenchless age. These tools put the power of a proven and reliable design in your hands — with legendary support and service from the industry's largest distribution network. Find A Dealer Request More Info

Features & Benefits

Ease of tool maintenance

Tailbolt system provides ease of access for tool maintenance, requiring a maximum of only 35 ft-lb (47.5 Nm) of torque.

Extended tool body life

Replaceable head design is a heat-treated alloy to protect the tool body and can be replaced to extend the tool body life.

Long-lasting performance

Wear rings on pistons and help extend tool life and increase tool performance.

Maximum reliability

Proven positive-turn reverse design has minimal moving parts, delivering maximum reliability.

Operator-friendly features

Oiler assemblies feature a quick-reverse swivel kit for air-on reversing, a sight glass to see oil levels and a pressure relief cap.

Optimized accuracy and productivity

The moving head option on the 2.5-in (6.4-cm) and 3-in (7.6-cm) piercing tools help improve accuracy and help productivity on high production jobsites.

Specifications

Compare Models
  • VPT200

    • Type Screw reverse - replaceable head
    • Diameter 2 in (52 mm)
    • Length 45.3 in 115.1 cm
    • Weight 28 lbs 12.7 kg
    • Air 22 cfm (623 L/min)
    • Tailbolt access 4
    • Pressure 110 psi 7.6 bar
  • VPT250

    • Type Screw reverse - replaceable head
    • Diameter 2.7 in (68 mm)
    • Length 51.9 in 131.8 cm
    • Weight 58 lbs 26.3 kg
    • Air 31 cfm (877 L/min)
    • Tailbolt access 4
    • Pressure 110 psi 7.6 bar
  • VPT250S

    • Type Screw reverse - replaceable head (short body)
    • Diameter 2.7 in (68 mm)
    • Length 37 in 94 cm
    • Weight 41 lbs 18.6 kg
    • Air 31 cfm (877 L/min)
    • Tailbolt access 4
    • Pressure 110 psi 7.6 bar
  • VPT250RT

    • Type Screw reverse - moving head
    • Diameter 2.7 in (68 mm)
    • Length 51.9 in 131.8 cm
    • Weight 57 lbs 25.9 kg
    • Air 31 cfm (877 L/min)
    • Tailbolt access 4
    • Pressure 110 psi 7.6 bar
  • VPT300

    • Type Screw reverse - replaceable head
    • Diameter 3 in (76 mm)
    • Length 56.1 in 142.5 cm
    • Weight 76 lbs 34.5 kg
    • Air 32 cfm (906 L/min)
    • Tailbolt access 4
    • Pressure 110 psi 7.6 bar
  • VPT300RT

    • Type Screw reverse - moving head
    • Diameter 3 in (76 mm)
    • Length 56.1 in 142.5 cm
    • Weight 75 lbs 34 kg
    • Air 32 cfm (906 L/min)
    • Tailbolt access 4
    • Pressure 110 psi 7.6 bar
  • VPT400

    • Type Screw reverse - replaceable head
    • Diameter 3.89 in (100 mm)
    • Length 64 in 162.6 cm
    • Weight 136 lbs 61.7 kg
    • Air 68 cfm (1926 L/min)
    • Tailbolt access 6
    • Pressure 110 psi 7.6 bar
  • VPT500

    • Type Screw reverse - replaceable head
    • Diameter 5.13 in (130 mm)
    • Length 68.5 in 174 cm
    • Weight 214 lbs 97.1 kg
    • Air 98 cfm (2800 L/min)
    • Tailbolt access 8
    • Pressure 110 psi 7.6 bar

See it in action
