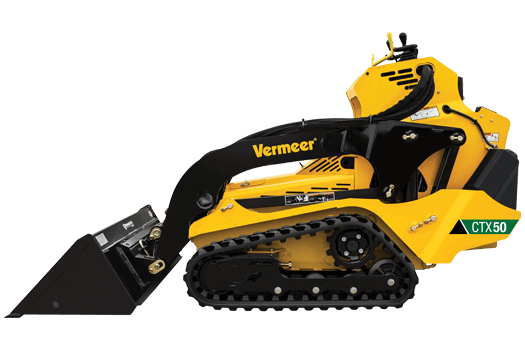

The Vermeer CTX50 mini skid steer can maneuver in and out of small spaces. Featuring a 600-lb (272.2-kg) ISO-rated operating capacity and a tipping capacity of 1715 lb (777.9 kg), the CTX50 is well-suited to both the needs of the rental customer and landscape contractor. What’s more, the CTX50 is track-driven, with a spring-cushioned operator platform for added safety and comfort. Versatile and equipped with a 72-in (182.9-cm) dump height, this mini skid steer saves labor and time.

The Vermeer CTX50 helps save time and labor.

The Vermeer CTX50 mini skid steer can maneuver in and out of small spaces. Featuring a 600-lb (272.2-kg) ISO-rated operating capacity and a tipping capacity of 1715 lb (777.9 kg), the CTX50 is well-suited to both the needs of the rental customer and landscape contractor. What’s more, the CTX50 is track-driven, with a spring-cushioned operator platform for added safety and comfort. Versatile and equipped with a 72-in (182.9-cm) dump height, this mini skid steer saves labor and time. Find A Dealer Request More Info

Features & Benefits

High-mounted track sprocket

The undercarriage features a high-mounted track sprocket. The higher mounting reduces premature wear and tear in rocky soil conditions, while the cast sprocket is heat-treated for longer life.

Hydraulic pumps

The hydraulic pumps are attached directly to the engine giving the machine a greater power advantage over models directing power from the engine through the belt to the pump.

Lift loader arms

Vertical geometry lift loader arms help provide an ISO-rated operating capacity of 600 lb (272.2 kg).

User-friendly joystick

The single, pilot-operated joystick offers the operator a smooth range of operation without balancing the engagement of two separate controls.

Enjoy the ride

A dedicated spring-cushioned platform keeps the operator out of the mud. The integrated operator presence system suspends ground drive and powered boom/bucket motion when the operator steps off the platform.

Serviceability is key

Access to engine and important components can be found near the upper and rear portion of the machine for easy maintenance.

Specifications

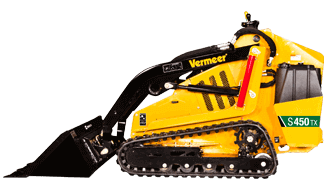

Compare Models
  • Engine Option One

    • Make and Model Kohler Command PRO EFI ECH740
    • Fuel Type Gasoline
    • Fuel Tank Capacity 4 gal 15.1 L
    • Gross Horsepower 25 hp 18.6 kw
    • Cooling System Air
    • Maximum Angle of Inclination 25 deg
  • General Dimensions and Weights

    • Design Stand-on/track-drive
    • Length with Standard Bucket 95 in 241.3 cm
    • Length without Standard Bucket 75 in 190.5 cm
    • Width with Standard Bucket 42 in 106.7 cm
    • Width Without Standard Bucket 35.5 in 90.2 cm
    • Height 54.5 in 138.4 cm
    • Height (to Hinge Pin) 72 in 182.9 cm
    • Ground Clearance 6 in 15.2 cm
    • Weight (Standard Bucket, Gas Engine) 2245 lbs 1018.3 kg
    • Weight (No Bucket, Gas Engine) 2100 lbs 952.5 kg
  • Track Performance

    • Rated Operating Capacity (SAE) 600 lbs 272.2 kg
    • Ground Pressure (Narrow Tracks) 4.5 psi 31 kPa
    • Travel Speed 3.5 mph 5.6 km/h
  • Hydraulic System

    • Hydraulic System Flow 12.5 gpm 47.3 L/min
    • Hydraulic System Pressure 2950 psi 203.4 bar
    • Tank capacity 12 gal 45.4 L
  • Operational

    • Steering Single, pilot-operated joystick
    • Lift Single, dual axis
    • Curl Single, dual axis

Attachments

4-in-1 bucket

4-in-1 bucket

See Specs
Auger

Auger

See Specs
Brush grapple

Brush grapple

See Specs
Dozer blade

Dozer blade

See Specs
Harley rake

Harley rake

See Specs
Land leveler

Land leveler

See Specs

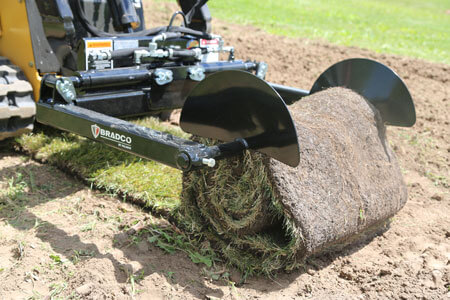

Mini sod roller/unroller

Mini sod roller/unroller

See Specs

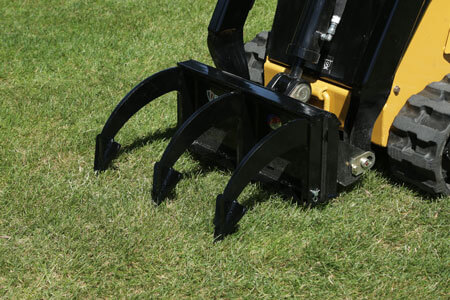

Multi-task tool

Multi-task tool

See Specs
Pallet forks

Pallet forks

See Specs
Power shovel

Power shovel

See Specs
Rock bucket

Rock bucket

See Specs
Rotary boom

Rotary boom

See Specs
Rotating log grapple - RLG46

Rotating log grapple - RLG46

See Specs
Rotating log grapple - SLG46

Rotating log grapple - SLG46

See Specs

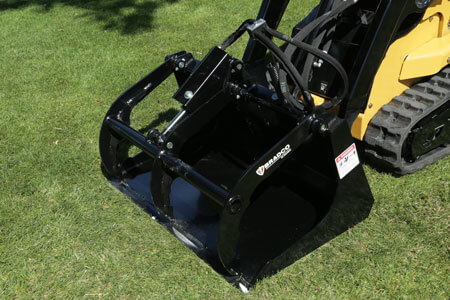

Scrap grapple bucket

Scrap grapple bucket

See Specs

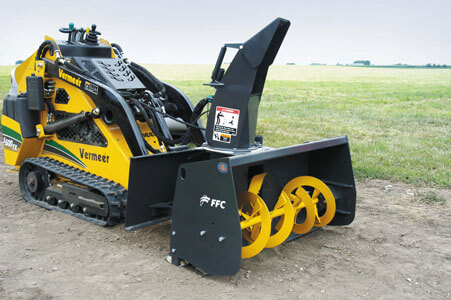

Snow blower

Snow blower

See Specs
Standard bucket

Standard bucket

See Specs
Standard trencher

Standard trencher

See Specs
STH36 soil renovator

STH36 soil renovator

See Specs
Tree forks

Tree forks

See Specs
Vibratory plow

Vibratory plow

See Specs

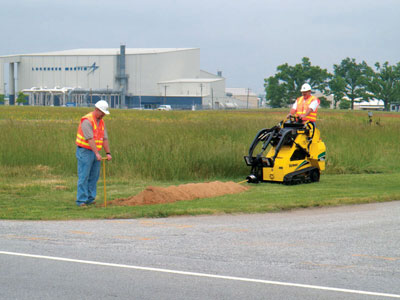

Hydraulic boring attachment

Hydraulic boring attachment

See Specs

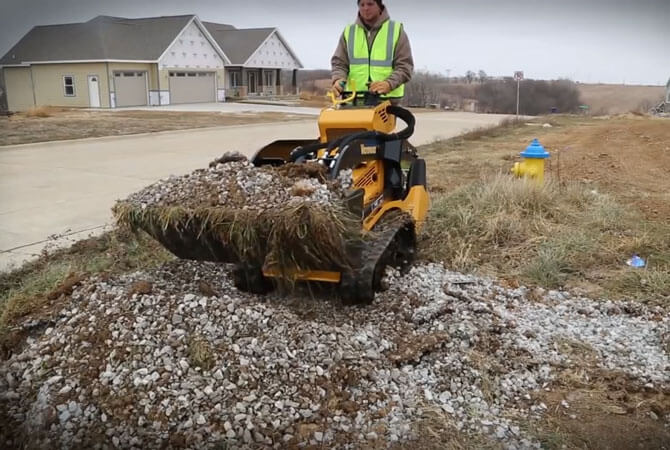

See it in action
