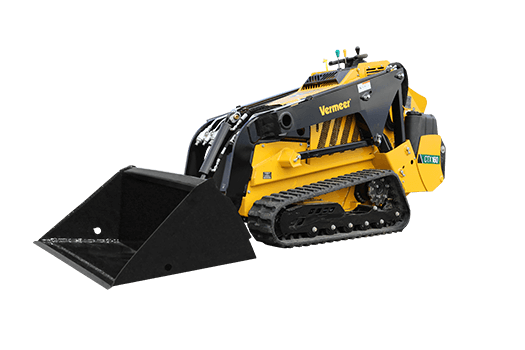

The Vermeer CTX160 is ready for your next job.

Find A Dealer Request More Info

The CTX160 is well-suited for a landscape contractor as it is equipped with heavy lifting capabilities and compact footprint. When moving pallets or other material around a jobsite, the tractive efforts and controllability can help the operator feel confident maneuvering around tight spaces on the job. Plus, it’s backed by a 3-year/3000-hour limited warranty on the loader arms.

The Vermeer CTX160 is ready for your next job.

The CTX160 is well-suited for a landscape contractor as it is equipped with heavy lifting capabilities and compact footprint. When moving pallets or other material around a jobsite, the tractive efforts and controllability can help the operator feel confident maneuvering around tight spaces on the job. Plus, it’s backed by a 3-year/3000-hour limited warranty on the loader arms.

Find A Dealer Request More Info

Features & Benefits

Reduced maintenance and repair needs

Providing power for a variety of applications, the 40-hp (29.8-kW) Kohler diesel engine makes the CTX160 a tool capable of tackling jobsite challenges. This Tier 4 Final unit runs on a DOC only, which can reduce maintenance and repairs.

Compact footprint

This unit is designed to get through standard residential gates and into tight access areas. With 9-in (22.9-cm) tracks, the CTX160 is 42 in (106.7 cm) in total width, offering maximized traction and low ground pressure (psi).

Dual hydraulic system

The CTX160 dual hydraulic system is capable of providing 16.7 gpm (63.2 L/min) of hydraulic flow, powering demanding attachments. Low flow offers 9.4 gpm (28 L/min) to give maximum control.

Pilot-operated ground drive

The pilot-operated ground drive enables the operator to maintain smooth control of the joystick.

Increased operator safety

The platform keeps users out of mud and debris while the operator presence system suspends ground drive and attachment motion if the operator steps off the machine.

Vertical geometry

With a vertical geometry, this machine has a lift capacity of 1600 lb (725.7 kg). This allows for a hinge pin height of 88.75 in (225.4 cm) and is capable of pushing the load further away from the machine for adequate dumping into a truck.

Specifications

Compare Models
  • Hydraulic System

    • Hydraulic Aux System Flow 16.7 gpm 63.2 L/min
    • Hydraulic System Low Flow [40 HP (29.8 kW)] 9.4 gpm 35.6 L/min
    • Hydraulic System Pressure 3045 psi 209.9 bar
    • Tank capacity 12 gal 45.4 L
  • General Dimensions and Weights

    • Design Stand-on/Track drive
    • Length with Standard Bucket 116 in 294.6 cm
    • Length without Standard Bucket 92.5 in 235 cm
    • Width with 9" (22.9 cm) Tracks 42 in 106.7 cm
    • Height 59 in 149.9 cm
    • Height (to Hinge Pin) 88.8 in 225.4 cm
    • Ground Clearance 6.8 in 17.1 cm
    • Weight (Standard Bucket, 40HP (29.8 kW) Diesel Engine, 9" (22.9 cm) Tracks) 4115 lbs 1866.5 kg
    • Weight (No Bucket, 40 HP (29.8 kW) Diesel Engine, 9" (22.9 cm) Tracks) 4000 lbs 1814.4 kg
  • Engine Option One

    • Make and Model Kohler KDI 1903
    • Fuel Type Diesel
    • Fuel Tank Capacity 14.5 gal 54.9 L
    • Gross Horsepower 40 hp 29.8 kw
    • Cooling System Liquid
    • Maximum Angle of Inclination 30 deg
  • Operational

    • Steering Dual axis, pilot-operated joystick
    • Lift Dual axis, common bucket lever
    • Curl Dual axis, common bucket lever
  • Track Performance

    • Rated Operating Capacity (SAE) 1600 lbs 725.7 kg
    • Travel Speed 4.4 mph 7.1 km/h

Attachments

4-in-1 bucket

4-in-1 bucket

See Specs
Auger

Auger

See Specs
Brush grapple

Brush grapple

See Specs
Dozer blade

Dozer blade

See Specs
Harley rake

Harley rake

See Specs
Land leveler

Land leveler

See Specs
Mini sod roller/unroller

Mini sod roller/unroller

See Specs
Multi-task tool

Multi-task tool

See Specs
Pallet forks

Pallet forks

See Specs
Power shovel

Power shovel

See Specs
Rock bucket

Rock bucket

See Specs
Rotary boom

Rotary boom

See Specs

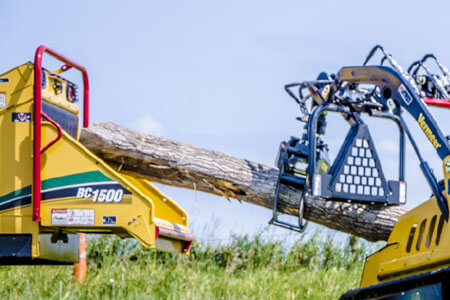

Rotating log grapple - RLG46

Rotating log grapple - RLG46

See Specs
Rotating log grapple - SLG46

Rotating log grapple - SLG46

See Specs
Scrap grapple bucket

Scrap grapple bucket

See Specs
Snow blower

Snow blower

See Specs
Standard bucket

Standard bucket

See Specs
Standard trencher

Standard trencher

See Specs
STH36 soil renovator

STH36 soil renovator

See Specs
Tree forks

Tree forks

See Specs
Vibratory plow

Vibratory plow

See Specs
Hydraulic boring attachment

Hydraulic boring attachment

See Specs

See it in action
