As your stationary operation looks to electric-power, Vermeer is your partner for the equipment expertise you need.

Find A Dealer Request More Info

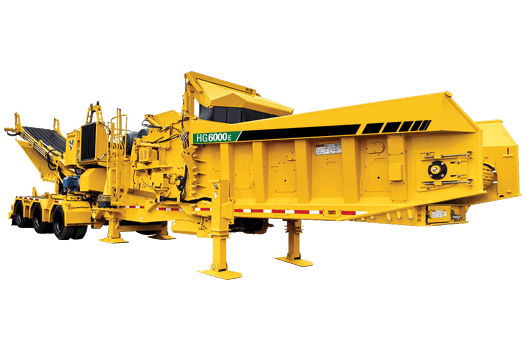

As your stationary operation looks to electric-power, Vermeer is your partner for the equipment expertise you need. The HG6000E horizontal grinder is powered by two electric motors providing a combined 700 hp (522 kW) to the mill. With the option to configure either a soft-start or VFD starter panel – along with Vermeer features like the duplex drum design and or the optional chip drum – the HG6000E has the flexibility and features you need for productive processing on your operation.

As your stationary operation looks to electric-power, Vermeer is your partner for the equipment expertise you need.

As your stationary operation looks to electric-power, Vermeer is your partner for the equipment expertise you need. The HG6000E horizontal grinder is powered by two electric motors providing a combined 700 hp (522 kW) to the mill. With the option to configure either a soft-start or VFD starter panel – along with Vermeer features like the duplex drum design and or the optional chip drum – the HG6000E has the flexibility and features you need for productive processing on your operation.

Find A Dealer Request More Info

Features & Benefits

Two electric motors

The HG6000E is powered by two electric motors that deliver a combined 600 hp (447 kW) to the mill. A separate 60-hp (44.7-kW) electric motor powers the pump for the hydraulic circuits, while a 2-hp (1.5-kW) electric motor is used to cool the hydraulic system.

Motor starter panel

The motor starter panel provides options to configure a control system that best fits your application - whether that’s a soft-start or VFD panel.

Series II duplex drum system

Improve cutting performance using the patented Series II duplex drum system designed with reversible hammers and tips to help reduce daily maintenance and nearly double wear life.

Dedicated chip drum

For enhanced flexibility with the HG6000E, a dedicated chip drum – adjustable for product size ranging from .125 in to 1.5 in (3.2 mm to 38.1 mm) - is available.

Open-ended, wide infeed tables

Maximize loading speed and productivity using the patented SmartGrind system and hydraulic feed roller down pressure. Open-ended, wide infeed tables are designed to make over-the-side loading easy and efficient.

Thrown object deflector (TOD)

Reduce the quantity and distance of thrown material debris with the TOD, strategically placed to reduce interference when loading over-length material.

Specifications

Compare Models
Show Metric
  • General Dimensions and Lengths - Long Infeed

    • Maximum Length - Transport with Dolly 45.8 ft 14 m
    • Maximum Length (Operation) 54.5 ft 16.6 m
    • Maximum Width Transport - with Dolly 9.8 ft 3 m
    • Weight 56000 lbs 25401.2 kg
    • Tongue Weight - Engine Option 1 with Dolly 21600 lbs 9797.6 kg
    • Axle Weight - Engine Option 1 with Dolly 43400 lbs 19685.9 kg
    • Dolly Weight 9500 lbs 4309.1 kg
  • General Dimensions and Weights- Skid Mount with Long Infeed

    • Weight 55500 lbs 25174.4 kg
    • Rear Pad Weight 31600 lbs 14333.5 kg
    • Front Pad Weight 23900 lbs 10840.9 kg
  • Electric Fan Motor Option One - 60 Hz

    • Manufacturer WEG W22
    • Frame 145T
    • Horsepower 2 hp 1.5 kw
    • Voltage 460
    • Frequency 60
    • Phase 3
    • Rated Speed 1750 rpm
    • Enclosure TEFC
    • Full Load Amps 2.61
    • Locked Rotor Amps 19.6
    • Service Factor 1.25
    • Duty Cycle S1
    • NEMA Design B
    • Insulation Class F
    • Full Load Torque 5.9 ft-lb 8 Nm
    • Locked Rotor (%) 240
    • Break Down 300
    • Ambient Temperature 40 c 1352 f
    • Nominal Efficiency 86.5
    • Power Factor .84
    • Approximate Weight 51 lbs 23.1 kg
    • Added Items Terminal Block
  • Electric Hydraulic Motor Option One - 60 Hz

    • Manufacturer WEG W22
    • Frame 364/5TS
    • Horsepower 60 hp 44.7 kw
    • Voltage 460
    • Frequency 60
    • Phase 3
    • Rated Speed 1775 rpm
    • Enclosure TEFC
    • Full Load Amps 68.3
    • Locked Rotor Amps 451
    • Service Factor 1.25
    • Duty Cycle S1
    • NEMA Design B
    • Insulation Class F
    • Full Load Torque 175 ft-lb 237.3 Nm
    • Locked Rotor (%) 240
    • Break Down 260
    • Ambient Temperature 40 c 1352 f
    • Nominal Efficiency 95
    • Power Factor .87
    • Approximate Weight 869 lbs 394.2 kg
    • Added Items Nema C Face Mount, Terminal Block
  • Electric Mill Motor Option One - 60 Hz

    • Manufacturer WEG W22
    • Frame NEMA 586/7Z
    • Voltage 460
    • Frequency 60
    • Phase 3
    • Rated Speed 1790 rpm
    • Enclosure TEFC
    • Full Load Amps 401
    • Locked Rotor Amps 2390
    • Service Factor 1.15
    • Duty Cycle S1
    • NEMA Design NEMA A
    • Insulation Class F
    • Full Load Torque 1373 ft-lb 1861.5 Nm
    • Locked Rotor (%) 220
    • Break Down 260
    • Ambient Temperature 4 c 135.2 f
    • Nominal Efficiency 95.8
    • Power Factor .85
    • Approximate Weight 3363 lbs 1525.4 kg
    • Added Items Temperature switch; Inverter duty; Terminal Block
    • Drive Belt Type Synchronous, carbon fiber
  • Electrical Panel

    • Height 87.4 in 222 cm
    • Width 158 in 401.3 cm
    • Depth 24.1 in 61.2 cm
    • Weight 4100 lbs 1859.7 kg
  • Standard Infeed System

    • Feed Table Width 60 in 152.4 cm
    • Feed Table Length - Option One 20 ft 6.1 m
    • Loading Height 7.6 ft 2.3 m
    • Flare Construction Integrated with infeed
    • Feed Conveyor Type Welded slat chain
    • Material Construction Steel
    • Drive Type Radial piston motor
    • Drive Roller Construction Welded steel
    • Front Idler Roller Construction Self-cleaning steel auger
    • Infeed Floor Construction Welded steel with replaceable UHMW wear plates
    • Infeed Roller Width 56.8 in 144.3 cm
    • Infeed Roller Weight 1300 lbs 589.7 kg
    • Infeed Roller Diameter 36.1 in 91.8 cm
    • Maximum Feed Height 32 in 81.3 cm
    • Material Type Fabricated steel
    • Tooth Design Serrated bars
    • Number of Teeth 13 bars
    • Drive Motor Fixed displacement, Geroler
    • Drive Planetary Two options (HD - 26.18:1) (STD - 34.2:1)
    • Feed Roller Down Pressure Adjustable
  • Safety System

    • Thrown Object Deflector Standard
    • Deflector Position Variable
  • Duplex Drum

    • Millbox Opening 60" W x 32" H (152.4 cm W x 81.3 cm H)
    • Drum Diameter 5600 in 14224 cm
    • Tip Diameter 28 in 71.1 cm
    • Drum Cutting Width 36.4 in 92.5 cm
    • Drum Skin Thickness 62.4 in 158.5 cm
    • Drum Speed 1.5 rpm
    • Tip Speed 1080 rpm
    • Bearing Type Double row, spherical roller
    • Bearing - Inner Race Diameter 5.5 in 14 cm
    • Number of Hammers 10
    • Number of Tips 20
    • Center Retention Pin Dimensions 2" diameter x 75.3" L (5.1 cm diameter x 191.3 cm L)
  • Screens

    • Screen Weight 470 lbs 213.2 kg
    • Screen Dimensions 3/4" (1.9 cm) thick
    • Screen Type Fabricated out of abrasion resistant steel
    • Number of Screens 2
    • Screen Area 3317 sq in 21400 sq cm
    • Number of Sides 1
    • Millbox Lid Liner Dimensions Abrasion resistant steel
    • Liner Dimensions 1" thick x 5.6" W x 65.4" L (2.5 cm thick x 14.2 cm W x 166.1 cm L)
    • Anvil Type Fabricated steel with replaceable wear surfaces
    • Anvil Dimensions 22.8"x 4.1"x 80.8" (57.9 cm x 10.4 cm x 205.2 cm)
  • Discharge System - Single Belt Design

    • Length 81.3 ft 24.8 m
    • Width 48 in 121.9 cm
    • Belt Design 3 ply - 330# or straight warp single ply 330# both with V cleat
    • Splice R2-stainless steel or Super splice
    • Return Roller Quantity 3
    • Idler Roller Diameter 12 in 30.5 cm
    • Idler Roller Bearing 1-15/16, 4-bolt flange
    • Standard Drive Roller Diameter 12.8 in 32.4 cm
    • Magnetic Drive Roller Diameter 12.8 in 32.4 cm
    • Drive Motor Fixed displacement, Geroler
    • Drive Motor Bearings 1-15/16, 4-bolt flange
    • Belt Speed 780 ft/min 237.7 m/min
    • Load Height 14.5 ft 4.4 m
  • Hydraulic System

    • Tank capacity 65 gal 246.1 L
    • Recommended Oil Vermeer HyPower 68
    • Filtration Method Dual in-tank return filters with suction strainer
    • Number of Coolers 1
  • Implement Hydraulics

    • System Type Open-loop, pressure- and flow-compensated
    • Pump Type Variable displacement, axial piston
    • Pump Flow at Maximum RPM 28.5/27.3 (60Hz/50Hz)
    • System Relief Pressure 4500
  • Discharge Conveyor Hydraulics

    • System Type Open-loop
    • Pump Type Fixed displacement, gear pump
    • Pump Flow at Maximum RPM 23 gpm 87.1 L/min
    • System Relief Pressure 3000
    • Motor Series Char-Lyn 6000 Series, geroler
  • Electrical System

    • System Voltage 24V Machine Control Circuit
    • System Protection Fused
  • Control Station

    • Display Type LCD
    • Engine Information Yes
    • Machine Information Yes
    • Operational Faults Yes
    • Switches Moisture-proof, toggle style
  • Radio Remote Control

    • Display Type LCD
    • Engine Information Yes
    • Machine Information Yes
    • Operational Faults Yes
    • Switches Sealed membrane
    • Operating Range Up to 300' (91.4 m)
    • Battery Type AA (qty 6)
    • Channel Setting 50 channels
  • Chassis

    • Frame Description Unit body construction
    • Tongue Description Bolt-on to infeed structure
    • Hitch Type Fifth wheel
    • Fender Description Formed steel, Replaceable
    • Brake Type Air-actuated with spring-applied parking brake
    • Trailer Light Type 12-24 V LED
  • Axle/Suspension

    • Suspension Type Air-ride
    • Manufacturer - Option One Hendrickson
    • Capacity per Axle 20000 lbs 9071.8 kg
    • Number of Axles 3
    • Tires - Option One 255/70R22.5 Duals
    • Wheels - Option One 22.5"x 8.3" (57.2 cm x 21 cm) Hub piloted steel
    • Ground Clearance - Option One 5.3 in 13.5 cm
  • Optional Air Compressor

    • Air Compressor Brand Mi-T-M
    • Maximum Pressure 175 psi 12.1 bar
    • Maximum Air Flow 29 cfm .8 cmm
    • Tank capacity 30 gal 113.6 L
  • Other Options

    • Screens Yes
    • Special Tools Group Yes
    • Extended Warranty Yes
    • Preventative Maintenance Optional
    • Special Paint Yes

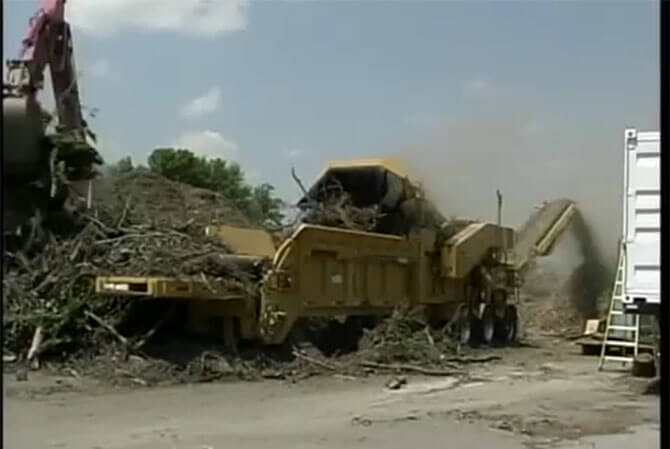

See it in action
