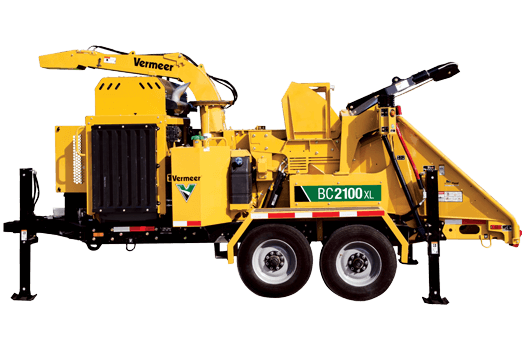

The Vermeer BC2100XL brush chipper is powered by a 275-hp (205-kW) Tier 4 Final diesel engine to tackle the toughest land-clearing projects.

Find A Dealer Request More Info

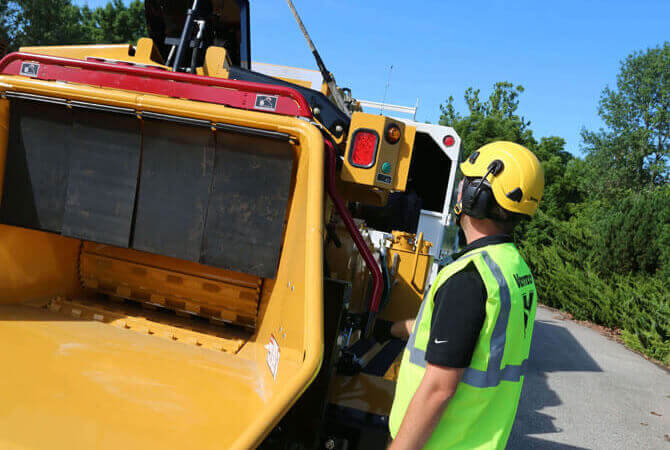

With a 21-in (53.3-cm) capacity and the largest infeed table in its class, the BC2100XL allows for smooth material feeding. Offset horizontal feed rollers have theoretical combined 10,000 lb (4536.9 kg) of pulling force and allow for easier feeding of material and less need for manual control of the upper feed roller when chipping large-diameter material. The exclusive SmartCrush system provides increased down pressure on the material being fed and assists when feeding forked or branchy material.

The Vermeer BC2100XL brush chipper is powered by a 275-hp (205-kW) Tier 4 Final diesel engine to tackle the toughest land-clearing projects.

With a 21-in (53.3-cm) capacity and the largest infeed table in its class, the BC2100XL allows for smooth material feeding. Offset horizontal feed rollers have theoretical combined 10,000 lb (4536.9 kg) of pulling force and allow for easier feeding of material and less need for manual control of the upper feed roller when chipping large-diameter material. The exclusive SmartCrush system provides increased down pressure on the material being fed and assists when feeding forked or branchy material.
Find A Dealer Request More Info

Features & Benefits

SmartFeed system

Improve productivity with the SmartFeed system, which monitors engine rpm and senses jams, automatically stopping or reversing the rollers as needed.

Optional winch

An optional winch eliminates the need to drag large material to the chipper with a winch line that can handle material up to 4000 lb (1814.9 kg).

3-year/3000-hour extended limited warranty

Protect your investment with a 3-year/3000-hour extended limited warranty on drum housings, cutter drums, shaft and ring-feeder hubs.

Specifications

Compare Models
Show Metric
  • General Dimensions and Weights

    • Length - Feed Table Up, Tongue In 235 in 596.9 cm
    • Length - Table Down, Tongue Extended 259 in 657.9 cm
    • Width 95.8 in 243.2 cm
    • Height 116.5 in 295.9 cm
    • Weight - Engine Option One 16200 lbs 7348.2 kg
    • Tongue Weight - Engine Option One 2950 lbs 1338.1 kg
    • Weight With Winch (Additional) 1380 lbs 626 kg
  • Engine - Option one

    • Make and Model Cummins QSB 6.7 L Tier 4 Final
    • Number of Cylinders 6
    • Gross Horsepower (Maximum) 275 hp 205.1 kw
    • Torque (Max) 730 ft-lb 989.7 Nm
    • Fuel Tank Capacity 65 gal 246.1 L
    • Max Fuel Consumption 14 gph 53 lph
    • Fuel Type Ultra-low sulfur diesel
    • Air Cleaner DF900P Series Fleetguard Direct Flow with integral precleaner and secondary element
    • Oil Filter Spin-on
    • Recommended Oil API CJ-4
    • Oil Volume with Filter 17.6 qt 16.7 L
    • Maximum Angle of Continuous Operation 30 deg
    • Cooling Medium Liquid
    • Coolant Capacity (Engine and Radiator) 8.8 gal 33.3 L
    • Alternator 130 amp Delco-Remy 245I
    • Fan 26" (66 cm) suction
    • Clutch Drive Engagement Clutchless PTO
  • Feed System

    • Feed Roller Orientation Horizontal
    • Number of Feed Rollers 2
    • Feed Roller Clamp Load 3500 lbs 1587.6 kg
    • Feed Roller Clamp Type Hydraulic
    • Feed Roller Minimum Distance to Drum 10 in 25.4 cm
    • Feed Roller Dimension 19 " (48.3 cm)
    • Weight of Feed Roller 972 lbs 440.9 kg
    • Motor Displacement 4.9 CID
    • Motor Manufacturer Eaton
    • Feed Speed 100 ft/min
    • Infeed Table Width 72 in 182.9 cm
    • Infeed Table Length 60.5 in 153.7 cm
    • Infeed Hopper Height 38.5 in 97.8 cm
    • Infeed Throat Capacity 40 in x 24 in
    • Distance from Feed Table to Ground 30.8 in 78.2 cm
    • Infeed Table Material Thickness .4 in 1 cm
  • Safety System

    • Bottom Feed Stop Bar Standard
    • Reset Method Green-hold-to-run button
    • Four Position Feed Control Bar Standard
    • Positions 4: E-stop, Forward, Neutral, and Reverse
    • Green Hold to Run Button Standard
  • Drum/Disc Cutting System

    • Material Capacity 21 in 53.3 cm
    • Width .5 in 1.3 cm
    • Thickness 28 in 71.1 cm
    • Diameter 36 in 91.4 cm
    • Speed 1084 rpm
    • Weight With Shaft 1500 lbs 680.4 kg
    • Safety Lock - Number of Positions 4
    • Number of Knives 4
    • Knife Thickness .6 in 1.6 cm
    • Material A8 chipper steel
    • Useable Edges 2
    • Knife Size 5 " x 14 " (12.7 cm x 35.6 cm)
    • Number of Bolts/Knife 6
    • Replaceable Threaded Knife Block Yes
    • Number of Paddles 4
    • Fixture Method Weld-on
    • Air Flow 3600 cfm
    • Bedknife Size 3 " x 27.5 " (7.6 cm x 69.9 cm)
    • Bedknife - Number of Useable Edges 4
  • Cutter Drive Components - Engine Option One

    • Number of Bearings 2
    • Bore 3.4 in 8.6 cm
    • Type Spherical roller
    • Manufacturer Dodge
    • Dynamic Capacity 65500 lbs 29710.3 kg
    • Belt Idler/Tensioner Torsion arm spring-loaded
    • Belt Type 5V chipper poly type
  • Discharge System

    • Chute Height 116 in 294.6 cm
    • Bottom Thickness .1 in .3 cm
    • Top Thickness .2 in .5 cm
    • Side Wall Thickness .1 in .3 cm
    • Deflector Thickness .1 in .2 cm
    • Chute Rotation Angle 270 deg
    • Rotation Type Hydraulic
  • Hydraulic System

    • Tank capacity 24 gal 90.8 L
    • Recommended Oil Type Vermeer Hy-Power 68
    • System Type Open center
    • Filtration Method 10 micron return, 100 mesh suction
    • Pump Flow at Maximum RPM 13 gpm 49.2 L/min
    • System relief pressure 2750 psi 189.6 bar
    • Auto Reverse PSI 2550 psi 175.8 bar
    • Directional Control Yes
    • Oil Cooler Yes
  • Electrical System

    • System Voltage 12 volts
    • Battery 2 - 950 CCA
    • Standard Gauges Tachometer, hour meter, coolant temperature, engine oil pressure, battery voltage, engine fault code, engine shutdown light and engine fault warning light
    • Switches Engine speed, SmartFeed droop (non-remote only), EcoIdle™ engine control system
    • Controller C148
    • Shutdown System Coolant temperature, intake manifold temperature, oil pressure
    • Radio Remote Control Engine speed, discharge chute, forward, stop, reverse feed, Smart Crush down pressure level, SmartFeed droop setting and engine stop.
  • Chassis

    • Frame Description 2.5" x 8.75" (6.4 cm x 22.2 cm) C-channel
    • Toolbox Description Lockable
    • Tongue Description 2.5" x 4.5" x .38" (6.4 cm x 11.4 cm x 1 cm)
    • Tongue Extension Two position 12" extension (30.5 cm)
    • Hitch Type 3 " (7.6 cm) pintle
    • Fender Description Bolt-on
    • Axle/Suspension Tandem torsion 8000 lb (3628.7 kg) capacity
    • Type - Option One Tandem torsion
    • Manufacturer - Option One Dexter
    • Capacity - Option One 235/75R17.5 load range J
    • Tires - Option One 17.5" x 6.75" B.C. of 8 on 6.5" (16.5 cm)
    • Brake Type Electric
    • Trailer Light Type LED
  • Other Options

    • Special Paint Optional
    • Extended Warranty Optional
    • Preventive Maintenance Optional
    • Adjustable Height Discharge Chute Optional
    • Remote Control Optional
    • Hydraulic Outriggers Optional
