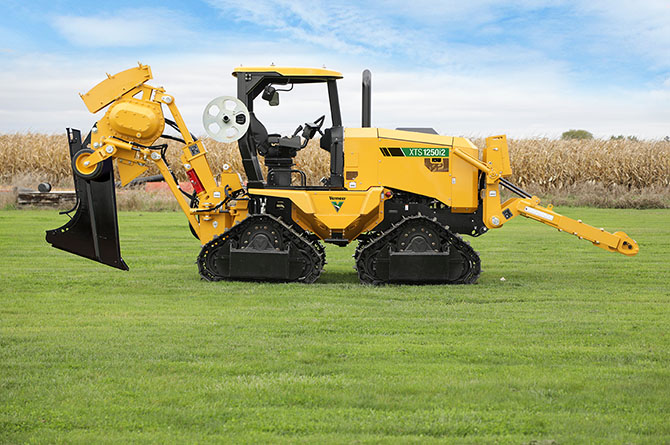

The XTS1250i2 ride-on tractor follows the durability of the XTS1250 ride-on tractor, with steel quad tracks which can offer enhanced floatation and traction in difficult terrain.

Find A Dealer Request More Info

The XTS1250 has added intelligent features such as onboard diagnostics and other productivity features including EcoIdle™ engine control system and Productivity Zone can help you through harsh ground conditions and tough installs. Plus, with an optional climate-controlled cab for operator comfort, and an optional remote control to help perform maintenance, as well as trailer loading and unloading, the XTS1250i2 helps create a more comfortable, convenient and productive jobsite.

The XTS1250i2 ride-on tractor follows the durability of the XTS1250 ride-on tractor, with steel quad tracks which can offer enhanced floatation and traction in difficult terrain.

The XTS1250 has added intelligent features such as onboard diagnostics and other productivity features including EcoIdle™ engine control system and Productivity Zone can help you through harsh ground conditions and tough installs. Plus, with an optional climate-controlled cab for operator comfort, and an optional remote control to help perform maintenance, as well as trailer loading and unloading, the XTS1250i2 helps create a more comfortable, convenient and productive jobsite.

Find A Dealer Request More Info

Features & Benefits

Productivity

The XTS1250i2 helps optimize productivity with classic and newly added intelligent features such as EcoIdle™  engine control system and Productivity Zone.

Remote control

Utilize an optional remote control for convenient maintenance and trailer loading and unloading.

Vermeer Telematics-ready

Stay in-sync with, and get optimal productivity out of, your machine by adding Vermeer telematics to this tractor.

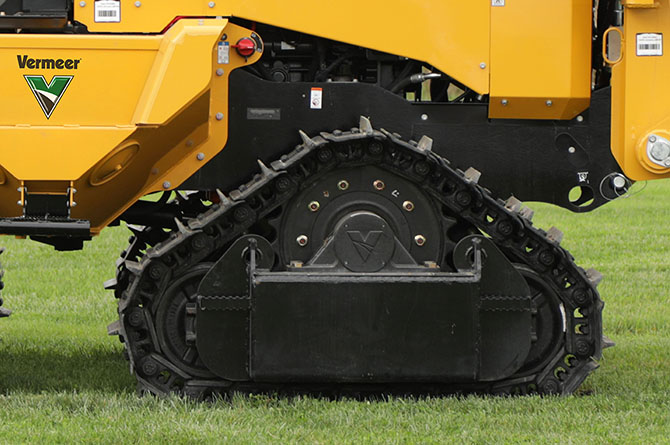

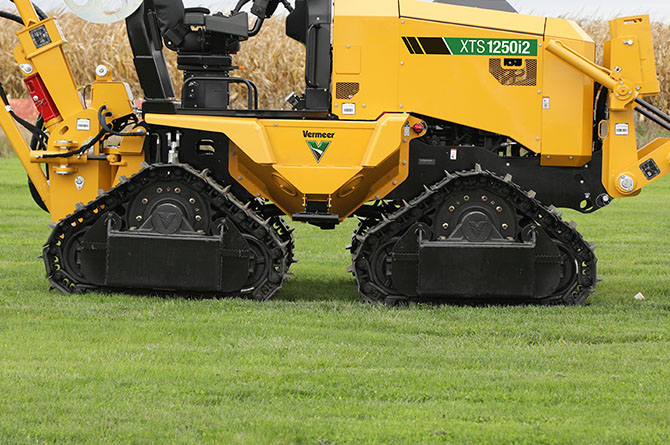

Steel quad tracks

Four independent steel tracks can offer enhanced flotation and traction with four-wheel and crab steering options.

Operator comfort

The XTS1250i2 boasts a quiet ride, convenient controls and an isolated, cushioned operator's platform. An optional all-new climate-controlled cab is also available.

Power for the job

The XTS1250i2 is powered by a 127 hp (95 kW) Duetz TCD3.6L diesel engine which offers efficient power for working in difficult ground conditions.

Specifications

Compare Models
  • General Dimensions and Weights

    • Weight - Tractor with Closed Cab 21165 lbs 9600.3 kg
    • Weight - Tractor with Open Cab 20215 lbs 9169.4 kg
    • Length (basic tractor, tracks) 152 in 386.1 cm
    • Width (basic tractor, tracks) 100.5 in 255.3 cm
    • Height (With Four-Post ROPS) 122 in 309.9 cm
    • Height (cab, tracks) 122 in 309.9 cm
    • Ground Clearance (tracks) 20.5 in 52.1 cm
    • Angle of approach (basic tractor, tracks) 20 deg
    • Roll Over Protection Structure (Closed Cab) 40000 lbs 18143.7 kg
    • Roll Over Protection Structure (Open Cab) 40000 lbs 18143.7 kg
  • Engine - Option one

    • Make and Model Deutz TCD 3.6L
    • Gross Horsepower (Maximum) 127 hp 94.7 kw
    • Maximum Torque 369 ft-lb 500.3 Nm
    • Number of Cylinders 4
    • Maximum Operating Angle (Fore/Aft)* 40 deg
    • Maximum Operating Angle (Left/Right)* 40 deg
    • Fuel Type Ultra Low Sulfur Diesel
    • Net Horsepower 124 hp 92.5 kw
    • Displacement 220 cu-in 3.6 L
    • Cooling Method Liquid
    • Aspiration Turbo Charged
    • Max Fuel Consumption 6.9 gph 26.2 lph
    • Air Cleaner Donsaldson Power Core
    • Maximum Engine RPM 2300 rpm
    • Idle Speed 1000 rpm
    • Rated RPM 2300 rpm
    • EPA Certification Family Tier 4 (Stage IV)
    • Run Time at Full Load (hours) 6.3
  • Engine - Option two

    • Make and Model Duetz TCD 3.6L
    • Gross Horsepower 127 hp 94.7 kw
    • Maximum Torque 369 ft-lb 500.3 Nm
    • Number of Cylinders 4
    • Maximum Operating Angle (Fore/Aft)* 40 deg
    • Maximum Operating Angle (Left/Right)* 40 deg
    • Fuel Type Ultra Low Sulfur Diesel
    • Maximum Engine RPM 2300 rpm
    • Idle Speed 1000 rpm
    • Rated RPM 2300 rpm
    • Net Horsepower 124 hp 92.5 kw
    • Displacement 220 cu-in 3.6 L
    • Cooling Method Liquid
    • Aspiration Turbo Charged
    • Max Fuel Consumption 6.9 gph 26.2 lph
    • Air Cleaner Donaldson Power Core
    • EPA Certification Family Tier 3 (Stage III)
    • Run Time at Full Load (hours) 6.3
  • Ground Drive - Tracks

    • Outside Turning Diameter (Steel Tracks, Front Steer Only) 57.5 ft 17.5 m
    • Outside Turning Diameter (Steel Tracks, Front and Rear Steer Only) 36.7 ft 11.2 m
    • Axle oscillation (front) 8
    • Axle oscillation (optional rear tilt) Rigid
    • Track oscillation (center down) 17.8 deg
    • Track oscillation (center up) 5.6 deg
    • Ground pressure (basic tractor only) 14.7 psi 1 bar
    • Maximum forward transport speed (high) 7.1 mph 11.4 km/h
    • Maximum reverse transport speed (high) 7.1 mph 11.4 km/h
    • Maximum forward creep speed (low) 3.9 mph 6.3 km/h
    • Maximum reverse creep speed (low) 3.9 mph 6.3 km/h
    • Maximum forward creep speed (low) 342 ft/min 104.2 m/min
    • Maximum reverse creep speed (low) 342 ft/min 104.2 m/min
  • Hydraulic System

    • Auxiliary Pump Flow at Maximum Engine RPM 17.6 gpm
    • Auxiliary Pump Relief Pressure 2500 psi 172.4 bar
    • Attachment Pump gpm at Maximum Engine RPM 61.8 gpm 233.9 L/min
    • Attachment pump relief 5510 psi 379.9 bar
    • Ground Drive Pump gpm at Maximum Engine RPM 36.7 gpm 138.9 L/min
    • Hydraulic Return Filter Rating 1000
  • Electrical System

    • System Voltage 12
  • Fluid Capacities

    • Fuel Tank 44 gal 166.6 L
    • Engine Crankcase with Filter 11.1 qt 10.5 L
    • Hydraulic Tank 31.6 gal 119.6 L
    • Hydraulic System 35.6 gal 134.8 L
    • Engine Cooling System (With Cab) 4.9 gal 18.5 L
    • Engine Cooling System (Without Cab) 4.2 gal 15.8 L
    • Diesel Exhaust Fluid 2.7 gal 10 L
  • Noise Level

    • Sound Level (open air) at operator's ear 83 dBa
    • Sound Level (In Cab) at Operator's Ear 75 dBa
    • Sound Level (backhoe) at operator's ear 87 dBa
    • Guaranteed sound power (CE-rating) 104 dBa
  • Cab Features

    • Power Port 12-Volt (2)
    • LED Lights Interior - LED, Exterior - LED
    • Radio Standard 2 speakers
  • Features

    • Service Brake Type Hydrostatic
    • Parking Brake Type Spring applied hydraulic release
    • Quad Tracks Four independent steel tracks bolt on to existing axle
    • Remote Control Optional
