The RTX450 is offered in three configurations: the standard duty axle outfitted with a 26 in (66 cm) tire option or the heavy duty axle 29 in (73.7 cm) tire and quad track options. The tractor also features the common controls seen up and down the RTX lineup.

Choose from a full Vermeer lineup of quad track units to help maximize productivity in adverse conditions.

The RTX450 is offered in three configurations: the standard duty axle outfitted with a 26 in (66 cm) tire option or the heavy duty axle 29 in (73.7 cm) tire and quad track options. The tractor also features the common controls seen up and down the RTX lineup.

Find A Dealer Request More Info

Features & Benefits

The productivity difference

The RTX450 provides a 14% increase in horsepower (as compared to the RT450) in a Tier 4 Final engine option.

Maneuverability

A class-leading compact turning diameter allows the RTX450 to perform in narrow jobsites – especially in residential areas.

Make sense of your trench

The Vermeer-exclusive TrenchSense™ electronic control system helps you keep control, even in the toughest ground conditions.

Ground drive power

An electronically-controlled H1 Sauer hydraulic pump offers precise control and ample power to the ground drive.

Specifications

Compare Models
  • General Dimensions and Weights

    • Weight (basic tractor, rubber tires) 4507 lbs 2044.3 kg
    • Weight (basic tractor, tracks) 6205 lbs 2814.5 kg
    • Length (basic tractor, rubber tires) 109 in 276.9 cm
    • Length (basic tractor, tracks) 114 in 289.6 cm
    • Width (basic tractor, rubber tires) 60 in 152.4 cm
    • Width (basic tractor, tracks) 64 in 162.6 cm
    • Height (basic tractor, rubber tires) 88.7 in 225.3 cm
    • Height (basic tractor, rubber tires, option two) 90.3 in 229.4 cm
    • Height (basic tractor, tracks) 92.6 in 235.2 cm
    • Wheel Base (Centerline of Axles) 48 in 121.9 cm
    • Tread Width with Rubber Tires (Centerline to Centerline) 48.8 in 124 cm
    • Tread Width with Rubber Tires Option Two (Centerline to Centerline) 50 in 127 cm
    • Ground Clearance (rubber tires) 7.4 in 18.8 cm
    • Ground Clearance (rubber tires, option two) 9 in 22.9 cm
    • Ground Clearance (tracks) 9.9 in 25 cm
  • Engine - Option one

    • Make and Model Deutz 2.9L D Tier4F
    • Gross Horsepower (Maximum) 49 hp 36.5 kw
    • Maximum Torque 108 ft-lb 146.4 Nm
    • Cooling Medium Oil/Coolant fluid
    • Fuel Type Ultra-low sulfur diesel
    • Emissions rating Tier 4 Final/Tier 4i (EU Stage IIIB)
  • Ground Drive - Rubber Tire

    • Maximum forward transport speed (high) 3.5 mph 5.6 km/h
    • Maximum reverse transport speed (high) 3.5 mph 5.6 km/h
    • Tire size 26" (66 cm)
  • Ground Drive - Rubber Tire Option Two

    • Maximum forward transport speed (high) 3.8 mph 6.1 km/h
    • Maximum reverse transport speed (high) 3.8 mph 6.1 km/h
    • Tire size 29" (73.7 cm)
  • Ground Drive - Tracks

    • Maximum forward transport speed (high) 2.9 mph 4.7 km/h
    • Maximum reverse transport speed (high) 2.9 mph 4.7 km/h
  • Axle Options

    • Front Axle Type Steerable and oscillating 68/80 series planetary axles
    • Rear Axle Type Rigid and steerable 68/80 series planetary axles
    • Axle load rating (static, per axle) 14837 lbs 6730 kg
    • Outside Turning Diameter (Rubber Tires, Front Steer Only) 23.8 ft 7.3 m
    • Outside Turning Diameter (Rubber Tires Option Two, Front Steer Only) 30.3 ft 9.2 m
    • Outside turning diameter (tracks, front steer only) 28.5 ft
    • Outside Turning Diameter (Rubber Tires, Front and Rear Steer) 12.9 ft 3.9 m
    • Outside Turning Diameter (Rubber Tires Option Two, Front and Rear Steer) 16.5 ft 5 m
    • Outside turning diameter (tracks, front and rear steer) 16.7 ft
    • Service Brake Type Hydraulic
    • Parking Brake Type Mechanical hand break
  • Hydraulic System

    • Auxiliary pump capacity 11.7 gpm 44.3 L/min
    • Auxiliary pump relief 2500 psi 172.4 bar
    • Attachment pump capacity 30.1 gpm 113.9 L/min
    • Attachment pump relief 3450 psi 237.9 bar
    • Ground drive pump capacity 30.1 gpm 113.9 L/min
    • Ground drive pump relief 5080 psi 350.3 bar
  • Capacities

    • Fuel Tank 17.6 gal 66.6 L
    • Hydraulic Tank 13 gal 49.2 L
    • Hydraulic System 14.8 gal 56 L
    • Coolant 1.7 gal 6.4 L

Attachments

Sliding offset trencher

Sliding offset trencher

See Specs

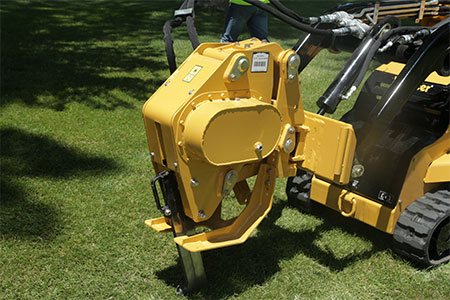

Vibratory plow - VPX455

Vibratory plow - VPX455

See Specs
Center mount trencher

Center mount trencher

See Specs
Vibratory plow - VPX450

Vibratory plow - VPX450

See Specs
Rockwheel

Rockwheel

See Specs
Backfill blade

Backfill blade

See Specs
Reel carrier

Reel carrier

See Specs
Porta Bore

Porta Bore

See Specs
