The first fully-electric high-pressure mud pump for Vermeer offers flexibility with a smaller footprint.

Find A Dealer Request More Info

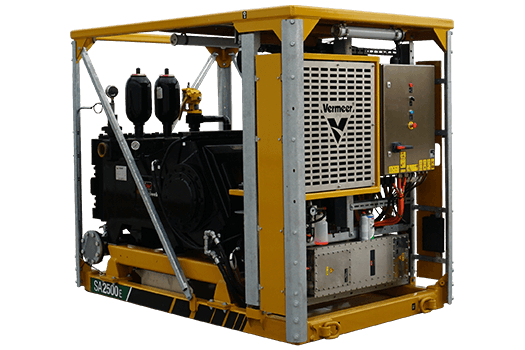

The SA2500E is a fully-electric, stand-alone high-pressure mud pump capable of delivering up to 3.100 L/min at 60 bar, to cover a wide range of applications. The standard configuration comes with 7-in liners, delivering 2.400 L/min at 80 bar. A compact design, modularity and digital controls are some of the key features of this innovative pump.

The first fully-electric high-pressure mud pump for Vermeer offers flexibility with a smaller footprint.

The SA2500E is a fully-electric, stand-alone high-pressure mud pump capable of delivering up to 3.100 L/min at 60 bar, to cover a wide range of applications. The standard configuration comes with 7-in liners, delivering 2.400 L/min at 80 bar. A compact design, modularity and digital controls are some of the key features of this innovative pump. Find A Dealer Request More Info

Features & Benefits

Flow rate and power

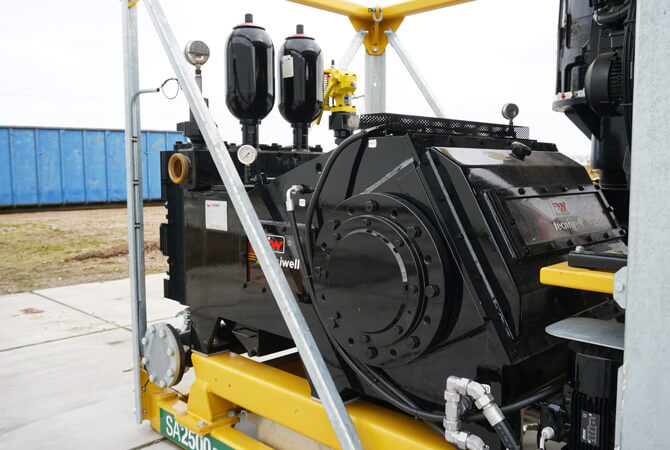

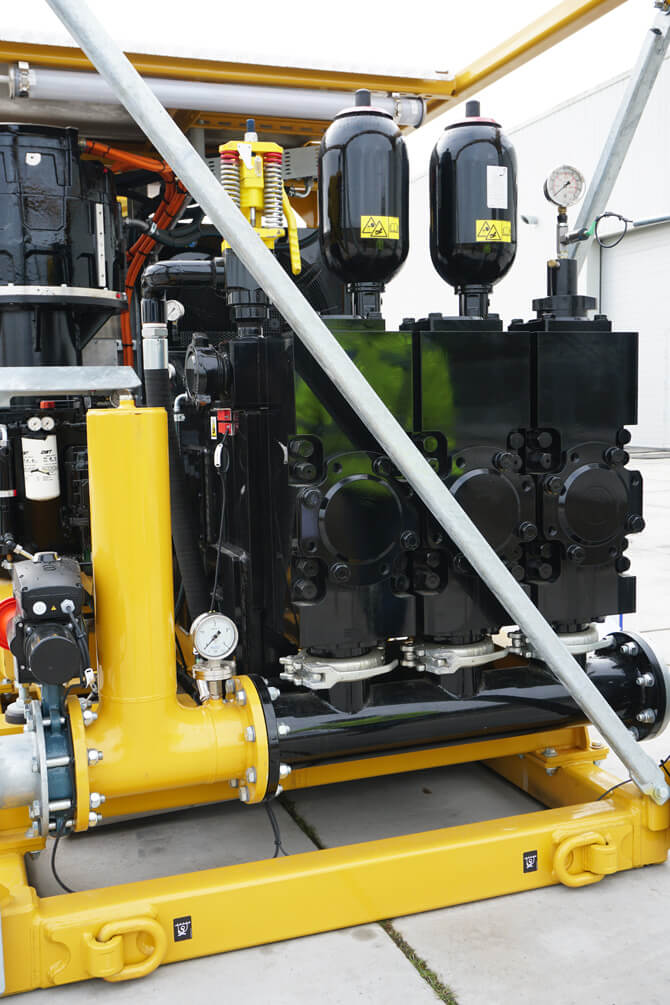

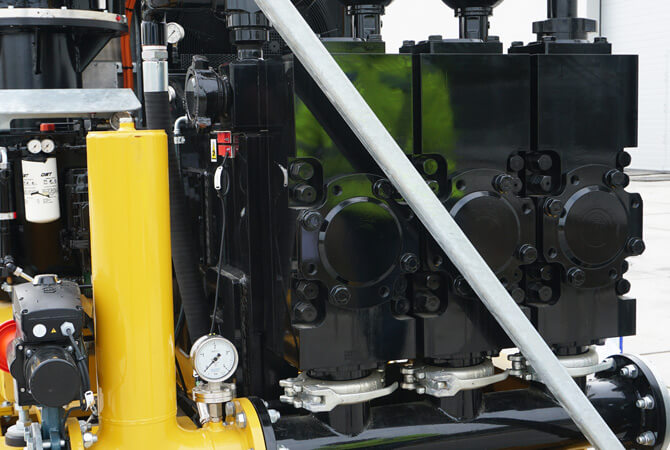

A fully-electric high-pressure mud pump capable of delivering an adequate flow rate for large pipeline installation by horizontal directional drilling. The powerful electric 339-kW Danfoss motor drives the Tecniwell TW2500 HDD triplex piston pump, which is the core of the system, making this pump the ideal match with maxi rigs.

Scalable

Depending on the diameter of the liners, the SA2500E can deliver up to 3.100 L/min at 60 bar, covering a wide range of applications. The standard configuration comes with 7-in liners, delivering 2.400 L/min at 80 bar.

Compactness and transportability

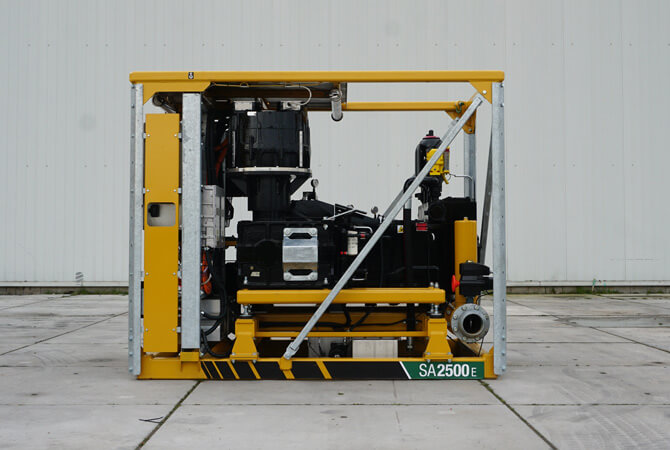

The SA2500E frame stays in a half-standard ISO 20-ft container, with a weight of 7.100 kg, which makes this pump compact and efficient to load and transport.

Control at your fingertips

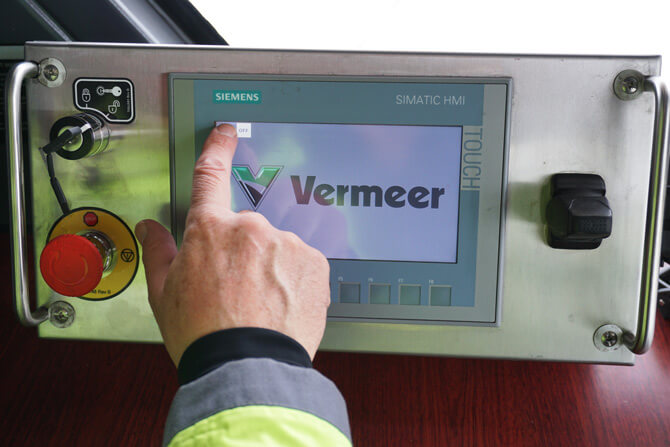

A tethered human-machine interface (HMI) with user-friendly touch screen allows the operator to monitor and set all the parameters of the pump from the remote.

Modularity

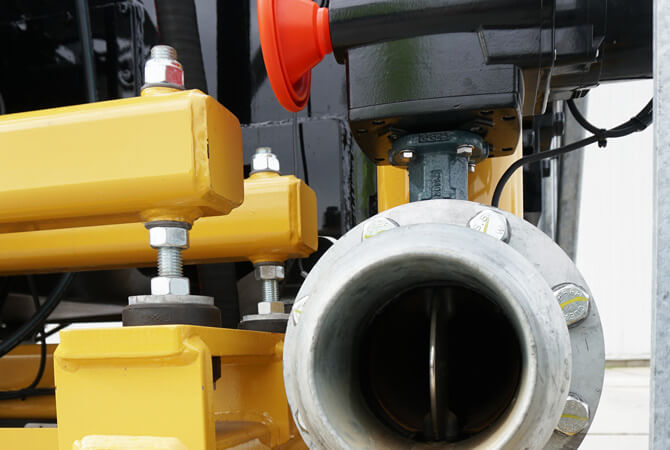

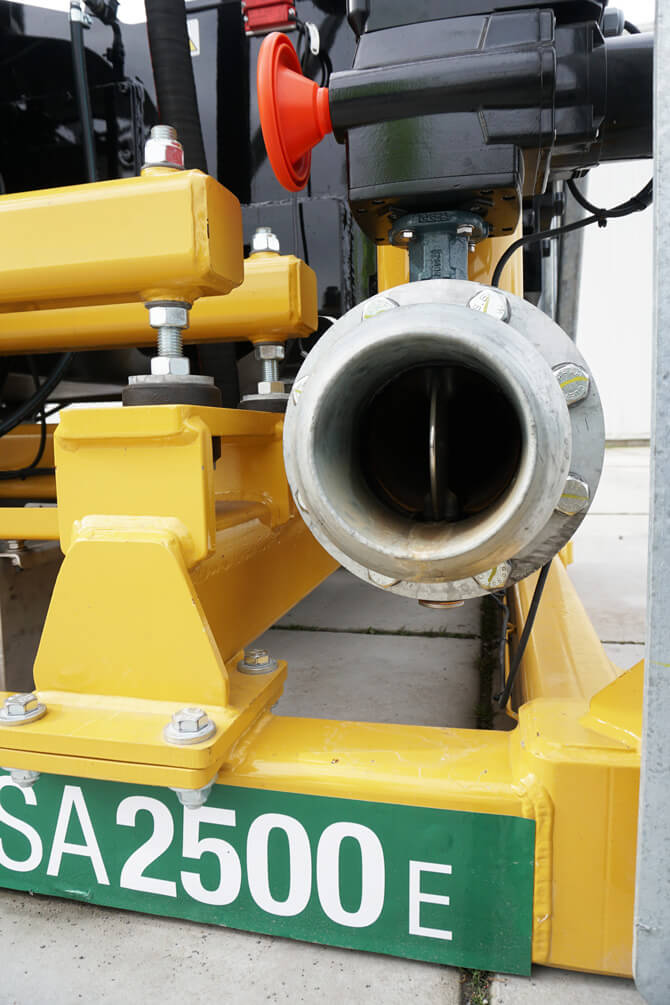

The SA2500E is modular. Depending on the project, you can run one or more units in parallel to deliver the required flow rate.

Remote lockout

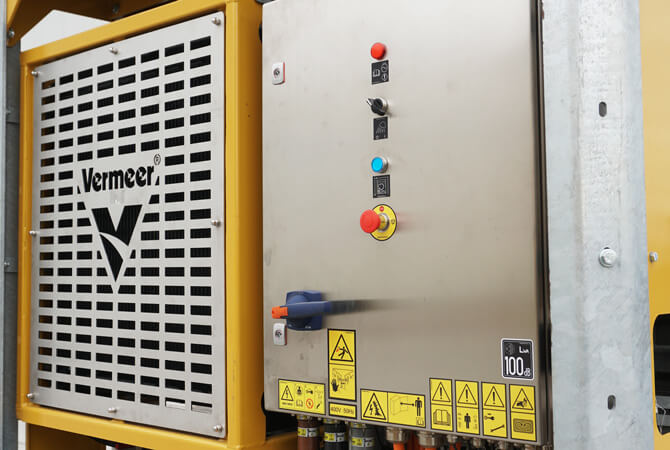

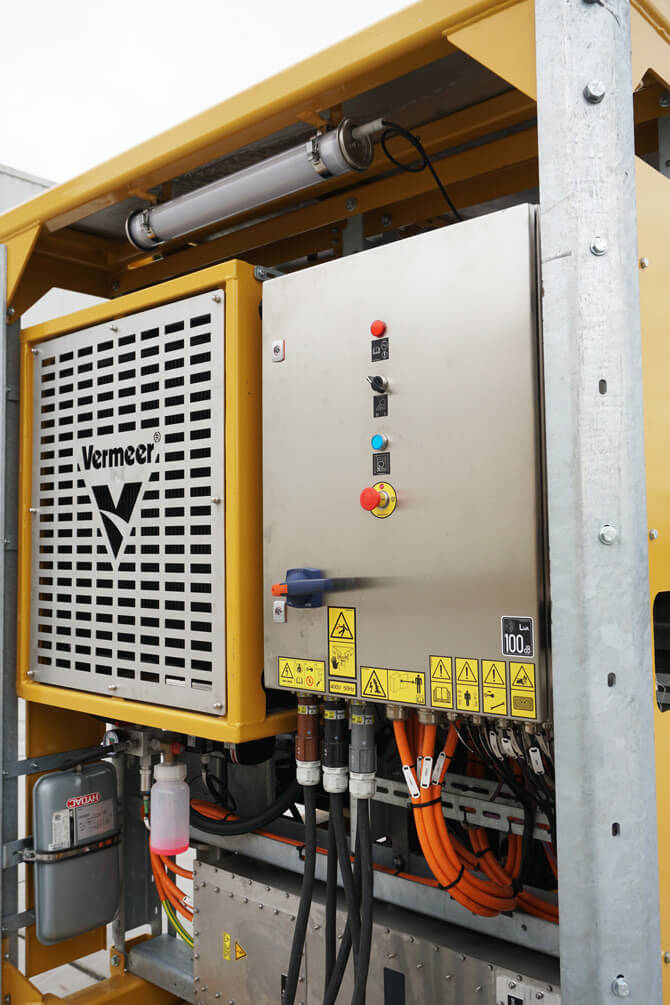

The SA2500E can be activated and deactivated from a remote when connected to a Vermeer drill.

Specifications

Compare Models
Show Metric
  • General Dimensions and Weights

    • Weight 15609 lbs 7080.1 kg
    • Length 8.9 ft 2.7 m
    • Width 87.8 in 223 cm
    • Height 68.5 in 174 cm
  • Drive

  • Recommended generator

  • Controls

  • Transmission System

  • Operational

  • Fluid Pumping System

  • Cooler

See it in action

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
