Facilitate a productive utility installation process

Find A Dealer Request More Info

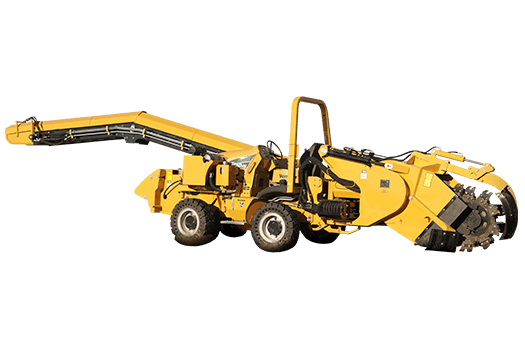

Equipped with a loadout conveyor attachment that feeds spoil directly into the dump truck, the RTX750 SOC is able to work well in narrow, congested jobsites. The conveyor minimizes the piling of spoil in the area and enables it to be quickly hauled offsite. In addition, it also has a sliding offset trencher attachment that can cut up to 61-cm (24-in) wide by 91-cm (36-in) deep trenches, allowing for a streamlined, productive utility installation process.

Facilitate a productive utility installation process

Equipped with a loadout conveyor attachment that feeds spoil directly into the dump truck, the RTX750 SOC is able to work well in narrow, congested jobsites. The conveyor minimizes the piling of spoil in the area and enables it to be quickly hauled offsite. In addition, it also has a sliding offset trencher attachment that can cut up to 61-cm (24-in) wide by 91-cm (36-in) deep trenches, allowing for a streamlined, productive utility installation process.

Find A Dealer Request More Info

Features & Benefits

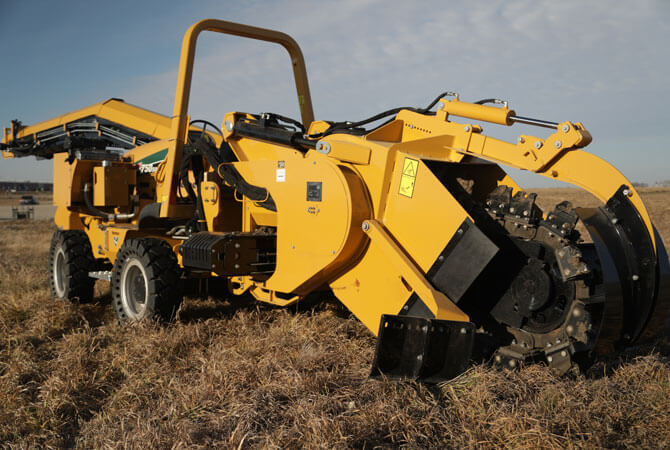

Sliding offset trencher attachment

The trencher attachment in this RTX750 SOC can cut a 61-cm (24-in) wide by 91-cm (36-in) deep trench. The sliding trencher moves from the center to 41-cm (16-in) to the left. It facilitates the digging of clean, straight ditch walls for efficient utility installations. The height can also be adjusted for convenient transportation.

Loadout conveyor attachment

The loadout conveyor attachment can work with up to 10-tonnes (9.07-tons) dump truck. It enables operators to work in tight, urban areas with the spoil feeding directly into the dump truck.

Rotating operator's station

The operator’s station and all attachment controls manually rotate 90 degrees. The swiveling operator’s station is designed to optimize operator visibility of the rear attachment and maximize operator comfort.

Integrated system display

An integrated system display toggles through machine diagnostics including engine rpm, fuel, alternator voltage, engine water temperature and engine hours. When in either ground drive or using a rear attachment, the display indicates the percentage of the hydrostatic capacity being utilized. This allows the operator to monitor important machine functions. The capability to monitor the percentage of the hydrostatic capacity being used is especially useful when training new operators.

TrenchSense™ electronic control system

While trenching in auto creep mode, the TrenchSense™ electronic control system actively monitors engine rpm. If difficult ground conditions are encountered, causing a sudden drop in engine rpm or the trencher chain to stop, the tractor automatically pauses forward creep and slightly backs up. The trencher chain also slightly reverses to dislodge any material. Once the engine recovers the previously set engine rpm, forward trencher chain motion and forward creep automatically resume. By eliminating the need to return controls to neutral and restart, productivity can be maximized. Avoiding abrupt engine stop can also help reduce premature engine wear.

Specifications

Compare Models
Show Metric
  • General Dimensions and Weights

    • Weight (basic tractor, rubber tires) 6200 lbs 2812.3 kg
    • Length (basic tractor, rubber tires) 97.3 in 247.1 cm
    • Width (basic tractor, rubber tires) 73.4 in 186.4 cm
    • Height (basic tractor, rubber tires) 96.8 in 245.9 cm
    • Wheel Base (Centerline of Axles) 61 in 154.9 cm
    • Tread Width with Rubber Tires (Centerline to Centerline) 63.4 in 161 cm
    • Ground Clearance (rubber tires) 8.8 in 22.4 cm
    • Angle of approach (basic tractor, rubber tires) 25 deg
    • Roll Over Protection Structure (Open Cab) 17000 lbs 7711.1 kg
  • Engine - Option one

  • Engine - Option two

  • Ground Drive - Rubber Tire

  • Axle Options

  • Hydraulic System

  • Electrical System

  • Capacities

  • Features

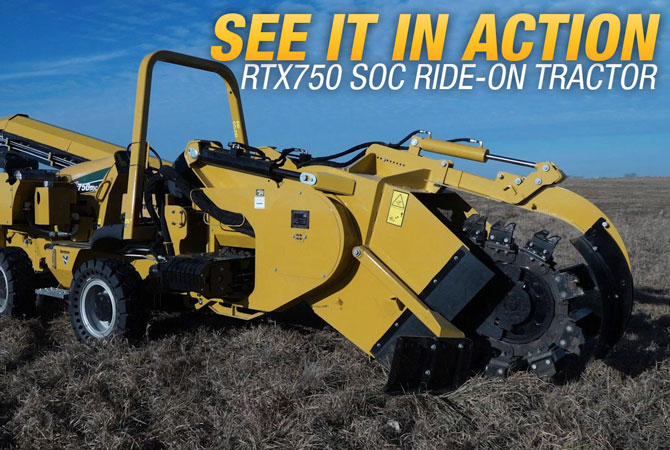

See it in action
