Tracked undercarriage allows you to maneuver in the woods and tough land-clearing sites.

Find A Dealer Request More Info

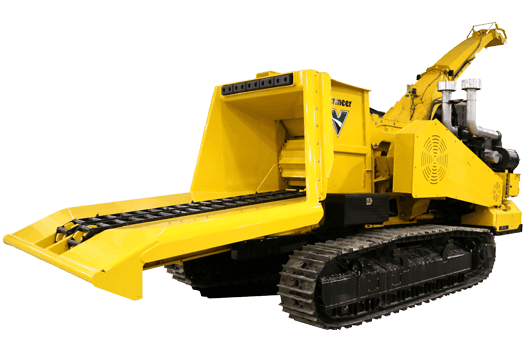

The WC2500TX whole tree chipper has a tracked undercarriage, allowing you to maneuver in the woods and tough land-clearing sites. Featuring a microchip or macrochip drum with adjustable bite sizes, faster and easier knife setup and a PT Tech clutch, the WC2500TX whole tree chipper offers a powerful and effective solution for producing wood chips in a compact footprint. Material can be handled efficiently with variable-speed dual-infeed conveyor chains and SmartCrush technology.

Tracked undercarriage allows you to maneuver in the woods and tough land-clearing sites.

The WC2500TX whole tree chipper has a tracked undercarriage, allowing you to maneuver in the woods and tough land-clearing sites. Featuring a microchip or macrochip drum with adjustable bite sizes, faster and easier knife setup and a PT Tech clutch, the WC2500TX whole tree chipper offers a powerful and effective solution for producing wood chips in a compact footprint. Material can be handled efficiently with variable-speed dual-infeed conveyor chains and SmartCrush technology.

Find A Dealer Request More Info

Features & Benefits

Compact design

The WC2500TX has a compact design to aid in maneuvering in the woods and land-clearing sites, but packs 600 hp (448 kW) of power to meet your production demands.

SmartCrush and variable-speed, dual-infeed conveyor chains

With SmartCrush technology that automatically increases down pressure when difficult material enters the cutting drum, and variable-speed dual-infeed conveyor chains, operators can concentrate on loading the machine — not pushing the material through.

Replaceable wear parts

High-wear material flow areas of the machine — such as the drum, discharge chute, cutter housing and infeed conveyor floor — are designed with replaceable bolt-in wear parts to extend machine life.

Variable chip sizes

The microchip drum produces a variety of sizes between 1/8 in (3 mm) to 5/8 in (16 mm) chips, while the macrochip drum produces chip sizes between 5/8 in (16 mm) and 1.25 in (32 mm).

Easy knife change-out

Knife setup is fast and easy. Knife position is set with two small bolts — no babbiting needed. Bite size is adjustable in 1/8 in (3 mm) increments from 1/8 in (3 mm) up to 1.25 in (32 mm) via shims. Makes knife change-out on the jobsite easy to help reduce cost of operation.

Self-adjusting hydraulic dry clutch

Self-adjusting, push-button, hydraulic dry clutch provides consistent engagement — helping to prolong clutch life, lower maintenance costs and reduce risk of damage by operator.

Specifications

Compare Models
Show Metric
  • General Dimensions and Weights

    • Maximum Length (Operation) 28.4 ft 8.7 m
    • Maximum Length - Transport 26.1 ft 8 m
    • Maximum Width (Transport) 118 in 299.7 cm
    • Maximum Height (Transport) 11.6 ft 3.5 m
    • Weight - Engine Option Two 48500 lbs 21999.2 kg
    • Sound Power 122
  • Engine - Option one

    • Make and Model Cummins QSX15 Tier 4 Final
    • Number of Cylinders 6
    • Gross Horsepower (Maximum) 600 hp 447.4 kw
    • Torque (Max) 2050 ft-lb 2779.4 Nm
    • Fuel Tank Capacity 200 gal 757.1 L
    • Max Fuel Consumption 31 gph 117.3 lph
    • Fuel Type Ultra-low sulfur diesel
    • Air Cleaner Two-stage direct flow
    • Oil Filter Spin-on
    • Recommended Oil CES 20078 or 20081
    • Oil Volume with Filter 52 qt 49.2 L
    • Maximum Angle of Continuous Operation 45 deg
    • Cooling Medium Liquid
    • Coolant Capacity (Engine and Radiator) 23 gal 87.1 L
    • Alternator 105
    • Fan Reversible
    • Clutch Type PT Tech electronically controlled dry
    • Clutch Drive Engagement Hydraulic
  • Engine - Option two

    • Make and Model Cummins QSX15 Tier 3
    • Number of Cylinders 6
    • Gross Horsepower (Maximum) 600 hp 447.4 kw
    • Torque (Maximum) 1875 ft-lb 2542.2 Nm
    • Fuel Tank Capacity 200 gal 757.1 L
    • Max Fuel Consumption 31 gph 117.3 lph
    • Fuel Type Ultra-low sulfur diesel
    • Air Cleaner Two-stage direct flow
    • Oil Filter Spin-on
    • Recommended Oil CES 20078 or 20081
    • Oil Volume with Filter 52 qt 49.2 L
    • Maximum Angle of Continuous Operation 45 deg
    • Cooling Medium Liquid
    • Coolant Capacity (Engine and Radiator) 23 gal 87.1 L
    • Alternator 100
    • Fan Reversible
    • Clutch Type PT Tech electronically controlled dry
    • Clutch Drive Engagement Hydraulic
  • Drum/Disc Cutting System

    • Material Capacity 25 in 63.5 cm
    • Thickness .5 in 1.3 cm
    • Width 34 in 86.4 cm
    • Diameter 36 in 91.4 cm
    • Speed 1169 rpm
    • Weight With Shaft 3163 lbs 1434.7 kg
    • Safety Lock - Number of Positions 2 to 4
    • Type Adjustable
    • Knife Thickness .6 in 1.6 cm
    • Material A8 chipper steel
    • Useable Edges 1
    • Knife Size 8.5 or 17
    • Number of Bolts/Knife 4 or 5
    • Replaceable Threaded Knife Block Hex nut
    • Fixture Method Bolt
    • Bedknife Size 34" wide
    • Bedknife Thickness 1.5 in 3.8 cm
    • Bedknife Material Cold-formed low-carbon bar
    • Bedknife - Number of Useable Edges 2
    • Number of Pockets 2 or 4
    • Replaceable Wear Plates Yes
    • Number of Replaceable Wear Plates 8
  • Cutter Drive Components - Engine Option One

    • Number of Bearings 2
    • Bore 5.4 in 13.8 cm
    • Type Pillow block
    • Manufacturer Dodge
    • Dynamic Capacity 166000 lbs 75296.3 kg
    • Static Capacity 236000 lbs 107047.8 kg
    • Belt Idler/Tensioner Slide engine
    • Belt Type 12 rib 5 V
  • Standard Infeed System

    • Infeed Roller Width 34 in 86.4 cm
    • Maximum Feed Height 27 in 68.6 cm
    • Infeed Roller Weight 575 lbs 260.8 kg
    • Infeed Roller Diameter 28 in 71.1 cm
    • Tooth Design Straight knives
    • Drive Motor WS-series
    • Drive Planetary Auburn Model 9
    • Drive Displacement 6.9 cu-in 113.1 cu-cm
    • Drive Manufacturer White
    • Feed Roller Down Pressure 1530
    • Feed Roller Orientation Horizontal
    • Number of Feed Rollers One upper, one conveyor
    • Number of Knives 12
    • Feed Roller Distance to Drum 1 in 2.5 cm
    • Feed Roller Speed 98 ft/min 29.9 m/min
  • Discharge System

    • Chute Height 132 in 335.3 cm
    • Bottom Thickness .1 in .3 cm
    • Bottom Replaceable Wear Plate AR 400
    • Wear Plate Thickness .2 in .5 cm
    • Top Thickness .2 in .5 cm
    • Side Wall Thickness .2 in .5 cm
    • Deflector Thickness .2 in .5 cm
    • Rotation Type Hydraulic
    • Rotational Lock Hydraulic
    • Side Deflector Angle 14 deg
    • Up Deflector Angle 22 deg
    • Down Deflector Angle 14 deg
  • Discharge System 2 - Top Load

    • Chute Height 194.5 in 494 cm
    • Bottom Thickness .1 in .3 cm
    • Wear Plate Thickness .2 in .5 cm
    • Top Thickness .2 in .5 cm
    • Side Wall Thickness .2 in .5 cm
    • Deflector Thickness .2 in .5 cm
    • Up Deflector Angle 18 deg
    • Down Deflector Angle 90 deg
  • Hydraulic System

    • Tank capacity 33 gal 124.9 L
    • Recommended Oil Type Hy-Power 68, 46, or 32
    • System Type Open-center
    • Filtration Method Intake suction screens and return filter
    • Pump Flow at Maximum RPM 16 gpm 60.6 L/min
    • System relief pressure 4000 psi 275.8 bar
    • Auto Reverse PSI 3750 psi 258.6 bar
    • Flow Control Two - feed roller and infeed conveyor
    • Oil Cooler 1
  • Hydraulic system - track

    • Tank capacity 33 gal 124.9 L
    • Pump Flow at Maximum RPM 38 gpm 143.8 L/min
    • System relief pressure 4786 psi 330 bar
  • Electrical System

    • System Voltage 24V
    • Battery Group 8D 1400 CCA (dual)
    • Standard Gauges Yes
    • Deluxe Gauges No
    • Switches Push button
    • Controller Danfoss MC-050
    • Display DP10
    • Shutdown System Yes
    • Radio Remote Control Yes
  • Chassis

    • Frame Description 8" x 4" x .375" wall rectangular tubing
    • Toolbox Description Lockable
    • Brake Type Air
    • Trailer Light Type LED
    • Track pad width 20 in 50.8 cm
    • Track Gauge 97 in 246.4 cm
    • Track Pitch 132 in 335.3 cm
    • Ground pressure 8.4 psi .6 bar
  • Other Options

    • Special Paint Yes
    • Extended Warranty Yes
    • Adjustable Height Discharge Chute No
  • Infeed Conveyor

    • Feed Table Width 98 in 248.9 cm
    • Feed Table Length - Option One 10 ft 3 m
    • Feed Conveyor Type Dual independent chain
    • Material Construction .50" thick
    • Infeed Floor Construction AR400 wear plate
    • Infeed Slope 6 deg
    • Number of Infeed Chains 2
    • Replaceable Chain Slides Yes
