High capacity. Low loading height. The Vermeer VT830 twin-screw vertical mixer has what it takes to get your cattle fed.

Find A Dealer Request More Info

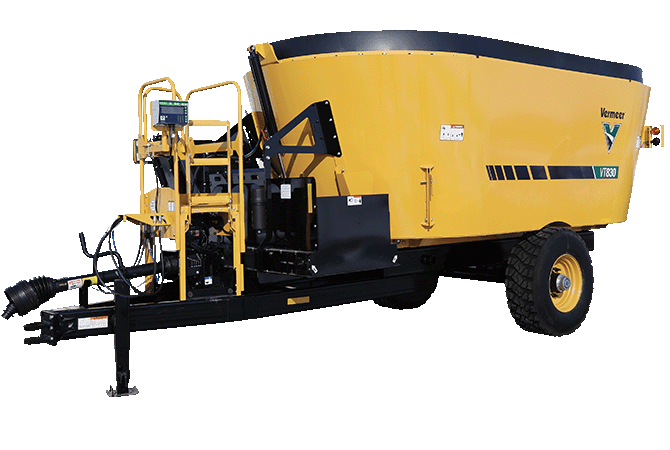

It's hard to find a mixer with this much capacity at such a low loading height. The Vermeer VT830 twin-screw vertical mixer is the largest model in the lineup available with single tires and a single axle. Perfect for medium-sized dairies or backgrounding operations, it comes with optional stainless steel liners on the floor and sides for minimized rust and maximized durability.

High capacity. Low loading height. The Vermeer VT830 twin-screw vertical mixer has what it takes to get your cattle fed.

It's hard to find a mixer with this much capacity at such a low loading height. The Vermeer VT830 twin-screw vertical mixer is the largest model in the lineup available with single tires and a single axle. Perfect for medium-sized dairies or backgrounding operations, it comes with optional stainless steel liners on the floor and sides for minimized rust and maximized durability. Find A Dealer Request More Info

Features & Benefits

Screw design

Not only do producers want a consistent mix, their cows do, too. The twin-screw mixers from Vermeer come equipped with an overlapping screw design and offset baffles along the tub wall. Together, the screws, baffles and tub geometry work together to move material from the front chamber to the back chamber for a thorough mix.

Efficient cleanout

Feed is more valuable in the bunk than left in the tub. That is why Vermeer mixers offer two bi-pulse legs and the leading edge of the screw to form three points of contact with the tub floor to optimize cleanout and minimize feed waste.

Low loading height

At 830 ft3 (23.4 m3), the VT830 twin-screw vertical mixer has an attractive loading height at just 116 in (295 cm). This low loading height provides versatility among different operations with height restrictions during loading, feeding and storage, while also allowing them to have a mixer of this capacity.

Versatile tire options

A large-capacity mixer with versatile options, the VT830 twin-screw vertical mixer gives operators the ability to choose a mixer with single tires or dual tires for use in different ground conditions.

Optional stainless steel liner

For maximized durability, and to help prevent rust, operators can get the optional stainless steel liner on the VT830 twin-screw mixer.

4-point scale with Bluetooth connectivity

The 4-point scale is designed to help producers target and achieve precise rations. With Bluetooth connectivity, operators can view weight readouts directly from their smart device while loading the machine.

Specifications

Compare Models
Show Metric
  • Dimensions and Weights

    • Loading height - standard 116 in 294.6 cm
    • Machine weight - standard 16240 lbs 7366.3 kg
    • Maximum net load 21000 lbs 9525.4 kg
    • Total length 298 in 756.9 cm
    • Transport width - 50-in folding conveyor extension 117 in 297.2 cm
    • Working width - 50-in folding conveyor extension 135 in 342.9 cm
    • Tires (retread) Standard 425/65R-22.5; Optional 255/70R-22.5 dual
  • Tub and screws

    • Capacity 830 cu ft 23.5 cu m
    • Number of screws 2
    • Number of knives per screw 6
    • Tub wall thickness 1/4 in (6.4 mm)
    • Tub wall material AR200
    • Floor thickness 3/4 in (19.1 mm)
    • Screw flighting thickness 5/8 in (15.9 mm)
    • Screw flighting material AR200
  • Discharge System

    • Discharge style Front conveyor
    • Discharge Direction Left or right
    • Folding conveyor extension length 25 in/40 in/50 in (64 cm/100 cm/130 cm)
    • Bi-directional conveyor length 101 in/110 in/119 in (257 cm/280 cm/302 cm) OR 101 in (257 cm) hydraulic shift
    • Rear discharge door Optional
  • Tractor Requirements

    • Minimum PTO horsepower 150 hp (2-speed) (110 kW)
    • Recommended PTO horsepower 180 hp 134.2 kw
  • Drive System

    • Driveline 1,000 rpm, CV
    • Two-speed gearbox Optional
    • Torque Protection Shear bolt
    • Screw rpm 39 (1-speed); 39/26 (2-speed)
  • Scale system

    • Scale display Digi-Star EZ2810-BT
    • Number of weigh bars 4
    • Bluetooth connectivity Standard

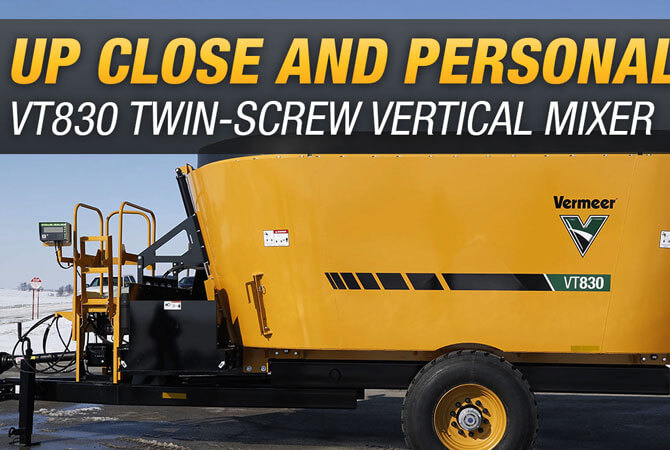

See it in action

Video 1
