The VT750 twin-screw vertical mixer features useful design options to help take your operation to the next level.

Find A Dealer Request More Info

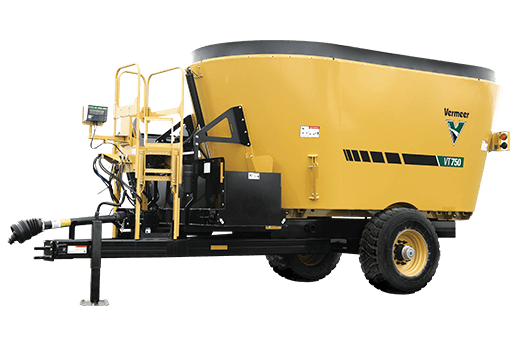

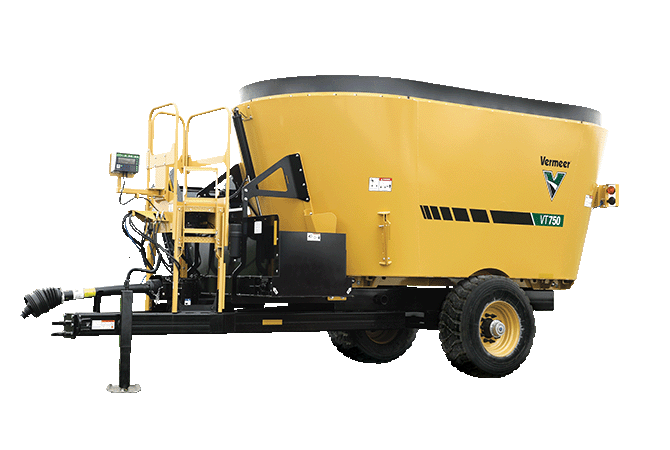

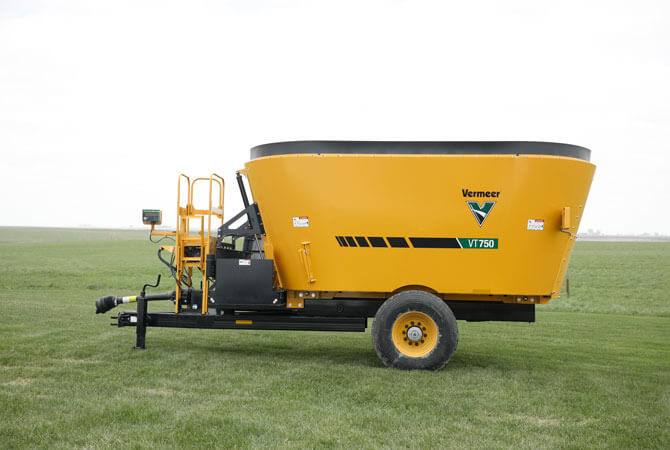

Built on the same base platform as the VT600, the Vermeer VT750 twin-screw vertical mixer works well for a variety of operations. With a standard full set of knives on the overlapping screws, it helps produce consistent particle sizes for rations containing higher amounts of roughage. Plus, it comes with an optional bi-directional discharge conveyor and stainless steel liners for maximum durability.

The VT750 twin-screw vertical mixer features useful design options to help take your operation to the next level.

Built on the same base platform as the VT600, the Vermeer VT750 twin-screw vertical mixer works well for a variety of operations. With a standard full set of knives on the overlapping screws, it helps produce consistent particle sizes for rations containing higher amounts of roughage. Plus, it comes with an optional bi-directional discharge conveyor and stainless steel liners for maximum durability. Find A Dealer Request More Info

Features & Benefits

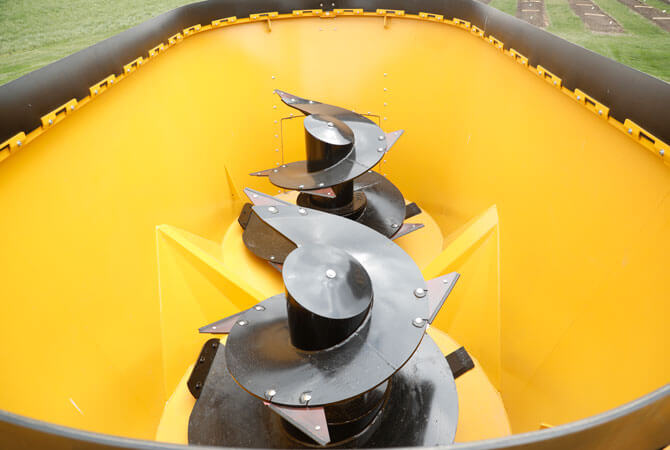

Screw design

Every piece of the screw and tub design on the twin-screw mixers was carefully engineered. Two overlapping screws work with the offset baffles along the tub wall to produce a consistent mix of feedstuffs. The complimentary design of the tub and screw helps move material from the front to the back in a clockwise motion.

Efficient cleanout

The last place operators want their ration left is in the bottom of the tub. With two bi-pulse legs and the leading edge of the screw, three points of contact are formed with the tub floor to encourage thorough cleanout.

Optional stainless steel liner

With the option to add a stainless steel liner to the tub, operators can be confident their mixer will withstand various types of feedstuffs for minimized rust and maximized durability.

Optional bi-directional discharge

For operations that do the majority of their feeding in an alleyway, optional bi-directional discharge makes feeding convenient. Feed on either the right or left side of your alley when traveling between pens or multiple buildings.

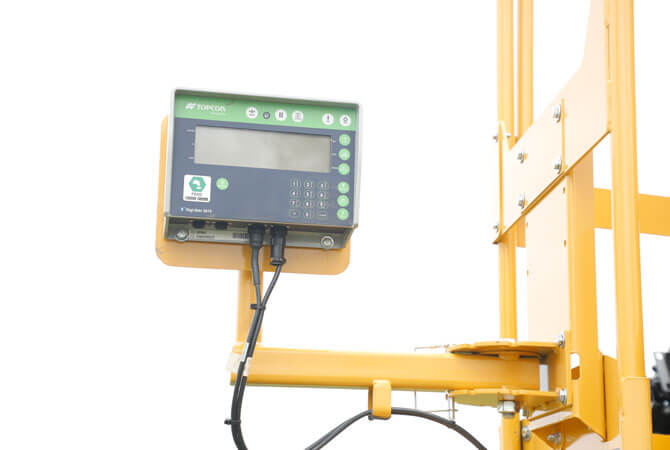

4-point scale with Bluetooth connectivity

With a 4-point scale, producers can rely on their mixer to help provide an accurate weight readout. Vermeer scales are equipped with Bluetooth connectivity, letting producers see weight information on their smartphone or tablet.

Specifications

Compare Models
  • Dimensions and Weights

    • Loading height - standard 123 in 312.4 cm
    • Machine weight - standard 15580 lbs 7067 kg
    • Maximum net load 21000 lbs 9525.4 kg
    • Total length 277 in 703.6 cm
    • Transport width - 50-in folding conveyor extension 113 in 287 cm
    • Working width - 50-in folding conveyor extension 130 in 330.2 cm

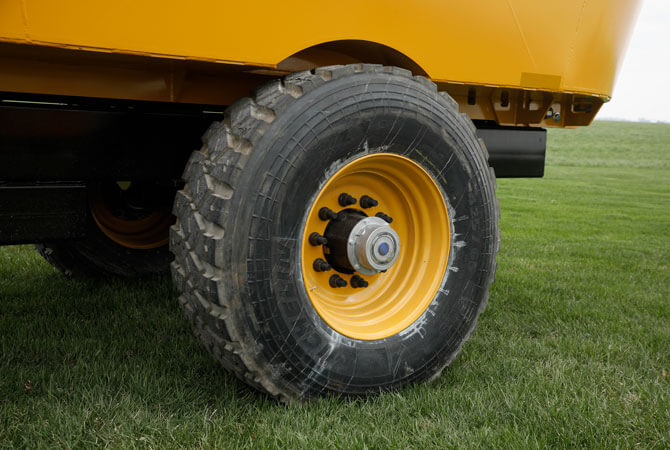

    • Tires (retread) Standard 425/65R-22.5; Optional 255/70R-22.5 dual
  • Tub and screws

    • Capacity 750 cu ft 21.2 cu m
    • Number of screws 2
    • Number of knives per screw 7
    • Tub wall thickness 1/4 in (6.4 mm)
    • Tub wall material AR200
    • Floor thickness 3/4 in (19.1 mm)
    • Screw flighting thickness 5/8 in (15.9 mm)
    • Screw flighting material AR200
  • Discharge System

    • Discharge style Front conveyor
    • Discharge Direction Left or right
    • Folding conveyor extension length 25 in/40 in/50 in (64 cm/100 cm/130 cm)
    • Bi-directional conveyor length 101 in/110 in/119 in (257 cm/280 cm/302 cm) OR 101 in (257 cm) hydraulic shift
    • Rear discharge door Optional
  • Tractor Requirements

    • Minimum PTO horsepower 150 hp (2-speed) (110 kW)
    • Recommended PTO horsepower 180 hp 134.2 kw
  • Drive System

    • Driveline 1,000 rpm, CV
    • Two-speed gearbox Optional
    • Torque Protection Shear bolt
    • Screw rpm 39 (1-speed); 39/26 (2-speed)
  • Scale system

    • Scale display Digi-Star EZ2810-BT
    • Number of weigh bars 4
    • Bluetooth connectivity Standard
    • Remote Display Optional

See it in action

Video 1
Image 1
Video 2
Image 2
Image 3
Image 4
Image 5
Image 6
