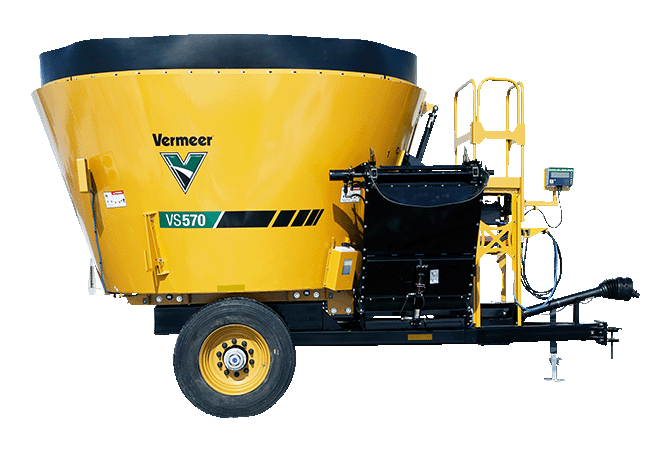

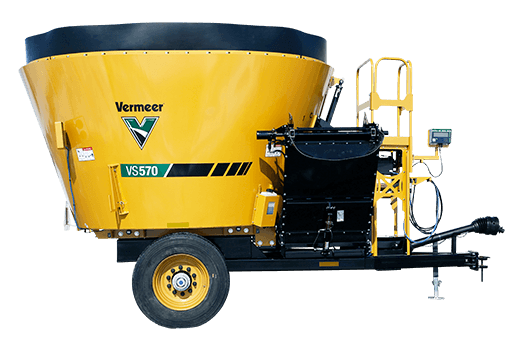

The Vermeer VS570 single-screw vertical mixer — the largest in the Vermeer single-screw lineup — is a good fit for small- to mid-size operations.

Find A Dealer Request More Info
With a 125-in (317.5-cm) loading height, the VS570 works well for those wanting to get into the 600-ft3 (169.99-m3) volume range without purchasing a twin-screw vertical mixer. Heavy-duty features like abrasion-resistant AR200 steel on the tub walls and screw flighting contribute to long-lasting performance. As the largest single-screw vertical mixer in the Vermeer lineup, this mixer could be the right fit for your operation.

The Vermeer VS570 single-screw vertical mixer — the largest in the Vermeer single-screw lineup — is a good fit for small- to mid-size operations.

With a 125-in (317.5-cm) loading height, the VS570 works well for those wanting to get into the 600-ft3 (169.99-m3) volume range without purchasing a twin-screw vertical mixer. Heavy-duty features like abrasion-resistant AR200 steel on the tub walls and screw flighting contribute to long-lasting performance. As the largest single-screw vertical mixer in the Vermeer lineup, this mixer could be the right fit for your operation. Find A Dealer Request More Info

Features & Benefits

Extra heavy-duty planetary

The VS570 is equipped with a planetary built for long-lasting performance. The tractor’s PTO powers the screw through a planetary specifically designed to help extend machine life.

Optional 2-speed gearbox

Operators can take advantage of an optional 2-speed gearbox, ideal for dense rations and efficient mixing. Use the low speed (26 rpm) for mixing starts and the high speed (39 rpm) when cleaning out.

4-point scale with Bluetooth connectivity

Achieving defined targets between multiple feeding locations is less of a hassle with a 4-point scale that helps improve accuracy, when compared to a 3-point scale. Plus, Bluetooth connectivity allows operators to view their load weight from their smart device.

Constant-velocity PTO

Mix on the move with the VS570 single-screw vertical mixer. Constant velocity PTO allows operators to mix the load while traveling down the road or between pens on their farm or ranch.

Efficient cleanout

The bi-pulse legs and leading edge of the screw create three points of contact with the tub floor. These points are designed to help provide an even flow onto the discharge conveyor and clean out the tub at an efficient pace.

Heavy-duty screw

Tough jobs require tough equipment. In a vertical mixer, the screw does the tough work of mixing the feedstuffs, whether that be breaking apart a round bale or working to blend the ingredients evenly. The screws are built with 5/8-in (16-mm) abrasion-resistant AR200 screw flighting. Plus, Vermeer mixers are equipped with a standard full set of hard-surfaced knives.

Specifications

Compare Models
Show Metric
  • Dimensions and Weights

    • Loading height - standard 125 in 317.5 cm
    • Machine weight - standard 11180 lbs 5071.2 kg
    • Maximum net load 17000 lbs 7711.1 kg
    • Total length 218 in 553.7 cm
    • Transport width - 50-in folding conveyor extension 121 in 307.3 cm
    • Working width - 50-in folding conveyor extension 140 in 355.6 cm
    • Tires (retread) Standard 445/50R-22.5; Optional 445/50R-22.5 lug
  • Tub and screws

    • Capacity 570 cu ft 16.1 cu m
    • Number of screws 1
    • Number of knives per screw 7
    • Tub wall thickness 1/4 in (6.4 mm)
    • Tub wall material AR200
    • Floor thickness 3/4 in (19.1 mm)
    • Screw flighting thickness 5/8 in (15.9 mm)
    • Screw flighting material AR200
  • Discharge System

    • Discharge style Front conveyor
    • Discharge Direction Left or right
    • Folding conveyor extension length 25 in/40 in/50 in (64 cm/100 cm/130 cm)
    • Bi-directional conveyor length 101 in/110 in/119 in (257 cm/280 cm/302 cm) OR 101 in (257 cm) hydraulic shift
  • Tractor Requirements

    • Minimum PTO horsepower 130 hp (97 kW)
    • Recommended PTO horsepower 150 hp 111.9 kw
  • Drive System

    • Driveline 1,000 rpm, CV
    • Two-speed gearbox Optional
    • Torque Protection Shear bolt
    • Screw rpm 39 (1-speed); 39/26 (2-speed)
  • Scale system

    • Scale display Digi-Star EZ2810-BT
    • Number of weigh bars 4
    • Bluetooth connectivity Standard

See it in action

Video 1
