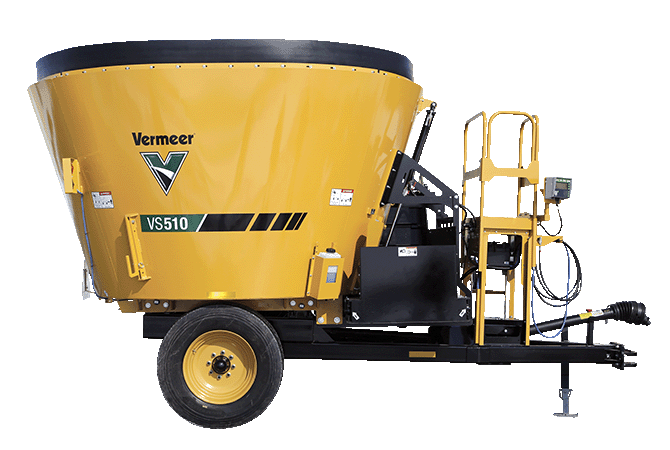

Process large round bales and evenly disperse feed throughout the load with the Vermeer VS510 single-screw vertical mixer.

Find A Dealer Request More Info
The Vermeer VS510 single-screw vertical mixer is capable of processing 6-ft x 5-ft (1.8-m x 1.5-m) large round bales. With a standard full set of sharp, hard-surfaced knives, as well as a durable screw designed for maximum mixing ability, this mixer can evenly disperse feed for optimal feed quality and operator efficiencies.

Process large round bales and evenly disperse feed throughout the load with the Vermeer VS510 single-screw vertical mixer.

The Vermeer VS510 single-screw vertical mixer is capable of processing 6-ft x 5-ft (1.8-m x 1.5-m) large round bales. With a standard full set of sharp, hard-surfaced knives, as well as a durable screw designed for maximum mixing ability, this mixer can evenly disperse feed for optimal feed quality and operator efficiencies. Find A Dealer Request More Info

Features & Benefits

Heavy-duty screw

The VS510 single-screw vertical mixer comes with standard 5/8-in (15.9-mm) abrasion-resistant AR200 screw flighting and a full set of hard-surfaced knives for long-lasting performance.

Durable tub

Durability and reliability are key components of Vermeer mixers. That's why they're built with heavy-duty, abrasion-resistant AR200 steel, which is approximately twice as hard as regular steel.

Efficient cleanout

The VS510 is designed to optimize speed and evenness of cleanout with three points of contact with the tub floor (two bi-pulse legs and a leading edge of the screw).

4-point scale with Bluetooth connectivity

Achieve defined targets when feeding in multiple pens with the standard 4-point scale. As an added bonus, operators can view their load weight from their smart device with Bluetooth connectivity.

Optional 2-speed gearbox

With an optional 2-speed gearbox, operators can optimize their mixing and feeding. Use the low side (26 rpm) when mixing or processing large round bales. Use the high side (39 rpm) during the last portion of feeding for optimal cleanout.

Extra heavy-duty planetary

Vermeer mixers feature a heavy-duty planetary — the heart of the mixer. The tractor’s PTO powers the screw through a planetary specifically designed to help extend machine life.

Processing ability

Run out of ground hay? No problem. The VS510 single-screw vertical mixer is the smallest mixer available in the Vermeer product lineup that has the ability to process a 5-ft x 6-ft (1.5-m x 1.8-m) large round bale.

Constant-velocity PTO

Constant-velocity PTO allows operators to mix the load while traveling down the road or between pens on their farm or ranch.

Specifications

Compare Models
Show Metric
  • Dimensions and Weights

    • Loading height - standard 120 in 304.8 cm
    • Machine weight - standard 9860 lbs 4472.4 kg
    • Maximum net load 15000 lbs 6803.9 kg
    • Total length 214 in 543.6 cm
    • Transport width - 50-in folding conveyor extension 118 in 299.7 cm
    • Working width - 50-in folding conveyor extension 137 in 348 cm
    • Tires (retread) Standard 445/50R-22.5; Optional 445/50R-22.5 lug; Optional 255/70R-22.5 dual
  • Tub and screws

    • Capacity 510 cu ft 14.4 cu m
    • Number of screws 1
    • Number of knives per screw 7
    • Tub wall thickness 1/4 in (6.4 mm)
    • Tub wall material AR200
    • Floor thickness 3/4 in (19.1 mm)
    • Screw flighting thickness 5/8 in (15.9 mm)
    • Screw flighting material AR200
  • Discharge System

    • Discharge style Front conveyor
    • Discharge Direction Left or right
    • Folding conveyor extension length 25 in/40 in/50 in (64 cm/100 cm/130 cm)
    • Bi-directional conveyor length 101 in/110 in/119 in (257 cm/280 cm/302 cm) OR 101 in (257 cm) hydraulic shift
  • Tractor Requirements

    • Minimum PTO horsepower 120 hp (89 kW)
    • Recommended PTO horsepower 130 hp 96.9 kw
  • Drive System

    • Driveline Standard: 1,000 rpm, CV; Optional: 540 rpm, CV
    • Two-speed gearbox Optional
    • Torque Protection Shear bolt
    • Screw rpm 39 (1-speed); 39/26 (2-speed)
  • Scale system

    • Scale display Digi-Star EZ2810-BT
    • Number of weigh bars 4
    • Bluetooth connectivity Standard

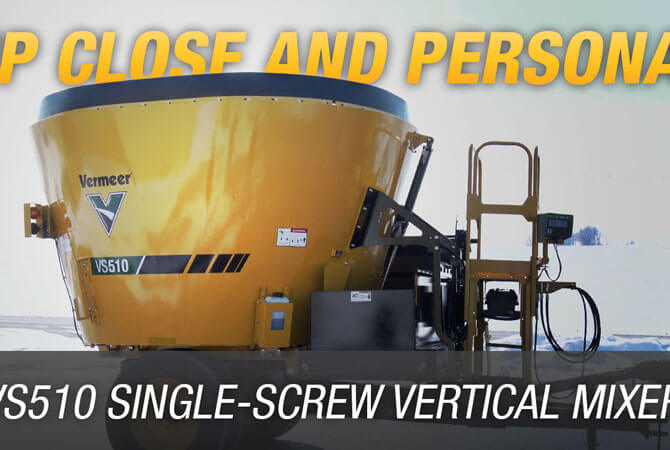

See it in action
