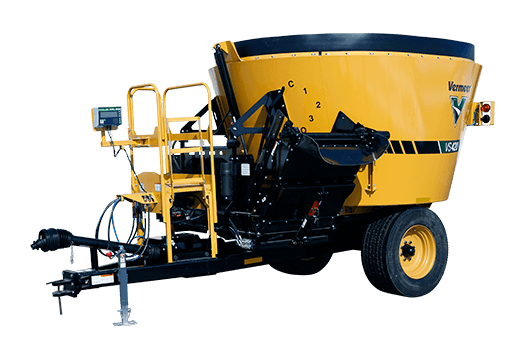

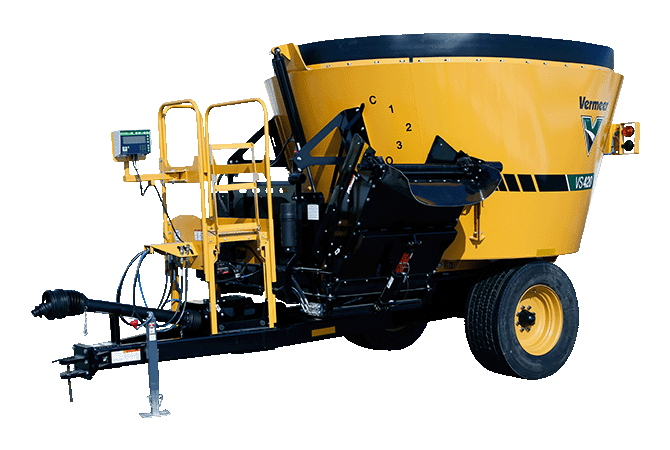

The Vermeer VS420 single-screw vertical mixer has durable components for long-lasting performance and smart features for maximized feeding efficiencies.

Find A Dealer Request More Info
Durable components like thick, abrasion-resistant AR200 steel flighting on the heavy-duty screw contribute to long-lasting performance. With the ability to handle a 5-ft x 4-ft (1.5-m x 1.2-m) round bale, the bi-pulse legs and the leading edge of the screw offer efficient cleanout. Optimize your feeding routine and mix a wide variety of feedstuffs with the VS420 single-screw vertical mixer.

The Vermeer VS420 single-screw vertical mixer has durable components for long-lasting performance and smart features for maximized feeding efficiencies.

Durable components like thick, abrasion-resistant AR200 steel flighting on the heavy-duty screw contribute to long-lasting performance. With the ability to handle a 5-ft x 4-ft (1.5-m x 1.2-m) round bale, the bi-pulse legs and the leading edge of the screw offer efficient cleanout. Optimize your feeding routine and mix a wide variety of feedstuffs with the VS420 single-screw vertical mixer. Find A Dealer Request More Info

Features & Benefits

Heavy-duty screw

The screw is one of the most important parts of the mixer. That’s why Vermeer screws are built to last. The VS420 single-screw vertical mixer comes with standard 5/8-in (15.9-mm) abrasion-resistant AR200 screw flighting and a full set of hard-surfaced knives.

Durable tub

Heavy-duty, abrasion-resistant AR200 steel makes the Vermeer VS420 single-screw vertical mixer ready for years of use, various feedstuffs and numerous loads.

Efficient cleanout

Vermeer mixers are designed with three points of contact with the tub floor, including two bi-pulse legs and the leading edge of the screw. These points of contact help optimize cleanout of material from the tub during discharge.

4-point scale with Bluetooth connectivity

Operators can conveniently view the mixer's load weight on their smart device with Bluetooth connectivity. Hitting defined weight targets is more attainable with a 4-point scale versus a 3-point scale when feeding in multiple locations.

Low loading height

The low loading height of 110 in (280 cm) provides versatility among different operations with height restrictions during loading, feeding and storage.

Optional 2-speed gearbox

An optional 2-speed gearbox allows operators to tailor their mixing speed depending on the stage of the mixing and feeding cycle.

Specifications

Compare Models
  • Dimensions and Weights

    • Loading height - standard 110 in 279.4 cm
    • Machine weight - standard 9560 lbs 4336.3 kg
    • Maximum net load 14000 lbs 6350.3 kg
    • Total length 211 in 535.9 cm
    • Transport width - 50-in folding conveyor extension 117 in 297.2 cm
    • Working width - 50-in folding conveyor extension 135 in 342.9 cm
    • Tires (retread) Standard 445/50R-22.5; Optional 445/50R-22.5 lug; Optional 255/70R-22.5 dual
  • Tub and screws

    • Capacity 420 cu ft 11.9 cu m
    • Number of screws 1
    • Number of knives per screw 6
    • Tub wall thickness 1/4 in (6.4 mm)
    • Tub wall material AR200
    • Floor thickness 3/4 in (19.1 mm)
    • Screw flighting thickness 5/8 in (15.9 mm)
    • Screw flighting material AR200
  • Discharge System

    • Discharge style Front conveyor
    • Discharge Direction Left or right
    • Folding conveyor extension length 25 in/40 in/50 in (64 cm/100 cm/130 cm)
    • Bi-directional conveyor length 101 in/110 in/119 in (257 cm/280 cm/302 cm) OR 101 in (257 cm) hydraulic shift
  • Tractor Requirements

    • Minimum PTO horsepower 100 hp (75 kW)
    • Recommended PTO horsepower 120 hp 89.5 kw
  • Drive System

    • Driveline Standard: 1,000 rpm, CV; Optional: 540 rpm, CV
    • Two-speed gearbox Optional
    • Torque Protection Shear bolt
    • Screw rpm 39 (1-speed); 39/26 (2-speed)
  • Scale system

    • Scale display Digi-Star EZ2810-BT
    • Number of weigh bars 4
    • Bluetooth connectivity Standard

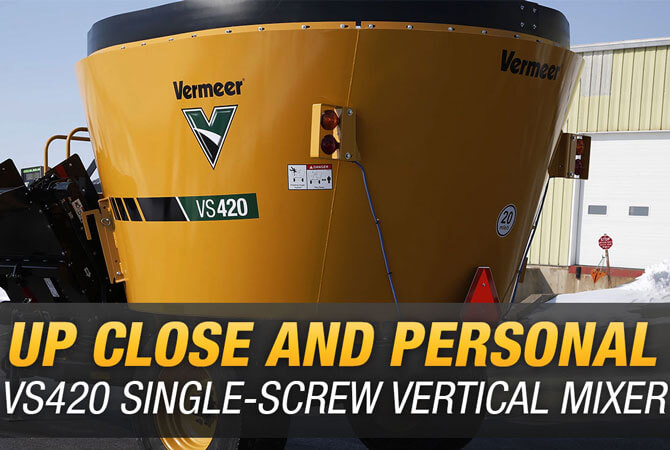

See it in action
