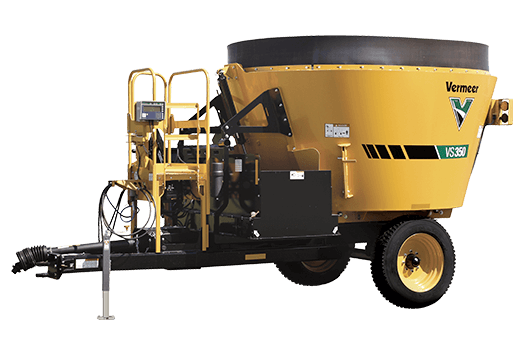

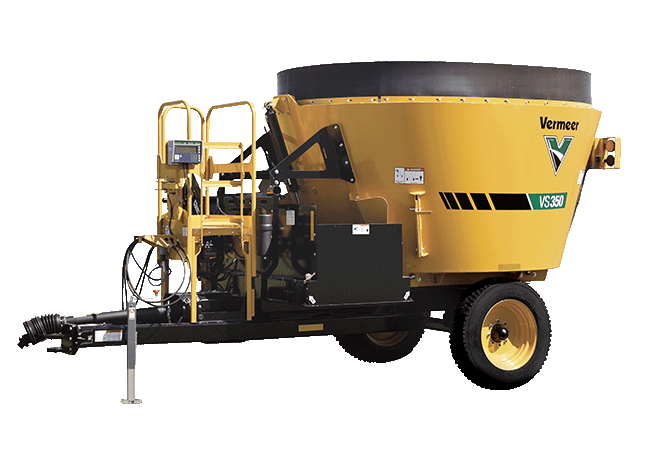

The Vermeer VS350 single-screw vertical mixer is an ideal machine for smaller operations that require less capacity — or for an operation looking to move from feeding in a ring or with a feed wagon to a TMR mixer.

Find A Dealer Request More Info
Small but mighty, the Vermeer VS350 single-screw vertical mixer has a high screw rpm to minimize mixing time and optimize cleanout. Very little material is left in the tub — a benefit of two bi-pulse kickers plus the leading edge of the screw. This mixer also features a 4-point scale which offers optimal accuracy over a typical 3-point scale found on this size of mixer. This compact machine is ideal for small- to mid-sized operations.

The Vermeer VS350 single-screw vertical mixer is an ideal machine for smaller operations that require less capacity — or for an operation looking to move from feeding in a ring or with a feed wagon to a TMR mixer.

Small but mighty, the Vermeer VS350 single-screw vertical mixer has a high screw rpm to minimize mixing time and optimize cleanout. Very little material is left in the tub — a benefit of two bi-pulse kickers plus the leading edge of the screw. This mixer also features a 4-point scale which offers optimal accuracy over a typical 3-point scale found on this size of mixer. This compact machine is ideal for small- to mid-sized operations. Find A Dealer Request More Info

Features & Benefits

High screw rpm

The VS350 features high screw rpm, which optimizes mixing speed and allows for thorough cleanout.

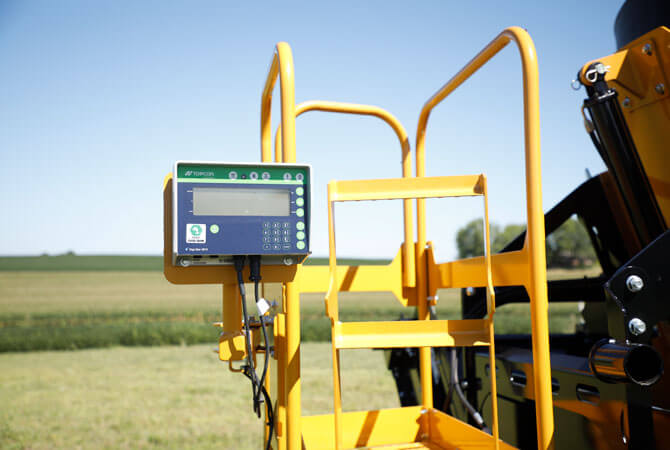

4-point scale with Bluetooth connectivity

Vermeer mixers feature a 4-point scale that helps improve accuracy, compared to a 3-point scale. The scale helps operators optimize rations and achieve more defined targets when feeding in multiple pens. Plus, scales are equipped with Bluetooth connectivity, so operators can view weight from their smart device.

Durable screw

Built with abrasion-resistant, heat-treated AR200 steel, the screw is designed for strength, versatility and longevity.

Durable components

Equipped with 1/4-in (6.3-mm) tub material and 1/2-in (12.7-mm) floor thickness, this mixer is small, but mighty. These durable components contribute to long-lasting performance and help with machine reliability.

Efficient cleanout

Achieve thorough cleanout at a quick rate. Two bi-pulse legs and the leading edge of the screw work together as three points of contact with the tub floor for ideal cleanout.

Low loading height

106-in (269-cm) loading height provides versatility for operations of varying sizes. The low loading height on this machine allows for clearance in different barns and buildings, as well as loading with a tractor and most skid steers.

Ladder and viewing platform

A standard folding ladder and viewing platform on the VS350 single-screw vertical mixer provides optimal visibility to the tub, compared to mixers without a platform.

Heavy-duty planetary

Vermeer mixers feature a heavy-duty planetary specifically designed to help extend machine life.

Optional 2-speed gearbox

An optional 2-speed gearbox allows operators to tailor their mixing speed depending on the stage of the mixing and feeding cycle.

Specifications

Compare Models
  • Dimensions and Weights

    • Loading height - standard 106 in 269.2 cm
    • Machine weight - standard 7550 lbs 3424.6 kg
    • Maximum net load 12000 lbs 5443.1 kg
    • Total length 202 in 513.1 cm
    • Transport width - 50-in folding conveyor extension 111 in 281.9 cm
    • Working width - 50-in folding conveyor extension 130 in 330.2 cm

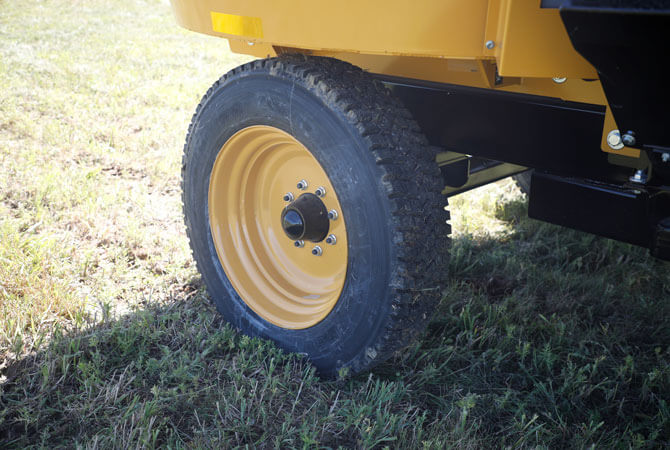

    • Tires (retread) Standard 255/70R-22.5; Optional 14-17.5 skid steer
  • Tub and screws

    • Capacity 350 cu ft 9.9 cu m
    • Number of screws 1
    • Number of knives per screw 5
    • Tub wall thickness 1/4 in (6.4 mm)
    • Tub wall material Regular structural steel
    • Floor thickness 1/2 in (12.7 mm)
    • Screw flighting thickness 1/2 in (12.7 mm)
    • Screw flighting material AR200

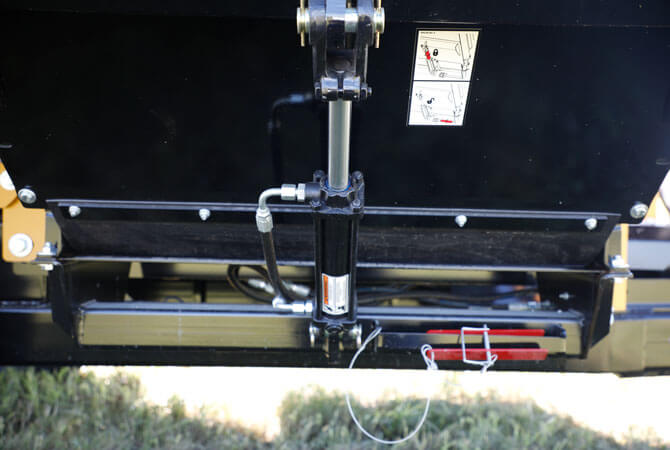

  • Discharge System

    • Discharge style Front conveyor
    • Discharge Direction Left or right
    • Folding conveyor extension length 25 in/40 in/50 in (64 cm/100 cm/130 cm)
    • Bi-directional conveyor length 101 in/110 in/119 in (257 cm/280 cm/302 cm) OR 101 in (257 cm) hydraulic shift
  • Tractor Requirements

    • Minimum PTO horsepower 90 hp (70 kW)
    • Recommended PTO horsepower 100 hp 74.6 kw
  • Drive System

    • Driveline Standard: 1,000 rpm, CV; Optional: 540 rpm, CV
    • Two-speed gearbox Optional
    • Torque Protection Shear bolt
    • Screw rpm 1,000 rpm configuration: 48 (1-speed), 48/32 (2-speed); 540 rpm configuration: 40 (1-speed); 40/27 (2-speed)
  • Scale system

    • Scale display Digi-Star EZ2810-BT
    • Number of weigh bars 4
    • Bluetooth connectivity Standard

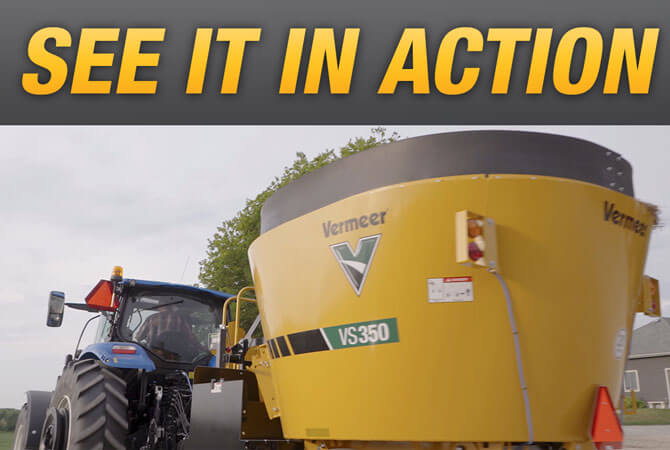

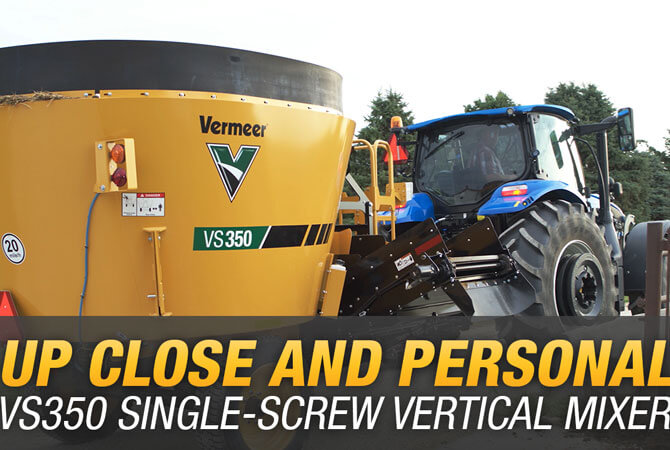

See it in action
