The Vermeer XR2 is not just a hydro-excavator, it's an on-site recycling system.

Find A Dealer Request More Info

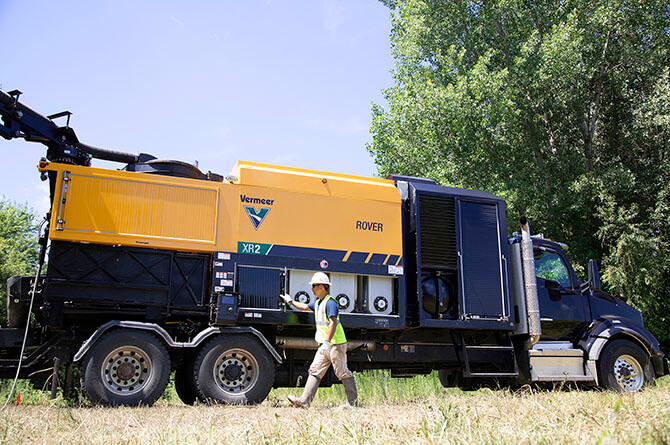

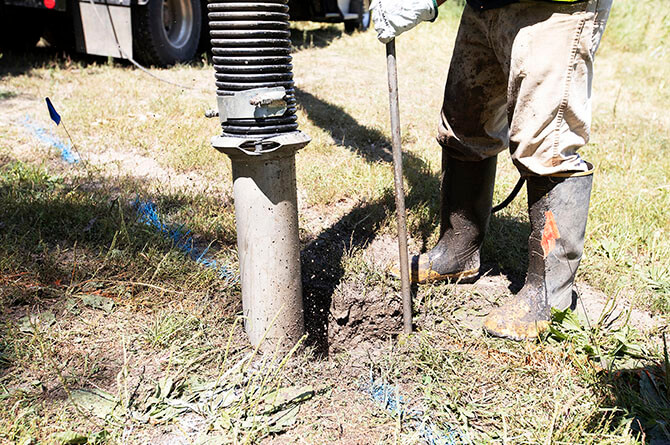

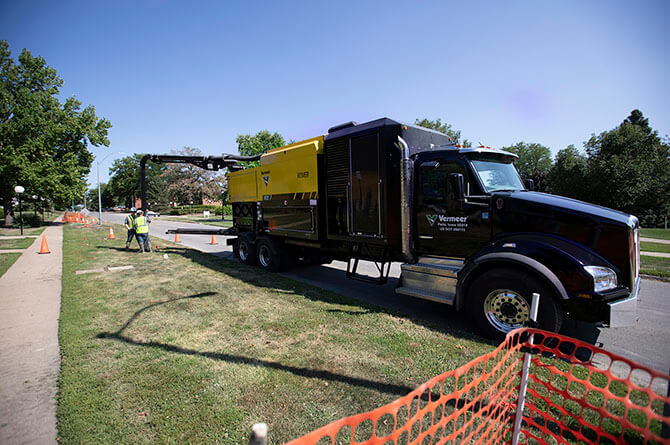

The XR2 vacuum excavator is the industry’s first vacuum excavator equipped with a shaker deck that separates liquids and solids to allow contractors to stay on the jobsite longer, work efficiently and reduce disposal expenses. Material excavated with the XR2 is fed through an onboard deceleration tank that exits through an airlock onto a shaker deck where solids and liquids are then separated. The solid material is moved by conveyor toward the rear of the machine where it is discharged and can be carried away or left on the jobsite, depending on the material. Used, slurry water is pumped into the fluid storage tanks for disposal. The design of the XR2 can help expand the use of vacuum excavation for everything from utility potholing and stitch boring to slot trenching and general construction, equipping you to do more.

The Vermeer XR2 is not just a hydro-excavator, it's an on-site recycling system.

The XR2 vacuum excavator is the industry’s first vacuum excavator equipped with a shaker deck that separates liquids and solids to allow contractors to stay on the jobsite longer, work efficiently and reduce disposal expenses. Material excavated with the XR2 is fed through an onboard deceleration tank that exits through an airlock onto a shaker deck where solids and liquids are then separated. The solid material is moved by conveyor toward the rear of the machine where it is discharged and can be carried away or left on the jobsite, depending on the material. Used, slurry water is pumped into the fluid storage tanks for disposal. The design of the XR2 can help expand the use of vacuum excavation for everything from utility potholing and stitch boring to slot trenching and general construction, equipping you to do more.

Find A Dealer Request More Info

Features & Benefits

Save space and time

This machine boasts 1500 gal (5678.1 L) of freshwater storage throughout four 500 gal (1892.7 L) tanks that hold both fresh water and slurry. As the freshwater tanks empty, they begin to fill with slurry – never wasting valuable space on the machine.

Maintain suction

The airlock rotates continuously, discharging solids and liquids while maintaining vacuum within the system.

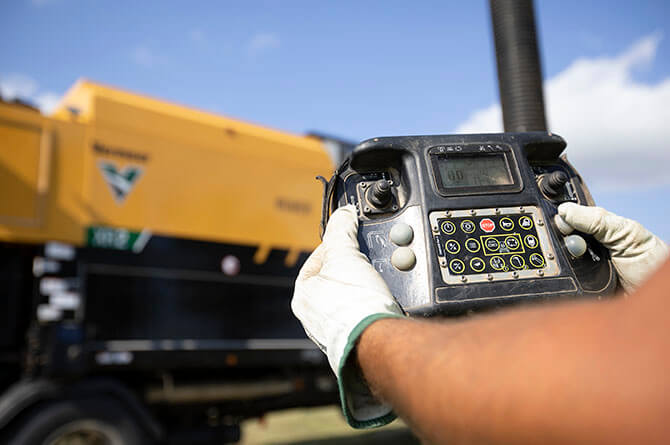

Remote control

Features a full-function remote control, allowing one-person operation of the boom, vac, conveyer, separation and dig pump.

Drive confidently

The effective weight distribution across a heavy-duty front axle and rear tandem drive axles allows you to drive confidently with a return weight under 54,000 lb (24,494 kg) when at the recommended full capacity of 10.5 ppg (1.26 sg) of slurry.

Keep on running

A hydraulic PTO helps keep you running and saves time because you do not need to shift power back and forth to the vac and truck.

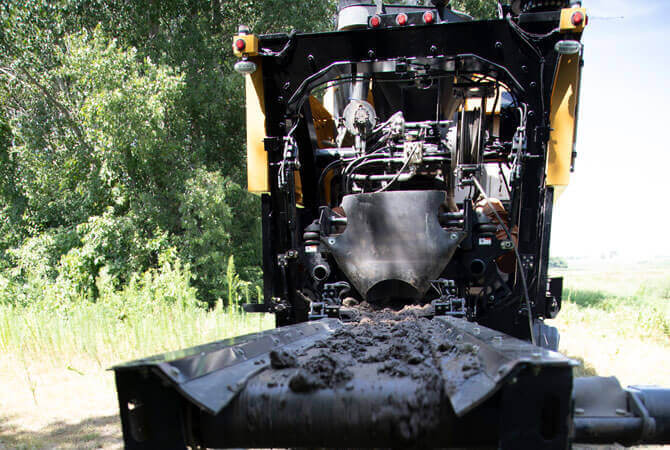

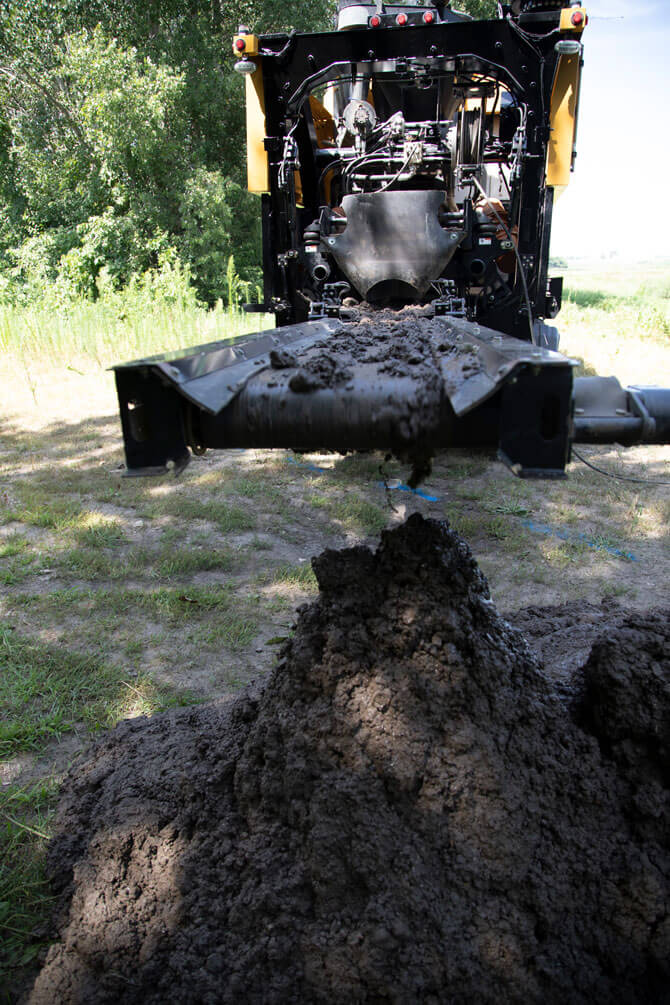

Convey your material

Place solids separated from slurry where you want it with a convenient built-in conveyor belt that rotates 180-degrees and discharges 14 ft (4.3 m) out and up to 80” (203.2 cm).

Specifications

Compare Models
Show Metric
  • Dimensions and Weights

    • Overall Length 432 in 1097.3 cm
    • Truck Width 102 in 259.1 cm
    • Body Width 98 in 248.9 cm
    • Overall Height 150 in 381 cm
    • Wheel Base 282 in 716.3 cm
    • Tandem Axle Spread 54 in 137.2 cm
    • Cab to Tandem Axle 214 in 543.6 cm
    • Gross Vehicle Weight Rating (GVWR) 60000 lbs 27215.5 kg
    • Gross Axle Weight Rating - Steering Axle 20000 lbs 9071.8 kg
    • Gross Axle Weight Rating - Tandem Axle 40000 lbs 18143.7 kg
    • Curb Weight 39000 lbs 17690.1 kg
    • Maximum Recommended Loaded Weight 54000 lbs 24494 kg
  • Truck

    • Model Kenworth T880
    • Engine Paccar MX13
    • Engine Power 455 hp 339.3 kw
    • Transmission 4500 RDS Allison Transmission
    • Drivetrain PTO, Chelsea 870
  • Tank Capacities

    • Number of Tanks 4
    • Tank Capacity - Each 500 gal 1892.7 L
    • Maximum Water Capacity 1500 gal 5678.1 L
    • Maximum Slurry Capacity 1300 gal at 10.5 ppg (1.36 SG)
  • Full Hydraulic Boom - Standard

    • Maximum Reach 252 in 640.1 cm
    • Horizontal Travel 84 in 213.4 cm
    • Rotation 260 deg
    • Vertical Travel at Maximum Reach 120 in 304.8 cm
  • Full Hydraulic Conveyor - Standard

    • Maximum Reach 168 in 426.7 cm
    • Rotation 180 deg
    • Maximum Discharge Height 80 in 203.2 cm
    • Belt Width 18 in 45.7 cm
  • Water System

    • Maximum Flow 10 gpm 37.9 L/min
    • Maximum Pressure 3000 psi 206.8 bar
    • Pressure Adjustment Electronic
    • Strainer 100
    • Low Water Shutoff Electronic
    • Hose Reel Type Spring Retract
    • Water Hose Length 75 ft 22.9 m
  • Vacuum

    • Maximum Vacuum CFM 3400 cfm 96.3 cmm
    • Maximum Vacuum 18 inHg (609.5 Mbar)
    • Hose Diameter 6 in 15.2 cm
    • Number of Cyclones 6
    • Type of Filters 2 micron washable poly
    • Blower Silencer Standard
    • Reverse Pressure Standard
    • Maximum Reverse Pressure 5 psi .3 bar
  • Cleaning System

    • Number of Shakers 1 - Double deck
    • Shaker Bed Opening Width 1 in 2.5 cm
    • Shaker Bed Area 19.3 sq-ft (1.8 sq-m)
  • Controls

    • Control Panel Electronic display with 7" screen
    • Wireless Remote Dual joystick wireless remote
    • PTO Activation Hydraulic
  • Options

    • Cold Weather Enclosure Yes
    • In-tank Heaters 104,000 BTU (109,725,809 Joules) glycol heater and heat exchangers
    • Dig Pump Water Heater 420,000 BTU (443,123,458 Joules) diesel fired broiler
