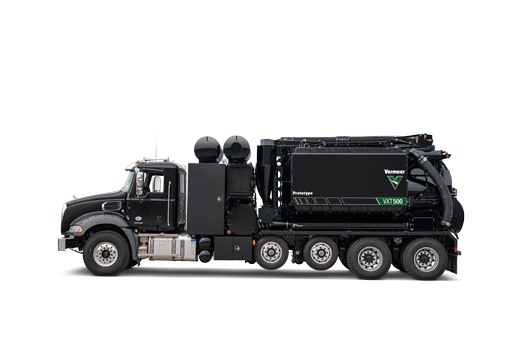

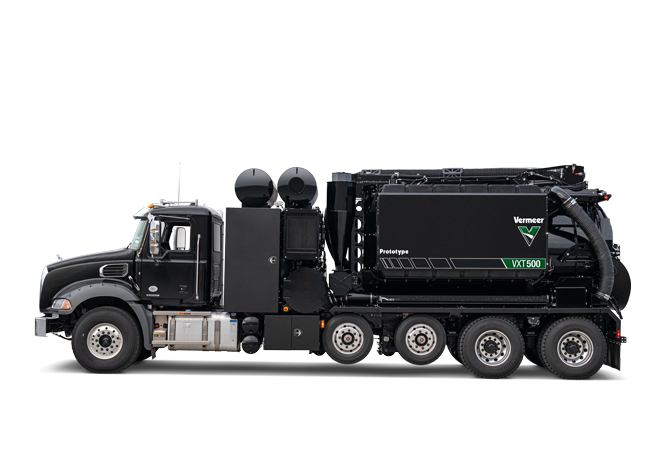

The VXT500 vacuum truck has 8 yd3 (6.1 m3) of debris capacity and 850 gal (3,217.6 L) of fresh water capacity.

Find A Dealer Request More Info

The truck's engine, through an OMSI soft-start transmission, powers a 4,800-cfm (135.9-m3/min) blower and 27-in Hg (685.8-mm Hg) vacuum. The onboard water system has a flow of 11.5 gpm (43.5 L/min) and water pressure capacity of 3,000 psi (20,684 kPa). The 74,000-lb (34,000-kg) GVWR-rated axle configuration allows for maximum utilization of the 8-yd (7.3-m) spoil tank.

The VXT500 vacuum truck has 8 yd3 (6.1 m3) of debris capacity and 850 gal (3,217.6 L) of fresh water capacity.

The truck's engine, through an OMSI soft-start transmission, powers a 4,800-cfm (135.9-m3/min) blower and 27-in Hg (685.8-mm Hg) vacuum. The onboard water system has a flow of 11.5 gpm (43.5 L/min) and water pressure capacity of 3,000 psi (20,684 kPa). The 74,000-lb (34,000-kg) GVWR-rated axle configuration allows for maximum utilization of the 8-yd (7.3-m) spoil tank.

Find A Dealer Request More Info

Features & Benefits

Tsunami ultralight boom

This 8-in (20.3-cm) boom is constructed out of strenx performance steel, making it lighter than a traditional unit.

Jurop Helix 1,500 vacuum pump

The PD blower is driven by the OMSI transfer case with blower soft-start engagement and operates with a suction power of 4,800 cfm (135.9 m³/min) and is capable of up to 27 in Hg (685.8 mm Hg).

OMSI transmission

The OMSI 500-hp (373-kW) transmission includes a power clutch for blower engagement that reduces stress on transmission.

IFM electronics

Industry-leading IFM industrial controller that monitors the system's temperature, pressure and vacuum sensors. It also allows the operator to see the engine instruments, chassis instruments and the vac instruments on the belly pack.

Water system

The water system is a water pump that goes up to 11.5 gpm @ 3,000 psi (43.5 L/min @ 20,684 kPa).

Boiler

The boiler is an Easy Kleen 420K BTU diesel-fired boiler with coils rated at 5,000 psi (34,473 kPa).

Reverse pressure

Enables pressure discharge and transfer of fluid capabilities.

Specifications

Compare Models
  • Truck

    • Length 394 in (1001 cm)
    • Width 101.8 in (258 cm)
    • Empty weight 34000 lbs (15422 kg)
    • Height 134.5 in (342 cm)
    • Gross Vehicle Weight Rating (GVWR) 76000 lbs (26308 kg)
    • Truck model Kenworth T880
    • Engine PACCAR MX
    • Engine model MX11L 430 hp
    • Horsepower 430 hp (320.7 kW)
    • Transmission 6-speed Allison 4500 RDS with PTO option
  • Engine

    • Make and Model PACCAR MX-11
    • Horsepower 430 hp (320.7 kW)
    • Fuel tank capacity or type 135 gal (511 L)
  • Water tank

    • Water capacity 850 gal (3217.6 L)
    • Number of Tanks 1
    • High pressure pump flow rate 11.5 gpm (43.5 L/min)
    • High Pressure Pump 3000 psi (20,684 kPa)
    • High pressure hose length 75 ft (22.9 m)
    • Low Water Shutoff Electronic sensor indicators
  • Spoil Tank

    • Spoil tank capacity 8 cu-yd (6.1 cu-m)
    • Door type Full radius, half-moon rear door
    • Tank Lift Type 3-stage lift cycliner
  • Vacuum

    • Type of Filters Cyclonic filtration
    • Hose width/diameter 8 in 20.3 cm
    • Vacuum 4800 cfm (135.9 cubic m/min)
    • Vacuum blower type Jurop Helix 1500
    • Vacuum Mercury 27 in Hg (685.8 mm Hg)
  • Control panel

    • Gauges Digital on IFM processor 7-in screen
  • Boom

    • Reach 21 ft (6.4 m)
    • Hose diameter 8 in (20.3 cm)
    • Remote Control IFM wireless
  • Options

    • Hot box Easy Kleen - 420K BTU
    • Hydraulic centrifugal 4-in pump Optional
