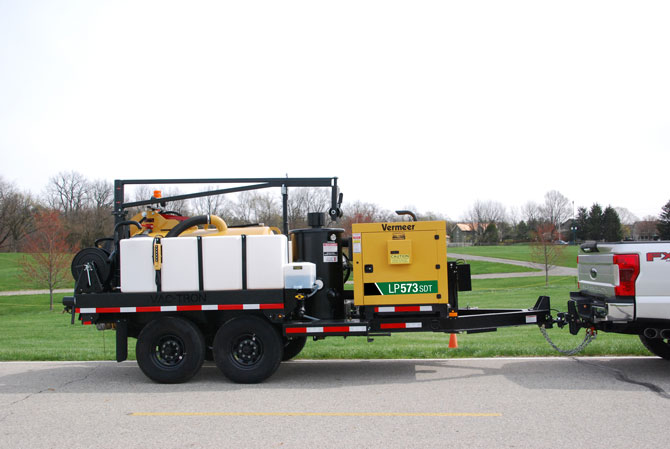

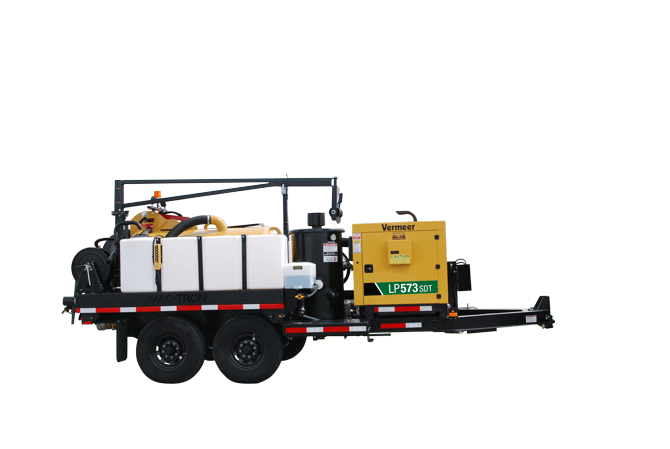

The LP SDT series provides power needed to excavate a variety of wet and dry materials efficiently.

Find A Dealer Request More Info
The LP SDT series includes a Yanmar 49-hp (36.5-kW) Tier 4 Final diesel engine with 1,000 cfm (1,699 m3/hr) vacuum blower for both wet and dry applications. Manufactured on a durable, low-profile trailer assembly, this series offers high performance at a great value.

The LP SDT series provides power needed to excavate a variety of wet and dry materials efficiently.

The LP SDT series includes a Yanmar 49-hp (36.5-kW) Tier 4 Final diesel engine with 1,000 cfm (1,699 m3/hr) vacuum blower for both wet and dry applications. Manufactured on a durable, low-profile trailer assembly, this series offers high performance at a great value. Find A Dealer Request More Info

Features & Benefits

Cyclone four-way valve silencer (CVS) filtration system

The CVS filter housing has a .5 micron filtration that contains the four-way valve for reverse pressure and an oversized silencer for quiet operation. The silencer is located inside the 28-in (71-cm) diameter cyclone.

I beam trailer

Units are built from start to finish at our factory, including the trailer which consists of a sturdy I beam construction.

Side hose and tooling storage (option)

The new side hose and tooling (SHT) package allows for 60 ft (18 m) of suction hose storage on a trailer-mounted unit. This option doubles the traditional 30-ft (9-m) hose storage.

Strong arm (option)

With 270-degree rotation, the strong arm supports the weight of the vacuum hose, and the roller head allows for ease of handling by allowing smooth, fluid movements and adjustments.

Hydraulic boom (option)

The hydraulic boom offers a full six-way function, wireless remote with vacuum valve operation, 330-degree rotation, remote water jet for ease of cleanout and a 5-in (12.7-cm) hose with quick connect to 4-in (10.2-cm) tooling.

FlowMaster (option)

The FlowMaster option can be used to hydraulically exercise water valves and hydrants, making sure they will work properly in times of need.

Specifications

Compare Models
Show Metric
  • Trailer

    • Compatibility 500-gal (1892.7-L) spoil tank option
    • Length 231 in (586.7 cm)
    • Width 92 in (234 cm)
    • Height 95 in (241 cm)
    • Empty weight 6700 lbs (3039 kg)
    • Gross Vehicle Weight Rating (GVWR) 9995 lbs (4534 kg)/12000 lbs (5443.1 kg)
    • Trailer axles (2) 7000 lbs (3175 kg)
    • Hitch Type Pintle
  • Trailer - Option two

    • Compatibility 800-gal (3028.3-L) spoil tank option
    • Length 268.8 in (682.8 cm)
    • Width 92 in (234 cm)
    • Height 95 in (241 cm)
    • Empty weight 7800 lbs (3538 kg)
    • Gross Vehicle Weight Rating (GVWR) 14000 lbs (6350 kg)
    • Trailer axles (2) 7000 lbs (3175 kg)
    • Hitch Type Pintle
  • Trailer - Option three

    • Compatibility 1200-gal (4542.5-L) spoil tank option
    • Length 265 in (673 cm)
    • Width 102 in (259 cm)
    • Height 122 in (309.9 cm)
    • Empty weight 9800 lbs (4445 kg)
    • Gross Vehicle Weight Rating (GVWR) 24000 lbs (10886.2 kg)
    • Trailer axles (2) 12000 lbs (5443.1 kg)
    • Hitch Type Pintle
  • Trailer - Option four

    • Compatibility 500-gal (1892.7-L) heavy spoil tank option
    • Length 231 in (586.7 cm)
    • Width 97 in (246 cm)
    • Height 95 in (241 cm)
    • Empty weight 6700 lbs (3039 kg)
    • Gross Vehicle Weight Rating (GVWR) 14000 lbs (6350 kg)
    • Trailer axles (2) 7000 lbs (3175 kg)
    • Hitch Type Pintle
  • Trailer - Option five

    • Compatibility 800-gal (3028.3-L) heavy spoil tank option
    • Length 268.8 in (682.8 cm)
    • Width 102 in (259 cm)
    • Height 95 in (241 cm)
    • Empty weight 8000 lbs (3629 kg)
    • Gross Vehicle Weight Rating (GVWR) 20000 lbs (9072 kg)
    • Trailer axles (2) 10000 lbs (4536 kg)
    • Hitch Type Pintle
  • Skid

    • Compatibility 800-gal (3028.3-L) heavy spoil tank option
    • Length 229 in (582 cm)
    • Width 99 in (252 cm)
    • Height 82 in (208 cm)
    • Empty weight 6400 lbs (2903 kg)
  • Engine

    • Make and Model Yanmar Diesel Tier 4 Final
    • Horsepower 49 hp (36.5 kW)
    • Fuel tank capacity or type 30 gal (114 L)
    • Enclosure Yes
  • Water tank

    • Compatibility 500-gal (1892.7-L) spoil tank option
    • Water capacity 200 gal (757 L)
    • Number of Tanks 2
    • High pressure pump flow rate 4 gpm (15.1 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 50 ft (15 m)
    • Low Water Shutoff Electric
  • Water tank - Option two

    • Compatibility 800-gal (3028.3-L) spoil tank option
    • Water capacity 200 gal (757 L)
    • Number of Tanks 2
    • High pressure pump flow rate 4 gpm (15.1 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 50 ft (15 m)
    • Low Water Shutoff Electric
  • Water tank - Option three

    • Compatibility 1200-gal (4542.5-L) spoil tank option
    • Water capacity 400 gal (1514 L)
    • Number of Tanks 2
    • High pressure pump flow rate 4 gpm (15.1 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 50 ft (15 m)
    • Low Water Shutoff Electric
  • Water tank - Option four

    • Compatibility 500-gal (1892.7-L) heavy spoil tank option
    • Water capacity 300 gal (1136 L)
    • Number of Tanks 2
    • High pressure pump flow rate 4 gpm (15.1 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 50 ft (15 m)
    • Low Water Shutoff Electric
  • Water tank - Option five

    • Compatibility 800-gal (3028.3-L) heavy spoil tank option
    • Water capacity 400 gal (1514 L)
    • Number of Tanks 2
    • High pressure pump flow rate 4 gpm (15.1 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 50 ft (15 m)
    • Low Water Shutoff Electric
  • Spoil Tank

    • Compatibility 500-gal (1892.7-L) spoil tank option
    • Spoil tank capacity 500 gal (1892.7 L)
    • Door type Hydraulic
    • Tank Lift Type Hydraulic
  • Spoil tank - Option two

    • Compatibility 800-gal (3028.3-L) spoil tank option
    • Spoil tank capacity 800 gal (3028.3 L)
    • Door type Hydraulic
    • Tank Lift Type Hydraulic
  • Spoil tank - Option three

    • Compatibility 1200-gal (4542.5-L) spoil tank option
    • Spoil tank capacity 1200-gal (4542.5-L)
    • Door type Hydraulic
    • Tank Lift Type Hydraulic
  • Spoil tank - Option four

    • Compatibility 500-gal (1892.7-L) heavy spoil tank option
    • Spoil tank capacity 500 gal (1892.7 L)
    • Door type Hydraulic
    • Tank Lift Type Hydraulic
  • Spoil tank - Option five

    • Compatibility 800-gal (3028.3-L) heavy spoil tank option
    • Spoil tank capacity 800 gal (3028.3 L)
    • Door type Hydraulic
    • Tank Lift Type Hydraulic
  • Vacuum

    • Type of Filters Cartridge filter 0.5 microns
    • Hose length 30 ft (9 m)
    • Hose width/diameter 4 in 10.2 cm
    • Vacuum 1000 cfm (28 cubic m/min)
    • Vacuum blower type PD blower
    • Vacuum Mercury 16 inHg (0.6 bar)
  • Control panel

    • Controls Curbside
    • Gauges Analog and digital
  • Boom

    • Availability Optional
    • Weight 400 lbs (181 kg)
    • Reach 15 ft (4.6 m)
    • Movement 300 deg
    • Remote Control Wireless
  • Options

    • Hot box Optional
    • Strong arm Optional
    • Side hose and tooling storage (SHT package) Optional
    • Recirculation kit Optional
    • Flowmaster Optional - not available on non-heavy models
    • Hydraulic jack Optional
    • Reverse Pressure Standard

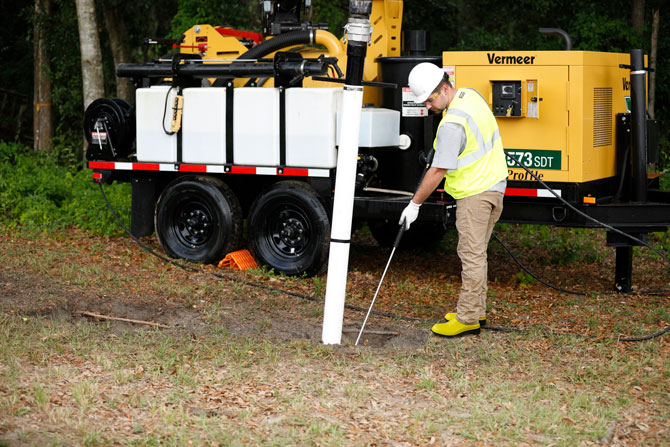

See it in action
